Summary of Contents for Denon AVC-X6800H
- Page 1 AVC-X6800H INTEGRATED NETWORK AV AMPLIFIER Quick Start Guide...
- Page 2 This manual describes the procedure up until starting the Setup Assistant. Please do not return this unit to the store – call for assistance. If you need help… : If you need additional help in solving problems, contact Denon customer service in your area. www.denon.com...
-
Page 3: Before You Begin
Before you begin Required for setup Optional Speaker cables LAN cable HDMI® cable Subwoofer cable Wi-Fi® router Speakers • When connecting this unit to a device that is compatible with the Deep Color, 4K, ARC and eARC functions, use a “High Speed HDMI cable with Ethernet”... -
Page 4: What's In The Box

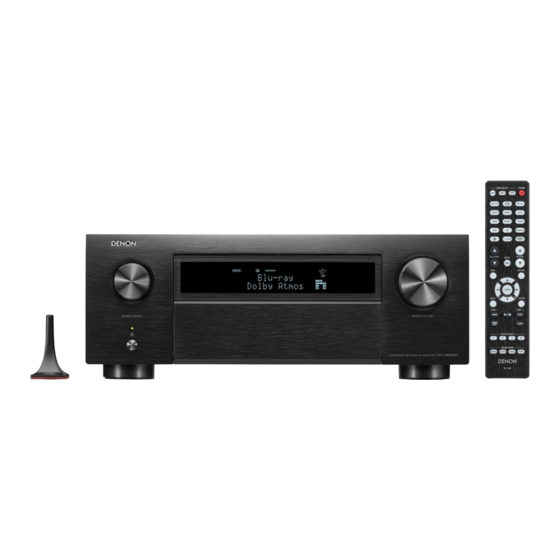

What’s in the box Sound calibration Quick Start Guide Cable labels microphone stand Remote control Safety instructions (RC-1256) Cautions on using Power cord 2× R03/AAA batteries batteries External antennas Sound calibration Notes on radio for Bluetooth®/Wi-Fi microphone connectivity • The included sound calibration microphone stand is convenient for performing speaker calibration. Using your own tripod or the supplied Sound calibration microphone stand enables settings to be automatically configured to the optimum listening environment, providing exceptionally high performance. - Page 5 Attach the included cable labels The supplied cable labels include labels for the speaker and HDMI cables. Attach a cable label to each cable that matches the speakers and HDMI devices being connected, as shown below. This makes it easy to identify and properly connect the cables between your components.
-
Page 6: Connect The Antennas
Setup Connect the antennas Optional 1) Place the antenna evenly over the antenna terminal If you are connecting the AVR to a wired network, connect an located at the upper left or right corner of the rear Ethernet cable (not included) between the AVR and your router. panel. -
Page 7: Connect The Power Cord
Connect the power cord Place the AVR near your TV and connect the power cord. Power cord... - Page 8 Connect the AVR to your TV Using a high quality HDMI cable*, connect one end to the HDMI port labeled “eARC” or “ARC” on your TV. Connect the other HDMI IN end to the HDMI OUT TV 1 port on your AVR. (ARC/eARC) What is ARC and eARC? Audio Return Channel or “ARC”...
-
Page 9: Turn On The Tv
Select the appropriate HDMI Turn on the TV input on your TV HDMI INPUT VIDEO TV remote control TV remote control... - Page 10 Install batteries in the AVR Turn on the AVR remote control Press X on the remote control. • Batteries can be taken out in reversed order.
- Page 11 • In case the unit was already setup back in time the Setup Assistant won't start automatically and you only see the Denon logo on screen. In such case you can access the Setup Assistant by pressing SETUP on the remote control and...
-
Page 12: Firmware Update
Firmware update If you see this screen after completing Setup Assistant, select Update Now to make sure your new AVR is up to date with the latest firmware and features. The following features are available for your AVR. Estimated time to install: Update Later Update Now... - Page 13 AVR. HEOS app Denon AVR Remote The HEOS app allows you to explore, browse, and play music Control your new AVR with the latest Denon AVR Remote app. from many online streaming services or from your own music library.
- Page 14 Owner’s manual Refer to the online manual for other functions, information and operation procedure details. manuals.denon.com/AVCX6800H/EU/EN/ Online manual For more information, visit www.denon.com...
-
Page 15: Trademark Information
Trademark information The Bluetooth® word mark and logos are registered trademarks owned by The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade the Bluetooth SIG, Inc. and any use of such marks by DEI Sales, Inc. is under dress and the HDMI Logos are trademarks or registered trademarks of HDMI license. - Page 16 Printed in Japan 5411 12079 00AS © 2023 DEI Sales, Inc. All Rights Reserved.
