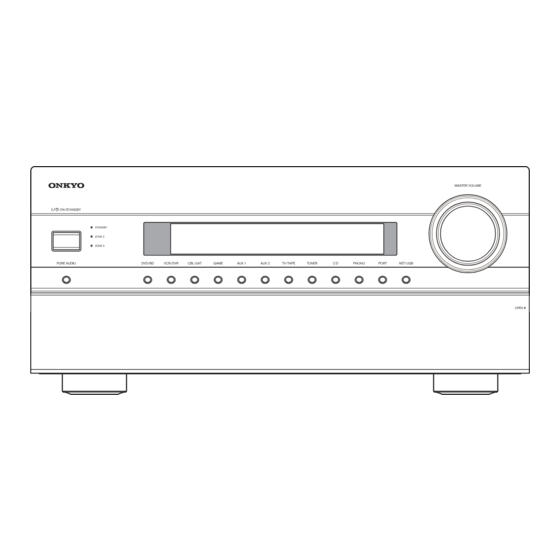

Onkyo TX-NR3007B Service Manual
  1. Manuals
  2. Brands
  3. Onkyo Manuals
  4. Stereo Receiver
  5. TX-NR3007B
  6. Service manual
Onkyo TX-NR3007B Service Manual

Onkyo TX-NR3007B Service Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
SERVICE MANUAL
SERVICE MANUAL
AV RECEIVER
TX-NR3007(B)/(S)
MODEL
Black and Silver models
B MDC
120V AC, 60Hz
B MMP, S MMP
220-240V AC, 50/60Hz
B MMO
220-240V AC, 50/60Hz
SAFETY-RELATED COMPONENT
WARNING!!
COMPONENTS IDENTIFIED BY MARK
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.
MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
Ref. No. 4169
ON THE
TX-NR3007
082009
RC-747M

Advertisement

loading

Related Manuals for Onkyo TX-NR3007B

Summary of Contents for Onkyo TX-NR3007B

  • Page 1 COMPONENTS IDENTIFIED BY MARK ON THE SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK. REPLACE THESE COMPONENTS WITH ONKYO PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL. MAKE LEAKAGE-CURRENT OR RESISTANCE...
  • Page 2 TX-NR3007 SERVICE PROCEDURE-1 1. Replacing the fuses This symbol located near the fuse indicates that the fuse used is show operating type, For continued protection against fire hazard, replace with same type fuse, For fuse rating, refer to the marking adjacent to the symbol. Ce symbole indique que le fusible utilise est e lent.
  • Page 3 TX-NR3007 SERVICE PROCEDURE-2 5. To check version of Microprocessor, DSP and Video FW(Firmware) 1. Press and hold down DISPLAY button, then press ON/STANDBY button when the unit is power on. The main microprocessor version will be displayed on Front Display for about 3 seconds. [e.g.] M a i n : 1 .2 2 /0 9 Z 1 1 A H...
  • Page 4 TX-NR3007 SERVICE PROCEDURE-3 6. Replacing Power Amplifier Parts When a power amplifier of certain channel is broken and goes into Protect mode, the following parts in the channel must be replaced at the sametime, because these parts get damage in most cases. <Note>...
  • Page 5 TX-NR3007 EXPLODED VIEWS-1 A557 U007 x 3 pcs. A553 A279 U0046 MDC type : x 1 pcs. MMP, MMO type : x 10 pcs. A215 A251 A551 L=10mm A183 A287 x 23 pcs. A289 F2005 P4104 F2001 A291 U0040 A193 U0031 A293 F2004...
  • Page 6 TX-NR3007 EXPLODED VIEWS-2 A297 A031 A009 x 2 pcs. x 4 pcs. x 10 pcs. A247 A117 T901 Q6062 x 4 pcs. A296 Q6066 A033 A295 Q6064 x 2 pcs. Q6068 U0014 Q6061 A029 A119 A009 x 2 pcs. U0020 x 8 pcs.
  • Page 7 TX-NR3007 EXPLODED VIEWS-3 A215 L=110mm P8641 P3101 P7501 U0058 U0050 U0101 A321 U0054 A319 x 16 pcs. A319 A363 x 2 pcs. x 3 pcs. U0057 A301 A215 U0053 L=30mm A315 A365 x 2 pcs. A309 A343 U0051 x 2 pcs. A215 A341 A311...
  • Page 8 TX-NR1007/3007/5007/NA1007/5007,DTR-70.1/80.1, DHC-80.1, PR-SC5507 BLOCK DIAGRAMS-1 / PART-1 AUDIO SECTION PHONES AUDIO MUTING XM-RADIO For only DD,DC TUNER DHC-** only PACK 9CH POWER AMPLIFIER NJU7312A XM/DT IC except SA*** 3-3-2 x2 CS3318 for US MAIN L SPEAKER TERMINALS EXCEPT DHC-80.1/PR-SC5507 DAC FL SIRIUS MIX L AMUTE...
  • Page 9 TX-NR3007/5007/NA5007,DTR-70.1/80.1, DHC-80.1, PR-SC5507 BLOCK DIAGRAMS-3 / PART-3 VIDEO SECTION Scanning Line TX-NA1007/5007 ONLY Progressive/Interlace TC4052BF Aspect Ratio Scanning Line Progressive/Interlace ANALOG Q8801 Q8001 VIDEO TC74ALVCH162841 ADV7342 ADV7800 BUS FUFFER VIDEO ENCODER (PY/PB/PR, CV, SY/SC) VIDEO DECODER ANALOG VIDEO MAIN MPU Scanning Line TC4052BF MAIN MPU...
  • Page 10 TX-NR1007/3007/5007/NA1007/5007, DTR-70.1/80.1, DHC-80.1/PR-SC5507 BLOCK DIAGRAMS-4 / PART-4 USB FS RJ-45 Reserved USB HS HOST DSP/ETHER/USB/NET SECTION Reserved HiSideSw SDR SDRAM(x16bit) EtherMAC HiSideSw from HDMI block EMIFB x32DataBus NAND Controles NANDFlash EMFB_A[1:2] EMIFA EMFA_D[0:7] Reserved 256Mbit Level Convert DSDSLRSEL UART2 RS-232C for Linux SerialConsole UART2 24.576MHz...
  • Page 11 TX-NR1007/3007/5007/NA1007/5007, DTR-70.1/80.1, DHC-80.1, PR-SC5507 BLOCK DIAGRAMS-5 / PART-5 DIGITAL AUDIO CLOCK SECTION 12.288MHz 11.2896MHz AXR0[10]/AXR1[3] DSP3(***) AXR0[11]/AXR1[2] PCMF2 PCMF3 PCM_SL/SBL4 // PCMF4 AXR0[10]/AXR1[3] AXR0[0] AXR0[11]/AXR1[2] AXR0[0] AXR0[11]/AXR1[2] AXR0[0] PCMSUR2 PCMSUR3 PCM_FL/LHLW4 AXR0[11]/AXR1[2] AXR0[1] AXR0[12]/AXR1[1] AXR0[1] AXR0[12]/AXR1[1] AXR0[1] PCMCSW2 PCMCSW3 PCM_C4 AXR0[12]/AXR1[1] AXR0[2] AXR0[13]/AXR1[0]...
  • Page 12 TX-NR1007/3007/5007/NA1007/5007, DTR-70.1/80.1, DHC-80.1, PR-SC5507 SCHEMATIC DIAGRAMS-1 / PART-6 AMP1 (VOLTAGE AMP) SECTION BACLA-0226 IDLING CURRENT ADJUSTMENT U008 AMPLIFIER PC BOARD 1. Wait for 4 - 6 minutes after power on. (Heat running) 2. Re-adjust the trimming resistors according to the following values. Adjustment point Measured value Re-adjustment value...
  • Page 13 TX-NR1007/3007/5007/NA1007/5007, DTR-70.1/80.1, DHC-80.1, PR-SC5507 SCHEMATIC DIAGRAMS-2 / PART-7 AMP2 (FINAL STAGE) SECTION BAAMP-0191 BAAMP-0192 U0020 AMPLIFIER PC BOARD U0021 AMPLIFIER PC BOARD TO BAAMP-0192 PART-7 : I2 P6350A TO BAAMP-0192 PART-7 : J2 P6340A +60V +60V +B1R +B1L L6001 L6000 R6081 R6080 IPRO...
  • Page 14 TX-NR1007/3007/5007/NA1007/5007, DTR-70.1/80.1 SCHEMATIC DIAGRAMS-3 / PART-8 AMP3 (POWER SUPPLY, PROTECT ,ETC.) SECTION BAAF-0180 U0010 POWER SUPPLY PC BOARD inputC GND_inputC GND_NFC 2SC1740S-S Q6002 P5022B P5032B U0014 THERMAL SENS PC BOARD inputSR GND_inputSR BCETC-0184 GND_NFSR Q6380 LM61CIZ 2SC1740S-S Q6004 P5024B P5034B inputRH GND_inputRH GND_NFRH...
  • Page 15 TX-NR1007/3007/5007/NA1007/5007, DTR-70.1/80.1, DHC-80.1, PR-SC5507 SCHEMATIC DIAGRAMS-4 / PART-9 TO BAAF-0242 TO BAVD-0203 DHC*** ANALOG AUDIO SECTION 1 PART-40 : E2 PART-12 : H1 JL4001A JL2104A BAASP-0202(1/3) BAAF-0211 -13VSEL U0043 PHONO AMP. PC BOARD U0030 ANALOG AUDIO PC BOARD R4303 Subwoofer R4304 80Hz -12dB/oct R4037...
  • Page 16 TX-NR1007/3007/5007/NA1007/5007,DTR-70.1/80.1/PR-SC5507.DHC-80.1 SCHEMATIC DIAGRAMS-5 / PART-10 ANALOG AUDIO SECTION 2 TO BAAF-0204 TO BACPU-0209 TO BACPU-0209 TO BARF-0204 PART-14 : A4 PART-18 : G4 PART-18 : I4 PART-14 : A4 NSCT-11P2191 P107B P7009A P7010A P104B BAASP-0202(2/3) U0030 ANALOG AUDIO PC BOARD FR_OUT SBR_OUT RH_OUT...
  • Page 17 TX-NR1007/3007/5007/NA1007/5007, DTR-70.1/80.1, DHC-80.1, PR-SC5507 SCHEMATIC DIAGRAMS-6 / PART-11 ANALOG AUDIO SECTION 3 BAACC-0212-1 U0044 BUFFER AMPLIFIER PC BOARD R4522 22(1/2W) C4500 NE5532 47/50 47/50 Q4500A C4502 47/50 Q4500B C4503 47/50 NE5532 C4501 R4523 22(1/2W) C4504 NE5532 47/50 47/50 Q4501A C4506 47/50 Q4501B C4507...
  • Page 18 TX-NR1007/3007/5007/NA1007/5007, DTR-70.1/80.1, DHC-80.1, PR-SC5507 SCHEMATIC DIAGRAMS-7 / PART-12 ANALOG VIDEO SECTION TO HDMI TO D Terminal PWB TO MICON PWB TO ASP PWB TO TRM PWB TO RF PWB TO Primary PS PWB TO BAVD-0205 TO BAHDM-0132 / 0157 TO BAHDM-0132 / 0157 TO BATRM-0214 TO BAPS-0217 PART-13 : A2...
  • Page 19 TX-NR1007/3007/5007/1007/5007,DTR-70.1/80.1/PR-SC5507,DHC-80.1 SCHEMATIC DIAGRAMS-9 / PART-14 SIRIUS, ANALOG TUNER SECTION BADG-0208(3/9) BARF-0204 U0045 SIRIUS, ANALOG TUNER PC BOARD 3PLLVSWSCL 3PLLVSWSCL 3PLLVSELSDA 3PLLVSELSDA FRONT SIDE STEREO STEREO +9VTU MAX=110mA +9VTU -15V- PREF TU_L_OUT 10/50(UTSP) PLYPSVSW TUNER_GND 10/50(UTSP) PRESW TU_L TU_R_OUT PRESR TUNER_GND PREC DET_OUT PRESB...
  • Page 20 TX-NR1007/3007/5007/1007/5007, DTR-70.1/80.1, DHC-80.1, PR-SC5507 SCHEMATIC DIAGRAMS-11 / PART-16 DG AUDIO IN SECTION BADG-0208(8/9) TO BAHDM-0132/0157 PART-29 : A1 JL3889A NSCT-5P896 BAETC-0246 2.5mm pich U0046 DG AUDIO IN PC BOARD SEL_SPDIF GNDDAC +5VDG L3884 P3886 R3914 C3886 COAX1 LBC2518T2R2M LBC2518T470M 232RXD 104K C3888 100/16...
  • Page 21 TX-NR1007/3007/5007/NA1007/5007, DTR-70.1/80.1, DHC-80.1 , PR-SC5507 SCHEMATIC DIAGRAMS-12 / PART-17 CODEC, DAC AND VLSC SECTION BADG-0208-1 U0040 CODEC, DAC AND VLSC PC BOARD VLSC on VLSC off VLSC on VLSC off R1220-29,R1450-51 C1230-39 331J 221J +OP6 +OP3 R1240-49,R1430-31 C1440-41 R1390 R1393 R1280-89,R1500-01 C1240-49 331J...
  • Page 22 TX-NR1007/3007/5007/NA1007/5007, DTR-70.1/80.1, DHC-80.1, PR-SC5507 SCHEMATIC DIAGRAMS-13 / PART-18 MAIN MICROPROCESSOR SECTION TO BAETC-0246 TO_BAHDM-0132/0157 TO DEBUGER TO FLASH WRITER PART-16 : H2 PART-29 : E1 BADG-0208(2/9) NSCT-9P2472 IMSA-9618S-09A P3885A P7002 P7003B IMSA-9142S-18A P3608B NPLG-11P0966 BACPU-0209 U0041 MAIN CPU PC BOARD 2.2K R7001 105Z...
  • Page 23 TX-NR1007/3007/5007/NA1007/5007, PR-SC5507 SCHEMATIC DIAGRAMS-14 / PART-19 DISPLAY SECTION BADIS-0135(1/3) BADIS-0135 U0050 DISPLAY PC BOARD FLAC1 TO BCPS0140 PART-20 : C2 NSCT-5P876 FLAC2 JL9303A J9303 Q7500 HNA-16SL04T Q7500A FL HOLDER +3.3VMPU U0052 PHONE JACK PC BOARD GNDVD BAETC-0137 AUX2CV_IN JL4103 P7580 -15VA TX:5J550606H(P2.5X5 L=55) 807,1007,3007:MSJ-064-05A SR...
  • Page 24 TX-NR1007/3007/5007/NA1007/5007, PR-SC5507 SCHEMATIC DIAGRAMS-15 / PART-20 DG POWER SUPPLY SECTION BADIS-0135(2/3) BAPS-0140 U0055 DG POWER SUPPLY PC BOARD NSCT-7P99 F9301 JL9501B D9303 3.15A 125A D10XB60H GNDDAC GNDDAC +5.9V +5.9V GNDDG GNDDG +9VDG C9302 (EH) P9301A 10000/16(VR) NPLG-6P120 DSP_AC1 D9350 R9310 DSP_AC2 27(1W) -VP_AC1...
  • Page 25 TX-NR1007/3007/5007/NA1007/5007, DTR-70.1/80.1 SCHEMATIC DIAGRAMS-18 / PART-23 POWER SUPPLY AND SPEAKER TERMINAL SECTION BATRM-0214(1/2) U0065 BAETC-0219 NPLG-3P117 P9422B ANALOG AUDIO POWER SUPPLY PC BOARD (EH) BATRM-0214 U0060 Q9427 2SB1565-E R9429 POWER SUPPLY AND SPEAKER TERMINAL PC BOARD BLUE Q9429 BLUE R9430 (or 2SA1488-Y) 2SB1565-E BLUE...
  • Page 26 TX-NR1007/3007/5007/NA1007/5007, DTR-70.1/80.1 SCHEMATIC DIAGRAMS-19 / PART-24 PRIMARY POWER SUPPLY (AMP) SECTION BADIS-0135(3/3) BASW-0143 U00510 POWER SWITCH PC BOARD EXCEPT DC, PR S9000 P9008B S9000 Except DC NPS-111-L590P NPLG-2P631 NPS-111-L590P DC, PR P9008B NPLG-2P631 (VH) (VH) P9008:NSAS-6P1675 (VH) Except DC,PR BATRM-0214(2/2) BAPS-0218 BAPS-0217 P9008A...
  • Page 27 TX-NR1007/3007/5007/1007/5007, DTR-70.1/80.1, DHC-80.1, PR-SC5507 SCHEMATIC DIAGRAMS-21 / PART-26 NET / USB / ZONE2 SECTION BAHDM-0132/0157 (1/8) SPI0 & control signals U007 to 2nd DSP HDMI PC BOARD from HDMI Block from DIR Block VDD_MPU3.3V C3202 105Z VDD_CSW3.3 TC74VHC157FT Q3202 DIG/NETUSB R3233 +3.3V SELECT...
  • Page 28 TX-NR1007/3007/5007/1007/5007, DTR-70.1/80.1, DHC-80.1, PR-SC5507 SCHEMATIC DIAGRAMS-22 / PART-27 NET / USB / POWER SECTION BAHDM-0132/0157 (2/8) for Debugging Boot Opt. NAND UART1 SPI0 R3115 or R3116 BOOT2 BOOT7 +5VHD U007 BOOT1 R3111 or R3112 BOOT5 TPD2E001DRLR BOOT0 HDMI PC BOARD R3109 or R3110 BOOT6 BOOT3...
  • Page 29 TX-NR1007/3007/5007/1007/5007, DTR-70.1/80.1, DHC-80.1, PR-SC5507 SCHEMATIC DIAGRAMS-23 / PART-28 DSP MEMORY SECTION BAHDM-0132/0157 (3/8) U007 HDMI PC BOARD GND_ARM VDD_MPU3.3V GND_ARM PA_12 MB_A12 +3.3V C3001 105Z R3009 L3001 PBA_0 MB_BA0 BLM18PG121SN1D PA_0 MB_A0 GND_ARM PA_1 MB_A1 C3002 105Z VDD_NAND3.3V C3003 106K/6.3 33x4 R3010 MB_A0...
  • Page 30 TX-NR1007/3007/5007/NA1007/5007,DTR-70.1/80.1, DHC-80.1, PR-SC5507 SCHEMATIC DIAGRAMS-24 / PART-29 DSP CONNECTOR SECTION BAHDM-0132/0157 (4/8) U007 HDMI PC BOARD TO_BAETC-0246 TO_BADG-0208 TO_BADG-0208 TO_BADG-0208 TO_BACPU-0209 PART-16 : E2 PART-17 : A6 PART-17 : A7 PART-17 : A8 PART-18 : D1 NSCT-5P97 IMSA-9142B-18A IMSA-9142B-8A IMSA-9142B-16A JL3889B IMSA-9142B-18A P3608A...
  • Page 31 TX-NR1007/3007/5007/NA1007/5007, DTR-70.1/80.1, DHC-80.1, PR-SC5507 SCHEMATIC DIAGRAMS-25 / PART-30 2ND DSP SECTION BAHDM-0132/0157 (5/8) U007 HDMI PC BOARD SPI0 & control signals GND_ARM High from1stDSP R3411 2.2K R3410 EM2_A14 EM2_A15 to 2nd DSP R3416 EM2_A13 +3.3V BYTE EM2_A12 EM2_A11 EM2_D15 Q15/A-1 +1.2V EM2_A10 EM2_D7...
  • Page 32 TX-NR1007/3007/5007/NA1007/5007, DTR-70.1/80.1, DHC-80.1, PR-SC5507 SCHEMATIC DIAGRAMS-26 / PART-31 3RD DSP SECTION BAHDM-0132/0157 (6/8) U007 HDMI PC BOARD SPI0 & control signals GND_ARM High from 2nd DSP R3511 2.2K R3510 EM3_A14 EM3_A15 R3516 from 3rd DSP EM3_A13 +3.3V BYTE EM3_A12 EM3_A11 EM3_D15 Q15/A-1 +1.2V...
  • Page 33 TX-NR1007/3007/5007/NA1007/5007, DTR-70.1/80.1, DHC-80.1, PR-SC5507 SCHEMATIC DIAGRAMS-27 / PART-32 HDMI IN/OUT SECTION BAHDM-0132/0157 (7/8) U007 HDMI PC BOARD TX_SCL TX_SDA TX_INT TX_RST TX2_INT GNDHD 3.3V TX2_RST +3.3VHD1 INPSEL Q205 HPLG_DET TC74VHC157FT SN74CB3Q3305PWR HPLG2_DET L251 INPSEL R268 +3.3VHD1 C8632 SELECT RX_CLK PCMLRCK_DR0_A BLM18PG181SN1 R269 0ohm...
  • Page 34 TX-NR1007/3007/5007/NA1007/5007, DTR-80.1/80.1, DHC-80.1, PR-SC5507 SCHEMATIC DIAGRAMS-28 / PART-33 HDMI IN / ENCORDER / POWER SUPPLY SECTION BAHDM-0132/0157 (8/8) U007 HDMI PC BOARD +3.3VHD1 VPOWER +5VHD VSW_SDET TX_SCL VSW_VDET Q8802 TRINO or ADV7800 PART +3.3VEN TX_SDA Q8804 VSW_CDET BH18FB1WG NC_TA48033BF 122mA ANALOG INPUT TX_INT VSW_SDA...
  • Page 35 TX-NR3007/5007/NA5007, DTR-70.1/80.1, DHC-80.1, PR-SC5507 SCHEMATIC DIAGRAMS-31 / PART-36 REON (VX-50) SECTION BAHDM-0157 U007 HDMI PC BOARD REON VIDEO SIGNAL I/O REON FLASH MEMORY I/O REON POWER SUPPLY NO CONNECTION TO PART25 SYNC SIGAL OUTPUT TO PART22 PCI_AD[31:0] TO PART25 SYNC SIGNAL INPUT VSS1 VSS64 VICLK1...
  • Page 36 TX-NR3007/5007/NA5007, DTR-70.1/80.1, DHC-80.1, PR-SC5507 SCHEMATIC DIAGRAMS-32 / PART-37 REON (VX-50) MEMORY SECTION BAHDM-0157 U007 HDMI PC BOARD MAD[13:0] DQS0 MCLK MDQS0 MCLK DQS1 /CLK /MCLK 47x4 MDQS1 MCLK DQS2 CLKE R8123 MCLKE RN8063 MDQS2 MCLKE DQS3 MAD3 MDQS3 RN8037 33X4 MDQ0 DQS4 /RAS...
  • Page 37 TX-NR3007/5007/NA5007, DTR-70.1/80.1, DHC-80.1, PR-SC5507 SCHEMATIC DIAGRAMS-33 / PART-38 VIDEO DECODER / SW SECTION BAHDM-0157 U007 HDMI PC BOARD C8102 C8104 L8006 105K 823K LBC2518T2R2M X8001 P8003C cn11 L8005 NC_NSCT-9P2472 28.6363MHz LBC2518T2R2M R8102 ADINCV 103K C8050 A_HS ANALOG VIDEO 104Z C8049 ADINSY VGASDA AGND...
  • Page 38 TX-NR3007/5007/NA5007, DTR-70.1/80.1, DHC-80.1, PR-SC5507 SCHEMATIC DIAGRAMS-36 / PART-41 FRONT HDMI / USB SECTION BAHDM-0291 U0101 FRONT HDMI / USB PC BOARD R8870 HP DET R8869 102K DSDA_FTI C8876 DDC DATA DSCL_FTI DDC CLK C8875 105Z CERemote XCN_FTI C8880 CK Shield XCP_FTI 106K/6.3 L8861...
  • Page 39 TX-NR1007/3007/5007/NA1007/5007, DTR-70.1/80.1, DHC-80.1, PR-SC5507 SCHEMATIC DIAGRAM-37 (PART-42) WAVEFORM SECTION Video Waveform Part Digital Audio Waveform Part Video source color and pattern Composite waveform S-Video Y waveform S-Video C waveform WF21 SD-7:B7 WF22 SD-7:B7 WF23 SD-7:B7 NOTE: LR CLOCK (SAI_LRCK, CX_LRCK) WF01 is short for Waveform01 .
  • Page 40 TX-NR1007/3007/5007/NA1007/5007,DTR-70.1/80.1 PRINTED CIRCUIT BOARD VIEWS-01 / U001 U0010 POWER SUPPLY PC BOARD (BAAF-0180) Component side view from soldering side P5001A P5034B P5000A P5037B P5033B P5038B P5035B P5030B P5036B P6140D P5032B P6140F P6240D P5031B P6140E P6140B P6240B P6240A P6140A P6240G P6140G P5002A P6240F P6240C...
  • Page 41 TX-NR1007/3007/5007/NA1007/5007,DTR-70.1/80.1 PRINTED CIRCUIT BOARD VIEWS-02 / U001 U0010 POWER SUPPLY PC BOARD (BAAF-0180) Soldering side view from component side P5001A P5033B P5037B P5000A P5034B P5035B P5038B P5030B P6240D P6140D P5036B P6140E P5031B P6140F P5032B P6140B P6140A P6240B P6240A P6140G P6240G P5002A P6140C P6240C...
  • Page 42 TX-NR1007/3007/5007/NA1007/5007,DTR-70.1/80.1 PRINTED CIRCUIT BOARD VIEWS-03 / U002 U0020 U0021 AMPLIFIER PC BOARD (C,SR,RH,SBR,R) (BAAMP-0191) AMPLIFIER PC BOARD (L,SBL,LH,SL) (BAAMP-0192) Component side view from soldering side Component side view from soldering side P6072 J6052 P6073 P6071 P6078 P6074 P6076 P6075 P6077 P6070 BCAMP-0191 J6045...
  • Page 43 TX-NR1007/3007/5007/NA1007/5007,DTR-70.1/80.1, DHC-80.1, PR-SC5507 PRINTED CIRCUIT BOARD VIEWS-04 / U003 U0030 ANALOG AUDIO PC BOARD (BAASP-0202) Component side view from soldering side P4100 P5001B P5000B JL4014B BCASP-0202 R4351 JL4103A C4343 R4341 R4343 R4349 R4325 25140202C R4356 R4353 R4350 R4326 R4347 C4305 C4341 R4323 R4357...
  • Page 44 TX-NR1007/3007/5007/NA1007/5007,DTR-70.1/80.1, DHC-80.1, PR-SC5507 PRINTED CIRCUIT BOARD VIEWS-05 / U003 U0030 ANALOG AUDIO PC BOARD (BAASP-0202) Soldering side view from component side R4563 R4383 C4381 GND_TU TUNE_L R4404 R4406 GND_TU MIX-L TUNE_R GND_TU R4408 SIRIUS_R D4403 1.SIRIUS_L MIX-R LPF-OUT R4387 R4386 R4407 Z2SW Z3SW...
  • Page 45 TX-NR1007/3007/5007/NA1007/5007,DTR-70.1/80.1, DHC-80.1, PR-SC5507 PRINTED CIRCUIT BOARD VIEWS-06 / U003 U0031 ANALOG VIDEO PC BOARD (BAVD-0203) Component side view from soldering side JL2601B TO HDMI BCVD-0203 TO HDMI TRGB POFF2_HDM TO TRM 25140203 GNDVD TRGC +12VDG P2901 C2006 L2000 MM_SDA POFF MM_SCL +SUB E2000...
  • Page 46 TX-NR1007/3007/5007/NA1007/5007,DTR-70.1/80.1, DHC-80.1, PR-SC5507 PRINTED CIRCUIT BOARD VIEWS-07 / U003 U0030 ANALOG VIDEO PC BOARD (BAVD-0203) Soldering side view from component side TRGB POFF2_HDM GNDVD +12VTRG +12VDG TRGC POFF GNDTU MM_SDA +SUB MM_SCL GNDVD MM_RST VIN_AUX2 UART_RX +9VTU +3.3VST UART_TX IRIN œ...
  • Page 47 TX-NR1007/3007/5007/NA1007/5007,DTR-70.1/80.1, DHC-80.1, PR-SC5507 PRINTED CIRCUIT BOARD VIEWS-08 / U004 U0040 CODEC, DAC PC BOARD (BADG-0208) Component side view from soldering side Soldering side view from component side GND TCKTDOTDI TMS L3710 R3771 BCDG-0208 R3725 L3712 R3724 R3891 R3774 R3723 P1010 R3770 R3721 25140208D...
  • Page 48 TX-NR1007/3007/5007/NA1007/5007,DTR-70.1/80.1, DHC-80.1, PR-SC5507 PRINTED CIRCUIT BOARD VIEWS-09 / U004 U0041 U0042 MAIN CPU PC BOARD (BACPU-0209) ZONE-2 & ZONE-3 CIRCUIT PC BOARD (BAAR-0210) Component side view from soldering side Soldering side view from component side Component side view from soldering side INT3 INT2 INT1...
  • Page 49 TX-NR1007/3007/5007/NA1007/5007,DTR-70.1/80.1, DHC-80.1, PR-SC5507 PRINTED CIRCUIT BOARD VIEWS-10 / U004 U0045 SIRIUS PC BOARD (BARF-0204) U0043 PHONO AMP. PC BOARD (BAAF-0211) Component side view from soldering side Soldering side view from component side Component side view from soldering side PHONO EQ R4008 Q4004 R4007...
  • Page 50 TX-NR1007/3007/5007/NA1007/5007,DTR-70.1/80.1 PRINTED CIRCUIT BOARD VIEWS-11 / U005 U0050 DISPLAY PC BOARD P7591A P7501B C7506 JL9303A BCDIS-0135 (BADIS-0135) 25140135C J7642 Component side view LEDSTBY GNDDG LEDZ2 LEDZ3 from soldering side LEDZ4 LEDPURE KEY0 REMIN REMO_IN LED_REMO FLD1CS FLD2CS Q7500 FLDRST GNDDG DIGCLK DIGSDO GNDDG...
  • Page 51 TX-NR1007/3007/5007/NA1007/5007,DTR-70.1/80.1 PRINTED CIRCUIT BOARD VIEWS-12 / U005 U0050 DISPLAY PC BOARD (BADIS-0135) FLAC1 œ C7507 C7508 FLAC2 C7509 +3.3VMPU LEDSTBY Soldering side view C7510 GNDDG from component side LEDZ3 LEDZ2 LEDZ4 LEDPURE KEY0 REMIN REMO_IN LREMO FLD1CS FLD2CS GNDDG FLDRST DIGSDO DIGCLK GNDDG...
  • Page 52 TX-NR1007/3007/5007/NA1007/5007,DTR-70.1/80.1 PRINTED CIRCUIT BOARD VIEWS-13 / U005 U0055 FUSE PC BOARD (BAPS-0140) Component side view from soldering side BCPS-0140 25140140 œ FLAC1 C9305 FLAC2 C9304 +3.3VMPU L9350 FLAC2 N.C. Q9301 FLAC1 -VP_AC1 -VP_AC1 F9301 DSP_AC2 œ œ 3.15A/125V DSP_AC1 +9VDG GNDDG GNDDG J7645...
  • Page 53 TX-NR1007/3007/5007/NA1007/5007,DTR-70.1/80.1 PRINTED CIRCUIT BOARD VIEWS-14 / U006 U0060 POWER SUPPLY & SPEAKER TERMINAL PC BOARD (BATRM-0214) Component side view from soldering side F9401A F9402A J6887 Q9423 GNDTU P9422B SPRLC 25140214C SPRLF SPRLSPB BCTRM-0214 SPRLSR R9427 J6890 SPRLSB R9428 R6822 C6872 J6886 SPRLFW P9422C...
  • Page 54 TX-NR1007/3007/5007/NA1007/5007,DTR-70.1/80.1 PRINTED CIRCUIT BOARD VIEWS-15 / U006 U0060 POWER SUPPLY & SPEAKER TERMINAL PC BOARD (BATRM-0214) Soldering side view from component side J6887 F9402A F9401A Q9423 GNDTU P9422B SPRLC SPRLF 25140214C SPRLSPB SPRLSR BCTRM-0214 R9427 J6890 SPRLSB C6872 R6822 R9428 SPRLFW J6886 P9422C...
  • Page 55 TX-NR1007/3007/5007/NA1007/5007,DTR-70.1/80.1 PRINTED CIRCUIT BOARD VIEWS-16 / U006 U0061 SPEAKER TERMINAL (SR/RH) PC BOARD (BATRM-0215) Component side view from soldering side Soldering side view from component side P6808 P6808 JL6901A JL6901A D6848 D6848 C6838 C6838 J6915 J6915 C6901 C6901 C6900 C6900 J6924 J6924 C6903...
  • Page 56 TX-NR3007/5007//5007,DTR-70.1/80.1, DHC-80.1, PR-SC5507 PRINTED CIRCUIT BOARD VIEWS-17 / U007, U010 U007 HDMI PC BOARD (BAHDM-0157) Component side view from soldering side RN8062 RN8072 DAC OUT AD IN C8840 C8839 C8838 R3603 RN8067 RN8063 P8008 C8057 C8111 C8103 R3116 RN8015 RN8019 R3510 RN8066 C8215...
  • Page 57 TX-NR3007/5007//5007,DTR-70.1/80.1, DHC-80.1, PR-SC5507 PRINTED CIRCUIT BOARD VIEWS-18 / U007, U010 U007 HDMI PC BOARD (BAHDM-0157) Soldering side view from component side C8084 C8083 C3507 C3509 R8099 R8097 C8086 R8095 C3523 C3506 C3556 C8085 R8126 C8081 C3508 R8264 C8082 RN8068 R8100 R8098 R8096 C3462...
  • Page 58 TX-NR1007/3007/5007/NA1007/5007,DTR-70.1/80.1 PRINTED CIRCUIT BOARD VIEWS-19 / U008 U0080~U0088 AMPLIFIER PC BOARD (BACLA-0226~0234) Component side view from soldering side BIAS BIAS BIAS BIAS R6040 R6047 R6043 R6045 R6283 R6287 R6280 R6113 R6285 R6110 R6117 R6115 Q6043 Q6040 C6007 C6003 Q6045 C6005 C6000 R5243 R5245...
  • Page 59 TX-NR1007/3007/5007/NA1007/5007,DTR-70.1/80.1 PRINTED CIRCUIT BOARD VIEWS-20 / U008 U0080~U0088 AMPLIFIER PC BOARD (BACLA-0226~0234) Soldering side view from component side BIAS BIAS BIAS BIAS R6040 R6045 R6043 R6047 R6283 R6280 R6285 R6287 R6110 R6115 R6113 R6117 Q6040 C6003 Q6043 C6000 C6005 Q6045 C6007 R5240 R5245...
  • Page 60 TX-NR3007 PACKING PROCEDURE-1 MDC type Procedure of door section 1. Open the Door. A808 A832 A840 A882 2. Cushion (A616) on Front panel and fixed with the Fixlon tape (A615). A833 A852 A847 A891 A616 A615 A892 A837 A820 A853 L=50mm A616 A615...
  • Page 61 TX-NR3007 PACKING PROCEDURE-2 Procedure of door section MMP, MMO type 1. Open the Door. 2. Cushion (A616) on Front panel and fixed with A808 the Fixlon tape (A615). A829 A837 A853 A852 A830 A839 A891 A616 A813 A615 L=50mm A892 A841 A616 A832...
  • Page 62 1/219 PAGE TX-NR3007 <Note> Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. NOTE : THE COMPONENTS IDENTIFIED BY THE MARK ! ARE CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK. REPLACE ONLY WITH PART NUMBER SPECIFIED.
  • Page 63 2/219 PAGE Q6061A ISO SHEET ISO SHEET(NR5007_5CH) 223051 EXPLODED Q6062 TTA0002(Q)TO3PL 2204140 EXPLODED Q6063 TTA0002(Q)TO3PL 2204140 EXPLODED Q6064 TTA0002(Q)TO3PL 2204140 EXPLODED Q6065 TTA0002(Q)TO3PL 2204140 EXPLODED Q6066 TTA0002(Q)TO3PL 2204140 EXPLODED Q6067 TTA0002(Q)TO3PL 2204140 EXPLODED Q6068 TTA0002(Q)TO3PL 2204140 EXPLODED Q9427 2SB1565-E 2202715 EXPLODED Q9427or 2SA1488-Y...
  • Page 64 3/219 PAGE F6604 FUSE 20A-UL-250V 252304GR EXPLODED F9100 FUSE 12A-UL-ST6 252340GR !, <MDC> EXPLODED F9100 FUSE 6.3A-SE-EAK FUSE 252079GR !, <MMO, MMP> EXPLODED F9100 or FUSE 6.3A-SE-TL250V ( 1) 252279GR !, <MMO, MMP> EXPLODED F9301 FUSE 3.15A-UL/T-233 252323GR EXPLODED F9301 or FUSE 3.15A-T/UL-ST2 ( 1) 252256GR...
  • Page 65 4/219 PAGE A025 HOLDER (CLUMP) UA-0 27190432 EXPLODED A027 HOLDER WS-4NS 27191207 EXPLODED A029 RETAINER (HS-R) 27142153A EXPLODED A031 SCREW 3TTB+8B(3CM)SR 801637 EXPLODED A033 HOLDER 27190432 (CLUMP) UA-0 EXPLODED A037 SCREW 3TTB+8B(3CM)SR 801637 EXPLODED A039 SCREW 3TTB+8B(3CM)SR 801637 EXPLODED A041 HEAT SINK(S) 27160608 EXPLODED...
  • Page 66 5/219 PAGE A126 SCREW 3TTB+8B(3CM)SR 801637 EXPLODED t10 x 10 x 100 A127 CUSHION 28141746 EXPLODED A131 HEAT SINK (SP) 27160643 EXPLODED t0.5 x w30 x d10 A133 SPACER 27270495 EXPLODED t0.5 x w13 x d5 A135 SPACER 27270514 EXPLODED A137 SCREW 3TTB+8B(3CM)SR...
  • Page 67 6/219 PAGE A197 SCREW 3TTB+8B(3BC) 838430088GR EXPLODED A199 SCREW 3TTB+8B(3BC) 838430088GR EXPLODED A200 SCREW 4TTC+8C(3BC) 830440089GR EXPLODED A203 SCREW 3TTB+8B(3CM)SR 801637 EXPLODED A205 SCREW 3TTB+8B(3CM)SR 801637 EXPLODED A215 TAPE (CLOTH-8U) 29110082 EXPLODED (t19.5 x 20 x 10) A221 CUSHION 28141826 EXPLODED A223 CUSHION...
  • Page 68 7/219 PAGE A307 FACET (VOL) 28200040A EXPLODED A309 SCREW 3TTB+8B(3CM)SR 801637 EXPLODED W15 x 3t TAPE A313 IB CUSHION 28141585 EXPLODED A315 KNOB (SEL) 28326725A N (S) EXPLODED A317 GUIDE (SEL)B 27268229 N (B) EXPLODED A317 GUIDE (SEL)S 27268230 N (S) EXPLODED A319 SCREW...
  • Page 69 838240089 EXPLODED A555 SCREW 4TTB+8C(3BC) 838440089GR EXPLODED A557 SCREW 3TTB+8B(3BC) 838430088GR EXPLODED A561 LABEL HOOKUP-ONKYO 29363194 <MDC> EXPLODED A694 CUSHION (FNP) t25x15x10 28141828 EXPLODED [TUNER UNIT] EXPLODED U001 U0010 + U0011 + U0012 + U0013 + U0014 BAAF-0180-1A * 1B234580-1A...
  • Page 70 9/219 PAGE U003 U0030 + U0031 BAASP-0202-1D * 1B234502-1D EXPLODED U0030 ANALOG AUDIO PC board ass'y BAASP-0202-1D 1B2345202-1D EXPLODED U0031 ANALOG VIDEO PC board ass'y BAVD-0203-1D 1B2345203-1D EXPLODED U004 U0040 + U0041 + U0041 + U0043 + U0044 BADG-0208-1A * 1B234508-1A N <MDC>...
  • Page 71 10/219 PAGE U0051 LED PC board ass'y BASW-0136-1B 1B2345136-1B N <MDC> EXPLODED U0051 LED PC board ass'y BASW-0136-1D 1B2345136-1D N <MMP> EXPLODED U0051 LED PC board ass'y BASW-0136-1D 1B2345136-1D N <MMO> EXPLODED U0052 PHONE JACK PC board ass'y BAETC-0137-1B N NSP, <MDC> EXPLODED U0052 PHONE JACK PC board ass'y...
  • Page 72 11/219 PAGE U0060 BATRM-0214-1E 1B2345214-1E N <MMO> POWER SUPPLY & SPEAKER TERMINAL PC board ass'y EXPLODED U0061 SPEAKER TERMINAL (RH,SR) PC board ass'y BATRM-0215-1D 1B2345215-1D N <MDC> EXPLODED U0061 BATRM-0215-1E 1B2345215-1E N <MMP> SPEAKER TERMINAL (RH,SR) PC board ass'y EXPLODED U0061 SPEAKER TERMINAL (RH,SR) PC board ass'y BATRM-0215-1E...
  • Page 73 12/219 PAGE PC BOARD PARTS LIST U0010 POWER SUPPLY PC BOARD (BAAF-0180-1A) PCB-U001 U0011 DIODE PC BOARD (BAPS-0181-1A) PCB-U001 U0012 RELAY PC BOARD (BAPS-0182-1A) PCB-U001 U0013 THERMAL SENSOR BOARD (BAETC-0183-1A) PCB-U001 U0014 THERMAL SENSOR PC BOARD (BAETC-0184-1A) PCB-U001 PCB-U001 CIRCUIT. N PART NAME DESCRIPTION Q'TY PART NO.
  • Page 74 13/219 PAGE Q6380A RETAINER (PTH) 27141884-1 PCB-U001 Q6381 LM61CIZ 22242212 PCB-U001 Q6381A RETAINER (PTH) 27141884-1 PCB-U001 Q6550 2SC1815-GR 2211255T PCB-U001 Q6551 2SA950-O 2211503T PCB-U001 Q6551 or TR 2SA950-Y ( 1) 2211504T PCB-U001 Q6560 2SC1815-GR 2211255T PCB-U001 Q6561 2SA950-O 2211503T PCB-U001 Q6561 or TR 2SA950-Y ( 1) 2211504T...
  • Page 75 14/219 PAGE C6703 TF C ECQ-V50V-223J 374722234T PCB-U001 C6704 UTSP C CE04W50V-1M(UTSP) 397580107T PCB-U001 C6706 UTSP C CE04W50V-10M(UTSP) 397581007T PCB-U001 C6713 TF C ECQ-V50V-223J 374722234T PCB-U001 C6714 UTSP C CE04W50V-1M(UTSP) 397580107T PCB-U001 C6901 ELECT C CE69W75V-18000M 3504437A PCB-U001 C6902 ELECT C CE69W75V-18000M 3504437A PCB-U001...
  • Page 76 15/219 PAGE R6712 CARBON R R16J-10K 417341034T PCB-U001 R6714 CARBON R R16J-33K 417343334T PCB-U001 R6716 CARBON R R16J-22K 417342234T PCB-U001 [SW TRM] PCB-U001 F6601A FUSE HOLDER SN5051 250113 PCB-U001 F6601B FUSE HOLDER SN5051 250113 PCB-U001 F6602A FUSE HOLDER SN5051 250113 PCB-U001 F6602B FUSE HOLDER...
  • Page 77 16/219 PAGE P5015B PLUG NPLG-3P0958 25056008 PCB-U001 P5016B PLUG NPLG-3P0958 25056008 PCB-U001 P5017B PLUG NPLG-3P0958 25056008 PCB-U001 P5018B PLUG NPLG-3P0958 25056008 PCB-U001 P5020B NTM-1P232(M1700) 25060301 PCB-U001 P5021B NTM-1P232(M1700) 25060301 PCB-U001 P5022B NTM-1P232(M1700) 25060301 PCB-U001 P5023B NTM-1P232(M1700) 25060301 PCB-U001 P5024B NTM-1P232(M1700) 25060301 PCB-U001 P5025B...
  • Page 78 17/219 PAGE P6603B RETAINER MET37-0002 27142009T PCB-U001 P7210A SOCKET AS NSAS-22P1792 2009991158UL PCB-U001 RL6601 RELAY G2RL-1A-E-DC12V-423 25060496 PCB-U001 RL6602 RELAY G2RL-1A-E-DC12V-423 25060496 PCB-U001 RL6611 RELAY G2RL-1A-E-DC12V-423 25060496 PCB-U001 RL6612 RELAY G2RL-1A-E-DC12V-423 25060496 PCB-U001 [TUNER UNIT] PCB-U001 P6202 HOLDER HOLDER(CLAMP) 27190540-1 PCB-U001 P6400 RETAINER...
  • Page 79 18/219 PAGE Q6073 or TR 2SC2631-S ( 1) 2214985T PCB-U002 Q6074 2SC2631-R 2214984T PCB-U002 Q6074 or TR 2SC2631-S ( 1) 2214985T PCB-U002 Q6075 2SC2631-R 2214984T PCB-U002 Q6075 or TR 2SC2631-S ( 1) 2214985T PCB-U002 Q6076 2SC2631-R 2214984T PCB-U002 Q6076 or TR 2SC2631-S ( 1) 2214985T PCB-U002...
  • Page 80 19/219 PAGE C6042 TF C ECQ-V50V-223J 374722234T PCB-U002 C6043 TF C ECQ-V50V-223J 374722234T PCB-U002 C6044 TF C ECQ-V50V-223J 374722234T PCB-U002 C6045 TF C ECQ-V50V-223J 374722234T PCB-U002 C6046 TF C ECQ-V50V-223J 374722234T PCB-U002 C6047 TF C ECQ-V50V-223J 374722234T PCB-U002 C6048 TF C ECQ-V50V-223J 374722234T PCB-U002...
  • Page 81 20/219 PAGE R6177 CARBON R R16J-33K 417343334T PCB-U002 R6178 CARBON R R16J-33K 417343334T PCB-U002 R6180 CARBON R R16J-56K 417345634T PCB-U002 R6181 CARBON R R16J-56K 417345634T PCB-U002 R6182 CARBON R R16J-56K 417345634T PCB-U002 R6183 CARBON R R16J-56K 417345634T PCB-U002 R6184 CARBON R R16J-56K 417345634T PCB-U002...
  • Page 82 21/219 PAGE R6234 CARBON R R16J-47K 417344734T PCB-U002 R6235 CARBON R R16J-47K 417344734T PCB-U002 R6236 CARBON R R16J-47K 417344734T PCB-U002 R6237 CARBON R R16J-47K 417344734T PCB-U002 R6238 CARBON R R16J-47K 417344734T PCB-U002 R6400 METAL PR MPR2W+2WK 0R47 4000253 PCB-U002 R6401 METAL PR MPR2W+2WK 0R47 4000253...
  • Page 83 22/219 PAGE P6034A PLUG IMSA-9115B-05 25056335 PCB-U002 P6035A PLUG IMSA-9115B-05 25056335 PCB-U002 P6036A PLUG IMSA-9115B-05 25056335 PCB-U002 P6037A PLUG IMSA-9115B-05 25056335 PCB-U002 P6038A PLUG IMSA-9115B-05 25056335 PCB-U002 P6050 PLUG IMSA-9201B-1-06Z388-PT1 25056614 PCB-U002 P6051 PLUG IMSA-9201B-1-06Z388-PT1 25056614 PCB-U002 P6052 PLUG IMSA-9201B-1-06Z388-PT1 25056614 PCB-U002 P6053...
  • Page 84 23/219 PAGE P6250 SOCKET AS NSAS-5P1791 2009991157AUL PCB-U002 P6340A PLUG NPLG-2P149 25055165 PCB-U002 P6350A PLUG NPLG-2P149 25055165 PCB-U002 [TUNER UNIT] PCB-U002 P6340B RETAINER (AMP-4) 27142144 PCB-U002 P6340C RETAINER (AMP-4) 27142144 PCB-U002 P6350B RETAINER (AMP-5) 27142145 PCB-U002 P6350C RETAINER (AMP-5) 27142145 PCB-U002 U0030 ANALOG AUDIO PC BOARD (BAASP-0202-1D)
  • Page 85 24/219 PAGE D2010 or C-DIODE KDS4148U ( 1) 223283R2 PCB-U003 D2011 C-DIODE 1SS352 223234R2 PCB-U003 D2011 or C-DIODE 1SS355 ( 1) 223269R2 PCB-U003 D2011 or C-DIODE MA2J111 ( 1) 223279R2 PCB-U003 D2011 or C-DIODE KDS4148U ( 1) 223283R2 PCB-U003 D2012 DIODE RL1N4003 22380260T...
  • Page 86 25/219 PAGE D4007 or C-DIODE 1SS355 ( 1) 223269R2 PCB-U003 D4007 or C-DIODE MA2J111 ( 1) 223279R2 PCB-U003 D4007 or C-DIODE KDS4148U ( 1) 223283R2 PCB-U003 D4008 C-DIODE 1SS352 223234R2 PCB-U003 D4008 or C-DIODE 1SS355 ( 1) 223269R2 PCB-U003 D4008 or C-DIODE MA2J111 ( 1) 223279R2 PCB-U003...
  • Page 87 26/219 PAGE D4433 or C-DIODE KDS4148U ( 1) 223283R2 PCB-U003 D4434 C-DIODE 1SS352 223234R2 PCB-U003 D4434 or C-DIODE 1SS355 ( 1) 223269R2 PCB-U003 D4434 or C-DIODE MA2J111 ( 1) 223279R2 PCB-U003 D4434 or C-DIODE KDS4148U ( 1) 223283R2 PCB-U003 D4435 C-DIODE 1SS352 223234R2...
  • Page 88 27/219 PAGE Q2000 78M05(NJM78M05FA) 222780055JRC PCB-U003 Q2001 2SC3851-Y 2203384 PCB-U003 Q2001 or TR 2SD2394-E ( 1) 2202705 PCB-U003 Q2002 SI8008TM 22242323R2 PCB-U003 Q2003 KRC102S 2216190R2 PCB-U003 Q2003 or TR RN1402 ( 1) 2214470R2 PCB-U003 Q2004 2SC2712-GR 2213145R2 PCB-U003 Q2005 2SA1162-GR 2214375R2 PCB-U003 Q2006...
  • Page 89 28/219 PAGE Q4065 CS3318-CQZR 22242404R2 PCB-U003 Q4066 NJU7312AM 22242210R2 PCB-U003 Q4071 NE5532APSR 22242283R2 PCB-U003 Q4072 NJU7313AM 22242211R2 PCB-U003 Q4074 CS3318-CQZR 22242404R2 PCB-U003 Q4076 NE5532APSR 22242283R2 PCB-U003 Q4080 NJU7312AM 22242210R2 PCB-U003 Q4081 NE5532APSR 22242283R2 PCB-U003 Q4091 NE5532APSR 22242283R2 PCB-U003 Q4101 NE5532APSR 22242283R2 PCB-U003 Q4121...
  • Page 90 29/219 PAGE Q4422 RN1402 2214470R2 PCB-U003 Q4423 RN1402 2214470R2 PCB-U003 Q4424 RN1402 2214470R2 PCB-U003 Q4425 RN1402 2214470R2 PCB-U003 Q4441 NE5532APSR 22242283R2 PCB-U003 Q4442 2SC2235-Y(TPE6_F) 2211654T PCB-U003 Q4443 2SA965-Y(TPE6_F) 2211644T PCB-U003 Q4444 2SC2235-Y(TPE6_F) 2211654T PCB-U003 Q4445 2SA965-Y(TPE6_F) 2211644T PCB-U003 Q4446 RN1402 2214470R2 PCB-U003 Q4446 or TR...
  • Page 91 30/219 PAGE L2100 CHOKE COIL LBC2518T4R7M 231364M047R2 PCB-U003 L2101 CHOKE COIL LBC2518T4R7M 231364M047R2 PCB-U003 L2500 CHOKE COIL LBC2518T4R7M 231364M047R2 PCB-U003 L2501 CHOKE COIL BLM21PG221SN1 230949R2 PCB-U003 L2502 CHOKE COIL BLM21PG221SN1 230949R2 PCB-U003 L2504 CHOKE COIL BLM21PG221SN1 230949R2 PCB-U003 L2506 EMIFIL BK1608LM182-T 230958R1 PCB-U003...
  • Page 92 31/219 PAGE C2007 TF C ECQ-V50V-104J 374721044T PCB-U003 C2008 VR C CE04W50V-22M(VR) 394682207T PCB-U003 C2009 VR C CE04W16V-470M(VR) 394644717T PCB-U003 C2010 C-CERA C CK725F1E-104Z1 332161040R1 PCB-U003 C2012 TF C ECQ-V50V-104J 374721044T PCB-U003 C2013 VR C CE04W50V-22M(VR) 394682207T PCB-U003 C2014 VR C CE04W16V-100M(VR) 394641017T PCB-U003...
  • Page 93 32/219 PAGE C2161 C-CERA C CK725F1E-104Z1 332161040R1 PCB-U003 C2162 VR C CE04W35V-47M(VR) 394664707T PCB-U003 C2166 VR C CE04W35V-47M(VR) 394664707T PCB-U003 C2167 C-CERA C CK725F1E-104Z1 332161040R1 PCB-U003 C2169 C-CERA C CK725F1E-104Z1 332161040R1 PCB-U003 C2170 VR C CE04W50V-1M(VR) 394680107T PCB-U003 C2171 VR C CE04W50V-1M(VR) 394680107T PCB-U003...
  • Page 94 33/219 PAGE C2205 C-CERA C CK725F1A-105Z1 332181050R1 PCB-U003 C2207 C-CERA C CK725B0J-225K 332092255R1 PCB-U003 C2209 C-CERA C CK725B0J-225K 332092255R1 PCB-U003 C2211 C-CERA C CK725F1A-105Z1 332181050R1 PCB-U003 C2213 C-CERA C CK725B0J-225K 332092255R1 PCB-U003 C2215 C-CERA C CK725B0J-225K 332092255R1 PCB-U003 C2216 C-CERA C CK725B1H-102K1 332101025R1 PCB-U003...
  • Page 95 34/219 PAGE C2501 UTSP C CE04W50V-10M(UTSP) 397581007T PCB-U003 C2502 VR C CE04W35V-100M(VR) 394661017T PCB-U003 C2504 C-CERA C CC725CH1H-471J1 342104714R1 PCB-U003 C2505 VR C CE04W35V-100M(VR) 394661017T PCB-U003 C2506 C-CERA C CC725CH1H-471J1 342104714R1 PCB-U003 C2507 UTSP C CE04W50V-10M(UTSP) 397581007T PCB-U003 C2509 UTSP C CE04W50V-10M(UTSP) 397581007T NO USE from Mark K...
  • Page 96 35/219 PAGE C2536 UTSP C CE04W50V-10M(UTSP) 397581007T PCB-U003 C2537 C-CERA C CC725CH1H-101J1 342101014R1 PCB-U003 C2538 C-CERA C CC725CH1H-101J1 342101014R1 PCB-U003 C2539 C-CERA C CK725F1E-104Z1 332161040R1 PCB-U003 C2540 C-CERA C CC725CH1H-470J1 342104704R1 NO USE from Mark K PCB-U003 C2541 C-CERA C CC725CH1H-470J1 342104704R1 NO USE from Mark K...
