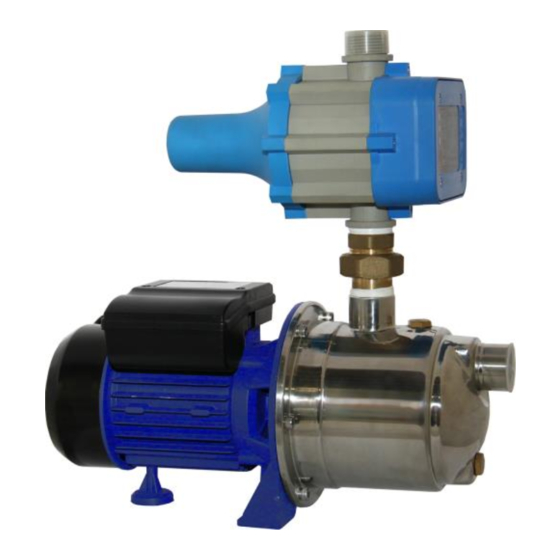

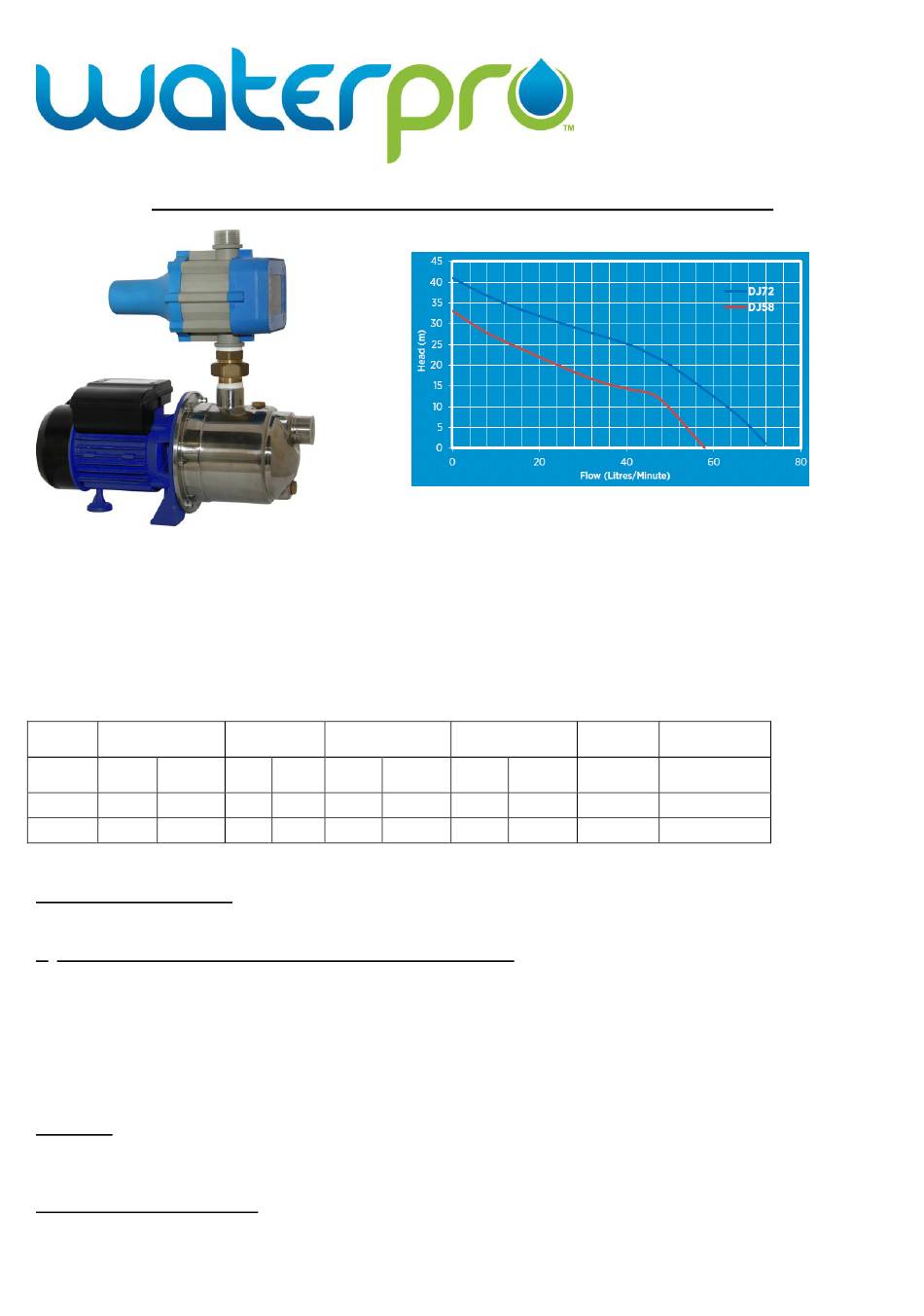

ASCENTO waterpro DJ Series Instruction Manual

INSTRUCTION MANUAL & WARRANTY – WaterPro DJ Series PUMPS
APPLICATION: This pump is fit for purpose when installed correctly according to these instructions;
For pumping of Clean Fresh Water at a temperature of +5°C to +40°C to: Garden Taps, Small House or Cabin (1 bathroom),
Pressure Boosting, Clean Water Transfer, suitable Rain-to-Mains Systems and for no other use. It must not be used in hazardous
locations or for liquids other than clean water, or in continuous running applications.
IMPORTANT: Ensure the pump is the right size for your application, before you install it. A pump that is under-sized is not faulty,
and is not covered by warranty. Ensure the right size piping is used, small pipes will reduce performance and will cause the pump
to use more power! See 7. In the instructions for further information.
MODEL POWER
AMPS WATTS
DJ58 2.5 370
DJ72 4.7 750
NOTES: Performance data quoted is generally from test data, and can vary, and does not take into account factors in the installation such as loss of pressure and flow due to pipework
& pipe-fittings & valves. Product depicted may differ from the product supplied, due to design changes or improvements. *Amps and Wattage vary according to the load on the motor. .

INSTALLATION GUIDELINES

Please read and follow the instructions. Warranty is voided if the instructions are not followed.
1. IMPORTANT MANDATORY REQUIREMENTS FOR ALL INSTALLATIONS: Before installing or servicing disconnect from the power
supply. All pumps must be installed using barrel-union connections to facilitate easy servicing or replacement. Ball-valves or gate-
valves must be fitted on the suction, and the discharge, and the Town-water backup supply where fitted. A Y-Strainer or Pre-filter
must be installed on the suction to prevent particles entering the pump. Remove all swarf from the tank after cutting openings etc –
swarf in the pump voids warranty. All instructions are conditions of warranty; all warranty is void if instructions are not followed.
It is recommended to install a Check-Valve in the discharge pipework, however DO NOT install the check valve directly on the
discharge of the Pressure Controller, as this may cause it to malfunction, install the Check-Valve further down the pipe, before the
first point of discharge.
2.POSITION Do not position the pump where it could take in solids or sludge. This pump is not to be used as your sole water supply.
For critical applications where loss of water supply could cause serious consequences, use a DUAL PUMP System so you have a
second water supply or use a TOWN-WATER BACK-UP SYSTEM. This pump is not designed for Fire Fighting purposes.
3.PROTECT FROM THE WEATHER: The pump must be protected from the weather, by way of a plastic pump cover or skillion roof
cover, or similar. However the installer must ensure that there is adequate ventilation so the pump does not overheat.
Page | 1
Ascento Group Australia 37 Export St, Lytton, Brisbane, QLD 4178 P: 1800807604
OUTLET RATED
MM INCH FLOW HEAD
(lpm) (m)
25 1 25 20
25 1 40 25
Flow-chart
MAXIMUM WATER
OUTLET
FLOW HEAD NUMBER
(lpm) (m) OF TAPS
55 33 2 – 4
71 40 5 – 8
SIZE
LxWxH (mm)
2
370*170*330
410*190*350
Version: 2018-03-20
