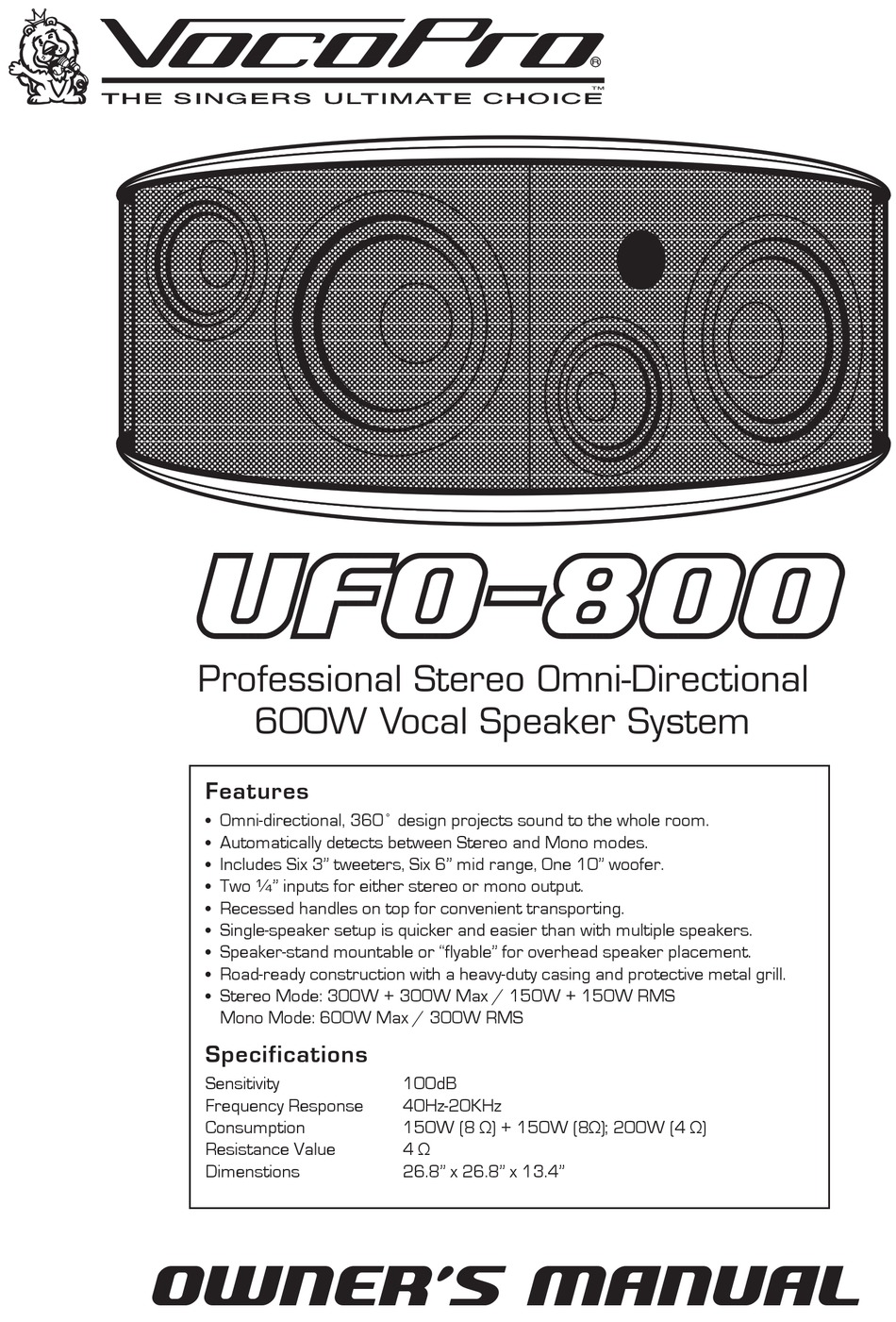

VocoPro UFO-800 Owner's Manual

VocoPro UFO-800 Owner's Manual

Professional stereo omni-directional 600w vocal speaker system
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
������������������������������������
�������������������������
Features
• Omni-directional, 360˚ design projects sound to the whole room.
• Automatically detects between Stereo and Mono modes.
• Includes Six 3" tweeters, Six 6" mid range, One 10" woofer.
• Two ¼" inputs for either stereo or mono output.
• Recessed handles on top for convenient transporting.
• Single-speaker setup is quicker and easier than with multiple speakers.
• Speaker-stand mountable or "flyable" for overhead speaker placement.
• Road-ready construction with a heavy-duty casing and protective metal grill.
• Stereo Mode: 300W + 300W Max / 150W + 150W RMS
Mono Mode: 600W Max / 300W RMS

Specifications

Sensitivity
Frequency Response
Consumption
Resistance Value
Dimenstions
OWNER'S MANUAL
100dB
40Hz-20KHz
150W (8 Ω) + 150W (8Ω); 200W (4 Ω)
4 Ω
26.8" x 26.8" x 13.4"

Advertisement

Table of Contents
loading

Related Manuals for VocoPro UFO-800

Summary of Contents for VocoPro UFO-800

  • Page 1: Specifications

    ������������������������������������ ������������������������� Features • Omni-directional, 360˚ design projects sound to the whole room. • Automatically detects between Stereo and Mono modes. • Includes Six 3” tweeters, Six 6” mid range, One 10” woofer. • Two ¼” inputs for either stereo or mono output. •...

  • Page 2: For Your Records

    Club VocoPro for Karaoke news and events, chat rooms, club directories and even a Service directory! We look forward to hearing you sound like a PRO, with VocoPro, your ultimate choice in Karaoke entertainment. Please record the model number and serial number below, for easy reference, in case of loss or theft.

  • Page 3: Listening For A Lifetime

    Now it s time to consider how you can maximize the fun and excitement your equipment offers. VocoPro and the Electronic Industries Association s Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level.

  • Page 4: Safety Instructions

    Safety Instructions CAUTION RISK OF SHOCK CAUTION: To reduce the risk of electric shock, do not remove cover (or back). No user- serviceable parts inside. Only refer servicing to qualified service personnel. Explanation of Graphical Symbols The lightning flash & arrowhead symbol, within an equilateral triangle, is intended to alert you to the presence of danger.
  • Page 5 * Speaker stand and speaker stand adapter not included. Hanging from the Ceiling The UFO-800 can also be hung from the ceiling using ceiling chains, ceiling bracket or threaded rod for professional installation. NOTE: Because all venues are unique, consult a professional equipment installation expert to help you determine which is the best overhead setup for you.
  • Page 6 Positioning the UFO-800 The ¼” speaker cable inputs mark the front and center of the UFO-800. (See Figure E) • The left stereo channel will play out of the speakers that are to the left of the center. (See Figure F) •...

  • Page 7: Getting Connected

    The UFO-800 automatically switches between MONO and STEREO output modes by detecting whether you have one or two speaker cables connected. 1. For MONO mode Using one ¼” to Banana Plug speaker cable: Connect the Banana Plug end to the outputs on your amp.
  • Page 8 UFO-800 MANUAL ©2006 VOCOPRO WWW.VOCOPRO.COM...
