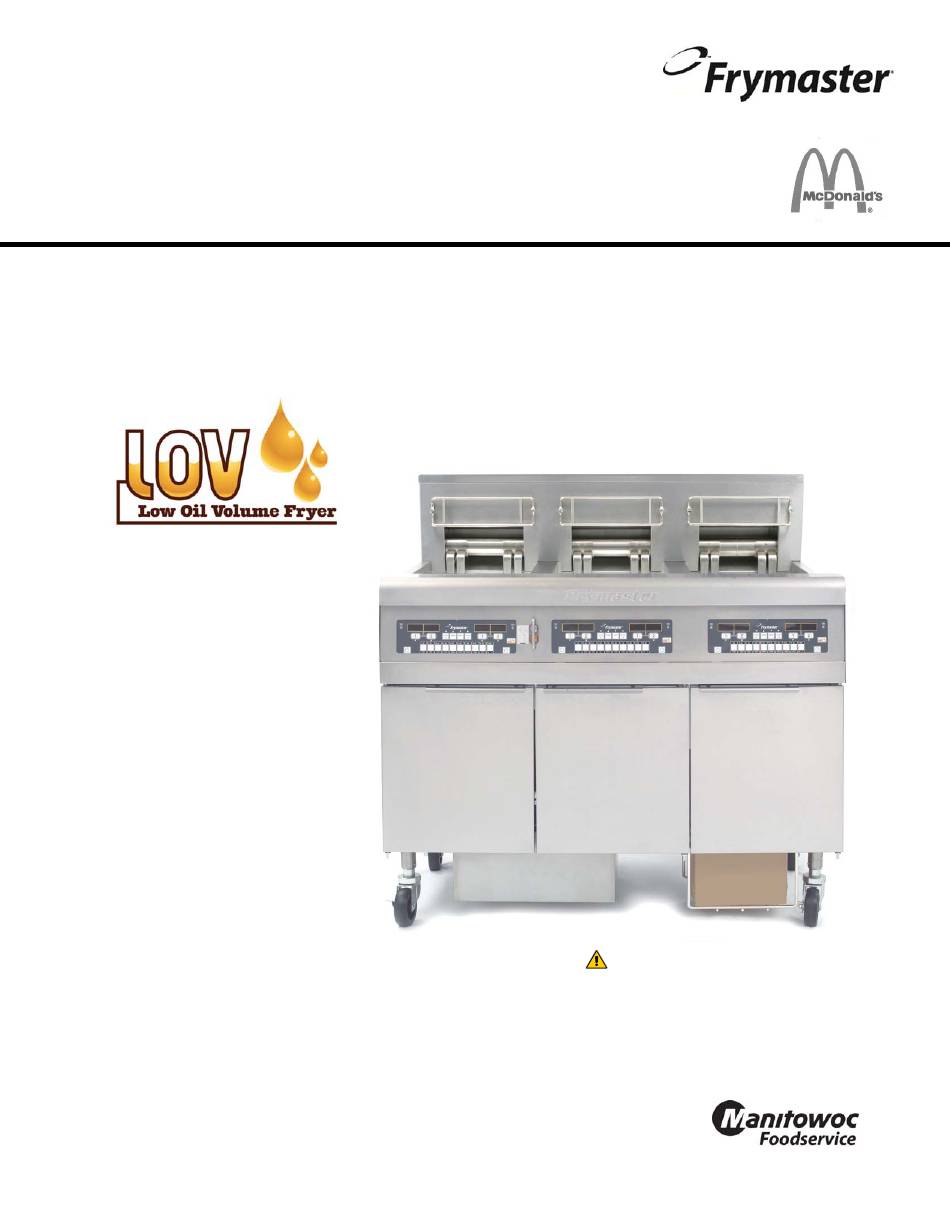

BIELA14 Series
Gen II LOV
Installation, Operation and Maintenance Manual
This manual is updated as new information and models are released. Visit our website for the latest manual.
This equipment chapter is to be installed in the Fryer Section of the Equipment Manual.
FOR YOUR SAFETY
Do Not Store or use gasoline or other
flammable vapors and liquids in the vicinity
of this or any other appliance.
*8196442*
Part Number: FRY_IOM_8196442 08/2016
Original Instructions
™
Electric Fryer
READ THE INSTRUCTIONS BEFORE USING THE FRYER.
CAUTION
