Vizualogic HindSight C-1000 User Manual page 6

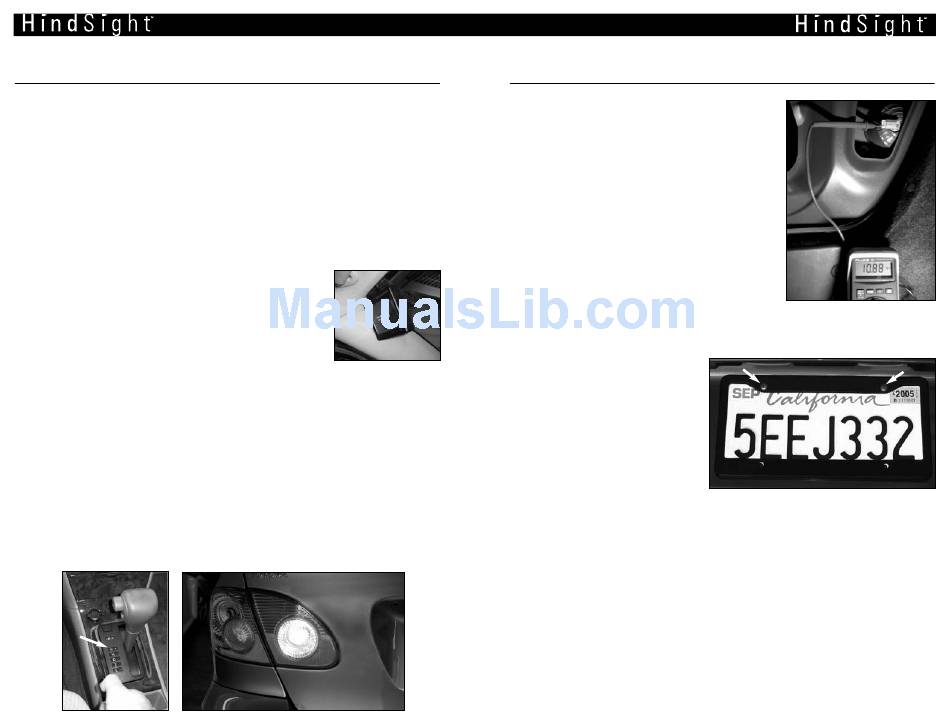

System Installation
1. Attach the LCD Monitor onto the Universal Monitor Mount with the
(4) provided screws.
2. Connect the Monitor Cable to the back of the Monitor.
3. On the windshield, locate the desired mounting location for the LCD
Monitor.
4. Verify that the Monitor does not obstruct the driver's view of the road
or interfere with the sun visor.
5. Clean the desired mounting location with the provided alcohol pad.
6. Remove the adhesive cover from the Universal
Monitor Mount and adhere the monitor to the
windshield.
7. Route the Monitor Cable down the 'A' pillar
and towards the rear of the vehicle.
8. Attach the system power harness to the
corresponding connector on the Monitor Cable.
Red - 12V+ Ignition / Accessory
Black - 12V- Ground
Orange - 12V+ Reverse input
System Power and Ground can usually be found at the fuse block,
steering column, cigarette lighter, etc. The simplest location to obtain
the 12V+ reverse input is at the taillight. To locate the 12V+ reverse wire
it will be necessary to gain access to the rear of the vehicle's taillight.
Turn the vehicle key to the accessory position, and while the parking
brake is engaged put the car in reverse.
4
System Installation
NEVER LEAVE THE CAR RUNNING AND IN
REVERSE, EVEN IF THE PARKING BRAKE IS
ENGAGED! With a digital multi-meter probe
the reverse bulb wire until a wire that shows
between 10-13 volts is located. The wire
should show voltage ONLY when reverse
is engaged.
Camera Installation:
1. Remove the mounting
hardware from the
vehicle's license plate.
2. Align the camera with the
license plate mounting holes
and temporarily mount the
camera license plate to the
vehicle using the supplied hardware.
3. Route the Camera Cable into the vehicle. Leave the Camera Cable
connector accessible until camera viewing angle has been set.
4. Route the Camera Cable through the vehicle's interior making sure
to avoid sharp edges and pinching the cable. Connect the Camera
Cable to the input labeled 'Rear View' on the Monitor Cable.
5
