System Installation

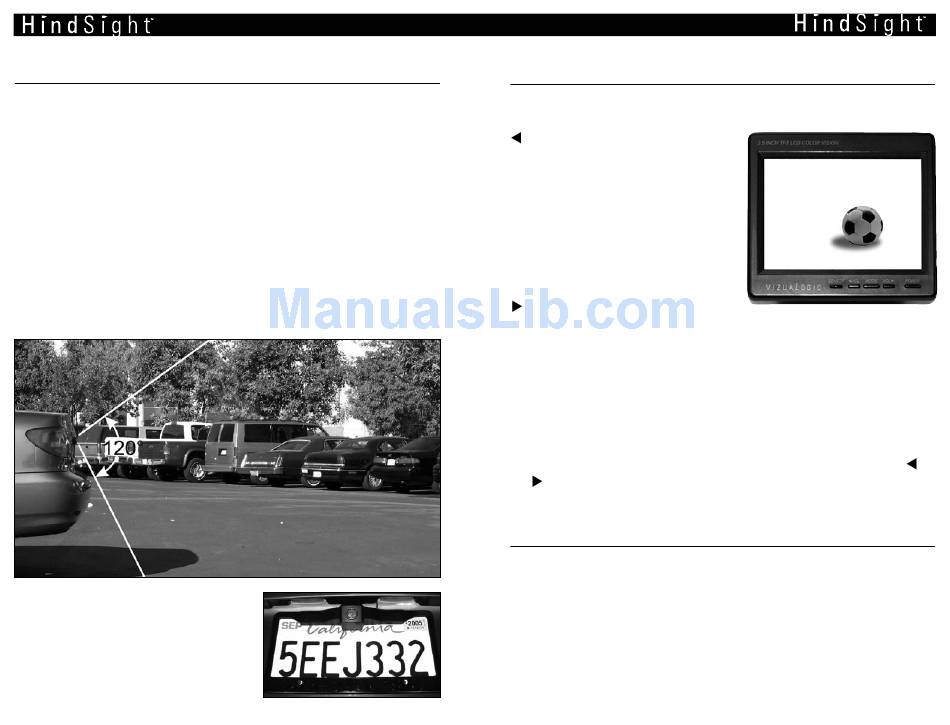

Camera Aiming:
1. Once all the cable connections have been made turn the HindSight
system on by turning the key to the accessory position and while the
parking brake is engaged put the vehicle into reverse. NEVER LEAVE
THE CAR RUNNING AND IN REVERSE, EVEN IF THE PARKING BRAKE
IS ENGAGED!
2. Observe the camera's viewing area displayed on the monitor. If the
viewing area does not capture the area immediately behind the
vehicle, or if a different viewing angle is desired, the supplied angle
shims can be used to change the angle of the camera.Simply
disconnect and remove the camera and place the desired shim
along the back of the camera and re-install.
3. Once the desired viewing area is
achieved, tighten the mounting
hardware and snap the security
covers into place to conceal the
mounting locations on the camera.
6
Controls

Monitor Controls:

: Decreases brightness with
each press.
Brightness: Selects the Brightness
control function which allows
changes the overall brightness
of the LCD display.
: Increases brightness with each
press.
Power: Turns the monitor on and off.
Adjusting the screen brightness:
Screen Adjustments: Press the 'Brightness' button, then press the
or to adjust the overall brightness of the LCD display.
System Operation
1. Turn the system on by pressing the 'POWER' button on the monitor.
2. No picture will be displayed while driving unless an auxillary source
is connected to the AUX input.
2. When the vehicle is put in reverse, the screen will turn on (if not
already on) and switch over to the REAR VIEW input to display the
camera view. Once the vehicle is put into drive, the screen will
revert to the AUX input signal or power off.
3
