Boss Audio Systems BV775B User Manual

Boss Audio Systems BV775B User Manual

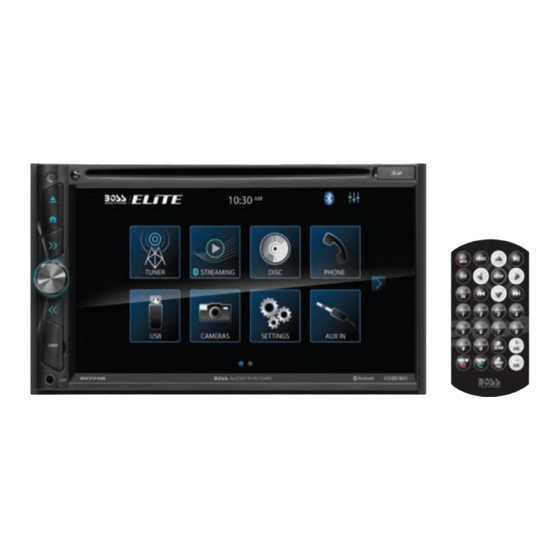

Bluetooth dvd/mp3/cd am/fm receiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for Boss Audio Systems BV775B

Summary of Contents for Boss Audio Systems BV775B

  • Page 3 To ensure safety while driving and to comply with laws, drivers should not watch video or operate the video device while driving. [ 1 ]...

  • Page 4: Installation & Accessories

    IMPORTANT NOTICE & PRECAUTIONS Thank you for using our company multi-media player! To operate the unit correctly, please read the operation manual carefully before using. Keep this operation manual for further reference. The unit is designed only for DC 12V negative ground operation system. Make sure your vehicle is connected to DC 12V negative ground electrical system.

  • Page 5: Wiring Connection

    WIRING CONNECTION Socket A (Power) Socket D (Audio / Video Input & Output) A1 Yellow Constant (+12V) FL (White) Front Left Audio Output A2 Orange Illumination Input (+12V) FR (Red) Front Right Audio Output A3 Blue Antenna Output (+12V) RL (White) Rear Left Audio Output A4 Black Ground (B-)

  • Page 6: Main Unit Operation

    MAIN UNIT OPERATION Operations & Controls 1. Press to eject disc from the disc slot (when a disc has been inserted). 2. Press to shift screen between MAIN MENU and current operation mode. 3. Power On/Off When the unit is turned off, press to turn on the unit. When the unit is turned on, press &...

  • Page 7: Battery Replacement

    REMOTE HANDSET – GENERAL OPERATION BATTERY REPLACEMENT Refer to the back of remote handset for details on how to replace the battery. Replace the battery only with the same or equivalent type. Note: If the remote handset will not be used for a long time, please remove the battery from the battery compartment.
  • Page 8 SCAN At tuner mode, press to start scanning the radio frequency upward and stop for broadcasting for a few seconds when a radio station received. Tuner Mode Press repeatedly to select the desired radio band for broadcasting. When the unit is under other operation mode, press to shift current operation mode to tuner mode for operation (not available at disc / USB / SD playback mode).
  • Page 9 ANGLE At video playback mode, each time press & hold shortly to view angle changes in sequential order (available on media files recorded with this feature). TITLE At DVD mode, press & hold shortly to display on screen the menu of the disc and playback will resume after a while.
  • Page 10 ON SCREEN – MAIN MENU OPERATION MAIN MENU MAIN MENU At MAIN MENU, touch the icon of the desired mode on screen and the unit will then enter into the mode that selected for operation. At MAIN MENU, touch & hold on screen and slide to left or right will shift screen to another MAIN MENU for operation selection.
  • Page 11 AUDIO MENU (EQUALIZER) AUDIO MENU (POSITION) 1. Touch to shift to AUDIO MENU (POSITION) for various audio output settings. 2. Touch to shift to AUDIO MENU (EQUALIZER) for various equalization settings. 3. At “User” mode, hold & slide to set for the desired frequency level. 4.

  • Page 12: Settings Menu

    ON SCREEN – SETUP OPERATION At MAIN MENU, touch on screen and shift to SETTINGS MENU for various setup selection of the unit. SETTING MENU SETTINGS MENU 1. Touch to shift to next SETTINGS MENU. 2. Touch to shift to previous SETTINGS MENU. 3.

  • Page 13: Password Interface

    PASSWORD INTERFACE 1. Touch to activate WALLPAPER INTERFACE to select the desired wallpaper (background) of the unit. 2. Touch repeatedly to select the delay time of ACC power cutoff. 3. Touch to turn on or off of beep sound when touching on screen or pressing the control keys on main unit / remote handset for control.
  • Page 14 CAMERA MENU 1. Touch repeatedly to select the front or rear camera viewing when the car is shifted from forward mode to backward mode. When “Off” is selected, no camera viewing available at car backward mode. 2. Touch to turn on or off of rear camera input. 3.

  • Page 15: Audio Setting Menu

    CLOCK SETTINGS CLOCK MENU 1. Touch to select 12 hour or 24 hour display format of clock. 2. Touch repeatedly to adjust hour of clock. 3. Touch repeatedly to adjust minute of clock. 4. At 12 hour display format, touch to select AM / PM display. 5.
  • Page 16 4. Touch repeatedly to increase or lower the volume level against the current output level under phone (Bluetooth) mode, USB input mode, SD input mode, auxiliary input model and AV input modes. 5. Touch to shift to next AUDIO SETTINGS MENU. 6.
  • Page 17 CONTROLS (BACKLIGHT) SETTINGS CONTROLS (BACKLIGHT) SETTINGS MENU 1. Touch repeatedly to select the backlight color for illumination. When Auto mode selected, backlight color will have cycle changed automatically. 2. Touch to shift to ILLUMINATION (VISUAL) MENU for various visual settings of the unit. 3.
  • Page 18 5. Touch to show other setting modes of the unit. 6. This Bluetooth icon will light up if the unit has connected to a mobile phone. If no connection made, the icon will flash. 7. Touch to activate AUDIO MENU for various audio settings. 8.

  • Page 19: Tuner Menu

    TUNER MENU 1. Touch repeatedly to select radio band (FM-1 / FM-2 / FM-3 / AM-1 / AM-2) for broadcasting. 2. Touch to turn the radio frequency upward or downward and stop for broadcasting when a station received. Press & hold shortly to activate manual tuning mode. At this mode, press repeatedly to fine tune the radio frequency upward or downward.
  • Page 20 PARKING BRAKE WARNING PARKING BRAKE WARNING INTERFACE will appear on screen and no INTERFACE video playback start in case the parking brake input has not been connected and engaged. DVD PLAYBACK MENU DVD PLAYBACK MENU DVD PLAYBACK MENU VCD PLAYBACK MENU VCD PLAYBACK MENU VIDEO PLAYBACK MENU [ 18 ]...
  • Page 21 VIDEO PLAYBACK MENU VIDEO PLAYBACK MENU MUSIC PLAYBACK MENU PHOTO PLAYBACK MENU FOLDER / PLAYLIST MENU VISUAL INTERFACE KEYBOARD INTERFACE 1. Touch to activate KEYBOARD INTERFACE to input track number directly for playback. [ 19 ]...
  • Page 22 2. Touch to shift to next or previous track for playback. At DVD / VCD / video / music playback mode, touch & hold shortly to activate fast forward or fast rewind mode. At this mode, touch repeatedly to select various speed on fast forward or fast rewind.
  • Page 23 ON SCREEN – PHONE (BLUETOOTH) OPERATION At MAIN MENU, touch on screen and shift to PHONE (KEYPAD) MENU for Bluetooth Operation. LINK UP WITH MOBILE PHONE To linkup Bluetooth connection with the mobile phone, take your phone and follow the steps: - set the mobile phone to Bluetooth state - start to search new device - after searched, new device (model number of this unit) searched out, confirm the search...
  • Page 24 PHONE (SETUP) MENU PHONE (SETUP) MENU PIN CODE INTERFACE PHONE (DEVICE) MENU PHONE (RECENT) MENU PHONE (PHONEBOOK) MENU PHONEBOOK SEARCH INTERFACE 1. Touch to shift to PHONE (KEYPAD) MENU for dial out. [ 22 ]...
  • Page 25 2. Touch to shift to PHONE (PHONEBOOK) MENU to show the phone book of the connected mobile phone. 3. Touch to shift to PHONE (RECENT) MENU to show the record on incoming / outgoing / missing calls. 4. Touch to shift to PHONE (DEVICE) MENU to show the current status on connection. 5.
  • Page 26 38. Touch to close KEYPAD INTERFACE. 39. This Bluetooth icon will light up if the unit has connected to a mobile phone. If no connection made, the icon will flash. 40. Touch to activate AUDIO MENU for various audio settings. 41.
  • Page 27 CAMERA INPUT MENU 1. Touch to select rear camera viewing. 2. Touch to select front camera viewing. 3. This Bluetooth icon will light up if the unit has connected to a mobile phone. If no connection made, the icon will flash. 4.
  • Page 28 Due to the law of some countries and PARKING BRAKE WARNING areas, watching video is not allowed during INTERFACE driving. To allow video playback, parking brake must be engaged (light green wire - parking brake input must be connected). PARKING BRAKE WARNING INTERFACE will appear on screen and no...

  • Page 29: Setup Menu

    5. After installation, mirror linking of mobile phone will appear on screen and A-Link operation activated. 6. Depends on the mobile phone used, it may be necessary to disconnect the mobile phone from the USB slot first and then plug in again in order to start A-Link operation. SETUP MENU Important notice on mobile phone linking operation on Android mobile phone: 1.

  • Page 30: Specification

    SPECIFICATION GENERAL Power Requirement: DC 12 Volts, negative ground Load Impedance: 4 Ohms Maximum Power Output: 80 watts x 4 AM RADIO SECTION Frequency Range 530 – 1710 KHz (America) 522 – 1620 KHz (Europe) FM RADIO SECTION Frequency Range 87.5 –...

  • Page 31: Simple Troubleshooting

    SIMPLE TROUBLE SHOOTING PROBLEMS, CAUSES & SOLUTIONS No power - Check and make sure the connecting wires are connected correctly - Check whether the fuse is blown. Replace with the proper value fuse if necessary. No sound - Check and make sure the speaker wires are connected correctly. No picture - Check whether the video wire is connected to the video device.
