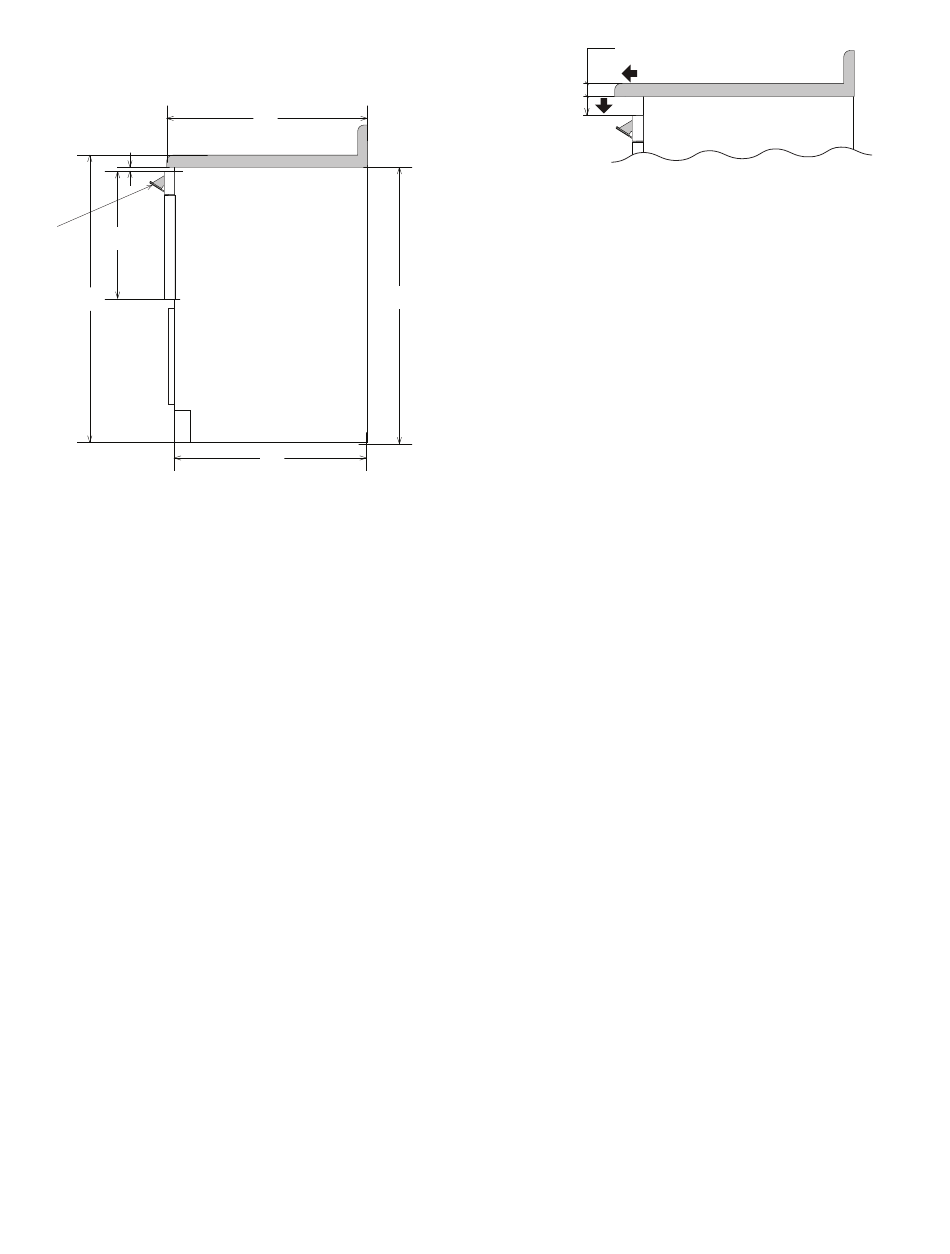

Figure 3 represents a typical standard cabinet. If installed in
custom cabinets with extended countertops, take into account
visibility and access to controls. See Figure 4.
B
E
C
D
Figure 3
A. 25" (635 mm)
B. / " (12.7 mm) minimum
1
2
C. 16" (406.4 mm)
D. 36" (914.40 mm)
A
G
F
E. Control panel shown in
open position
F. 24" (609.60 mm)
G. 34 / " (876.30 mm)
1
2
Move oven location downward for
extended countertops
Extended countertops
Figure 4
3
E
