EASY ASSEMBLY AND OPERATION INSTRUCTIONS

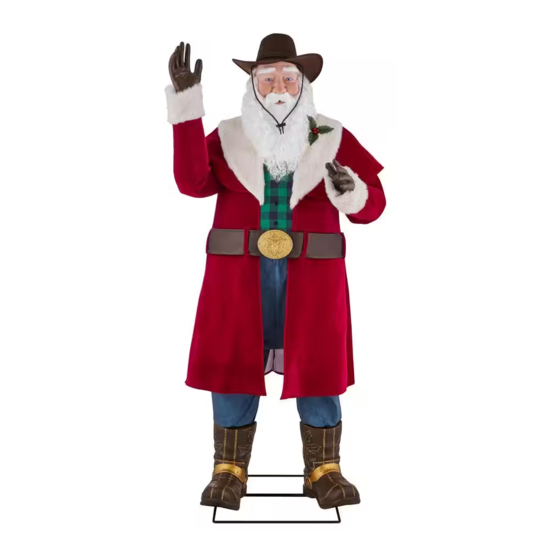

23SV24017 Cowboy Santa
READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE
IF ANY PART IS MISSING OR BROKEN, DO NOT ATTEMPT TO ASSEMBLE THE PRODUCT AND CONTACT SVI CUSTOMER SERVICE FROM 8:30 AM TO 5:30 PM PST AT
1-855-428-3921, EMAIL CUSTOMERSERVICE@SVIUS.COM, OR CALL HOME ACCENTS HOLIDAY CUSTOMER SERVICE FROM MON-FRI 8:00 AM TO 7:00 PM AND SAT
9:00 AM TO 6:00 PM EST AT 1-855-HDHOLIDAY (1-855-434-6543).
IMPORTANT TIPS:
• Ensure that the item's adapter is plugged in at the function control box and in
the wall.
• Ensure that the switch on the function control box is on the desired setting.
• If not functioning properly (Body and head don't turn, mouth doesn't move),
ensure that cables are connected correctly, according to the instruction sheet.
• Be sure nothing is blocking movement or caught in moving parts.
• Ensure that the floor or surface that the item sits on is flat and level.
PARTS LIST
A. Base x 1
B. Poles x 2
C. Boots x 2
D. Pants x 1
E. Lower Body Frame x 1
F. Hip Hoop x 1
G. Body x 1
H. Costume x 1
I. Left Arm x 1
J. Right Arm x 1
K. Left Hand x 1
L. Right Hand x 1
M. Head x 1
N. Hat x 1
O. Adapter x 1
Input: 100-240V 50/60Hz
Output: 5.9V 2A
NOTE: Throughout the instructions, Right
and Left are relative to the character.
Locking Pin
Click
Means It's
Locked
B B
BACK
RIGHT
A
FRONT
C
B B
LEFT
A
1 1
.
• Ensure that the volume is not all the way down.
• If the item still does not work, contact SVI Customer Service from 8:30 am to
5:30 pm PST at 1-855-428-3921, email customerservice@svius.com, or call
Home Accents Holiday Customer Service from Mon-Fri 8:00 am to 7:00 pm
and Sat 9:00 am To 6:00 pm EST at 1-855-HDHOLIDAY (1-855-434-6543).
A B C
G H
M N
NOTE: Slide the (D) Pants onto the
assembly with the tag at the back of
the (D) Pants facing towards the back.
D
C
C
1 2
.
D E
I J
O
FRONT
D
D
C C
C
USA 1009 529 439
F
K L
E
B
B
2 2
.
2 1
.
1/4
