EASY ASSEMBLY AND OPERATION INSTRUCTIONS

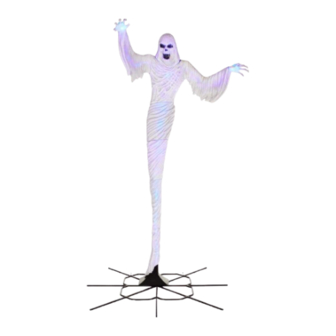

23SV23789 Towering Ghost
READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE
ASSEMBLY REQUIRES AT LEAST 2 ADULTS, 3 ADULTS ARE RECOMMENDED. PLEASE FOLLOW THE STEP BY STEP GUIDE
AND ENJOY YOUR TOWERING GHOST!
IF ANY PART IS MISSING OR BROKEN, DO NOT ATTEMPT TO ASSEMBLE THE PRODUCT AND CONTACT SVI CUSTOMER SERVICE FROM 8:30AM TO 5:30PM PST AT
1-855-428-3921, EMAIL CUSTOMERSERVICE@SVIUS.COM, OR CALL THE HOME DEPOT CUSTOMER SERVICE AT 1-855-434-6543 (1-855-HDHOLIDAY).
IMPORTANT TIPS:
• Ensure that the item's adapter is plugged in at the Function Control Box and in
the wall.
• Ensure that the red indicator light on the function control box is on the desired
setting.
• If not functioning properly (ex: LEDs don't light up), ensure that cables are
connected to their corresponding cable as shown in the instruction sheet.
• Ensure that the floor or surface that the item sits on is flat and level.

PARTS LIST

A. Base x 1
B. Lower LED Pole x 1
C. Ghost Base x 1
D. Ghost Segment 1 x 1
E. Upper LED Pole x 1
F. Ghost Segment 2 x 1
G. Ghost Segment 3 x 1
H. Chest x 1
I. Left Arm x 1
J. Right Arm x 1
K. Left Hand x 1
L. Right Hand x 1
M. Head x 1
N. Left Arm Cap x 1
O. Right Arm Cap x 1
P. Upper Chest Cap x 1
Q. Lower Chest Cap x 1
R. Segment 3 Cap x 1
S. Segment 2 Cap x 1
T. Loop Screw x 1
U. Tether Cable x 1
V. Base Extensions x 8
W. Stakes x 4
X. Small Parts Bag x 1
Y. Adapter * x 1
* Power Adapter Spec
Input: 120V ~ 50/60Hz
Output: 5.9V 2A
NOTE:
Throughout the
instructions,
Right and Left
Locking Pin
are relative to
the character.
The hooks on
the (A) Base are
towards the
back of the item.
Use Hex Key and
Screws (X) for B
base assembly.
B
A
BACK
A
A
H
N O P
Q R S
Click
Means It's
Locked
X
C
B
LEFT
A
1 1
.
• If the item still does not work, contact SVI Customer Service from 8:30am to
5:30pm PST at 1-855-428-3921, email customerservice@svius.com, or call
Home Accents Holiday Customer Service from Mon-Fri 8:00am to 7:00pm and
Sat 9:00 am To 6:00 pm EST at 1-855-HDHOLIDAY (1-855-434-6543).
B
C
J
I
T
U
D
B
C
1 2
.
USA/ États-Unis 1009043216
D E
F
K L
X
W
X 6 Screws
V
Hex Key
NOTE: When connecting cables, ensure that the
arrow indicators on each cable end are lined up
with and pointing at each other. There is also a
groove and a rod like protrusion by these arrows
that fit into each other. Then firmly press the cables
together. Rotate the cable cap clockwise onto the
threading of the corresponding cable until firmly in
place.
B
2 1
.
TM
G
M
Y
E
E
X
B
2 2
.
1/4
