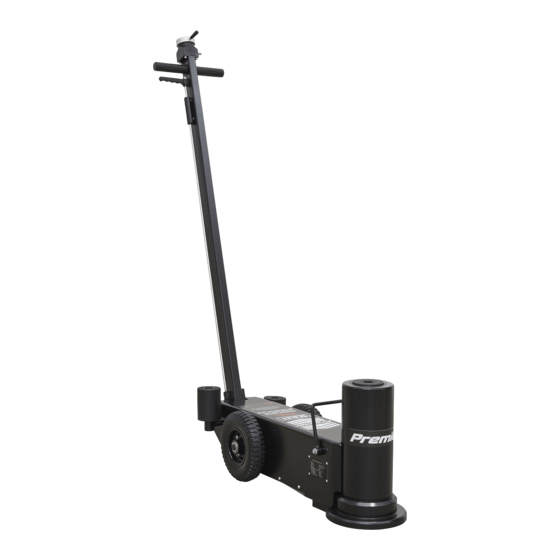

Air operated jack 30tonne - single stage/high lift

Advertisement

Quick Links

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to
Wear
instruction

safety

manual
footwear
1. SAFETY
9 9 Disconnect jack from air supply before changing parts, servicing or performing any maintenance.
9
9
WARNING! Ensure correct air pressure is maintained and not exceeded. Recommended pressure: 116-174psi Required air flow:
11.5cfm
Keep air hose away from heat, oil and sharp edges. Check air hose for wear before each use, and ensure that all connections are secure.
9
Ensure jack is kept clean and in good working order. Repair or replace damaged parts immediately
9
Use recommended parts only. Incorrect parts may be dangerous and will invalidate the warranty.
9
Use a qualified person to lubricate and maintain the jack.
9
DO NOT use brake fluid to top up system. Use Sealey hydraulic oil only.
8
Locate jack in a suitable, well lit work area. Keep area clean and tidy and free from unrelated materials.
9
Use jack on level & solid ground, preferably concrete. Avoid tarmacadam since jack may sink in.
9
Place chocks under wheels of vehicle.
9
Ensure the vehicle handbrake is engaged (or in "PARK" mode), and switch the engine off.
9
Ensure minimum distance of 0.5m between vehicle as it tilts & static objects such as doors, walls, etc.
9
Ensure all non essential persons keep a safe distance and that there are no passengers in the vehicle to be jacked up.
9
Place jack under vehicle manufacturer's recommended jacking points (see vehicle handbook).
9
Check that the jacking point is stable and centred on the jack saddle and is free from grease or oil.
9
9 9 DANGER: Use jack for lifting only, NOT for supporting the raised load. Use correctly rated axle stands under vehicle before proceeding
9
with task.
9 9 DO NOT apply your body weight to the handle during jacking. The handle is only for moving the jack to and from the lifting location.
9 8
9 9 DO NOT operate the jack if parts are missing or damaged.
9 8
9 9 DO NOT exceed the rated capacity of the jack.
9 8
9 9 DO NOT allow the vehicle to move during lifting.
9 8
9 9 DO NOT jack a vehicle which may result in the spillage of fuel, battery acid, or dangerous substances.
9 8
9 9 DO NOT work under the vehicle until axle stands have been positioned correctly.
9 8
DO NOT use the jack for purposes other that those for which it is designed.
8
9 9 DO NOT adjust the safety overload valve.
9 8
9 9 DO NOT snatch the hose from the air supply, and DO NOT direct air from the air hose at yourself or others.
9 8
9 9 Ensure there are no persons or obstructions beneath the vehicle before lowering.
9
9
When not in use disconnect jack from the air supply, and store in the lowered position in a safe, dry, childproof area.
9
9 9 WARNING! Turn off air supply and de-pressurise the control nozzle before removing the pump unit from any installation or mobile system.
9
Failure to comply with this instruction may damage the unit and will invalidate your warranty.
2.

INTRODUCTION

i
Ideal for workshop or roadside use, these jacks take the effort out of lifting heavy plant, tractors and commercial vehicles. For extra safety,
features dead man's handle which also aids controlled lowering speed. Supplied with extensions that close the gap between the saddle of the
jack and the jacking point.

3. SPECIFICATION

Model No: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . YAJ30H.V2
Maximum Capacity: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30tonne
Minimum Height:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 360mm
Maximum Height (inc. Extensions) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 750mm
Stage 1 (mm/tonne): . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 772/30
Piston Stroke: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 267mm
Extensions: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45/100mm
Chassis Length: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 842mm
Length inc. Handle:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2222mm
Width without Wheels: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195mm
Overall Width: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 295mm
Air consumption: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11.5cfm
Working Pressure: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116-174psi
Weight: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126kg
© Jack Sealey Limited
AIR OPERATED JACK 30TONNE -
SINGLE STAGE/HIGH LIFT
YAJ30H.V2
MODEL No:
Original Language Version
YAJ30H.V2
Issue:1 19/09/18
