Summary of Contents for VT 9800

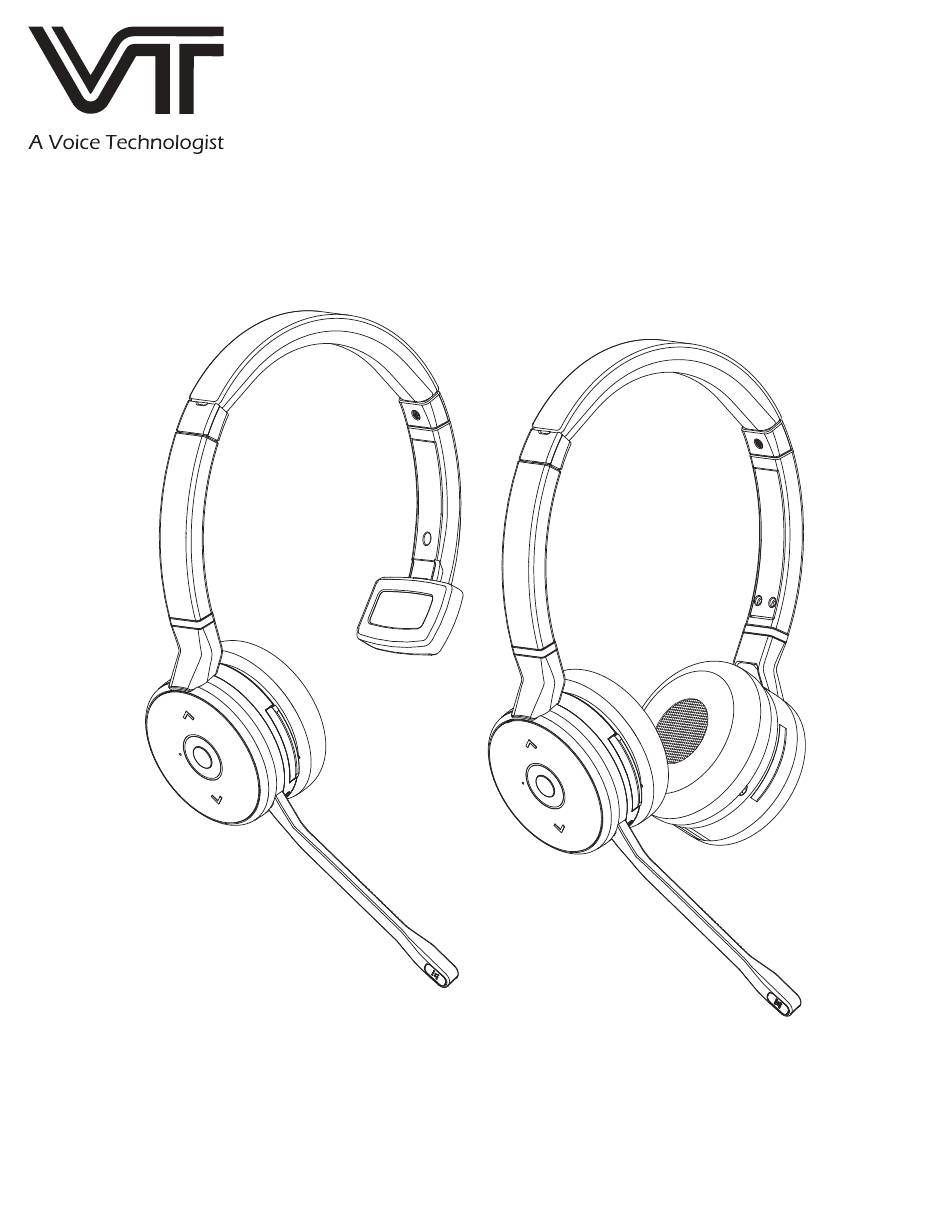

- Page 1 VT 9800 BT Headset User Manual...
-
Page 2: Table Of Contents
User Manual 1. WELCOME 2. VT 9800 BT OVERVIEW 2.1 HEADSET Duo 2.2 HEADSET Mono 2.3 INCLUDED ACCESSORIES 3. HOW TO WEAR 3.1 RIGHT WEARING STYLE 3.2 ADJUST THE HEADBAND 3.3 POSITION THE MICROPHONE 3.4 STORING THE MICROPHONE 4. HOW TO CHARGE THE BATTERY 5. -
Page 3: Welcome
1. WELCOME Thank you for using the VT 9800 BT Headset. We hope you will enjoy it! VT 9800 BT HEADSET FEATURES Connect to PC via BT 50U Bluetooth adapter Connect to mobile devices via Bluetooth Integrated busylight Superior music and voice capabilities... -
Page 4: Vt 9800 Bt Overview
2. VT 9800 BT OVERVIEW 2.1 HEADSET Duo Adjustable headband Volume up Indicator light Multi-function button Volume down Bluetooth indicator Microphone boom-arm USB charging port On/off/Pairing/Mute button... -
Page 5: Headset Mono
2.2 HEADSET Mono Adjustable headband T-Bar Volume up Indicator light Multi-function button Volume down Bluetooth indicator Microphone boom-arm USB charging port On/off/Pairing/Mute button... -
Page 6: Included Accessories
3.3 INCLUDED ACCESSORIES Headset BT50U(Option) VT 9800 BT Headset User Manual USB C cable User manual... -
Page 7: How To Wear
3. HOW TO WEAR 3.1 RIGHT WEARING STYLE The VT 9800 BT can be worn on the right or left. 3.2 ADJUST THE HEADBAND Adjust the headband to find the most comfortable fit. -
Page 8: Position The Microphone
3.3 POSITION THE MICROPHONE It is recommended to position the microphone close to your mouth (0.5 inches). The microphone is bendable for personal preference. -
Page 9: Storing The Microphone
3.4 STORING THE MICROPHONE When listening to music or outdoors, the microphone boom-arm can be rotated back to the vertical position near the headband. 4. HOW TO CHARGE THE BATTERY The headset battery will be charged. when connected to a PC using a USB cable, or when using any USB charger supplied with your mobile device. -
Page 10: How To Connect
5. HOW TO CONNECT 5.1 CONNECT TO PC (USING BT 50U) 1. Ensure the headset is switched on. 2. Plug the BT 50U dongle into a USB port on your PC. The headset and BT 50U are already pre-connected. -
Page 11: Connect To Mobile Device (Using Bluetooth)
5.2 CONNECT TO MOBILE DEVICE (USING BLUETOOTH) 1. Wear the headset. 2. Press and hold the “ On/off/Pairing/mute button” 6s until you hear the voice guided instructions. The Bluetooth indicator will flash blue. 3. Follow the voice guided instructions to connect. -
Page 12: How To Use
6. HOW TO USE Adjustable headband Volume up Indicator light Multi-function button Volume down Bluetooth indicator Microphone boom-arm USB charging port On/off/Pairing/Mute button... - Page 13 Adjustable headband T-Bar Volume up Indicator light Multi-function button Volume down Bluetooth indicator Microphone boom-arm USB charging port On/off/Pairing/Mute button...
-
Page 14: Everyday Use
6.1 EVERYDAY USE FUNCTION ACTION LED STATUS Press and hold the Green Light flashes Headset on button 5s twice in succession Press and hold the Red Light flashes Headset off button 2s twice in succession Press and hold Blue Light flashes Pairing the button 6s Pairing... -
Page 15: Multiple Call Handling
6.2 MULTIPLE CALL HANDLING You can also handle multiple calls from the mobile phone at the same time through the multi-function button. FUNCTION ACTION End current call and Tap the Multi-function button answer incoming call Press and hold(2 secs) the Multi-function button Put current call on hold and answer incoming call... -
Page 16: Support
Always store the headset with the power off and safely protected. Avoid storage at extreme temperatures (above 55°C or below -10°). This can shorten battery life and may adversely affect the headset. 8. TECHNICAL SPECIFICATIONS VT 9800 BT HEADSET Headset weight: 144 g Headset dimensions:... - Page 17 BLUETOOTH ADAPTER SPECIFICATION (BT 50U) PC connection: USB 2.0 Bluetooth range: Up to 30m (100 feet), Class 1 Bluetooth profiles: A2DP (V1.2), Hands free profile (V1.6) Simultaneous Bluetooth connection: Support Soft Phone： Skype for Business/Microsoft Teams Bluetooth audio bandwidth： HD voice (wideband), A2DP Visual indicators: Multicolor LED Important Safety Instructions...
- Page 18 9. Product Disposal Treatment and FCC statement 1. Dispose of in accordance with local regulations as headphones and recycling regulations. Never treated headset as household waste. Do not dispose of the headset in a fire, this battery may explode. If damaged, the battery may explode. 2.
- Page 19 Made in China MODEL: VT 9800 BT FCC ID: 2AC67-9800BT 98-02001...
