Summary of Contents for VT 9500

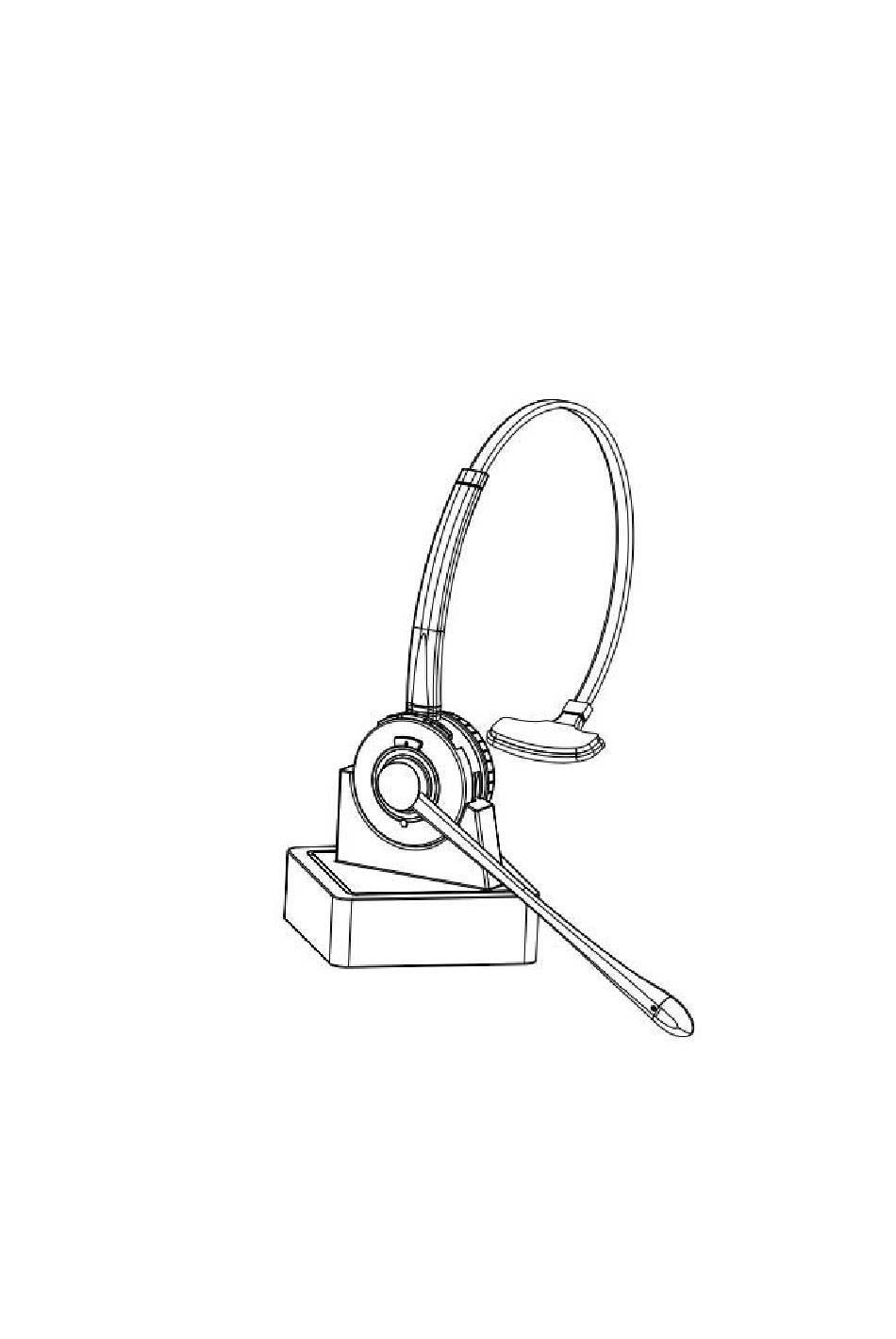

- Page 1 Bluetooth Headset User Manual...
-
Page 2: Table Of Contents
2.1 Package Contents ..................3 2.2 Headset Overview ..................4 2.3 Base Overview ....................5 3. Use Instructions ................5 3.1 9500 BT Pairing with Bluetooth Device ............5 3.2 9500 BT Usage ....................7 3.3 9500 BT Charging ................... 8 4.Features ..................8 4.1 Headset multi-function button .............. -
Page 3: Welcome
1.Welcome Thank you for using the new 9500 Bluetooth Headset. We are confident that you will fully enjoy a range of powerful features this headset has, and also pleasantly be surprised to find the headset comfortable to wear and easy to use. -
Page 4: Headset Overview
2.2 Headset Overview... -
Page 5: Base Overview
2.3 Base Overview Head seat Charge contacts Micro USB port for charge... -
Page 6: Use Instructions
3)When “9500 BT” showing on your Bluetooth devices list, please click it to begin the pairing. Sometimes, the PIN code “0000” is required. 4)If pairing is successful, the LED will turn on blue and 9500 BT icon will show on your smart phone/laptop. You can make calls or listen to music now. -
Page 7: 9500 Bt Usage
- key to decrease it. 3.3 9500 BT Charging When 9500 BT headset is charging, the red light will on. The green light will on when it is fully charged. When take the headset off from its charger base, the headset will be in standby mode. And it is will shut down automatically to save power consumption if there is no paring active. -
Page 8: Features
4. Features 4.1 Headset multifunction button Short or long press the Multifunctional button to answer and end a call . Multi-function button Function Short press Long press Answer a call √ End a call √ Power on Paring Power off... -
Page 9: Headset Speaker Volume Button
4.2 Headset Speaker Volume Button The speaker volume buttons: to adjust the headset speaker volume. Speaker volume button＂+＂ Speaker volume button”-＂ 4.3 Headset Mute Button Mute button: to make the microphone mute or on. Mute button... -
Page 10: Headset Led Indicators
4.4 Headset LED Indicators LED indicates call status Led indicator Headset status LED status Power on Blue light flashes four times (300ms on, 300ms off ) Power off Red light flashes once (2s) Pairing mode Blue light and red light flash alternately (red light on 750ms, blue light on 750ms) Pairing successfully Blue light flashes (300ms on,8s off) -
Page 11: Technical Specifications
⚫ Visual indicators: LED indicates call status, pairing status and others. ⚫ Beep: indicate volume level, microphone mute, and others. ⚫ Sound: Mic Noise canceling, the sixth generation CVC echo cancellation ,tone control. ⚫ Charging :When 9500 BT docking the base to charge... -
Page 12: Headset Battery
Battery storage life：Before first charging, if turn off the headset, the battery will have power for six months. 5.3 Charging Base 9500 BT charging base meets the following specifications. Port: Micro USB port is Power in interface, use USB cable connect PC or USB adapter to charge Size:81 mm x 81 mm x 67 mm. - Page 13 regulations. Never treated headset as household waste. Do not dispose of the headset in a fire, this battery may explode. If damaged, the battery may explode. 5.4.2 FCC statement: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
