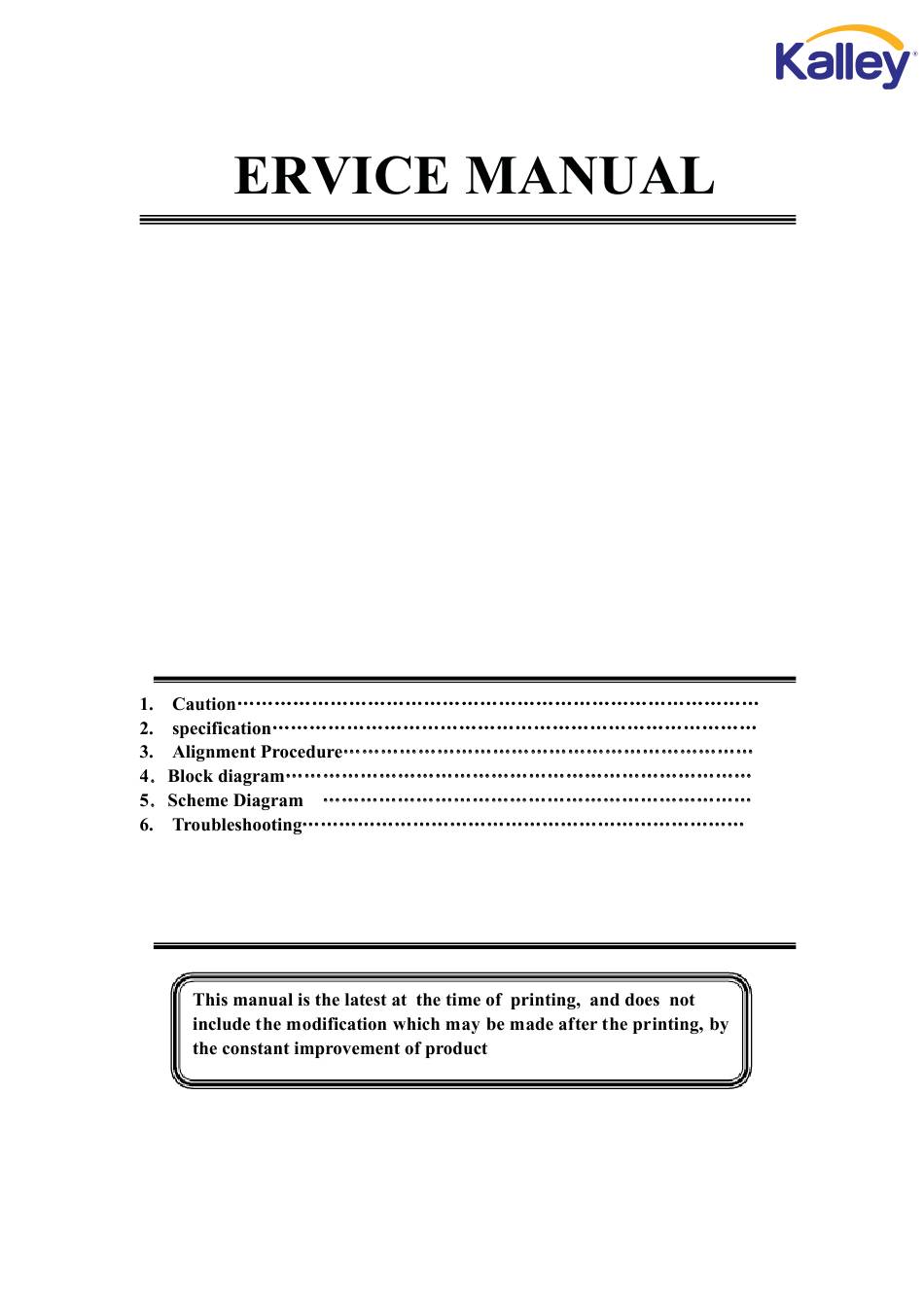

- Page 1 KALLEY K-LED55FHDXST2 7. Explode drawing....................
- Page 2 SCHNEIDER ELECTRONICS GMBH-GERMANY 1. CAUTION CA UTION: Use of controls, adjustments or procedures other than those specified herein may result in hazardous radiation exposure. CA UT ION : T O RE DUCE TH E RIS K OF CA U T ION ELECTR ICA L SHOCK, DO NOT RE MOVE COVER (OR BACK).
- Page 3 SCHNEIDER ELECTRONICS GMBH-GERMANY IMPORTANT SAFETY INSTRUCTIONS CAUTION: Read all of these instructions. Sa ve these instructions for later use . Follo w all W arnings and Instructions marked on the audio equipment. 1. Read Instructions-All the safety and operating instructionsshouldbe read before the productis operated. 2.
- Page 4 SCHNEIDER ELECTRONICS GMBH-GERMANY PROTECTION AND LOCATION OF YOUR SET Do not use this television set near water ... for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, etc. Never expose the set to rain or water. If the set has been exposed to rain or water, unplug the set from the wall outlet and refer servicing to qualified service personnel.
- Page 5 SCHNEIDER ELECTRONICS GMBH-GERMANY OPERATION OF YOUR SET 18. This television set should be operated only from the type of power source indicated on the marking label.If you are not sure of the type of power supply at your home, consult your television dealer or local power company. For television sets designed to operate from battery power, refer to the operating instructions.
- Page 6 PRODUCT SPECIFICATION RELEASE Model:K-LED55FHDXST2 Version 1.0 Issued On: 2015-6-17 Basic Information Media Code LCD Smart TV support MP3/AC3/HE-AAC/LPCM/WMA Product Type Music MS08G Chassis Picture Support JPEG BMP PNG MPO Support H.264 MPEG1 MPEG2 1GHZ Video Motion JPEG/VC1 Linux Bein 2Gb DDR3 +External 1Gb DDR3/ 2Gb...
- Page 7 Pre-Installed Application List Special Function Twitter Social Network NETFLIX With Netflix ,You can instantly stream thousands of your favorite TV shows and thousands of your favorite TV shows and Facebook Facebook Social Network Social Network movies right to your TV set Web Browser Opera Browser YouTube V4...
- Page 8 Integrated Packaging Base Stand Wireless Mouse AC power cord 1 pc Game Controller Drafted by: fanyaofei Approved by: Design and specifications are subject to change without notice!
-
Page 9: Alignment Procedure
1 / 13 Alignment Procedure VERSION V1.0 PREPARED BY : Gongjunzan DATE : 2015-3-23 APPROVED BY : DATE :... - Page 10 2 / 13 History Description of major changes Release Changed by Date V1.0 2015-3-23 These chassis are designed for markets Ready for IPTV. The main Eastern Europe chip is from Mstar and supports below features matrix: Select “Picture” and press “OK” key to enter into Picture Mode press RIGHT” or “LEFT”...
- Page 11 3 / 13 NOTE: Enter and exit the aging mode method: 1, press on the remote control Left and right the cursor keys will Factory hotkey set to ON; 2, WARM UP is set to ON; according to the panel on the "menu" button to exit the aging mode...
- Page 12 4 / 13 Sub-item Value Main Upgrade Upgrade software MEMC Upgrade Upgrade MEMC HDCP Uprade Upgrade HDCP Mboot upgrade Upgrade Mboot CI KEY Upgrate Upgrade CI KEY NVM Upgrade Upgrade NVM NVM backup Backup NVM CH list Upgrade Upgrade CH list CH list backup Backup CH list NetflixESN Upgrade...
- Page 13 5 / 13...
- Page 14 6 / 13...
- Page 15 7 / 13...
- Page 16 8 / 13 NOTE: Enter and exit the aging mode method: 1, press on the remote control Left and right the cursor keys will Factory hotkey set to ON; 2, WARM UP is set to ON; according to the panel on the "menu" button to exit the aging mode...
- Page 17 9 / 13 Sub-item Value Note Main Upgrade Upgrade software MEMC Upgrade Upgrade MEMC HDCP Uprade Upgrade HDCP Mboot upgrade Upgrade Mboot CI KEY Upgrate Upgrade CI KEY NVM Upgrade Upgrade NVM NVM backup Backup NVM CH list Upgrade Upgrade CH list CH list backup Backup CH list NetflixESN Upgrade...
- Page 18 10 / 13...
- Page 19 11 / 13 MT29F2G08ABAEA 2 Appendix “How to upgrade SW FLASH using Mstar tool” See Appendix “How to upgrade MBOOT using USB” Appendix “How to upgrade FLASH SW using USB” ¾ Copy the SW BIN image “MS08GP_MBOOT.bin” into USB stick root path. Note: If there’s already other “MS08GP_MBOOT.bin”...
- Page 20 12 / 13 cord to restart TV for 5-8seconds (Forced Upgrade). ¾ When the "UPGRADING SOFTWARE" picture appears as below, it means TV is uploading SW BIN image. Waiting a few minutes. ¾ When updating is successful, TV should restart automatically. There are two methods to upgrade SW using USB, the first one like below In the previous of upgrade SW using USB, should program mboot bin file”...
- Page 21 13 / 13 ¾ Process following subsequence codes change project 062598+MENU+xxx (xxx: Project ID, ex: 001) ¾ Restart TV Appendix “How to upgrade MAC Address ¾ Upgrading MAC address need to use the tool in factory and through serial command, the specific methods according to the operation of the factory guidance.
- Page 22 6LJQDO )ORZ 'LDJUDP 3DQHO /9'6 7UDQVLPLWHU 73$' )/$6+ 9(',2 ,1 06' $XGLR LQ 63',) $XGLR RXW &$%/( 1HWZRUN )$7 )$7 $79 $1$7(1$ $79'79 ...
- Page 23 3RZHU 6XSSO\ %ORFN 'LDJUDP...
- Page 24 3RZHU 6XSSO\ )ORZ...
- Page 25 ,ð& %XV %ORFN 'LDJUDP HDMI1 HDMI1 TU101 TU101 HDMI2 HDMI2 MS 08 Tuner Tuner HDMI3 HDMI3...
-
Page 33: Trouble Shooting Diagram
Trouble shooting diagram Terms: 9IR: Infrared Receiver 9RC: Remote Control 9IR logic: IR blink with RC action 9LVDS: Low Voltage Differential Signal, output from processor and input for panel 9O/C: Open Cell, panel with source board 9BL: Back Light, light source for panel module 9LB: LED (Light Emitting Diode) Bar, light source for BL module 9VBL: Voltage for Back Light (before Boost) 9VLED: Voltage for LED (after Boost) - Page 34 1.No power No power LED, RC or Key can not turn on TV. Power LED no light/no change.
- Page 35 2.No Display / Black Panel Back light is OK, sound is OK, but no picture.
- Page 36 3.No back light Power LED logic OK, sound OK, but no picture(Different from No Display).
- Page 37 4.No sound One or all signal source without sound.
- Page 38 5.Signal source no function One or several source no function.
- Page 39 6.Abnormal Display OSD NG or picture NG.
