Summary of Contents for Topdon PulseQ AC Portable

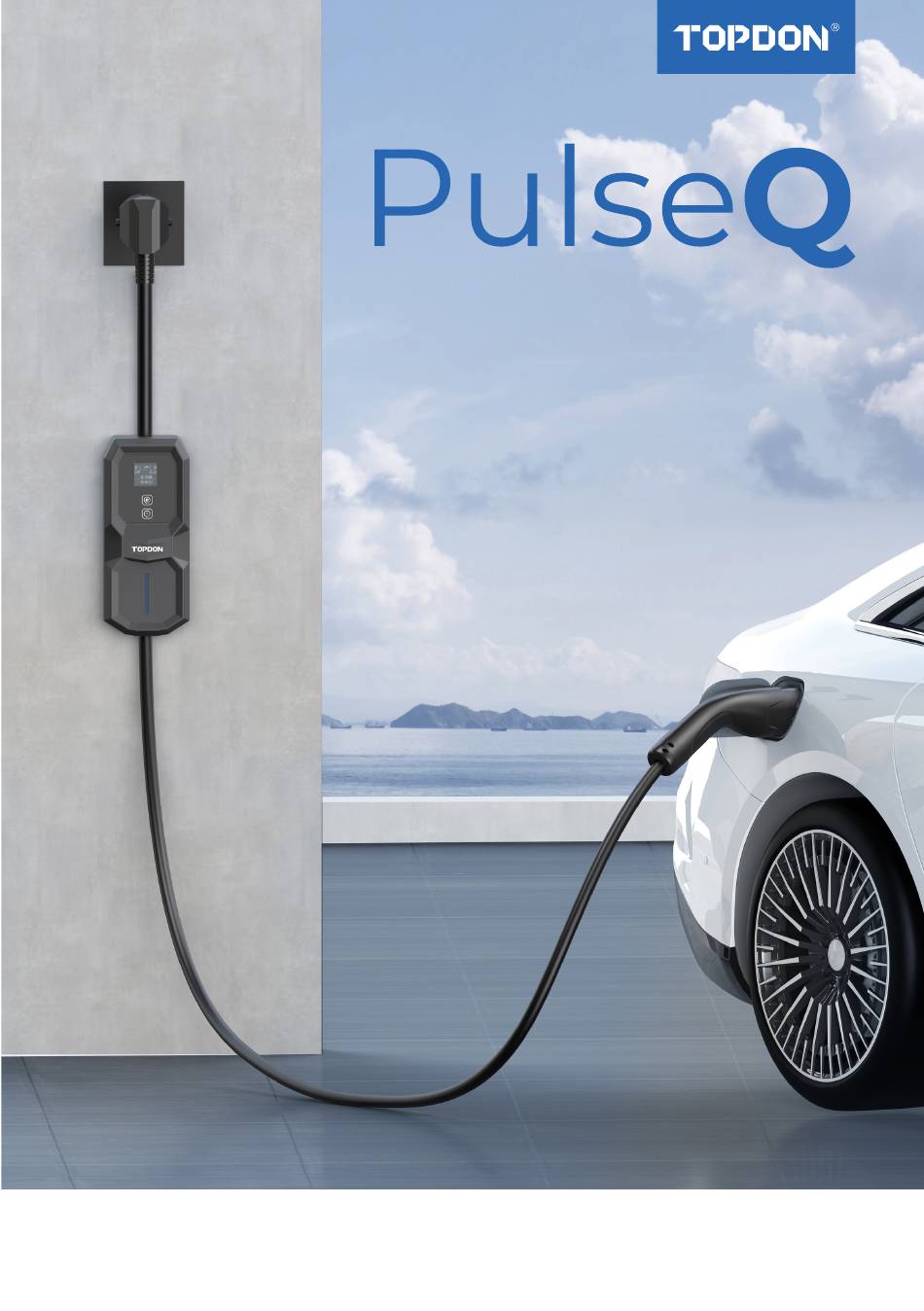

  • Page 1 AC Portable AC EV Charger User Manual...
  • Page 3: Table Of Contents

    CONTENTS Section 1 Important Safety Information ........4 Section 2 What's in the Box ............6 Section 3 Product Overview ............7 Section 4 Technical Specifications ..........10 Section 5 How to Charge an EV ........... 1 1 Section 6 Fault Handling ............
  • Page 4: Section 1 Important Safety Information

    Section 1 Important Safety Information Thank you for purchasing TOPDON's PulseQ AC Portable electric vehicle (EV) charger. To properly use this product, please read this user manual carefully before operating. 1.1 Safety Signs CAUTION This sign indicates that not following proper operations may cause minor to moderate injury to the operator or damage to the product or vehicle.
  • Page 5 The product must be grounded. Do not use this product with an extension cord. If the product does not operate as described in the user manual, refrain from using it and contact your dealer for repair or replacement. 1.2 Safety Precautions Ensure that the cable, power input plug, charging connector, and control box are free of any abnormalities, such as scratches, rust, cracks, or any other damage that may affect its proper functioning.
  • Page 6: Section 2 What's In The Box

    Section 2 What's in the Box Thank you for purchasing TOPDON's PulseQ AC Portable electric vehicle (EV) charger. To properly use this product, please read this user manual carefully before operating. AC Portable EV Charger USER MANUAL User Manual Carrying Bag...
  • Page 7: Section 3 Product Overview

    Section 3 Product Overview 3.1 Physical Features Control Box LCD Display Displays real-time charging data. Current Adjust Button Allows you to select from the four current options (16/13/10/8A).
  • Page 8 Fault (refer to Section 6 for more details) Charging Connector Connects your PulseQ AC Portable to the inlet socket of your electric vehicle. Power / Charging Input Plug Connects your PulseQ AC Portable to a power outlet. EU Plug UK Plug AU Plug...
  • Page 9 3.2 LCD Display 26°C 230V 00.0A 00.00kWh 00:00:00 Real-Time Charging Voltage Control Box Temperature Charging Status Icon Connector Connector Charging unplugged plugged Selected Charging Current Real-Time Charging Current Energy Delivered Scheduled Charging Countdown / Charging Time...
  • Page 10: Section 4 Technical Specifications

    Section 4 Technical Specifications PulseQ AC PulseQ AC PulseQ AC Model Name Portable_3.7K_ Portable_3.7K_ Portable_3.7K_ C5_EU C5_UK C5_AU Safety Standard EN 62752 Charging Mode & Connection Mode 2, Case C Charging Connector Type IEC 62196-2, Type 2 Power / Charging Input Plug Type EU Plug UK Plug AU Plug...
  • Page 11: Section 5 How To Charge An

    Section 5 How to Charge an EV The PulseQ AC Portable EV charger offers two charging modes: "Plug and Play" and "Scheduled Charging" modes. Note: For both charging modes, the charging connector will be locked during the charging process which prevents you from removing it while charging.
  • Page 12 Insert the charging connector into the inlet socket of your electric vehicle. Then charging will start automatically. Remove the charging connector from the vehicle inlet socket when charging is finished, then disconnect the power / charging input plug from the power outlet.
  • Page 13 Scheduled Charging Insert the power / charging input plug of the PulseQ AC Portable into the power outlet. Tap the Current Adjust button to select an appropriate current. Note: 1) The current can only be selected prior to inserting the charging connector.
  • Page 14 Promptly insert the charging connector when the countdown begins. If you fail to do so before the countdown ends, the charging appointment will not be executed. Charging will start when the countdown concludes. Remove the charging connector from the vehicle inlet socket when charging is finished, then disconnect the power / charging input plug from the power outlet.
  • Page 15 Place the dust cover onto the charging connector after use.
  • Page 16: Section 6 Fault Handling

    Section 6 Fault Handling Fault Description Possible Cause Suggestion Solid yellow CP fault Check whether the charging connector is in place. Try unplugging the power input plug and plugging it in again to see whether the fault resolves. 1 yellow blink every Overvoltage or Check for any over/under voltage in the second...
  • Page 17: Section 7 Warranty

    TOPDON shall not be liable for any incidental or consequential damages arising from the device's use, misuse, or mounting. If there is any conflict between the TOPDON warranty policy and local laws, the local laws shall prevail. This limited warranty is void under the following conditions: •...

This manual is also suitable for:

Pulseq ac portable 3.7k c5 euPulseq ac portable 3.7k c5 ukPulseq ac portable 3.7k c5 auPulseq
