Juice Lite 24K Manual

Juice® has built the Juice®Lite 24K power bank with
you in mind. Charge two devices at once with 2 x
USB-A (2A & 2.4A) output ports. The Juice®Lite 24K will
provide around 7.5 charges of an average mobile.
• USB-C Input (2A)
• Micro USB Input
• 1x USB A (2.4A)
• 1x USB A (2A)

Contents

•
Juice®Lite 24K power bank
• USB-C to USB A cable (for charging)
User Manual
•

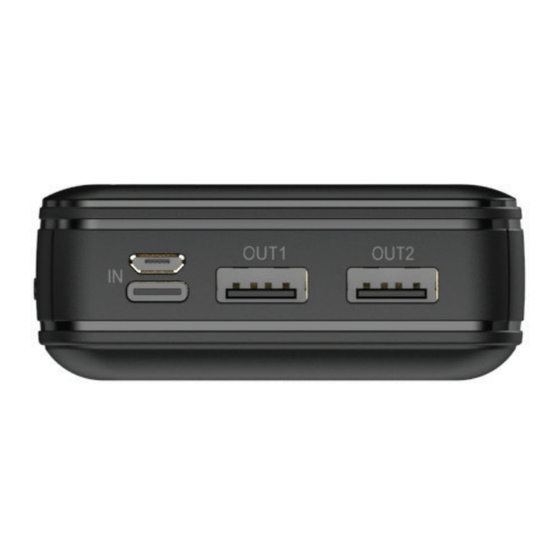

Overview

1. USB A output port 1 (5V/2A)
2. USB A output port 2 (5V/2.4A)
3. Micro-USB input port
4. Power On/O
5. LED lights indicate battery percentage
6. USB-C input port
4
How to charge the Juice®Lite power bank
Ensure to fully charge the Juice®Lite 24K power bank
before rst use, the four LEDs will light up. Do this by
charging and draining the power bank 3 to 4 times,
this will ensure the Juice®Lite 24K is fully optimised.
To charge the Juice®Lite 24K simply connect the
supplied USB-C cable into the power bank and the
other end into your computer or to a mains plug (plug
not supplied). The LEDs will be white when charging,
and will stay white once fully charged.
Via computer
(not included)
5
1
3
6
Via a plug
(not included)

Checking the remaining charge

Charge Time : 7-8 hrs (DC5V, 2A input)
To check the energy levels press the button on the
side, the four LEDs will indicate the remaining
power.
Note: It is normal for the Juice®Lite 24K and your
device to get warm during charging. They may get
even warmer if you use your device to play videos
or for gaming while charging.

Charging your gadgets

Always check the voltage your device can
accept before charging with any Juice
product, this will ensure full compatibility
1. Connect your device via the cable to the
USB A port. For Apple devices you will need
to use your original cable that was supplied
with your device.
The A ports will charge your device quickly if
you are not charging from all ports. When
using 2 ports, the output from each port will
drop so that the total output is 2.4A, this
ensures safe charging to both devices.
2.
Press the power button to turn the
Juice®Lite 24K
device will show you when it is being
charged via the four LEDs on the front. The
numbers on the LEDs lit up will decrease to
show that power is being transferred from
the power bank to your device.
3. When your device is fully charged or
2
you want to stop charging, disconnect the
cable.
4. In order to charge your device(s), you will
need a cable compatible with your device.
These come included as standard when
purchasing most devices. Plug the device's
standard USB A end in to the
then plug the other end of the cable into the
device you wish to charge.
5. Once charged, simply unplug your device
and store your
you are ready to use it again, ensure to
charge the power bank fully every 3 months
to ensure it is kept in optimum condition.
NOTE: The maximum output current of the Juice®Lite24K
is 2.4A. This occurs when charging one device from
either the USB A ports, when charging 2 devices from
USB ports the power bank will output 2.4A. Power
cannot be discharged to your device requiring an
amperage of more than 2.4A.
NOTE: Mobile and gadget device manufacturers have
di erent requirements to charge their products, they
may also use di erent cables to charge their devices.
on, now you can charge.
Juice®Lite 24K
power bank until
Juice®Lite 24K
Your
,
