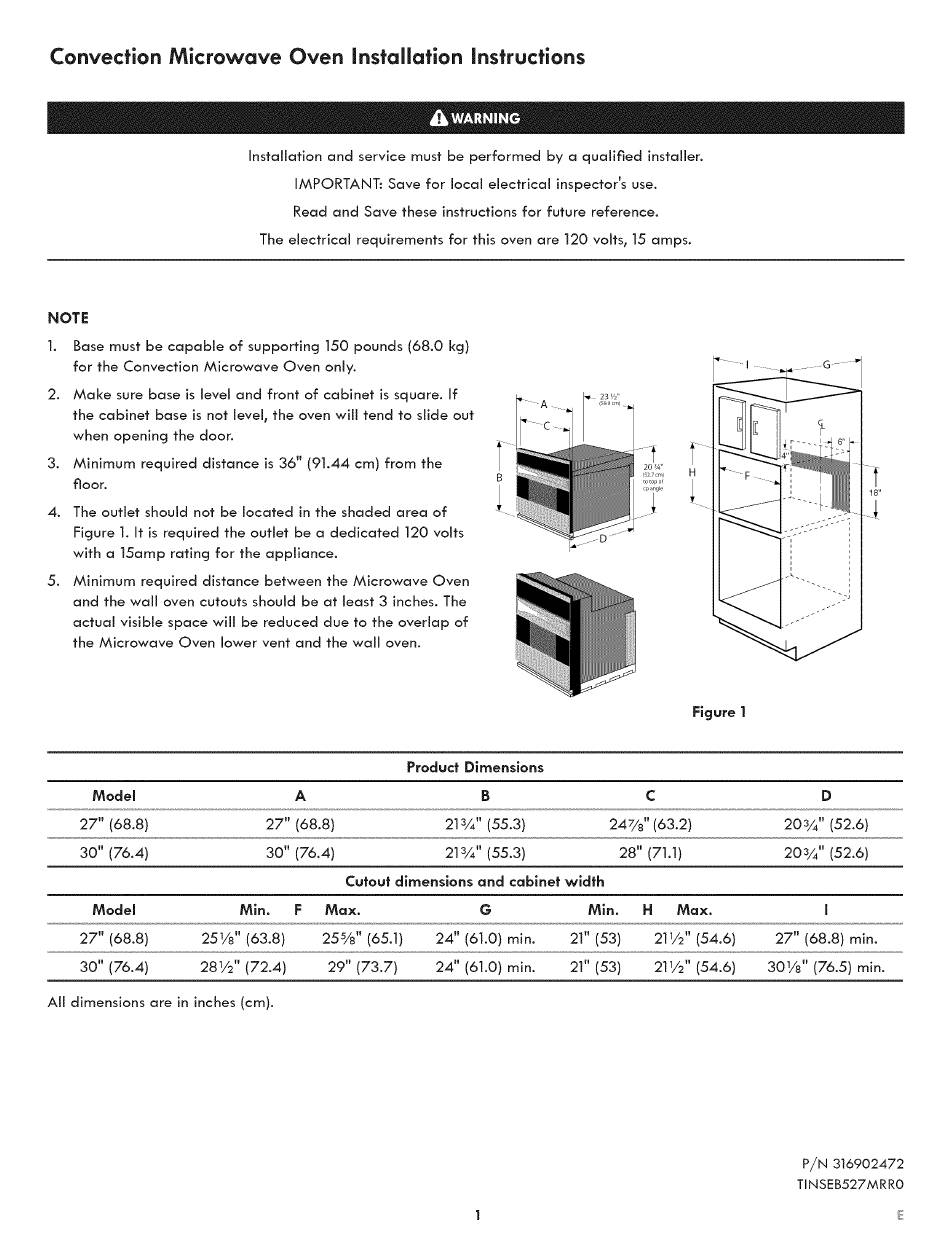

Convection Microwave Oven
Installation Instructions
& WARNING
Installation and service must be performed by a qualified installer.
IMPORTANT: Save for local electrical inspector's use.
Read and Save these instructions for future reference.
The electrical requirements for this oven are 120 volts, 15 amps.
NOTE
1.
Base must be capable of supporting 150 pounds (68.0 kg)
for the Convection Microwave Oven only.
Make sure base is level and front of cabinet is square. If
the cabinet base is not level, the oven will tend to slide out
when opening the door.
Minimum required distance is 36" (91.44 cm) from the
floor.
The outlet should not be located in the shaded area of
Figure 1. It is required the outlet be a dedicated 120 volts
with a lSamp rating for the appliance.
Minimum required distance between the Microwave Oven
and the wall oven cutouts should be at least 3 inches. The
actual visible space will be reduced due to the overlap of
the Microwave Oven lower vent and the wall oven.
Product Dimensions
Model
A
B
Cc
D
27" (68.8)
27" (68.8)
2193/4" (55.3)
247/_" (63.2)
203," (52.6)
30" (76.4)
30" (76.4)
2134" (55.3)
28" (71.1)
2034." (52.6)
Cutout dimensions and cabinet width
Medel
Min.
F
Max.
G
Min.
H
Max.
I
27" (68.8)
25 Ve" (63.8)
255" (65.1)
24" (61.0) min.
21" (53)
212" (54.6)
27" (68.8) min.
30" (76.4)
282" (72.4)
29" (73.7)
24" (61.0) min.
21" (53)
212" (54.6)
30" (76.5) min.
All dimensions are in inches (cm).
P/N 316902472
TINSEB527MRRO
