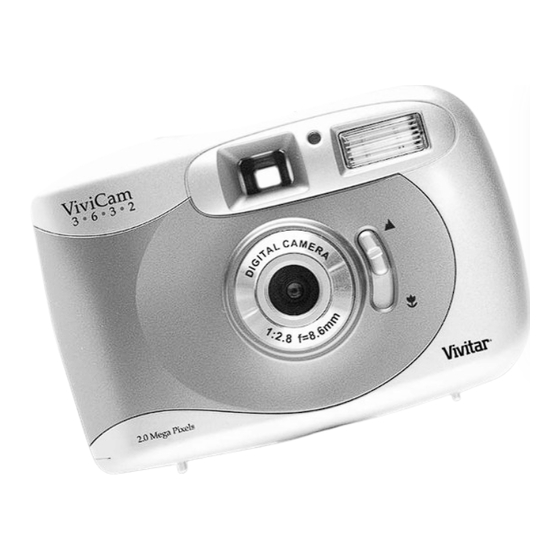

Vivitar Vivicam 3632 User Manual

2 mega pixel digital camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vivicam 3632 and is the answer not in the manual?

Questions and answers

Related Manuals for Vivitar Vivicam 3632

Summary of Contents for Vivitar Vivicam 3632

  • Page 2: Table Of Contents

    Transferring Images to your Computer…………………………………...……..…………. 11 Printing your Images……………………………………………………………………………11 PC/Web Camera Mode…………………………………………………………………………11 Using the V3632 Camera with VideoImpression 1.6…………………………………………. 13 Installing VideoImpression 1.6 …………………………………………………………….. 13 Using Your Camera with VideoImpression 1.6……………….…………………………….. 13 Vivicam 3632 Specifications…………………………………..…………………………….….. 16 Page 2 of 16 Revised 01 July 03...

  • Page 3: Loading The Batteries

    The parts of the camera are identified below. For more information on the function of each part, refer to the following sections. Insert two AA batteries into the Battery Compartment observing the polarity indications (＋,－) as shown in the illustration. Attach the hand strap shown in the illustration.

  • Page 4: Inserting And Removing An Sd/Mmc Memory Card (Optional)

    The Vivicam 3632 has 16 MB resident (internal) flash memory. Of this, 14 MB is available to store your images and movie clips. You may wish to purchase a Secure Digital (SD) or Multi-Media Card (MMC) memory card to extend the image storage capacity of your camera. Note that when an SD or MMC card is used with the Vivicam 3632, the camera will automatically use the memory card in preference to the internal memory.

  • Page 5: Camera Mode

    The camera will always power-up in Camera Mode, and it will be prepared to capture still images. Press the Mode Button to change between Camera-Mode and Playback-Mode. Within Camera Mode there are two additional camera functions: movie clip capture, and burst capture. To changing camera settings, use the Multi Selector button to navigate through the setting options.
  • Page 6 3.1.1.2 Frame Counter: The number of available shots remaining based on available memory. 3.1.1.3. Battery Condition: When the power is ON, the remaining battery power is displayed on the LCD monitor. Display Sufficient Batteries are Meaning Battery Partially Used Power 3.1.1.4.
  • Page 7 3.1.2.2 Resolution: Options for setting image resolution. Depending upon what capture mode you are using, the meaning of Hi, Std, and Low will change: Single Photo Mode: High Resolution: 2048 x 1536 pixels – interpolation to 3 Megapixel images Standard Resolution: 1600 x 1200 pixels – native camera resolution Low Resolution: 800 x 600 pixels Video Clip Mode: High Resolution: 640 x 480 pixels...
  • Page 8 Exposure Value: Your camera will automatically set the exposure for each image. However, if you wish to adjust the exposure manually, use the Up and Down keys to position the arrow ( compensation value. This will over ride the automatic exposure setting. White Balance: Your camera will automatically set the white balance for each image.

  • Page 9: Playback Mode

    To display your images or video clips on the LCD monitor (or an external TV monitor), press the Mode Button to change to the Playback Mode. The most recent image will be displayed on the LCD monitor. To change the playback settings, use the Multi Selector Button to navigate through the playback options.
  • Page 10 3.2.2 On-Screen Display (OSD) Information, Playback Mode: Press the Enter key on the Multi Selector Button to invoke the OSD control menus symbolized by four main icons. Use the Left and Right keys to navigate and highlight the desired icon. Use the Up and Down Keys to peruse the drop-down menus.

  • Page 11: Transferring Images To Your Computer

    The USB driver is required for all users who wish to use the PC/web cam feature. The Vivicam 3632 can connect to you computer in two, very different ways. The first mode (most common) is called Mass Storage Mode, and the second is known as PC/Web Camera Mode.

  • Page 12: Printing Your Images

    4.3 Printing your Images Once you have transferred your images to your computer you may edit them using any image-editing program that works with the popular JPG image file format. The Lexmark Photo Center program includes an image editor that allows you to crop, rotate, resize, and adjust your images.

  • Page 13: Pc/Web Camera Mode

    Not only does our camera capture still images and movies clips but it can also we used to transfer live video to your PC for applications such as video conferencing and video production. Here’s how to use the Vivicam 3632 in the PC/Web Camera mode: Power off your camera.
  • Page 14 The Vivicam 3632 does more than take great still images. It also allows you to capture video in two distinctly different ways. 1) You may capture short video movie clips using the movie mode as described in section 3.1.2.1. In this manner movie clips are stored to camera memory (or memory card) as AVI (Audio/Video Interlaced) files.
  • Page 15 5.2.1 Capture Live Camera Video: To capture live video from your camera using VideoImpression – Click on the New On the next screen, click on the Capture button to acquire live video. Alternatively, to use an AVI video clip from your camera – Click on the Get button to open a previously saved movie clip (AVI file.) 5.2.2 Working with “Albums”: Use the tools on the Albums Screen to modify your movie.

  • Page 16: Image Sensor

    ITEM Image Sensor Operating Modes Computer Interface TV Out Storage Memory Still Image Resolution USB Video Frame Rate Video Clip/Movie Rate White Balance Exposure LCD Display Self-timer Flash Modes File Formats Viewfinder Focus Range Focal Length Aperture Power Supply OS Support Dimension SPECIFICATION CMOS Sensor, 2.0 Mega Pixel Native resolution...
