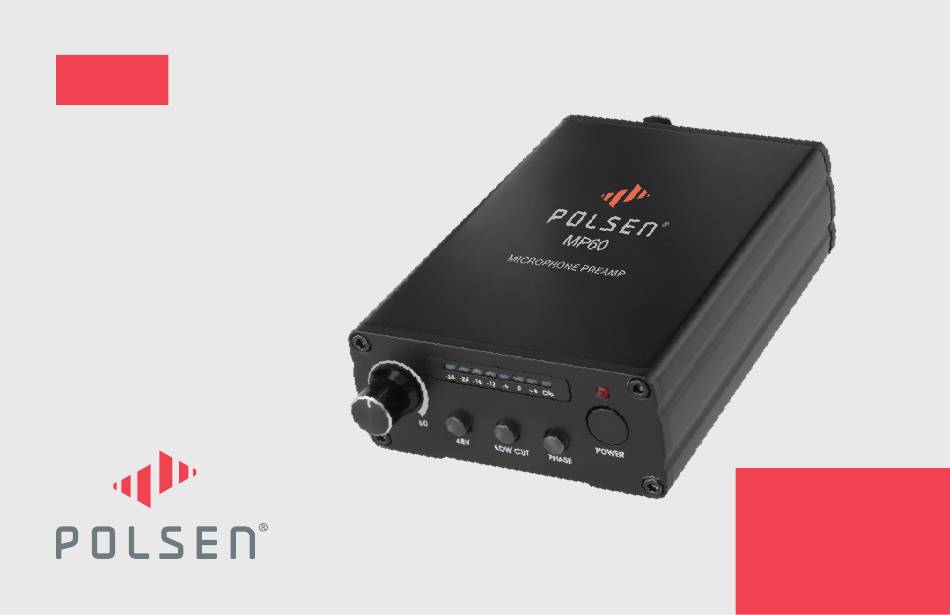

  • Page 1 MP60 MICROPHONE PREAMPLIFIER PRODUCT MANUAL...
  • Page 2 T H A N K Y O U F O R C H O O S I N G P O L S E N . The Polsen MP60 Microphone Preamp is a compact, single-channel mic pre that can add up to 60 dB of clean gain to dynamic and condenser microphones.
  • Page 3 • Use only the correct, recommended voltage. • All images are for illustrative purposes only. • Do not attempt to disassemble or repair the equipment — doing so will void the warranty, and Polsen will not be responsible for any damage.
  • Page 4 O V E R V I E W CLIP POWER LOW CUT PHASE MP60 MICROPHONE PREAMP UNBAL UNBAL OUTPUT INPUT...
  • Page 5 8-level signal level and clip indicator Phase switch Indicates the level of the outgoing signal. The red Press to activate the Phase switch. Out-of-phase clip indicator lights up when the signal is too loud audio sounds thin due to missing frequencies. and distorting.
  • Page 6 S P E C I F I C AT I O N S NUMBER OF 0.03@ 1 kHz at 21 dBm TOTAL HARMONIC DISTORTION (THD) CHANNELS (referred to min gain) + 20 dBu (XLR balanced) FREQUENCY 50 Hz to 20 kHz MAXIMUM OUTPUT LEVEL + 8 dBu (3.5 mm unbalanced)
  • Page 7 To obtain warranty coverage, contact the Polsen Customer Service Department to obtain a return merchandise authorization (“RMA”) number, and return the defective product to Polsen along with the RMA number and proof of purchase. Shipment of the defective product is at the purchaser’s own risk and expense.
