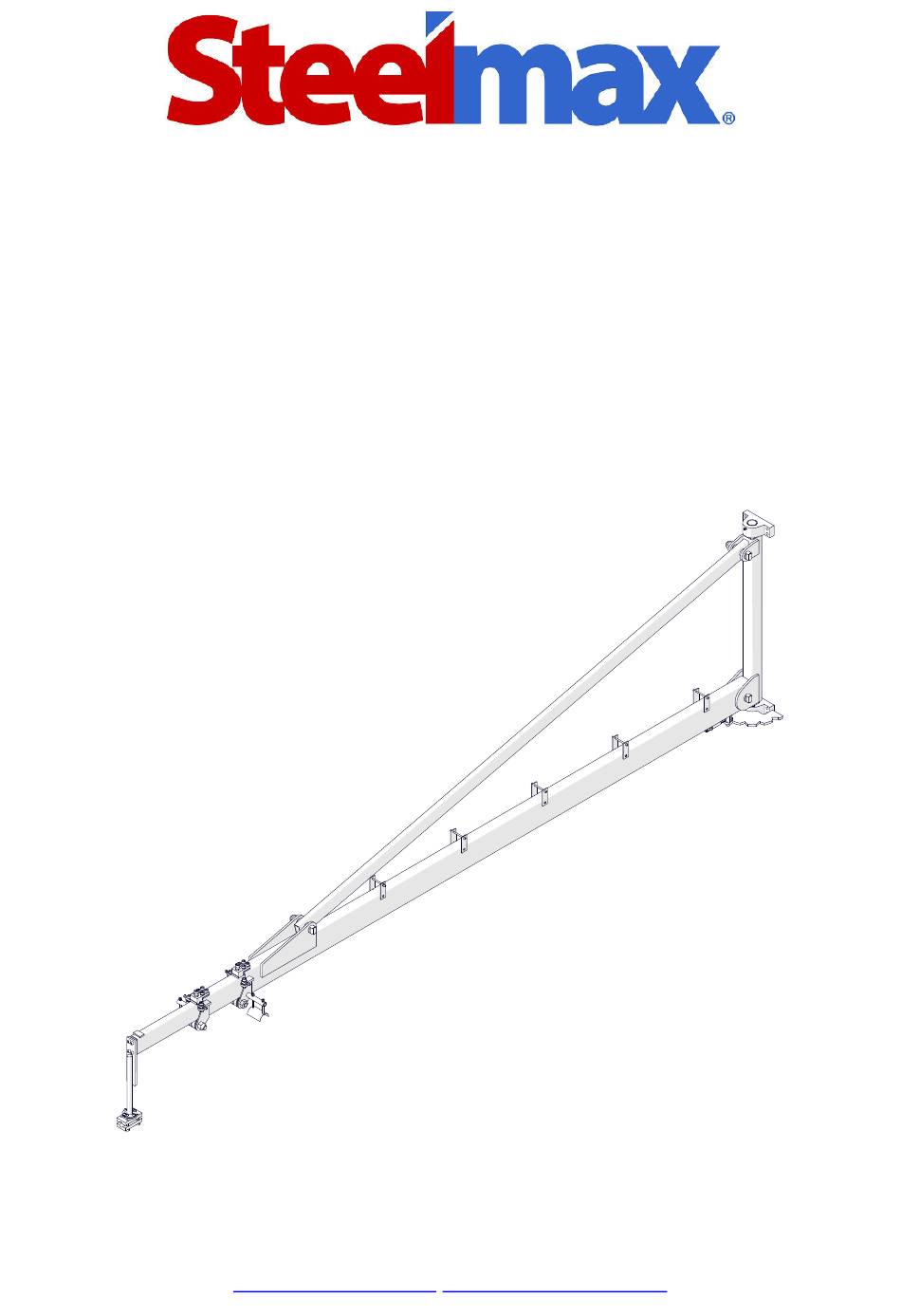

OPERATOR'S MANUAL
Telescopic wire feeder boom
SM-WFB-TLB6000,
SM-WFB-TLB8000
801 W. Mineral Ave. Suite 103, Littleton CO. 80120
1– 303-690-9146, FAX 303 – 690 – 9172
www.steelmax.com sales@steelmax.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SM-WFB-TLB6000 and is the answer not in the manual?

Questions and answers

Summary of Contents for SteelMax SM-WFB-TLB6000

  • Page 1 The tools of innovation. OPERATOR’S MANUAL Telescopic wire feeder boom SM-WFB-TLB6000, SM-WFB-TLB8000 801 W. Mineral Ave. Suite 103, Littleton CO. 80120 1– 303-690-9146, FAX 303 – 690 – 9172 www.steelmax.com sales@steelmax.com...
  • Page 2: Table Of Contents

    Contents 1. GENERAL INFORMATION ....................3 1.1. Application ........................3 1.2. Technical data......................3 1.3. Design ........................3 1.4. Equipment included ....................4 1.5. Dimensions .........................5 1.6. Reach .........................6 2. SAFETY PRECAUTIONS ....................7 3. STARTUP AND OPERATION ....................8 3.1. Assembling the frame ....................8 3.2. Installing the cable holders ..................9 3.3.
  • Page 3: General Information

    110 lbs (50 kg) SM-WFB-TLB8000 0–180° (3370–7800 mm) (131 kg) 1.3. Design Top hinge Assemblable frame Cable support Adjustment screw Bottom hinge R type L type (accessory) Cable holder Movable arm Wire feeder holder Fig. 1. Design SM-WFB-TLB6000, SM-WFB-TLB8000 Operator’s Manual...
  • Page 4: Equipment Included

    M24 nut 3 units Cable holder 2 units Top hinge 1 unit Bottom hinge 1 unit R type wire feeder holder 1 unit M8x25 screw 4 units – Operator’s manual 1 unit Fig. 2. Equipment included SM-WFB-TLB6000, SM-WFB-TLB8000 Operator’s Manual...
  • Page 5: Dimensions

    SM-WFB-TLB6000, SM-WFB-TLB8000 1.5. Dimensions Retracted boom Extended boom Dimensions 101 31/32″ (2590 mm) 237 51/64″ (6040 mm) SM-WFB-TLB6000 132 43/64″ (3370 mm) 307 3/32″ (7800 mm) SM-WFB-TLB8000 Fig. 3. Dimensions of boom SM-WFB-TLB6000, SM-WFB-TLB8000 Operator’s Manual...
  • Page 6: Reach

    Frame center of rotation Frame Movable arms Reach 180⁰ Steel element to which the boom is installed 101 31/32″ (2590 mm) 237 51/64″ (6040 mm) SM-WFB-TLB6000 132 43/64″ (3370 mm) 307 3/32″ (7800 mm) SM-WFB-TLB6000 Fig. 4. Reach SM-WFB-TLB6000, SM-WFB-TLB8000 Operator’s Manual...
  • Page 7: Safety Precautions

    15. Use with a wire feeder powered by no more than 48 volts DC. 16. Repairs can only be carried out by the service specified by the seller. 17. Work at heights can only be carried out by a person with appropriate permits. SM-WFB-TLB6000, SM-WFB-TLB8000 Operator’s Manual...
  • Page 8: Startup And Operation

    Assemble the frame parts (1, 2, 3) as shown in the figure below using pins (4), washers (5) and M24 nuts (6). Tighten the nuts with a 36 mm wrench (not included). Place the top and the bottom hinge on the frame (7). Fig. 5. Assembling the frame SM-WFB-TLB6000, SM-WFB-TLB8000 Operator’s Manual...
  • Page 9: Installing The Cable Holders

    SM-WFB-TLB6000, SM-WFB-TLB8000 3.2. Installing the cable holders Install the cable holder (1) with two M6x70 screws (2) and tighten with four M6 nuts (3). Leave space for the cable (4). Fig. 6. Installing the cable holders SM-WFB-TLB6000, SM-WFB-TLB8000 Operator’s Manual...
  • Page 10: Installing The Wire Feeder Holder

    R type wire feeder holder L type wire feeder holder (accessory) Fig. 7. Installing the wire feeder holder 3.4. Installing the boom Only install the boom to steel elements. Install the boom at height (H) safe for people nearby. SM-WFB-TLB6000, SM-WFB-TLB8000 Operator’s Manual...
  • Page 11 (3) planes. When installing, use a level or other tool that allows for precise vertical and horizontal alignment. 5 1/8″ (130 mm) Fig. 8. Installing the boom vertically in the front and side planes SM-WFB-TLB6000, SM-WFB-TLB8000 Operator’s Manual...
  • Page 12: Installing The Wire Feeder

    Tighten the screws. the wire feeder* to the hook. Fig. 10. Installing the wire feeder * Install the wire feeder as recommended by its manufacturer using the element (handle, hook, etc.) designed for this purpose. SM-WFB-TLB6000, SM-WFB-TLB8000 Operator’s Manual...
  • Page 13: Boom Positioning

    Be careful – depending on the dimensions of the wire feeder and steel element to which boom is installed, a collision may occur! Do not allow for uncontrolled rotation of the frame and extension of mov- able arms! Fig. 11. Boom positioning SM-WFB-TLB6000, SM-WFB-TLB8000 Operator’s Manual...
  • Page 14: Maintenance

    SM-WFB-TLB6000, SM-WFB-TLB8000 3.7. Maintenance Every six months apply a sufficient quantity of grease into the lubrication points. Lubrication point Fig. 12. Boom maintenance SM-WFB-TLB6000, SM-WFB-TLB8000 Operator’s Manual...
  • Page 15: Accessories

    SM-WFB-TLB6000, SM-WFB-TLB8000 4. ACCESSORIES 4.1. R type wire feeder holder Part number: MCW-0732-08-00-00-0 (4 screws M8x25 included) 4.2. L type wire feeder holder Part number: MCW-0732-09-00-00-0 (4 screws M8x25 included) SM-WFB-TLB6000, SM-WFB-TLB8000 Operator’s Manual...
  • Page 16: Free-Standing Pillar

    Anchor rod M16 – 190 mm (7 31/64″) 8 units 3/64″ (1 mm) thick special washer 16 units 1/64″ (0.5 mm) thick special washer 16 units 1/64″ (0.2 mm) thick special washer 16 units Free-standing pillar 1 unit SM-WFB-TLB6000, SM-WFB-TLB8000 Operator’s Manual...
  • Page 17 (3) and injection resin* (not included). Follow the recommendations of the resin manufacturer. The spacing of the anchor holes is shown below. * recommended resin is TRUTEX TCM420 PRO 90⁰ 45/64″ 6 11/16″ (170 mm) Ø (18 mm) (340 mm) 13 25/64″ SM-WFB-TLB6000, SM-WFB-TLB8000 Operator’s Manual...
  • Page 18 To install the boom, attach the bottom hinge to the mounting holes of the pillar with four washers and M12x65 screws (4) using a 10 mm hex wrench (not included). Make four M12 threaded holes for top hinge (5). Then attach the top hinge with four washers and M12x65 screws (6). SM-WFB-TLB6000, SM-WFB-TLB8000 Operator’s Manual...
  • Page 19: Declaration Of Conformity

    PROMOTECH sp. z o.o. ul. Elewatorska 23/1 15-620 Białystok, Poland We declare with full responsibility that: Telescopic wire feeder boom SM-WFB-TLB6000, SM-WFB-TLB8000 is manufactured in accordance with the following standards: • EN ISO 12100: 2010 • ISO 12482-1: 1995 and satisfies regulations of the guidelines: 2006/42/EC Person authorized to compile the technical file: Wiktor Marek Siergiej, ul.
  • Page 20: Warranty Card

    Warranty card no..................in the name of Manufacturer warrants the*: Telescopic wire feeder boom: SM-WFB-TLB6000, SM-WFB-TLB8000 * mark correct to be free of defects in material and workmanship under normal use for a period of 12 months from the date of sale.
