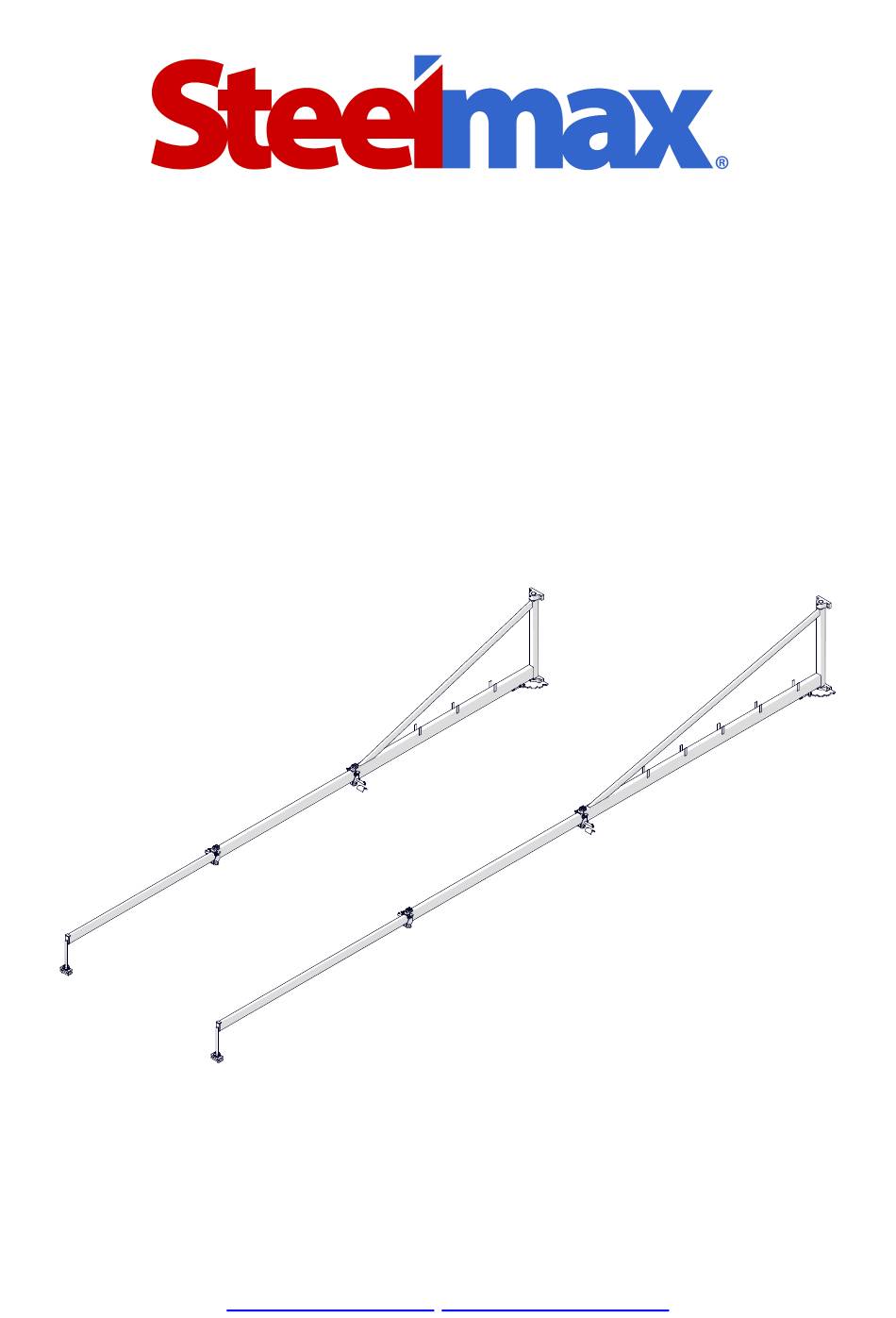

OPERATOR'S MANUAL
TELESCOPIC WIRE FEEDER BOOM
T
L
B
6
0
0
0
,
T
L
B
8
0
0
0
T
L
B
6
0
0
0
,
T
L
B
8
0
0
0
801 W. Mineral Ave. Suite 103
Littleton, CO 80120
303-690-9146 FAX 303 – 690 – 9172
www.steelmax.com sales@steelmax.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TLB6000 and is the answer not in the manual?

Questions and answers

Summary of Contents for SteelMax TLB6000

  • Page 1 The tools of innovation. OPERATOR’S MANUAL TELESCOPIC WIRE FEEDER BOOM 801 W. Mineral Ave. Suite 103 Littleton, CO 80120 303-690-9146 FAX 303 – 690 – 9172 www.steelmax.com sales@steelmax.com...
  • Page 2: Table Of Contents

    1. GENERAL INFORMATION ....................3 1.1. Application ......................... 3 1.2. Technical data......................3 1.3. Dimensions ........................ 4 1.3.1. TLB6000 ......................4 1.3.2. TLB8000 ......................4 1.4. Reach and work area ....................5 1.4.1. TLB6000 ......................5 1.4.2. TLB8000 ......................6 1.5.
  • Page 3: General Information

    3251 × 1206 × 287 mm 304″ × 47″ × 11″ 236″ × 47″ × 11″ Maximum dimensions 7729 x 1206 x 287 mm 6000 × 1206 × 287 mm Weight 216 lbs (98 kg) 265 lbs (120 kg) TLB6000/TLB8000 Operator’s Manual...
  • Page 4: Dimensions

    TLB6000/TLB8000 1.3. Dimensions 1.3.1. TLB6000 1.3.2. TLB8000 TLB6000/TLB8000 Operator’s Manual...
  • Page 5: Reach And Work Area

    TLB6000/TLB8000 1.4. Reach and work area 1.4.1. TLB6000 Minimum reach 106″ (2700 mm ) Maximum reach 236″ (6000 mm) 236″ (6000 mm) Reach Work area 106″ (2700 mm) Center of rotation TLB6000/TLB8000 Operator’s Manual...
  • Page 6: Tlb8000

    TLB6000/TLB8000 1.4.2. TLB8000 Minimum reach 128″ (3251 mm) Maximum reach 304″ ( 7729 mm) 304″ (7729 mm) Reach Work area 128″ (3251 mm ) Center of rotation TLB6000/TLB8000 Operator’s Manual...
  • Page 7: Design

    TLB6000/TLB8000 1.5. Design Adjustment screw Hinge Movable arm Cable holder Wire feeder holder TLB6000/TLB8000 Operator’s Manual...
  • Page 8: Safety Precautions

    11. Before use, make sure that the arm clearance is correct. If any arm moves out without any action from the operator, tighten the adjusting screw to remove the excessive clearance. 12. Repair only in a service center appointed by the seller. TLB6000/TLB8000 Operator’s Manual...
  • Page 9: Startup And Operation

    Be careful and use correct means (platforms, cranes) to ensure safety. Install the boom so that the section between the hinges is vertical. Attach the boom with eight M12 screws (DIN931, 10.9 grade) and M12 nuts (DIN985, 10.9 grade). TLB6000/TLB8000 Operator’s Manual...
  • Page 10: Operating

    Move out the arms of the boom to the required distance. If any arm moves out with- out any action from the operator, use the 10 mm hex wrench to tighten the adjusting screw to remove the excessive clearance. Adjustment screw TLB6000/TLB8000 Operator’s Manual...
  • Page 11: Maintaining

    TLB6000/TLB8000 3.3. Maintaining At intervals of six months, apply a sufficient quantity of grease into the grease nipples. Grease nipple TLB6000/TLB8000 Operator’s Manual...
  • Page 12: Exploded Views And Parts Lists

    TLB6000/TLB8000 4. EXPLODED VIEWS AND PARTS LISTS 4.1. TLB6000 TLB6000/TLB8000 Operator’s Manual...
  • Page 13 TLB6000/TLB8000 TLB6000/TLB8000 Operator’s Manual...
  • Page 14 HEX SOCKET HEAD CAP SCREW M12x35 SRB-000426 HEX SOCKET HEAD CAP SCREW M12x20 NKR-000029 LOW HEX NUT M12 SRB-000046 HEX SOCKET HEAD CAP SCREW M10x25 PDK-000052 SPRING WASHER 10.2 HML-0429.06.01.00.0 BRAKE SPR-0152-02-02-05-0 SPRING 8x14.5x0.8 DCS-0429-06-02-00-0 CLAMP WKL-0429-06-04-00-0 INSERT TLM-0429-06-03-00-0 DAMPER TLB6000/TLB8000 Operator’s Manual...
  • Page 15 SRB-000157 HEX SOCKET HEAD CAP SCREW M8x40 SRB-000193 FULL THREAD HEX HEAD SCREW M20x90 SRB-000137 HEX SOCKET HEAD CAP SCREW M6x70 PDK-000046 SPRING WASHER 6.1 PDK-000218 WASHER 12x18x0.5 NKR-000002 HEX NUT M10 PRS-000003 EXTERNAL RETAINING RING 12z TLB6000/TLB8000 Operator’s Manual...
  • Page 16: Tlb8000

    TLB6000/TLB8000 4.2. TLB8000 TLB6000/TLB8000 Operator’s Manual...
  • Page 17 TLB6000/TLB8000 TLB6000/TLB8000 Operator’s Manual...
  • Page 18 HEX SOCKET HEAD CAP SCREW M12x35 SRB-000426 HEX SOCKET HEAD CAP SCREW M12x20 NKR-000029 LOW HEX NUT M12 SRB-000046 HEX SOCKET HEAD CAP SCREW M10x25 PDK-000052 SPRING WASHER 10.2 HML-0429.06.01.00.0 BRAKE SPR-0152-02-02-05-0 SPRING 8x14.5x0.8 DCS-0429-06-02-00-0 CLAMP WKL-0429-06-04-00-0 INSERT TLM-0429-06-03-00-0 DAMPER TLB6000/TLB8000 Operator’s Manual...
  • Page 19 SRB-000157 HEX SOCKET HEAD CAP SCREW M8x40 SRB-000193 FULL THREAD HEX HEAD SCREW M20x90 SRB-000137 HEX SOCKET HEAD CAP SCREW M6x70 PDK-000046 SPRING WASHER 6.1 PDK-000218 WASHER 12x18x0.5 NKR-000002 HEX NUT M10 PRS-000003 EXTERNAL RETAINING RING 12z TLB6000/TLB8000 Operator’s Manual...
  • Page 20: Declaration Of Conformity

    Declaration of Conformity PROMOTECH sp. z o.o. ul. Elewatorska 23/1 15-620 Białystok Poland We declare with full responsibility that: Telescopic wire feeder boom TLB6000 is manufactured in accordance with the following standards: • EN ISO 12100:2010 ISO 12482-1:1999 • and satisfies the regulations of the guideline 2006/42/EC.
  • Page 21 EN ISO 12100:2010 • ISO 12482-1:1999 • and satisfies the regulations of the guideline 2006/42/EC. Person authorized to compile the technical file: Wiktor Marek Siergiej, ul. Elewatorska 23/1, 15-620 Białystok, Poland Białystok, 2 March 2021 ___________________________ Wiktor Marek Siergiej TLB6000/TLB8000 Operator’s Manual...
  • Page 22: Warranty Card

    Serial number ........................ Date of sale ........................Signature and stamp of the seller .................. 0.01 / 3 March 2021 WE RESERVE THE RIGHT TO MAKE CHANGES IN THIS MANUAL WITHOUT NOTICE TLB6000/TLB8000 Operator’s Manual...
