- Page 1 V01.02 03/11/23 INTELLI HD SERIES 8'' TOUCH SCREEN SMART MONITOR Third Generation 4 Wire Intercom System KP 23-HD WF 8-HD-BK 4 Wire Indoor Monitor With Built-In WiFi For Smart Phone...
- Page 2 Page 15 Cabling Topology Multimedia cont.,Common Door lock Output Page 6 Page 16, 17, 18, 19 Wiring Overview Tuya APP and Configuration Page 7 KP 23-HD wiring, LED indicator, exit button electric striker and gate automation connection Page 8 Keypad Programming Page 9 Keypad Programming cont.
- Page 3 Indoor Monitor Specifications Indoor Monitor Overview Resolution 8" (1024*600) 1 Power Indicator LED Power Consumption Maximum 1200 mA 2 TFT display 3 Mechanical Button Power supply External power supply DC 12-15V 4 Microphone 5 Speaker Operating Temp 0~+50℃ 6 SD card slot SD Card Requirement 2GB~128GB Class 10 micro SD Read/Write 10MB/S Min.
- Page 4 Cabling 4C ordinary unshielded wire and shielded wiring ≤50m (4*0.3mm²) ≤80m (4*0.5mm²) 3C ordinary unshielded + video cable(RG-59) connection method ≤100 meters CAT5/CAT6 network cable connection (not recommended) ≤50 meters Power Adapter Limitations Indoor Monitor & Outdoor Unit 15V 1A Power Adapter * Max extendable distance is 3m * Recommended cable to extend length is 14/020 pair * Only one unit per power supply...
- Page 5 Cabling Topology Through the settings menu each monitor MUST be set with an ID number. The DEVICE ID Setting can be found in the monitors MODE menu. First Monitor (Master) is addressed 01 Second Monitor (Slave 1) is addressed 02 Slave Third Monitor (Slave 2) is addressed 03 Fourth Monitor (Slave 3) is addressed 04...
- Page 6 Wiring Overview CHIME POWER External Chime System N/O Relay (voltage free) Latches for 5 seconds upon doorbell ring DC12V DC12V CHIME POWER CHIME Power Adapter for KP 23-HD Model Only DOOR 1 Automatic Gate Electric Striker See Pages 5 & 6 DOOR 2 Power Adapter for KP 23-HD Model Only...
- Page 7 KP 23-HD Outdoor Station Wiring Overview Door Station LED Red (Intercom Switching Power Line to Indoor Monitor) White LED Intercom Line White (Intercom Audio Line to Indoor Monitor) Standby (Without Motion Detection) Black (Intercom Ground Line to Indoor Monitor) to indoor monitor Yellow (Intercom Video Line to Indoor Monitor) Green LED Green (Normally Open Circuit)
- Page 8 Entering and Exiting Admin 9 9 9 Default PIN is 999999, if the PIN has been changed in the past then use the current PIN Press *, * then # to exit Buzzer Alerts Successful Command Returned one step in Menu Bi! Bi! Failed Command Changing the Admin PIN...
- Page 9 Setting the Unlock Time for PIN number and Tag Users 9 9 9 Default PIN is 999999, if the PIN has been changed in the past then use the current PIN Type 4 to enter the unlock time setting menu Type the amount of seconds (00-99) then press # Press *, * then # to exit Note for the monitor its unlocking time can be set via the monitor itself...
- Page 10 Reset Process (with admin PIN) This process will reset back to default parameters as listed below • Admin PIN to 999999 • Public unlock PIN to 123456 • Unlock time to 2 seconds • Security mode to No Security 9 9 9 Default PIN is 999999, if the PIN has been changed in the past then use the current PIN Type 0 to enter the menu Type 99# to perform the reset...
- Page 11 Setting Indoor Monitor Number (Device ID) Click on screen to enter the main interface then select settings and now select system, Now select Device ID Time 2020-01-01 01:12 Device ID setting you can cycle from 01 to 06. This number directly corelates to the call transfer and YY-MM-DD Date format intercom function when selecting a target indoor monitor.
- Page 12 Visitor Calls When a visitor presses the doorbell the indoor monitor(s) will ring for a total of 30 seconds before returning to standby. At anytime during the ringing time a user can answer from any of the monitors by pressing the button.
- Page 13 Language Navigate to “System” then Language. You can choose from English, Hebrew, French, Spanish, Device ID Portugese, Russian, Turkish, Chinese, Polish, Arabic and German. Time 2020-01-01 01:12 Date format YY-MM-DD Clock Language Englsh Keytone Motion Detection preview Ringback Off Indoor unlock time Time and Date Navigate to “System”...
- Page 14 Media Menu Navigate to “Media”. You can choose from within this menu the type of file you wish to view wether it be Music for audio files, photo for images or file for general navigation along with firmware upgrade files. Movie Music Note: ALWAYS disconnect the power to the indoor monitor whenever inserting or removing the...
- Page 15 Event Navigate to the main interface, Click on the Events. In this interface we can see Call record, message record, motion detection and Alarm. can see the record type, time, device, and whether it has been read or unread. Call record Message record Call record: Automatic snapshot or recorded video when any outdoor unit calls.
- Page 16 APP Configuration APP Install and Registration (All Users) 1. Download Tuya Smart from the APP Store on your Android/Apple Device. 2. Open the App and register an account ensuring you select “Australia” as the country 3. Login after registration. NOTE: Each user must register there own account.
- Page 17 Wi-Fi settings choose to forget this network. to edit the name 2. After successfully completing the Tuya Smart App will provide further instructions to set the phone to always receive the notifications, these must be followed for reliable notifications.
- Page 18 7. Successfully Completed 1. After successfully completing the Tuya Smart App will provide further instructions to set the phone to always receive the notifications, these must be followed for reliable notifications. 2. If you are receiving notification without audio try turning off your bluetooth as it may be sent to another device such as car audio, smart watch etc.
- Page 19 3. Select share Sharing APP and select device edit icon the intercom 5. Enter the users Tuya account email address then press Done, an invitation will be sent to the user Sharing with another user (High Privileges - with unlock feature) 1.
- Page 20 EYEVISION® INTELLI HD SERIES 8'' TOUCH SCREEN SMART MONITOR Ø 4 Wire Indoor Monitor With Built-In WiFi For Smart Phone Ø 8" MIPI Touch Screen, IPS Screen, Resolution 1024*600 Ø Anti-Tempered Glass Front Panel Black Colour Ø Easy to Use UI Menu Ø...
Need help?
Do you have a question about the eyevision INTELLI HD Series and is the answer not in the manual?
Questions and answers

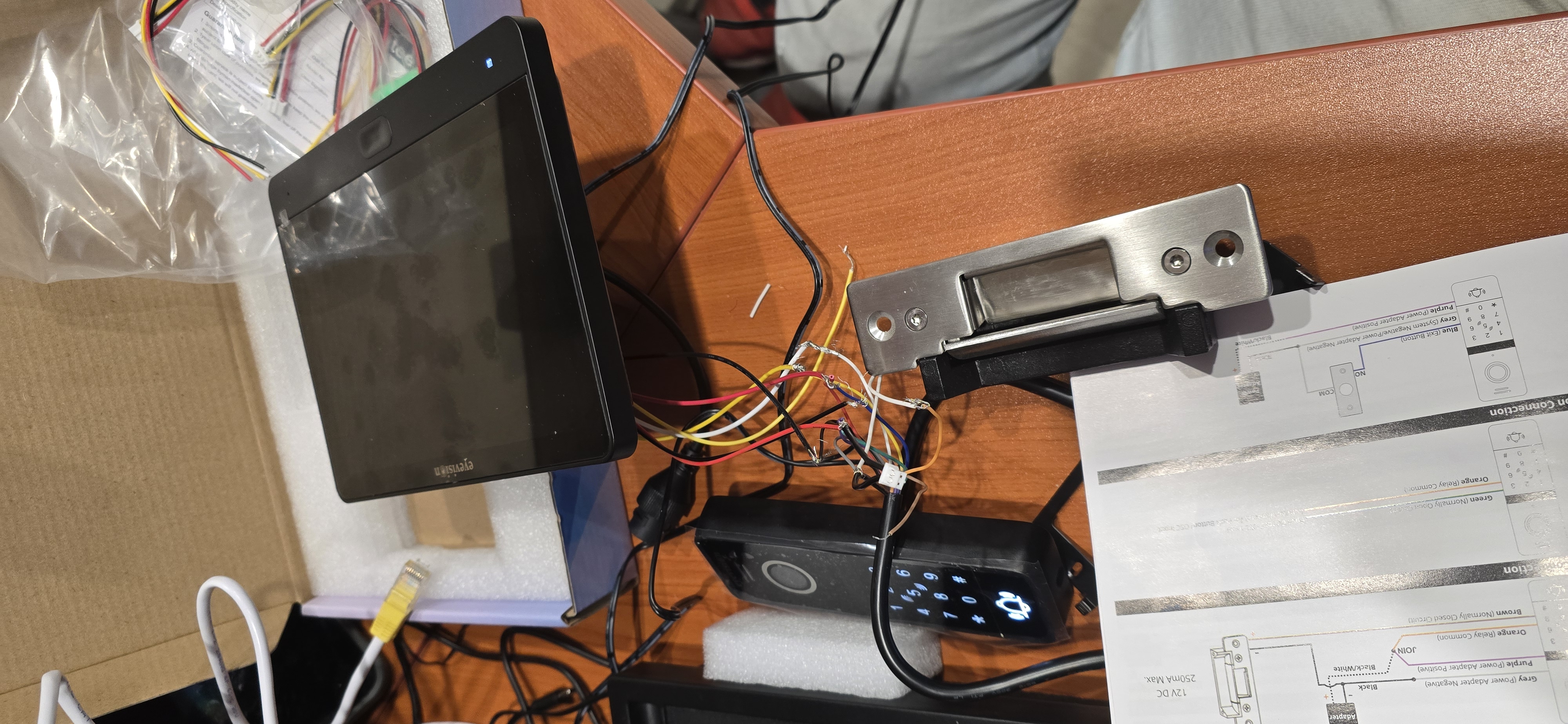

I have connected the 4 wires yelow, red, black and white from monitor to keypad but im not getting a video signal at all. The keypad turns red when I go into camera mode but theres no picture.
