Alia ALIARADAR ARL5000 Series Operation Manual

Radar level transmitter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

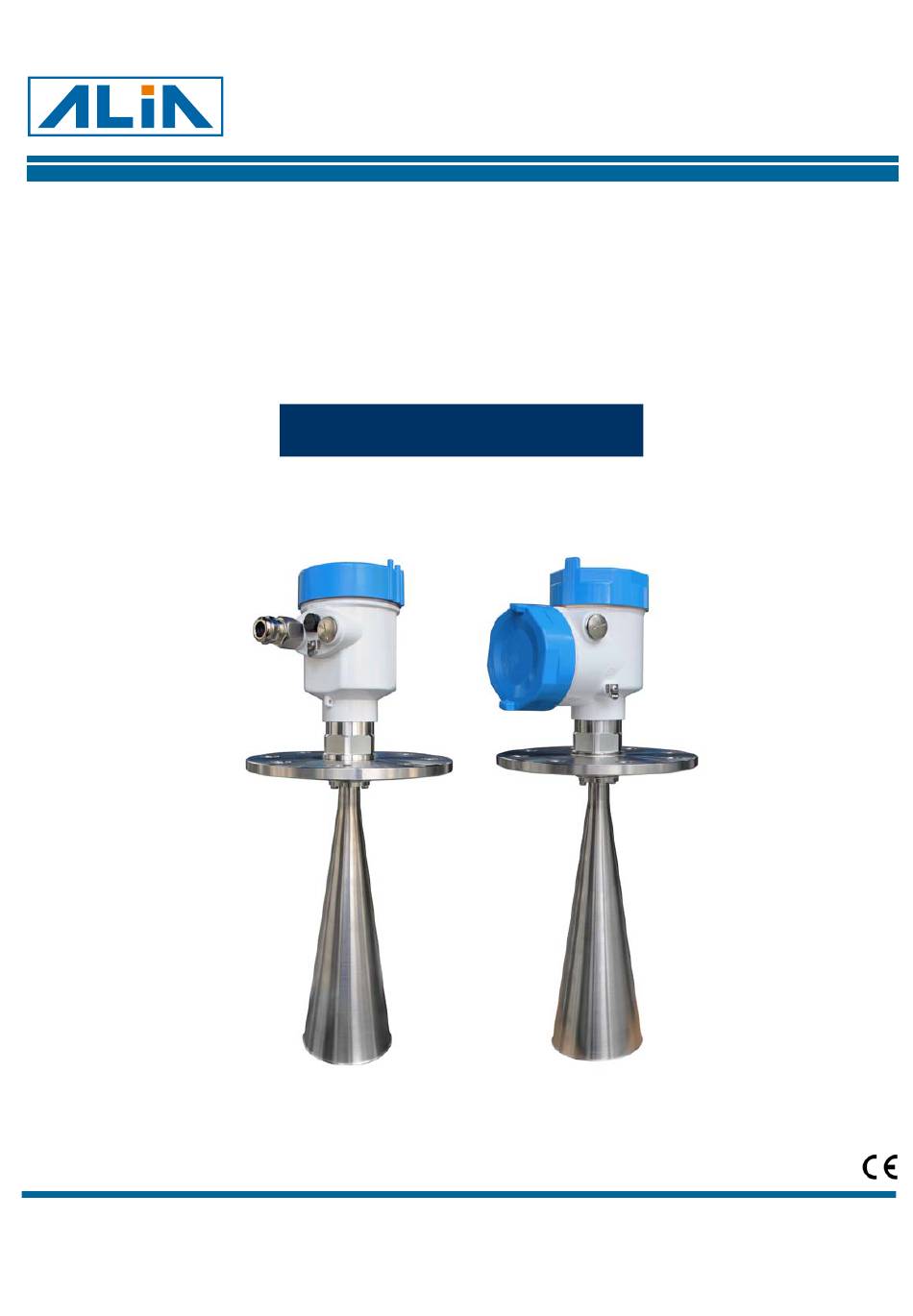

ARL5000 Operation Manual
OP5000.1.1.7.R1ENG
ALIARADAR
®
Radar Level Transmitter
ARL5000 Series
Operation Manual
URL : http://www.alia-inc.com
ALIA TECHNOLOGY LLC
633 W. 5th Street, 26th Floor, Los Angeles, CA 90071, USA
e-mail : alia@alia-inc.com
TEL : +1 - 213 - 533 - 4139
FAX : +1 - 213 - 223 - 2317
OP5000.1.1.7.R1ENG
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ALIARADAR ARL5000 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Alia ALIARADAR ARL5000 Series

Summary of Contents for Alia ALIARADAR ARL5000 Series

  • Page 1 ALIARADAR ® Radar Level Transmitter ARL5000 Series Operation Manual URL : http://www.alia-inc.com ALIA TECHNOLOGY LLC 633 W. 5th Street, 26th Floor, Los Angeles, CA 90071, USA e-mail : alia@alia-inc.com TEL : +1 - 213 - 533 - 4139 FAX : +1 - 213 - 223 - 2317...

  • Page 2: Table Of Contents

    ARL5000 Operation Manual OP5000.1.1.7.R1ENG Index 1. Welcome -------------------------------------------------------------------------------------------------------------------------------3 2. Overview -------------------------------------------------------------------------------------------------------------------------------3 3. Measuring Principle -----------------------------------------------------------------------------------------------------------------3 4. Features --------------------------------------------------------------------------------------------------------------------------------3 5. Products --------------------------------------------------------------------------------------------------------------------------------4 6. Technical Parameters---------------------------------------------------------------------------------------------------------------6 7. Mounting--------------------------------------------------------------------------------------------------------------------------------7 8. Electrical Connection-------------------------------------------------------------------------------------------------------------- 12 9. Dimensions -------------------------------------------------------------------------------------------------------------------------- 13 10. Start-up Display ------------------------------------------------------------------------------------------------------------------- 15 11. Display Mode ---------------------------------------------------------------------------------------------------------------------- 15 12.

  • Page 3: Welcome

    ARL5000 Operation Manual OP5000.1.1.7.R1ENG 1. Welcome Sincerely thank you for buying Radar level transmitter! This manual introduces the application, feature, function, installation and setup of Radar level transmitter level transmitter so that users can know, install, use and maintain this instrument. 2.

  • Page 4: Products

    ARL5000 Operation Manual OP5000.1.1.7.R1ENG 5. Products Type: A1 (30 m) / A2 (70 m) Type: B Application: Rivers and Lakes Liquid Application: General Liquid Range: 0-30 m / 0-70 m Range: 0-30 m Accuracy: +/-5 mm / +/-15 mm Accuracy: +/-3 mm Temp.
  • Page 5 ARL5000 Operation Manual OP5000.1.1.7.R1ENG Type: E Type: F Application: Vapor Liquid Application: Sanitary / Strong / Corrosive Liquid Range: 0-15 m Range: 0-20 m Accuracy: +/-3 mm Accuracy: +/-3 mm Temp. : -40~130 °C Temp. : -40~130 °C (S) / -40~200 °C (O) Pressure: -1.0~10 bar Pressure: -1.0~16 bar Connection: Flange...

  • Page 6: Technical Parameters

    ARL5000 Operation Manual OP5000.1.1.7.R1ENG 6. Technical Parameters Measure Principle : Radar Keypad : 4 internal keys for programming Measure Range : 0-70 m Unit : ft, in, m, cm, mm Display : 4 Digit LCD with Bargraph Process Temperature : -40~130 °C (Standard) Resolution : 1 mm / 0.003 ft -40~230 °C (Optional)

  • Page 7: Mounting

    ARL5000 Operation Manual OP5000.1.1.7.R1ENG 7. Mounting Please reserve enough installation space and try to avoid strong shock installation occasions. A. Vaulted Tank Be installed in the 1/4 or 1/6 of the vaulted tank diameter Note: The minimum distance from the tank wall should be 200 mm. Note: ①Datum plane ②The tank center or axis of symmetry ②...
  • Page 8 ARL5000 Operation Manual OP5000.1.1.7.R1ENG C. Stacking Tank The antenna should be perpendicular to the material surface. If the material surface is not flat and the pile angle is large, a universal flange can be used to adjust the horn angle so that the horn can point at the material surface as much as possible.
  • Page 9 ARL5000 Operation Manual OP5000.1.1.7.R1ENG E. Be not installed above the material inlet or agitator, and outdoor protection measures are necessary such as sunshade, rainproof, etc. F. If obstacle signals exist in the tank, a reflector can be added to refract them away to ensure normal measurement. Reflecto...
  • Page 10 ARL5000 Operation Manual OP5000.1.1.7.R1ENG G. Interference occurs when there are obstacles, such as ladder, heating device, agitators, etc. in the area radiated by the emitted microwave beam. It is recommended the way of by-pass pipe installation. By-pass Pipe Requirements:  Metal tube (optional plastic liner): to prevent radar signals from penetrating the tube wall to generate interference echoes ...
  • Page 11 ARL5000 Operation Manual OP5000.1.1.7.R1ENG I. Nozzle Height Requirements: The reflected wave generated by the end of the nozzle may affect the measurement result. So generally the horn antenna needs to stick out of the nozzle. The nozzle height must ensure that the distance of antenna sticking into the tank can not be less than 10 mm. However, if the measured medium is with good reflective characteristics, the connected pipe can be longer than antenna length.

  • Page 12: Electrical Connection

    ARL5000 Operation Manual OP5000.1.1.7.R1ENG 8. Electrical Connection 24 VDC and 4-20 mA (2 wires) / Intrinsically Safe 24 VDC and RS485 / Intrinsically Safe G A B G A B Power supply Power supply RS485 24VDC ± 10% 16-26VDC 24 VDC and 4-20 mA (2 wires) / Explosion Proof 24 VDC and RS485 / Explosion Proof RS485 Power supply...

  • Page 13: Dimensions

    ARL5000 Operation Manual OP5000.1.1.7.R1ENG 9. Dimensions Type: A1 / A2 Type: B 150mm 150mm 57mm 57mm D mm H mm Flange D mm H mm  96  46 DN50 121  76 DN80  96 DN100 DN125  121 Type: C1 / C2 Type: D 100mm...
  • Page 14 ARL5000 Operation Manual OP5000.1.1.7.R1ENG Type: H1 / H2 / H3 Display 100mm 155mm ® 16.50 150mm 150mm L IT-0 0 1 ARL5000 BACK ® 16.50 L IT-0 0 2 ARL5000 BACK Type Flange D mm H mm DN80  76 ...

  • Page 15: Start-Up Display

    ARL5000 Operation Manual OP5000.1.1.7.R1ENG 10. Start-up Display When the power is on, as shown in the main interface. Starting... Read signal System needs to search echo signal after power-on, it will turn back to the main display interface when the search is completed. Main display interface 6.50 This interface shows host variable, unit, percentage and meter number.

  • Page 16: Keyboard Information

    ARL5000 Operation Manual OP5000.1.1.7.R1ENG 12. Keyboard Information ® 6.50 SENSOR ARL 5 0 0 0 Name Button Function ---Exit out of edit state ---Interrupt input Back key ---Return to the previous menu ---Switch measuring value / echo curve at run time ---Change parameter value ---Chose display mode ---Chose programming item...

  • Page 17: Menu List

    ARL5000 Operation Manual OP5000.1.1.7.R1ENG 13. Menu List 6.50 SENSOR Basic settings Display Diagnostics Min. adjustment Display value Peak values Max. adjustment LCD contrast Meas.status Choose curve Medium Echo curve Liquid Solid Micro DK Simulation Fast level change Fast level change Micro DK setup Empty Span 10.00m True Level 0.00m...
  • Page 18 ARL5000 Operation Manual OP5000.1.1.7.R1ENG 6.50 SENSOR Service Info False echo Sensor type memory Serial number 11191212 Current output Date of manufacture 2019-12-11 Reset Software version 12.10.18 Units of measurement Language HART operation mode Copy sensor data Distance Adj...

  • Page 19: Menu Description

    ARL5000 Operation Manual OP5000.1.1.7.R1ENG 14. Menu Description 14.1 Basic Settings (Medium is Liquid) 6.50 Main display interface This interface shows host variables (level / distance etc.), units, sensor tag, and percentage bar, can also be switched to echo curve display. Press to enter the setting menu.
  • Page 20 ARL5000 Operation Manual OP5000.1.1.7.R1ENG 1.3.1 Fast level change Fast level change Please check whether level change fast or not, and choose Yes or No. Yes refers to that level change fast and system has a higher speed of collecting signal frequency.
  • Page 21 ARL5000 Operation Manual OP5000.1.1.7.R1ENG Damping Damping In order to suppress the fluctuation of the measuring value caused by the 10 s fluctuation of the liquid level, an appropriate damping time can be set to ensure sufficient response time on the measurement and allow the sensor to reflect the changed measurement value after the time delay.

  • Page 22: Basic Settings (Medium Is Solid)

    ARL5000 Operation Manual OP5000.1.1.7.R1ENG 14.2 Basic Settings (Medium is Solid) 6.50 Main display interface This interface shows host variables (level / distance etc.), units, sensor tag, and percentage bar, and can be switched to echo curve display. Press to enter the setting menu. SENSOR Basic settings Basic settings...
  • Page 23 ARL5000 Operation Manual OP5000.1.1.7.R1ENG 1.3.1 Fast level change Fast Level change setting Please check whether level change fast or not, and chose Yes or No. Yes refers to that level change fast and system has a higher speed of collecting signal frequency.
  • Page 24 ARL5000 Operation Manual OP5000.1.1.7.R1ENG Mapping curve Mapping curve It is used in choosing linear or nonlinear mapping set by host computer. Linear Linear is chosen as the default. Press to enter the editing state, press to choose, press save the setting. Press to enter the next menu.

  • Page 25: Basic Settings (Medium Is Micro Dk)

    ARL5000 Operation Manual OP5000.1.1.7.R1ENG 14.3 Basic Settings (Medium is Micro DK) 6.50 Main display interface This interface shows host variables (level/distance etc.), units, sensor tag, percentage bar, and can be switched to echo curve display. Press to enter the setting menu. SENSOR Basic settings Basic settings...
  • Page 26 ARL5000 Operation Manual OP5000.1.1.7.R1ENG 1.3.1 Micro DK setup Micro DK setup Empty Span 10.00m If micro DK, generally used for dielectric constants of less than 1.4, is chosen in True Level 0.00m Medium setting. In this case, the medium surface is with weak direct echo or can 1.00 not be measured;...
  • Page 27 ARL5000 Operation Manual OP5000.1.1.7.R1ENG Range Measuring range The instrument measuring rang should be set so as to receive accurate results. 31.000m(d) It is factory setting and user is not suggested to change randomly. Press to enter the editing state, press to set parameters, press to save the setting.

  • Page 28: Display Setting

    ARL5000 Operation Manual OP5000.1.1.7.R1ENG 14.4 Display Setting 6.50 Main display interface This interface shows host variables (level / distance etc.), unit, sensor tag, percentage bar, and can be switched to echo curve display. Press to enter the setting menu. SENSOR Basic settings Display Display...

  • Page 29: Diagnostics Setting

    ARL5000 Operation Manual OP5000.1.1.7.R1ENG 14.5 Diagnostics Setting 6.50 Main display interface This interface shows host variables (level / distance etc.), unit, sensor tag, percentage bar, and can be switched to echo curve display. Press to enter the setting menu. SENSOR Basic settings Diagnostics Display...
  • Page 30 ARL5000 Operation Manual OP5000.1.1.7.R1ENG Simulation Simulation output function It refers to the simulation of 4-20 mA current signal output, which is used to check Start simulation that the current output function of the instrument is normal, and can also be used for system debugging.

  • Page 31: Service Setting

    ARL5000 Operation Manual OP5000.1.1.7.R1ENG 14.6 Service Setting 6.50 Main display interface This interface shows host variables (level / distance etc.), units, sensor tag, and percentage bar, can be switched to echo curve display. Press to enter the setting menu. SENSOR Basic settings Service Display...
  • Page 32 ARL5000 Operation Manual OP5000.1.1.7.R1ENG Current output Current output Output mode: 4-20mA The settings of current output modes include: Output mode、Failure mode、Min. Failure mode: No change Current. Min. current: 4mA Press to set. urrent output Output mode Output mode Press to move the cursor, when the cursor is pointing at Output mode, press Failure mode to enter Output mode to chose.
  • Page 33 ARL5000 Operation Manual OP5000.1.1.7.R1ENG Reset Reset Press to choose reset function. Select reset Reset Reset function Basic settings Reset function is used to reset instrument parameters; here are three of the reset Factory settings functions: Peak values meas Basic settings: to restore factory default setting for all parameters in the Basic setting.
  • Page 34 ARL5000 Operation Manual OP5000.1.1.7.R1ENG HART operation mode HART operation mode The factory default is set as Standard, Address 0. Standard Address 0 If the Hart communication is connected with two or more instruments, the HART working mode needs to be set to the multi-point operation mode. The address can be set from 1 to 15, and the working current is 4 mA.

  • Page 35: Information Menu

    ARL5000 Operation Manual OP5000.1.1.7.R1ENG Threshold Threshold setting (Note: this menu needs to be set by professionals) 4.10 The threshold setting is used to set the threshold value of the effective echo. The Echo Threshold 60 Envelope Level 10 larger the threshold set, the stronger the effective echo amplitude needed on the site, which is more conducive to removing small signal clutter interference.

  • Page 36: Modbus-Rtu Protocol

    ARL5000 Operation Manual OP5000.1.1.7.R1ENG 15. MODBUS-RTU Protocol 15.1 Protocol Introduction ARL5000 applies this standard MODBUS-RTU mode. MODBUS: MODBUS-RTU mode Baudrate: 9600 bps Parity: None Databit: 8 Stopbit: 1 Communication address: 01-127 Function Code: 03, to read Register value . Function Code: 06, to modify Register value. 15.2 Input Register Table Name Function Code...
