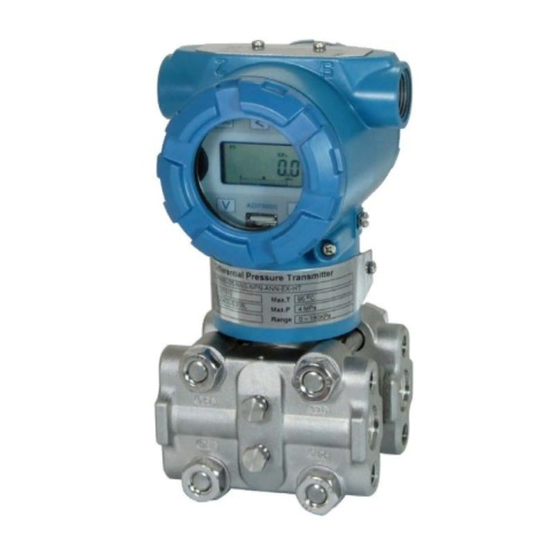

  • Page 1 ADP9000 Operation Manual OPADP9000.1.1.5.R1ENG A L I A D P ® Differential Pressure Transmitter Model ADP9000 Series Operation Manual Alia Group Inc. URL : http://www.alia-inc.com 113 Barksdale Professional Center, Newark, DE 19711, USA E-mail : alia@alia-inc.com TEL : +1 - 302 - 213 - 0106 FAX : +1 - 302 - 213 - 0107 OPADP9000.1.1.5.R1ENG...

  • Page 2: Table Of Contents

    ADP9000 Operation Manual OPADP9000.1.1.5.R1ENG Index 1. Summary - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1.1 Intruduction- - - - - - - - -- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1.2 Characteristic- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2.

  • Page 3: Summary

    OPADP9000.1.1.5.R1ENG 1.Summary 1.1 Introduction ADP9000 series Differential pressure transmitter is a type of intelligent multi-functional digital instruament, it’s elaborate designed on the basis of mature and reliable transmitter technology, combined with advanced Single-chip technology and smart digital transmitter technology. The centerpiece of the Smart Differential pressure transmitter adopt16 bit Single-chip whose powerful and high-speed calculate power guarantee the quality of the transmitter.

  • Page 4: Dimensional Drawings

    ADP9000 Operation Manual OPADP9000.1.1.5.R1ENG 2.2 Dimensional Drawings 130mm 110mm 104mm 100% ADP9000 92mm 54mm 2.3 Wiring 1250 1000 TEST Power Supply (VDC) 13~38VDC...

  • Page 5: The Function Of Keypad

    ADP9000 Operation Manual OPADP9000.1.1.5.R1ENG 2.4 The function of keypad Key name Button Sign Parameter Setting Status Function ESCAPE Return to the former position Enter in the Parameter setting, Save the Datas, Get to next step < MOVE Move the cursor to the left DOWN Reduce the values Increase the values...

  • Page 6: How To Set Zero Elecation, Zero Supression

    ADP9000 Operation Manual OPADP9000.1.1.5.R1ENG 3. How to set Zero Elevation,Zero Supression 3.1 Zero Supression When the meter is installed below the minimum level, Zero Superssion is used as follow: Example: H1=1000 mmH2O High Level H2=5000 mmH2O SG=0.9 Then H1=1000*0.9=900 mmH2O H2=5000*0.9=4500 mmH2O Range High=H1+H2=5400 mmH2O Range = 900 ~ 5400 mmH2O...

  • Page 7: Parameter Setting

    ADP9000 Operation Manual OPADP9000.1.1.5.R1ENG 4. Parameter setting 4.1 Operate flow chart...

  • Page 8: User Operate Decription

    ADP9000 Operation Manual OPADP9000.1.1.5.R1ENG 4.2 User operate description Normal Display Press and hold the for 3 seconds,then release it to enter the 1 0 0% parameter setting menu Display Unit and Output Setting ( Sub 0 ) Press to enter, then Press to select units.

  • Page 9: Other Function

    ADP9000 Operation Manual OPADP9000.1.1.5.R1ENG 4.3 Other function Enter manu SUb 6 and input the password. Normal Display Press for 3 seconds then release it to enter the parameter-setting 1 00% menu. Press to change the values. Set the values to SUb6 to enter the parameter-setting menu of password management.

  • Page 10: How To Set Decimal Point And Minus

    ADP9000 Operation Manual OPADP9000.1.1.5.R1ENG 4.4 How to set Decimal point and minus Example: zero = - 5Kpa Press button for 3seconds then release to enter parameter-setting menu. 100% Engineering Unit Setting ( Sub 0 ) Press to enter,then press to select units: Kpa ˚C Press to confirm...

  • Page 11: How To Set The Engineering Unit For Display & Output

    ADP9000 Operation Manual OPADP9000.1.1.5.R1ENG 4.5 How to set the Engineering Unit for display & output Example 1: Display in %, Output 4~20mA 1. Press button for 3seconds then release,it will go to Sub 0 ,press Buttom. 2. Press until the display show mA, press go back to Sub 0 (setting output is 3.Press...
