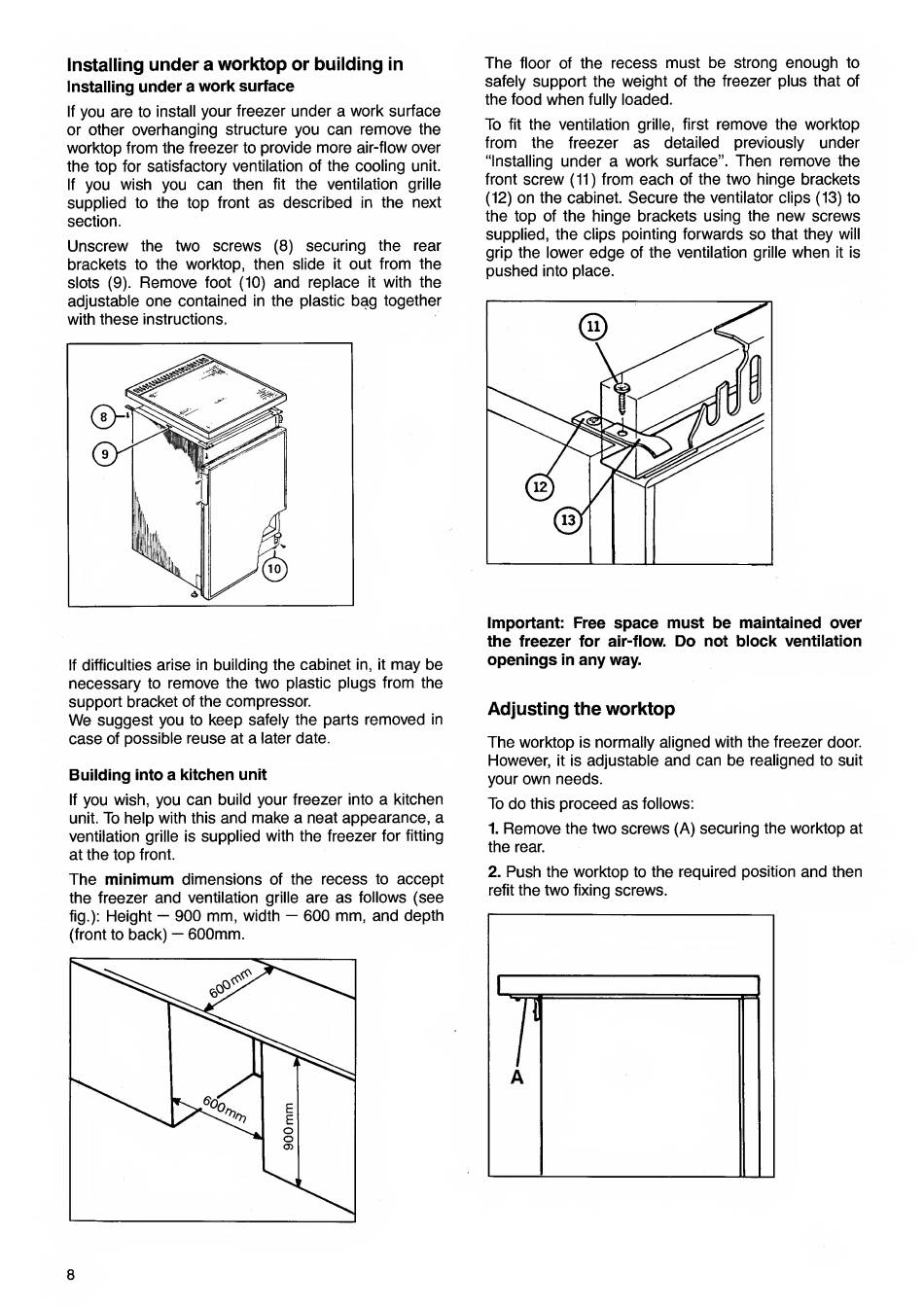

installing under a worktop or building in
Installing under a work surface
If you are to install your freezer under a work surface
or other overhanging structure you can remove the
worktop from the freezer to provide more air-flow over
the top for satisfactory ventilation of the cooling unit.
If you wish you can then fit the ventilation grille
supplied to the top front as described in the next
section.
Unscrew the two screws (8) securing the rear
brackets to the worktop, then slide it out from the
slots (9). Remove foot (10) and replace it with the
adjustable one contained in the plastic bag together
with these instructions.
If difficulties arise in building the cabinet in, it may be
necessary to remove the two plastic plugs from the
support bracket of the compressor.
We suggest you to keep safely the parts removed in
case of possible reuse at a later date.
Building into a kitchen unit
If you wish, you can build your freezer into a kitchen
unit. To help with this and make a neat appearance, a
ventilation grille is supplied with the freezer for fitting
at the top front.
The
minimum
dimensions of the recess to accept
the freezer and ventilation grille are as follows (see
fig.): Height — 900 mm, width — 600 mm, and depth
(front to back) — 600mm.
The floor of the recess must be strong enough to
safely support the weight of the freezer plus that of
the food when fully loaded.
To fit the ventilation grille, first remove the worktop
from the freezer as detailed previously under
"Installing under a work surface". Then remove the
front screw (11) from each of the two hinge brackets
(12) on the cabinet. Secure the ventilator clips (13) to
the top of the hinge brackets using the new screws
supplied, the clips pointing forwards so that they will
grip the lower edge of the ventilation grille when it is
pushed into place.
Important: Free space must be maintained over
the freezer for air-flow. Do not block ventilation
openings in any way.
Adjusting the worktop
The worktop is normally aligned with the freezer door.
However, it is adjustable and can be realigned to suit
your own needs.
To do this proceed as follows;
1.
Remove the two screws (A) securing the worktop at
the rear.
2. Push the worktop to the required position and then
refit the two fixing screws.
