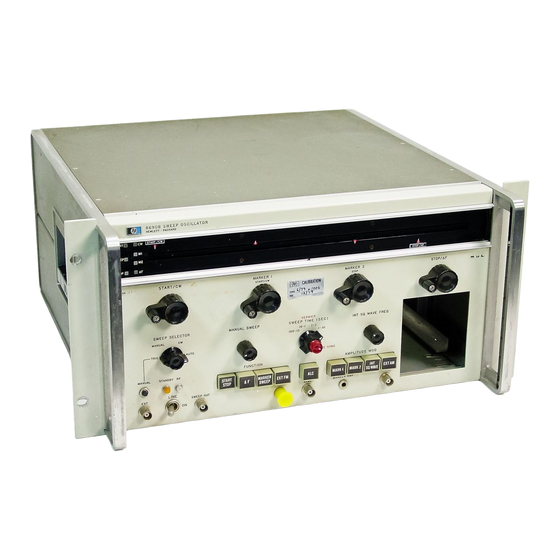

HP 8690B Manual Change

.JI.I
MANUAL CHANGES
..-MANUAL IDENTIFICATION-
Model Number:
Date Printed:
Part Number:
8690B
August, 1968
08690-90007
This supplement contains important information for correcting manual errors and for adapting the manual to
instruments containing improvements made after the printing of the manual.
To use this supplement:
Make all ERRATA corrections
Make all appropriate serial number related changes indicated in the tables below.
r -
Serial Prefix or Number _ r-- Make Manual Changes _ .-- Serial Prefix or Number - . . - - Make Manual Changes-
846-00151 thru 846-00450 1 959-01651thru959-01800 1 thru 7
846-00451 thru 846-00650 1, 2
959-01801thru959-02070 1 thru 8
846-00651 thru 846-00800 1, 2, 3
959-02071 thru 959-02190
921- 1, 2, 3, 4
1050A-
937-01113 thru 937-01200 1 thru 5
1114A-
937-01201 thru937-01650
1 thru 6
1124A-
~NEW
ITEM
~
143A02906 thru 1143A03055
ERRATA
.....
1202A03056 and above
ENTIRE MANUAL:
Delete all references to power meter leveling.
Delete all references to RF Unit BWO elapsed time indicator.
Change all RF Unit H01 references to Option 100.
Delete all references to 8691D RF Unit.
Change all RF Unit H02 references to Option 200.
Page 3-2:
Change paragraph 3-18 to read "Refer to Table 1-1 for RF power output specifications."
Page 4-21:
Delete paragraph 4-130.
Page 5-1:
Delete paragraphs 5-8 and 5-9.
Page 5-2, Table 5-1:
Add to frequency meter recommended models: 532 Series for waveguide frequencies.
1 thru 9
1 thru 10
1 thru 12
1 thru 11, 13
1 thru 11, 13, 14,15
1-11,13-17
Change: DC Voltmeter range required to "0 to ±300V and recommended model to HP 3459A.
Page 5-8, Table 5-2:
Paragraph 17(h): Change to read ;;;;.20 dB at max leveled output.
Page 5-12, Table 5-2:
Paragraph 26(f): Change residual FM specs as follows:
8691B: <10kHz peak
8692B, 8693B, 8694B: < 15 kHz peak
H01-8692B, H01-8694B, H02-8694B: <20kHz peak
NOTE
Manual change supplements are revised as often as necessary to keep manuals as current and accurate as possible.
Hewlett-Packard recommends that you periodically request .the latest edition of this supplement. Free copies are available
from all HP offices. When requesting copies quote the manual identification information from your supplement, or the model
number and print date from the title page of the manual.
3 April1972
HEWLETT
?P
PACKARD
Printed in U.S.A.
