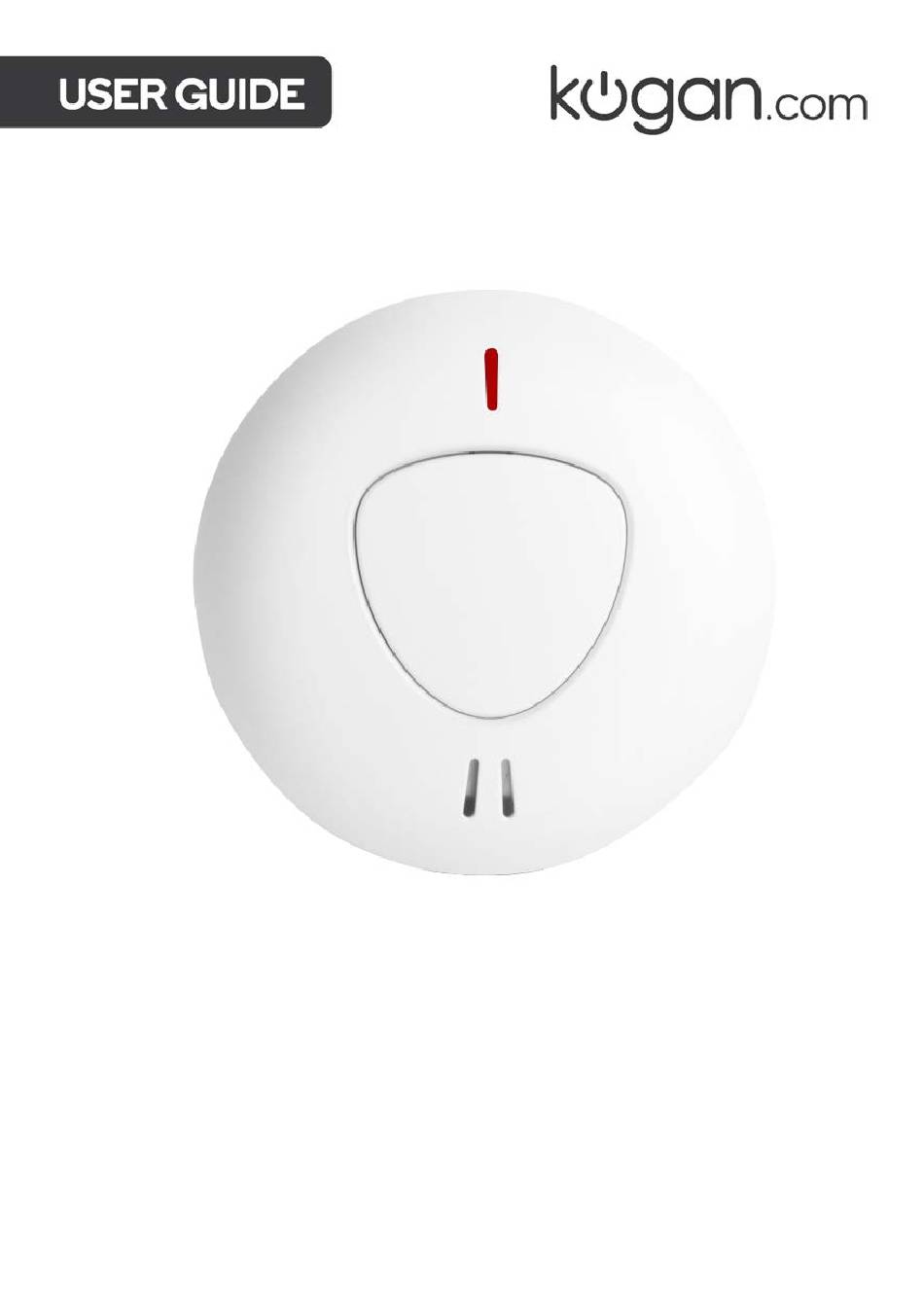

- Page 1 KOGAN SMARTERHOME™ PHOTOELECTRIC ADD-ON INTERCONNECTED SMOKE ALARM KASMKALMRFA...
-
Page 2: Table Of Contents
Safety & Warnings Overview Getting Started Installation Interconnecting Additional Units Functions Cleaning & Care Specifications Troubleshooting... -
Page 3: Safety & Warnings
SAFETY & WARNINGS WARNING: In case of an emergency, contact your local fire department. • Australia: Call 000 for Police, Fire and Ambulance services. • New Zealand: Call 111 for Police, Fire and Ambulance services. Limitations of Smoke Alarms: • Smoke alarms have played a key role in reducing deaths resulting from home fires worldwide. -
Page 4: Overview
OVERVIEW Test/Hush button Indicator light Additional components: AA 3V Li-ion Battery x2 Anchor Plugs x2 Screws (Before installing this product, check which plugs and screws are best suited for the surface) -
Page 5: Getting Started
GETTING STARTED Preparing the battery Attaching the smoke alarm to the bracket will automatically turn on the smoke alarm. Alternatively, you can manually turn the smoke alarm on, by placing the switch in the “ON” position. Wait 2-3 seconds before pressing any buttons. -
Page 6: Installation
INSTALLATION Be careful not to press the Test/Hush button on top of the alarm module unless you intend to do so. Pressing this button will cause the alarm to sound, the sound is very loud and may cause harm to your hearing. Preparation Determine how many alarms you need and where best to install them. - Page 7 Where to install smoke detectors We recommend at least one smoke alarm per floor, per room. As a minimum, smoke alarms should be located between sleeping areas and potential sources of fire such as living rooms and kitchens. In single storey homes with one sleeping area, a smoke alarm should be installed in the hallway, as close as possible to the living accommodation.
- Page 8 KITCHEN LIVING ROOM BEDROOM DINING ROOM STUDY BEDROOM ROOM BEDROOM BEDROOM BEDROOM HALL LIVING ROOM KITCHEN FINISHED BASEMENT GARAGE Additional smoke alarms for better protection Smoke alarms for limited protection HEAT ALARM...
- Page 9 Locations to avoid Do not locate smoke alarms: • In turbulent streams of air such as near fens, heaters, doors and windows, etc. These can draw smoke away from the alarm. • In high humidity areas such as bathrooms and shower rooms as high humidity can trigger the alarm, or where temperature exceeds 40°C or below 0°C.
-
Page 10: Interconnecting Additional Units
INTERCONNECTING ADDITIONAL UNITS To connect several smoke detectors, press and hold the Test/Hush button on the primary unit until the Red indicator flashes 3 times then immediately release it. The Red indicator will flash rapidly for 2 minutes while waiting for other devices to pair. If you need to end the pairing in advance, press the Test/Hush button again. -
Page 11: Cleaning & Care
Reset the alarm If the test does not function properly, reset the alarm. If the test does not function properly after completing these steps, contact help.Kogan.com for support. Cleaning Clean the smoke alarm at least once a month; gently vacuum the outside of the smoke alarm using your household vacuum's soft brush accessory. -
Page 12: Specifications
SPECIFICATIONS Working Voltage DC 3V Li-ion battery (non-replaceable, built into detector) Standby current <12uA Alarm current <35mA Frequency range 433Mhz Low voltage threshold 2.7V Product lifespan 10 years Alarm sound >85dB Size 110mm x 42mm Interconnection limit 22 units Fire protection grade Execute Criterion EN14604:2006 EN300 328 V2.1.1(2016-11) -
Page 13: Troubleshooting
TROUBLESHOOTING WARNING: In case of an emergency, contact your local fire department. Australia: Call 000 for Police, Fire and Ambulance services. New Zealand: Call 111 for Police, Fire and Ambulance services. Reset procedure: If the device fails to access the network or crashes due to incorrect operation, long-press the middle button to reset the Wi-Fi connection. - Page 14 NOTES...
- Page 18 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
