AudioSource FS3D62 Quick Start Manual

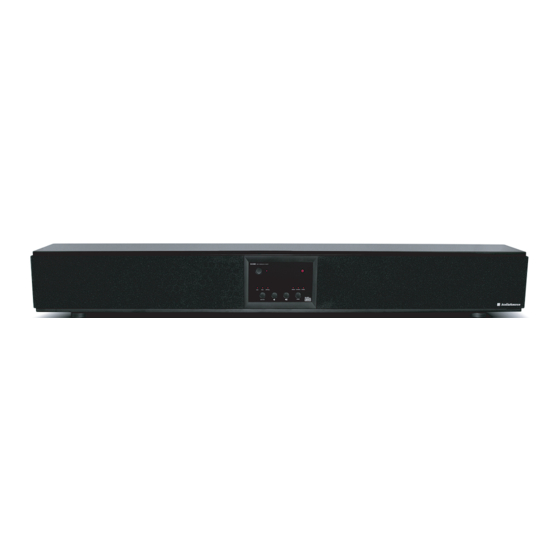

Congratulations on your purchase of the AudioSource® FS3D62 Soundbar
the latest in 3D Audio Home Theater technology.
Included in box:
FS3D62 Sound Bar, Credit Card Style Remote (Battery Included), Product Manual, Quick Start Guide
Installation Sequence
1
Connect Source
A single cable is needed per source.
See table below for common connection types & installation locations.
2 Plug power adaptor into rear of sound bar
3
Plug power adaptor into wall outlet
4
Press power button
5 Select source
6
Adjust to desired volume
7
Select mode best suited to source
Compatible Sources
1
(Only a single cable is used per source)
Flat Panel TV
Common Connection Type
A C
B
CD / DVD Player
Common Connection Type Common Connection Type
A
B
Soundbar w/sonic emotion 3D Sound
Quick Start Guide
Computer Game Console
Common Connection Type Common Connection Type
C
Laptop MP3 Player / Cell Phone
Common Connection Type
C
FS3D62
A
B
FS3D62 3D Sound Bar
C
Rear Panel
C
2
A
B
3
Front Panel
4
6
AUX RCA OPTICAL MOVIE
5
SOURCE
7
NORMAL MUSIC
MODE
