Owner's Manual

System 2.5

Home Theater Speaker Set

Congratulations on your purchase and welcome to the AudioSource family of satisfied customers. Please take a few moments to read

this manual before you get started. Also, be sure to retain this document should you need to refer to it in the future.

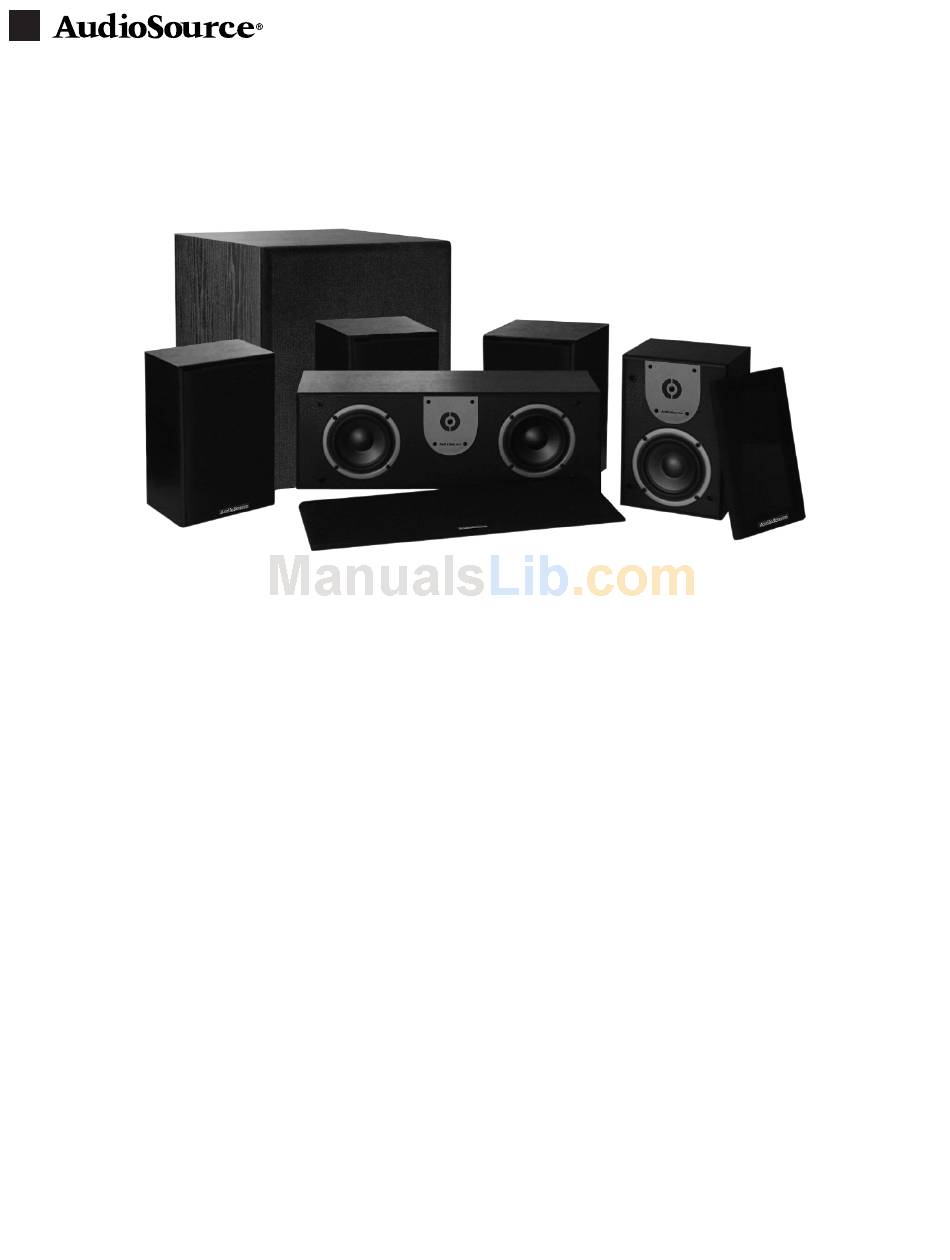

The AudioSource System 2.5 Home Theater Speaker System contains four LS2 Compact Speakers (left front, right front, left surround &

right surround); one LS2C Center Speaker; and one SW 80 Powered Subwoofer. This system is designed to reproduce high fidelity music,

including digital signals. Movies and stereo TV broadcasts will sound more realistic, putting you in the center of the action. The LS2C

center channel speaker is video-shielded, allowing placement on top of your television. LS2 speakers are provided for both the front and

surround channels, to provide a theater-like experience.

This manual is divided into two sections. The first provides information about the LS2 and LS2C speakers. The next section concerns the

SW 80 Powered Subwoofer.

If you need more information, we offer friendly, toll-free assistance at 1.800.HELP.115 (1.800.435.7115).

You may also fax us 24 hours a day at 650.348.8083.

If any parts of this system are missing or damaged, do not return to the store where you purchased this system. Please call AudioSource

directly at 800-HELP-115 (800-435-7115).

LS2 & LS2C

Speaker Placement

The center channel speaker should be placed as close as possible to the TV, preferably either directly on top of or below it. This locks the

sound to the picture. Place the front speakers near the front corners of the room, either on a bookshelf or wall-mounted. Positioning near a

corner enhances bass performance. Place the surround speakers either to the side of, or behind, your listening position. Typical placement is

on the side walls, slightly above ear level, about two-thirds of the way back from the front of the room. This allows the surround speakers to

aim directly at the listener, placing you in the middle of a five-speaker sound field.

Speaker Mounting

The LS2 speakers include U-shaped brackets to mount the speakers to the wall. For safety, always mount these speakers on a wall that

is reinforced from behind. Never mount a speaker on a wall made of unreinforced drywall or plasterboard. If you are unsure, consult a

professional contractor. These speakers can also be placed on bookshelves and most types of speaker stands.

Need help?

Do you have a question about the System 2.5 and is the answer not in the manual?

Page 1 If you need more information, we offer friendly, toll-free assistance at 1.800.HELP.115 (1.800.435.7115). You may also fax us 24 hours a day at 650.348.8083. If any parts of this system are missing or damaged, do not return to the store where you purchased this system. Please call AudioSource directly at 800-HELP-115 (800-435-7115).
Page 2: Placement Guidelines
TV, a stereo system, or a full fledged home theater. Features of the SW 80 The AudioSource SW 80 features a highly efficient ported enclosure, a rugged 8-inch rein- forced driver and a eighty-watt amplifier with a passive low frequency crossover network. A line level input is provided for fast and easy connection to virtually any system.
Page 3 Hi Level In These inputs are designed to accept an amplified signal from the speaker outputs of a receiver, power amp or other device not equipped with line level outputs. Hi Level Out The original amplified signal from your source is present at these outputs, for connection to the existing left and right speakers. Line In The RCA-type jack of your SW 80 is designed to accept a line level signal from a receiver, pre-amp, surround sound decoder, television or similar device.
Page 4 All other servicing should be referred to qualified service personnel. Product Servicing In the event your System 2.5 fails to operated properly, please contact the dealer where you purchased the unit. Or you may contact AudioSource directly for further assistance.
