Summary of Contents for Definitive Technology PC600

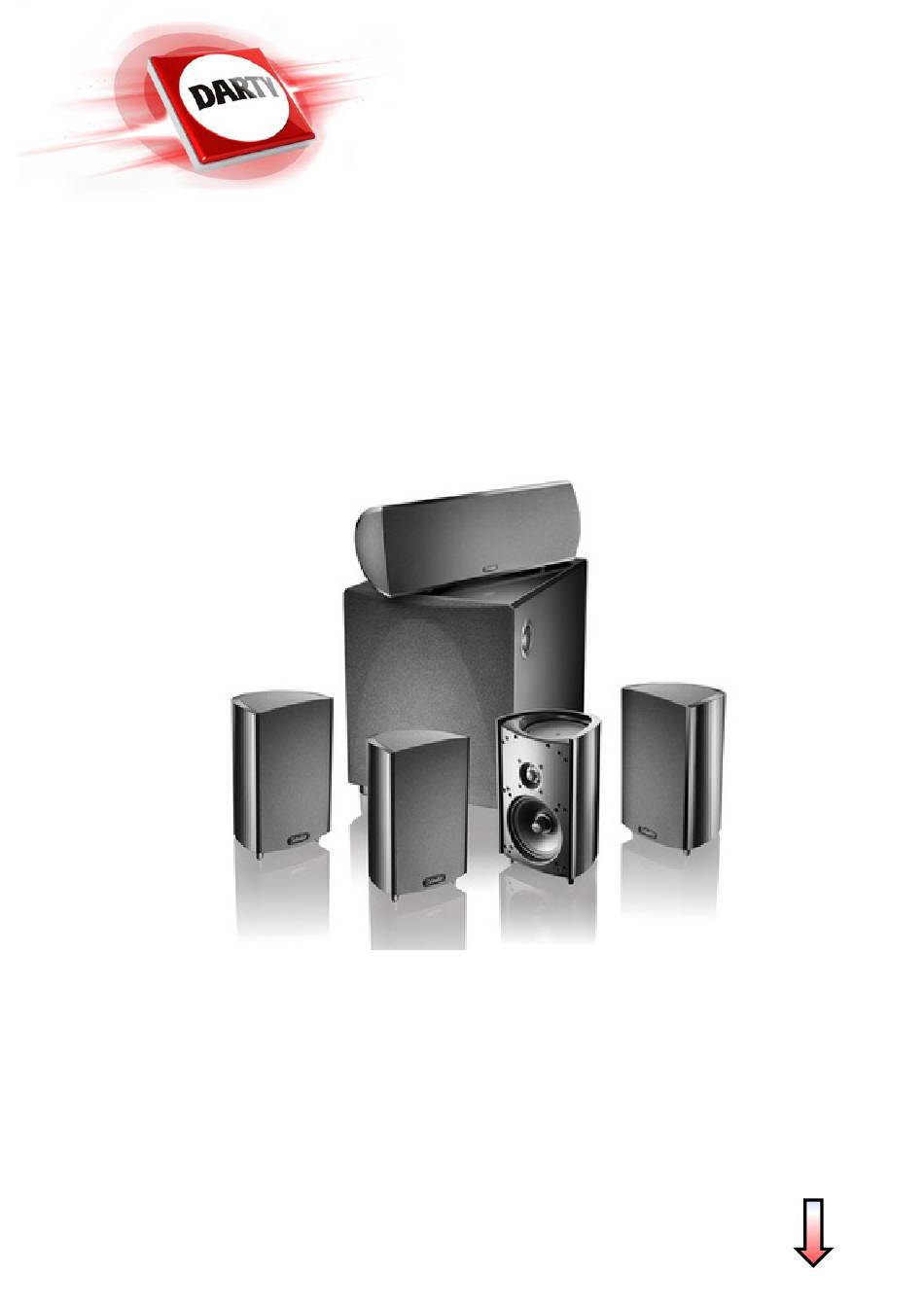

- Page 1 DEFINITIV.TECHNOLOGY MARQUE: PC600 REFERENCE: 4192290 CODIC: NOTICE...
- Page 2 ProCinema 600 System ® Owner's Manual Congratulations Congratulations on your purchase of the Definitive Technology ProCinema 600 System. This high-performance six- speaker system is designed to deliver equally superb sound with music or movies. Please read the instructions carefully in order to fully familiarize yourself with the speaker system and assure yourself that you realize all the performance that has been engineered...
- Page 3 Safety Precautions for ProSub 600 CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION! To reduce the risk of electric shock and fire, do not remove the cover or back plate of this device. There are no user serviceable parts inside. Please refer all servicing to licensed service technicians.
-
Page 4: Connecting Your Loudspeakers

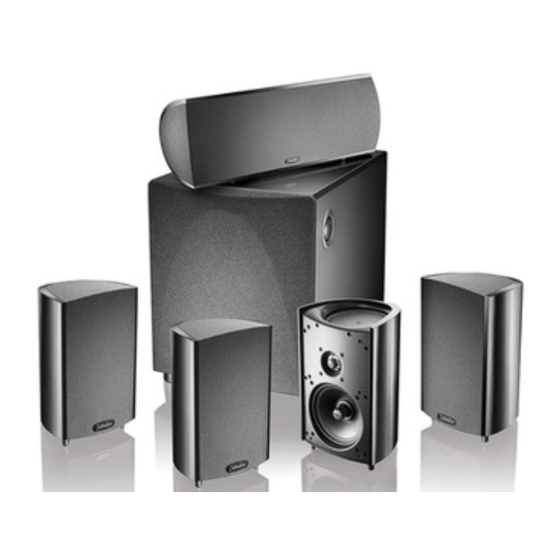

ProCinema 600 Six-Piece Surround Sound System The Definitive Technology ProCinema 600 System consists of six speakers: four ProMonitor ® 600s, one ProCenter ® 600 and one ProSub ® 600. Normally two of the ProMonitor 600s will be used as front speakers and two will be used as side or rear surround speakers. - Page 5 5. Wire the – (black) terminal of the left ProMonitor 600 to the left channel – (black) speaker wire (high level) out on the back of the ProSub. 6. Repeat steps 4 & 5 for the right ProMonitor 600. 7. Set the low frequency filter control on the back of the subwoofer to approximately 10 –...
- Page 6 with the basic hook-up detailed above in Steps 1 – 10. However, if you wish to play the system louder, you can experiment with this variation. In addition, this variation is also one which can be used if your decoder bass management system does not allow a “Large Left and Right Main Speakers”...
-
Page 7: Speaker Break-In
Speaker Break-In Your ProCinema 600 System should sound good right out of the box; however, an extended break-in period of 20 – 40 hours or more of playing is required to reach full performance capability. Break-in allows the suspensions to work in and results in fuller bass, a more open “blossoming”... -
Page 8: Subwoofer Placement
Positioning Your ProMonitor 600 Rear/Side Surround Speakers The surround speakers may be located on the side or behind the listeners. When used on the sides, take care never to locate the speakers forward of the listeners. The speakers may be located at or above ear level. If the speakers are placed on the rear wall follow the same guidelines given for positioning the front speakers along the wall. - Page 9 4. Always remember that frequency response and output level are greatly influ- enced by the subwoofer’s placement. A movement of even a foot or two can dramatically change your system’s response characteristics. You should experi- ment with placement in your particular listening room in order to achieve the highest performance from your subwoofer.
-
Page 10: Troubleshooting
Subwoofer Operating Controls Your Definitive Technology ProSub 600 subwoofer is equipped with a full comple- ment of operating controls to ensure complete flexibility and maximum performance in any installation. Most of them basically are the “set and forget” type, although occa- sionally certain controls will require minor adjustments. -
Page 11: Technical Assistance
Dolby Digital 6.1 and 7.1 Systems Some advanced surround sound receivers are now offering Dolby Digital 6.1 and 7.1. Basically, this allows you to add additional rear/side surround speakers for even higher performance. If you wish to add additional rear or side surround speakers we suggest that you use Definitive ProMonitors which are available at your Definitive dealer. - Page 12 ProCinema 600 System Specifications ProCinema 600 System Overall Frequency Response: 22 Hz – 30 kHz Recommended Amplification: 10 – 175 watts/channel ProCenter 600 Dimensions: " W x 4 " D x 4" H Frequency Response: 55 Hz – 30 kHz Efficiency: 89 dB Nominal Impedance:...
- Page 13 Limited Warranty: 5-Years for Drivers and Cabinets, 3-Years for Electronic Components Definitive Technology warrants to the original retail purchaser only that this Definitive Technology Loudspeaker Product (the “Product”) will be free from defects in materials and workmanship for a period of five (5) years covering the drivers and cabinets, and three (3) years for the electronic components from the date of the original purchase from a Definitive Technology Authorized Dealer.
