Typ
Eingangsspannung
Input voltage
Ladestrom
Charging current
Einstellbereich der
Pufferzeit (T )
dj.
Range of adjustment
Bufferertime (T )
adj.
Ausgangsstrom
Output current
Pufferzeit (U
)
NENN
Hold-up-time (U
)
NOMINAL
Wirkungsgrad
Efficiency
Maße
BxHxT
dimensions
WxHxD
Gepeicherte Energie
stored energy
Gewicht
weight
Technische Daten
Eingangsgrößen
Min. Eingangsspannung
siehe Tabelle oben
Max. Eingangsspannung
siehe Tabelle oben
Ladestrom
siehe Tabelle oben
Ladezeit
ca. 400 Sek. (24V) - 240 Sek. (48V)
Ausgangsgrößen
Ausgangsspannung U
24 V / 48 V
Nenn
DC
DC
Pufferspannung U
22,5 V / 46,5 V
PUFF
DC
DC
siehe Tabelle oben
Ausgangsstrom I
Max
Strombegrenzung
2,0 x I
NENN
Restwelligkeit (20MHz)
< 50 mV
SS
Regelgrößen
Regelabweichung Last
< 200 mV bei Laständerung 10.....90%
Regelzeit
< 10 ms bei Laständerung 10.....90%
Betriebsdaten
Einschaltdauer (ED)
100%
gespeicherte Energie
siehe Tabelle oben
Pufferzeit
siehe Tabelle oben
Arbeitstemperatur
-30°C bis +55°C
Leistungsabweichung bei
ab 50°C
Lagertemperaturbereich
-40°C bis +80°C
Kühlung
natürliche Konvektion
empfohlener Freiraum je 15 mm
Schutzeinrichtungen
Vorsicherung
nicht erforderlich
Ausgangssicherung
nicht erforderlich da kurzschlussfest
Überlastschutz
im Gerät integriert
MTBF
>380.000 h
Sicherheitsdaten
Funkentstörgrad
gemäß VDE 0871B, EN 55022/B
Schutzklasse
Schutzklasse II
Schutzkleinspannung
PELV (EN60204), SELV (EN 62368)
Umgebungsfeuchte
95% relative Feuchte im Jahresdurchschnitt
Betauung möglich - tropentauglich
Schutzart Gehäuse
IP 68
Schutzart Klemmen
IP 20 (BGV A3)
Rüttelfestigkeit
>30g bei 33Hz in X,Y und Z, gemäß IEC
Angewandte Bauvorschriften
gemäß VDE
VDE 0100,0110,0113,0551,806
IEC
IEC 62368-1,IEC61000-6-1-2-3-4,
IEC60068-2-11-52,IEC60529
EN
EN62368-1,EN61000-6-1,EN61000-6-2,
EN61000-6-3,EN61000-6-4,ENV61140
EN61000-4-2,EN60068
EN61010-1
CSA / UL
CSA-C 22.2 / UL62368, UL508, UL1950
Mechanik
Befestigung
Hutschienenbefestigung nach DIN46277
oder Wandmontage mit Schrauben

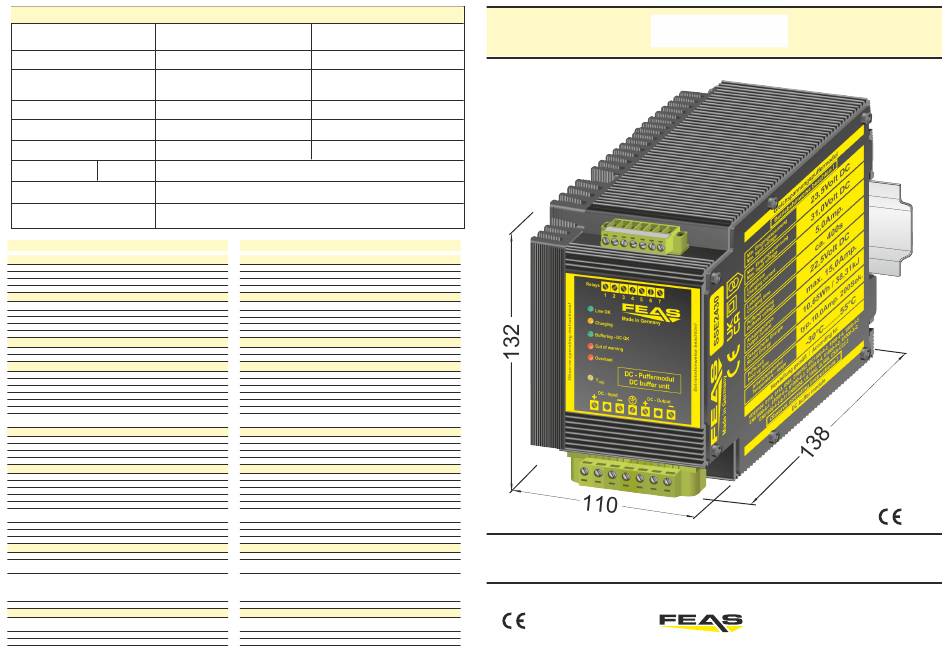

Abmessungen B x H x T
110mm x 132mm x 138mm
Gewicht
siehe Tabelle oben
SSE2430
SSE4830
23,5V ....31,0V
47,0V ....62,0V
DC
DC
DC
(U
=2,0V+U
)
(U
=2,0V+U
IN MIN
buffer
IN MIN
5,0 Amp.
5,0 Amp.
5 Sek. ..... max.
5 sec. ..... max.
10,0A (Boost max. 15A)
5.0A (Boost max. 7.5A)
typ. 10,0A - 200 Sek.
typ. 5,0A - 200 sec.
97%
98 %
110mm x 132mm x 138mm
10,65 Wh / 38,31 kJ
ca. 3,50kg
Technical Data
Input data
Min. Input voltage
see table above
Max. Input voltage
see table above
Charging current
see table above
Charging time
ca. 400 sec. (24V) - 240 sec. (48V)
Output data
Output voltage U
24 V / 48 V
nominal
DC
Buffered voltage U
22.5 V / 46.5 V
buffer
DC
see table above
Output current I
Max
Current limiting
2.0 x I
nominal
Residual ripple (20MHz)
< 50 mV
PP
Control data
Control deviation load
< 200 mV with load variation 10.....90%
Control time
< 10 ms with load variation 10.....90%
Operating data
Duty circle
100%
Stored energy
see table above
Buffer time
see table above
Operating temperature range
-30°C to +55°C
Derating
from 50°C
Storage temperature range
-40°C to +80°C
Cooling
selfcooling
recommended respective distance 15 mm
Safety devices
Input fuse
not necessary
Output fuse
not necessary, short circuit proof
Overload protection
integrated into device
MTBF
>380.000 h
Safety data
Degree of EMI suppression
according to VDE 0871B, EN 55022/B
Protection class
Class II
Extra low safety potential
PELV (EN60204), SELV (EN 62368)
Ambient humidity
95% relative humidity, yearly average dewing
allowed for use in tropical atmosphere
Protection class enclosure
IP 68
Protection class terminals
IP 20 (BGV A3)
Vibration proof
>30g at 33Hz in X,Y and Z, acc. to IEC
Applied design specifications
according to VDE
VDE 0100,0110,0113,0551,806
IEC
IEC 62368-1,IEC61000-6-1-2-3-4,
IEC60068-2-11-52,IEC60529
EN
EN62368-1,EN61000-6-1,EN61000-6-2,
EN61000-6-3,EN61000-6-4,ENV61140
EN61000-4-2,EN60068
EN61010-1
CSA / UL
CSA-C 22.2 / UL62368, UL508, UL1950
Mechanical data
Mounting
On rails according to DIN 46277 or
wallmounting with screws
Dimensions W x H x D
110mm x 132mm x 138mm
Wheigth
see table above
