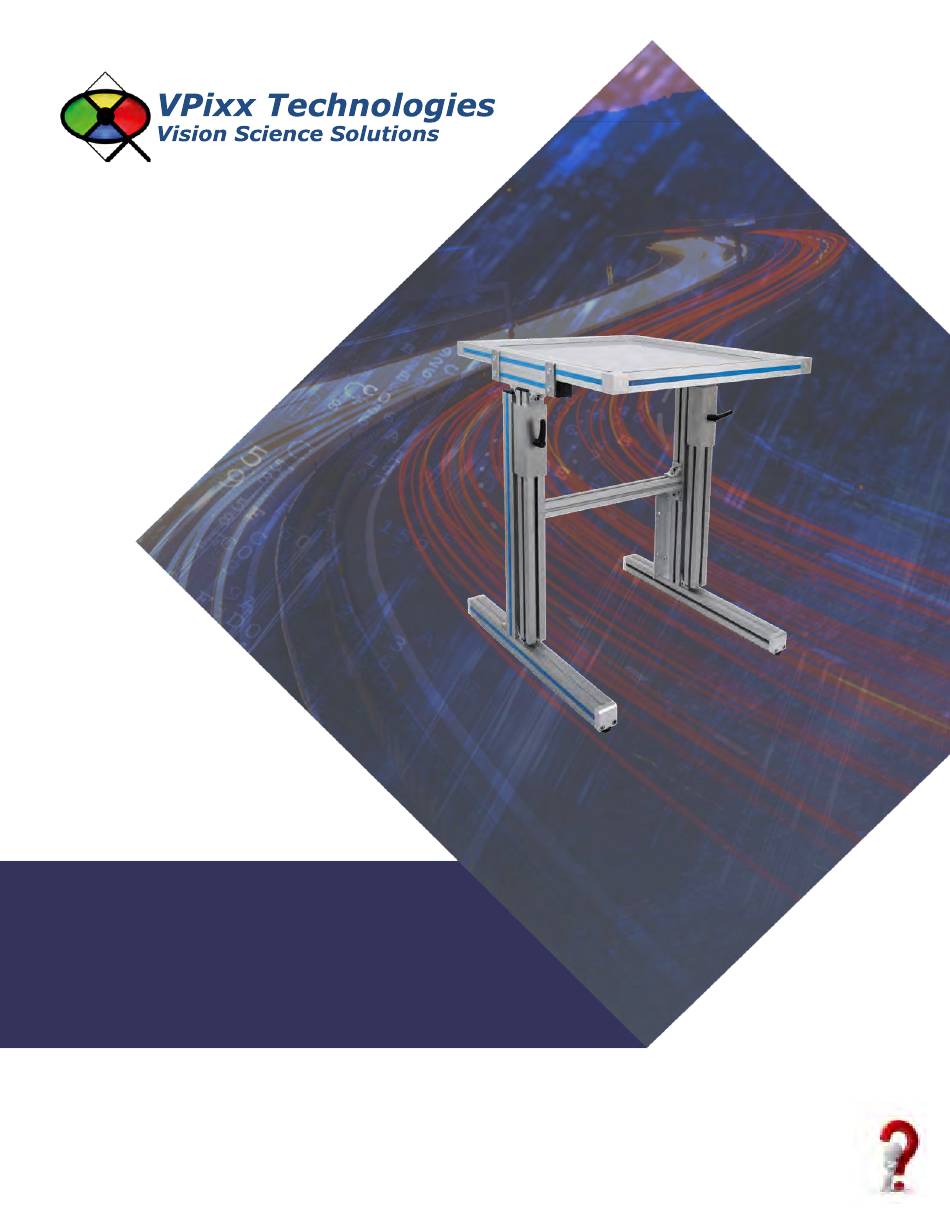

- Page 1 VPixx MRI Projector Stand (VPX-ACC-5214) VPixx MEG Projector Stand (VPX-ACC-5216) Assembly Guide Version 2.1 Phone : (514) 328-7499 1 (844) 488-7499 - Toll Free USA/Canada EMAIL: support@vpixx.com www.vpixx.com...
- Page 3 VPixx Projector Stand Assembly Guide IMPORTANT VPixx Technologies Inc. reserves the right to modify or otherwise update this document without notice as required by a constantly evolving marketplace, client requests or to adapt to new progress or constraints in engineering or manufacturing technology.
-
Page 4: Table Of Contents
Table of Contents Table of Contents .................................. 2 Table of Figures ..................................2 Overview ....................................3 Work Area ....................................3 Required Assembly Material ..............................4 Assembly Steps ..................................5 Finished VPixx Trolley ................................10 VPixx Trolley Specifications ..............................10 Table of Figures FIGURE 1 SUPPORT SCREW ADJUSTMENTS .............................. -
Page 5: Overview
VPixx Projector Stand Assembly Guide Overview This document presents the assembly instructions required to assemble a VPixx Technologies Trolley. Conditionally MR safe: when the Trolley is used with other equipment, such as the SHIELDPixx, it should be considered Conditionally MR safe. By itself, the trolley is MR safe. -
Page 6: Required Assembly Material
Required Assembly Material To assemble a VPixx Trolley, you will need the items shown in the following table. Quantity Item Name Required VPixx Trolley components VPixx Trolley assembly kit which includes: • 4x Parallel assembly plate • 8x parallel assembly plate support screw w/lock washer 2x 5 mm titanium Allen wrench •... -
Page 7: Assembly Steps
VPixx Projector Stand Assembly Guide Assembly Steps 1. Unpacking Unpack the VPixx Trolley from its shipping box and lay the different pieces on a stable surface. Ensure not to scrape any of the support arms on an abrasive surface (such as a concrete floor) so as not to damage the surface of the structure. -
Page 8: Figure 2 Support Screw (Flush With Support Surface)
Figure 2 Support screw (flush with support surface) 3. Horizontal crossbar insertion Now you are ready to insert the horizontal crossbar, as shown in the following picture. Figure 3 adding horizontal crossbar Slide the nuts into each rail, and then tighten them using the provided 5 mm Allen wrench. Copyright ©... -
Page 9: Figure 4 Horizontal Crossbar In Place
VPixx Projector Stand Assembly Guide Figure 4 Horizontal crossbar in place 4. Adding the Top Shelf Slide in the top shelf of the VPixx Trolley by sliding it into the top rails of the support arms, as shown in the following picture. Align the ‘’A’’ marker from the support arms to the ‘’A’’ marker on the top shelf. -
Page 10: Figure 6 Horizontal Alignment
Parallel assembly plate support brackets Figure 6 Horizontal alignment Once the top shelf is properly aligned, use the four (4) parallel assembly plates to secure it in place. Fasten them using the provided 5 mm Allen wrench and the parallel assembly plate support screws and lock washers (2x each per parallel plate). -
Page 11: Figure 9 Height Adjustment Screws
VPixx Projector Stand Assembly Guide 5. Adjusting height To adjust the height of the top shelf, you will need to use the height adjustment screws located on each support arm (2 adjustment screws per arm), as shown in the following picture. Once the height is considered proper for your application, simply tighten the screws using the provided 5 mm Allen wrench. -
Page 12: Finished Vpixx Trolley
VPixx Trolley Specifications Dimensions Value Height(min) MRI 30’’ (76 cm) Height (max) MRI 43’’ (109 cm) Height(min) MEG 51’’ (130 cm) Height (max) MEG 67’’ (170 cm) Width 24.5’’... - Page 13 VPixx Technologies Inc. 630 Clairevue West suite 301 Saint-Bruno, Qc Canada, J3V 6B4 TEL/FAX: (514) 328-7499 TOLL FREE: (844) 488-7499 (USA/CANADA) EMAIL: sales@vpixx.com...
