HALO Q4 STROBE
User manual
Please read this user manual before using this product

Advertisement

loading
Need help?

Need help?

Do you have a question about the HALO Q4 STROBE and is the answer not in the manual?

Questions and answers

Summary of Contents for Jmaz Lighting HALO Q4 STROBE

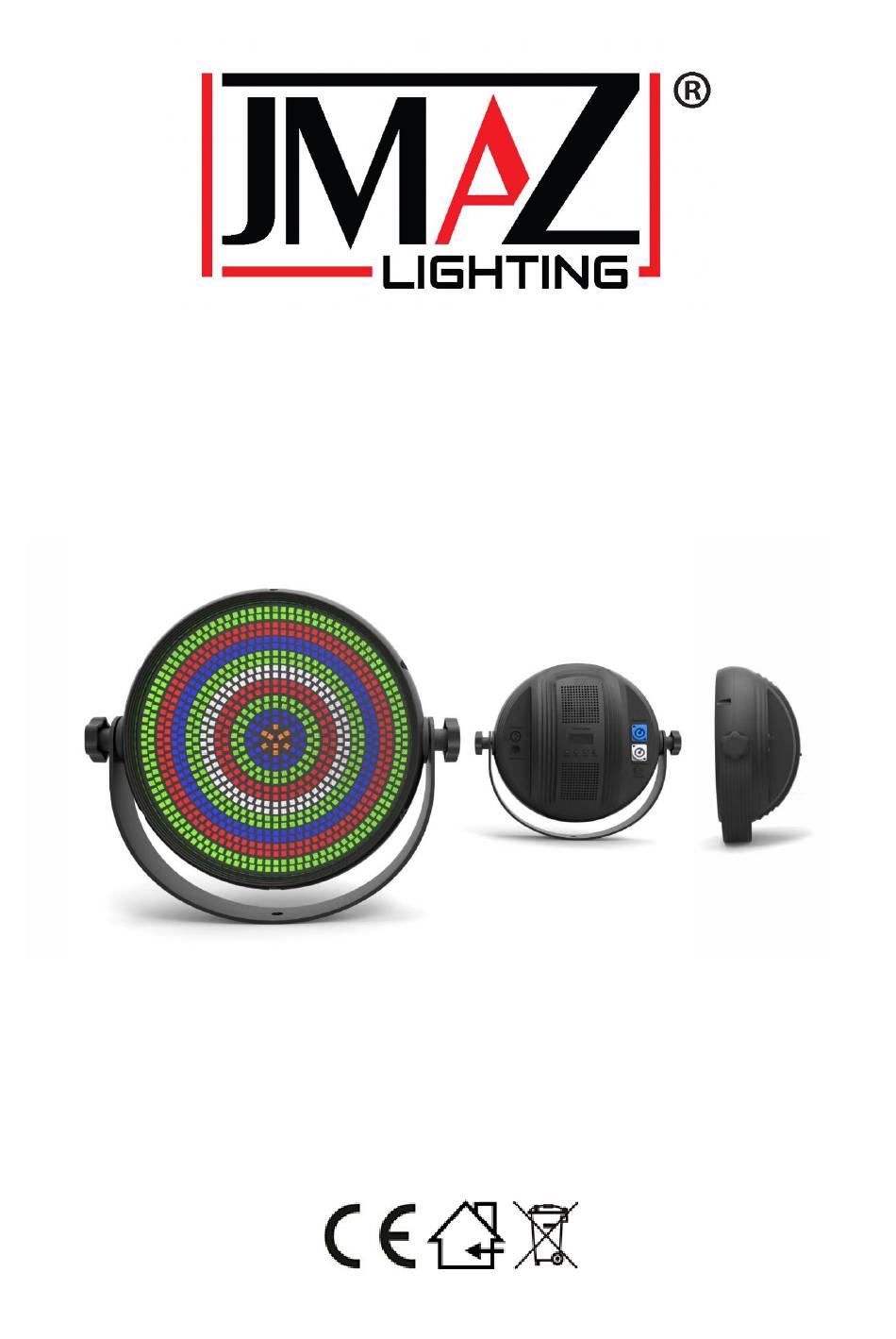

  • Page 1 HALO Q4 STROBE User manual Please read this user manual before using this product...
  • Page 2: Safety Instruction

    1. Checking before using Item Quan Unit tity PAR Light piece Power cable with blue head piece User manual piece ★For security reasons and in accordance with the terms, reassemble or modify the product is not allowed without permission. Please note that due to human damage caused by improper use of the product, it will break the warranty qualification.
  • Page 3: Product Specification

    4. Please do not install the light directly on the surface of the combustible substance. 5. The people who install, operate and maintain of light professional certificate required. 6. When there are faults of the light, please stop using the light immediately. Don't try to repair, please contact the nearest authorized technical assistance center, if the parts damage, always use the same type of parts replaced.
  • Page 4 6. Color: 1670 million kinds of colors 7. Working modes: Sound (Audio) Active, Show Mode, DMX, Master/ Slave. 8. Powercon: Input / Output 9. DMX Channel: 4CH/7CH/40CH 10. W: 5KG 11.Size: 42 x 19 x 38cm 4. Display Main function: Interface Function Remark...
  • Page 5 Strobe 000-100 Strobe from slow to fast Pro: Selection of built-in 15 program Pro:00 00-15 Spd: 0-19 speed from slow to fast. 20-25 Sound mode ON, Spd: 00 00-25 Sensitivity from Low to High. Without this menu in 6CH mode. Color: Selection of 15 colors Color 00-15...
  • Page 6 1-255 Dark to Bright 0-5: Shut Mode 1: 006-255 Speed from Slow to Fast Mode 2: 006-053: Fast forward and Fast out, Slow to Fast Strobe 000-255 054-103: Fast forward and Slow out, slow to fast 104-153: Slow forward and Fast out, slow to fast 154-203: Slow forward and Slow out, slow to fast...
  • Page 7 1-255 Dark to Bright 0-5: Shut Mode 1: 006-255 Speed from Slow to Fast Mode 2: Strobe 000-255 006-053: Fast forward and Fast out, Slow to Fast 054-103: Fast forward and Slow out, slow to fast 104-153: Slow forward and Fast out, slow to fast 154-203: Slow forward and Slow out, slow to fast 204-255: Pulse strobe, slow to fast 000-015: Shut;...
  • Page 8 160-175: GW 176-191: RGB 192-207: RGW 208-223: RBW 224-239: GBW 240-255: RGBW RED Dimmer 1-255 Dark to Bright GREEN Dimmer 1-255 Dark to Bright Blue Dimmer 1-255 Dark to Bright White Dimmer 1-255 Dark to Bright 8. DMX 512 Channel-36CH Function Value Description...
  • Page 9 The Red of 9th Ring ( The biggest Ring ) 33CH 0-255 0: Shut; 1-255: Dark to Bright The Green of 9th Ring ( The biggest Ring ) 34CH GREEN 0-255 0: Shut; 1-255: Dark to Bright The Blue of 9th Ring ( The biggest Ring ) 35CH BLUE 0-255...
  • Page 10 064-079: Pro 4; 080-095: Pro 5; 096-111: Pro 6; 112-127: Pro 7; 128-143: Pro 8; 144-159: Pro 9; 160-175: Pro 10; 176-191: Pro 11; 192-207: Pro 12; 208-223: Pro 13; 224-239: Pro 14; 240-255: Pro 15; 0-199 Fast to Slow Speed for Built-in Pro 200-255...
  • Page 11 The Red of 9th Ring ( The biggest Ring ) 38CH 0-255 0: Shut; 1-255: Dark to Bright The Green of 9th Ring ( The biggest Ring ) 39CH GREEN 0-255 0: Shut; 1-255: Dark to Bright The Blue of 9th Ring ( The biggest Ring ) 40CH BLUE 0-255...

This manual is also suitable for:

Jz1018
