Coleman Battery Generator 500 User Manual

Product Details
A
D
B
USB 12V
2.4 A
2.4 A
3.0 A DISPLA Y
120V AC
C
A. Intelligent LCD screen: See details at right
B. USB power button and ports
C. AC power button and outlets
D. 12V power button and accessory socket

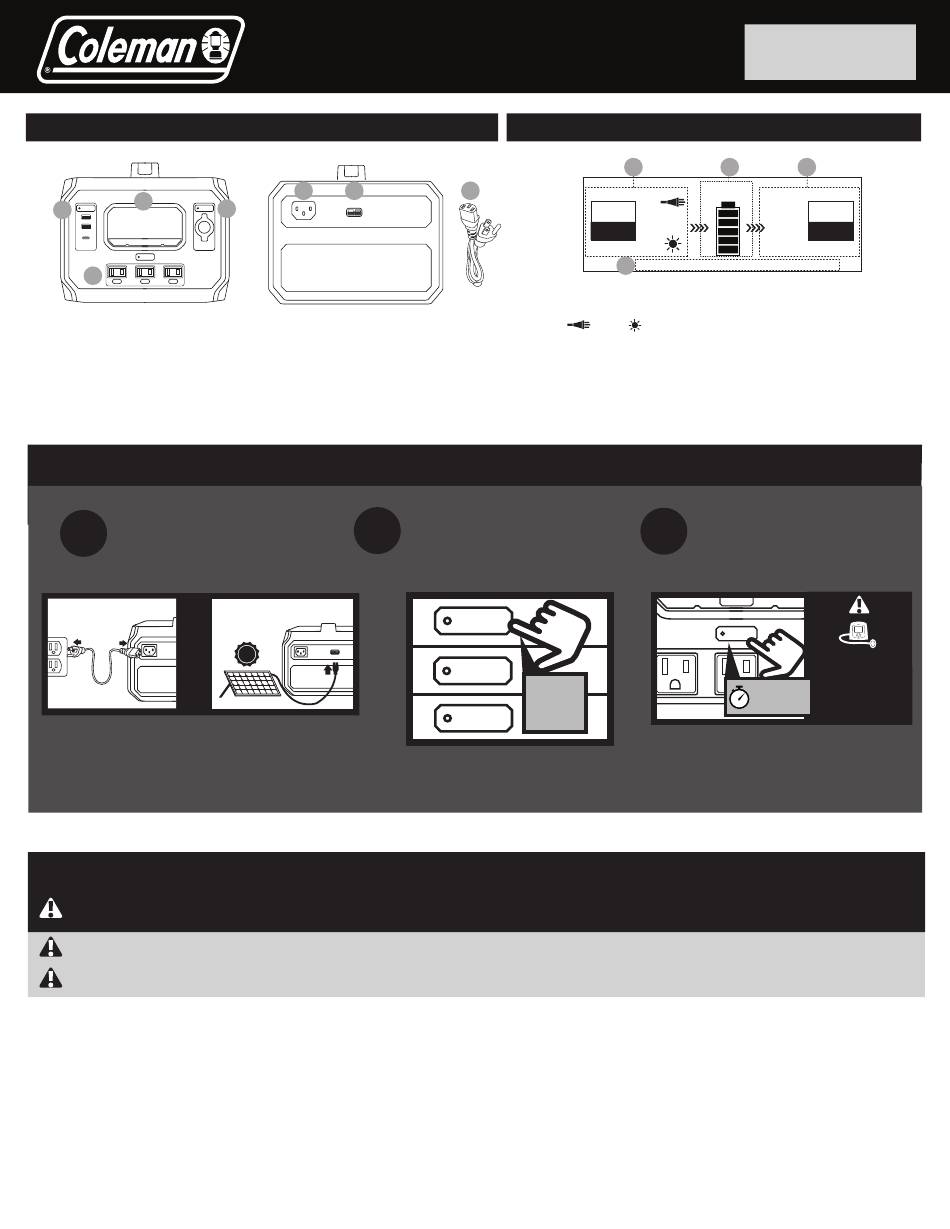

Quick Start Guide
Connect to AC outlet,
1.
solar panel, or both to
fully charge unit:
OR
D E R
T U P I N C A T U P I N R A L O S T T A B T X E
Getting Started: Charging your Battery Generator
IMPORTANT - CHARGE BEFORE USE: Fully charge your Battery Generator before using it and/or storing it. Keep the unit plugged in when not in use
so it is ready when you need it. The charger is designed to maintain the battery in a healthy state.
BEFORE YOU START: See "Safety Information" section for important precautions. The user should conform to all safety precautions in the guide. Keep this guide in a safe place for future reference.
IMPORTANT: your Battery Generator should be placed in a dry, well ventilated area with at least 6 inches of space on all sides for proper ventilation.
Your Battery Generator can be charged from grid power (AC) or solar energy (solar panels).
• When it is being charged and discharged (used to power your items) at the same time:
• If the input power (charging your Battery Generator) is greater than the output power (used to power your items), the intelligent LCD screen will show the "Hours to Full".
• If the input power (charging your Battery Generator) is less than the output power (used to power your items), the intelligent LCD screen will show the "Hours to Empty".
• The LCD screen stays on during charging but it can be turned off by pressing the DISPLAY button below the screen.
If your Battery Generator is fully discharged (0% available power), the intelligent LCD screen will be completely dark. This screen will illuminate as soon as your Battery Generator is connected to power, letting you
know that the unit is charging, and will continually display the growing power status as your Battery Generator charges.
Battery Generator
Portable Power Station User Guide
E F
RED
SOLAR INPUT
E. AC input port: Use AC charging cord
(included)
F. Solar charge controller
G. AC charge cord
2.
Turn on outputs
(USB, AC, and 12V ports)
and connect device(s):
RED
SOLAR INPUT
AC INPUT
500
™
Intelligent LCD Screen
G
88:88
TO FULL
A. Charging Input Indicators
• Time to fully charge (hours to full)
• AC or solar
• Input wattage
B. Fuel Gauge Indicators
• Percentage of available battery power
• Battery graph fuel gauge
USB
AC/UPS
PRESS
ONCE
12V
EN ESPAÑOL / ET FRANÇAIS
ColemanPowerStations.com
A B
888%
888 888
HOURS
WATTS WATTS
D
HILO TEMP OUTPUT OVERLOAD
C. Power Output (Usage) Indicators
• Total output wattage
• Time remaining to empty at
charge detected
current output
D. Warning Indicators
• HI TEMP/LO TEMP
• OUTPUT OVERLOAD
• LOW BATTERY
3. Activating "Power Save Off"
USB
Mode:
2.4 A
2.4 A
3.0 A
DISPLA Y
AC/UPS
PRESS / HOLD
3
SECONDS
For more detail, refer to "Power Save Off "
Mode section in this manual.
MANUALS
C
88:88
HOURS
TO EMPTY
LOW BATTERY
12V
USE THIS MODE
FOR
CPAP
AND OTHER
LOW-DRAW
APPLIANCES
