AFX ODEW0709LAJEN Series Installation Instructions

LED Outdoor Luminaires
Wall / Ceiling Mount
120VAC / 60HZ
INSTALLATION INSTRUCTIONS
CAUTIONS
THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE
APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR WITH
THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE
HAZARDS INVOLVED;CE PRODUIT DOIT ÊTRE INSTALLÉ SELON
LE CODE D'INSTALLATION PERTINENT, PAR UNE PERSONNE QUI
CONNAÎT BIEN LEPRODUIT ET SON FONCTIONNEMENT AINSI QUE
LESRISQUES INHÉRENTS.
CONSULT A QUALIFIED ELECTRICIAN TO ENSURE CORRECT BRANCH
CIRCUIT CONDUCTOR BEFORE INSTALLING.
"CONSULTER UN ÉLECTRICIEN QUALIFIÉ POUR VOUS ASSURER QUE
LES CONDUCTEURS DE LA DÉRIVATION SONT ADÉQUATS".
1. Please read and understand this entire manual before
attempting to assemble, install, or operate this light fixture.
2. This fixture is designed for use in a 120VAC / 60Hz fused circuit.
This fixture is not compatible with dimming circuit.
3. Some codes require installation by a qualified electrician.
This light fixture must be properly grounded.
4.
5. Make sure connections are secure using included
connector, crimp-on lugs or other UL approved connecting
devices.
6. Before installation or servicing, turn the power OFF at the circuit
breaker or fuse. Place tape over the circuit breaker switch and
verify power is OFF at the light fixture.
This fixture is intended to be used for general outdoor lighting in
7.
dry, damp, or wet locations. For wet locations, fixture must be
mounted at least 48 inches above ground level.
8. MIN 90 °C SUPPLY CONDUCTORS;
"LES FILS D'ALIMENTATION 90°C MIN" .
SAVE THESE INSTRUCTIONS
FOR FUTURE REFERENCE
Page 1 of 2

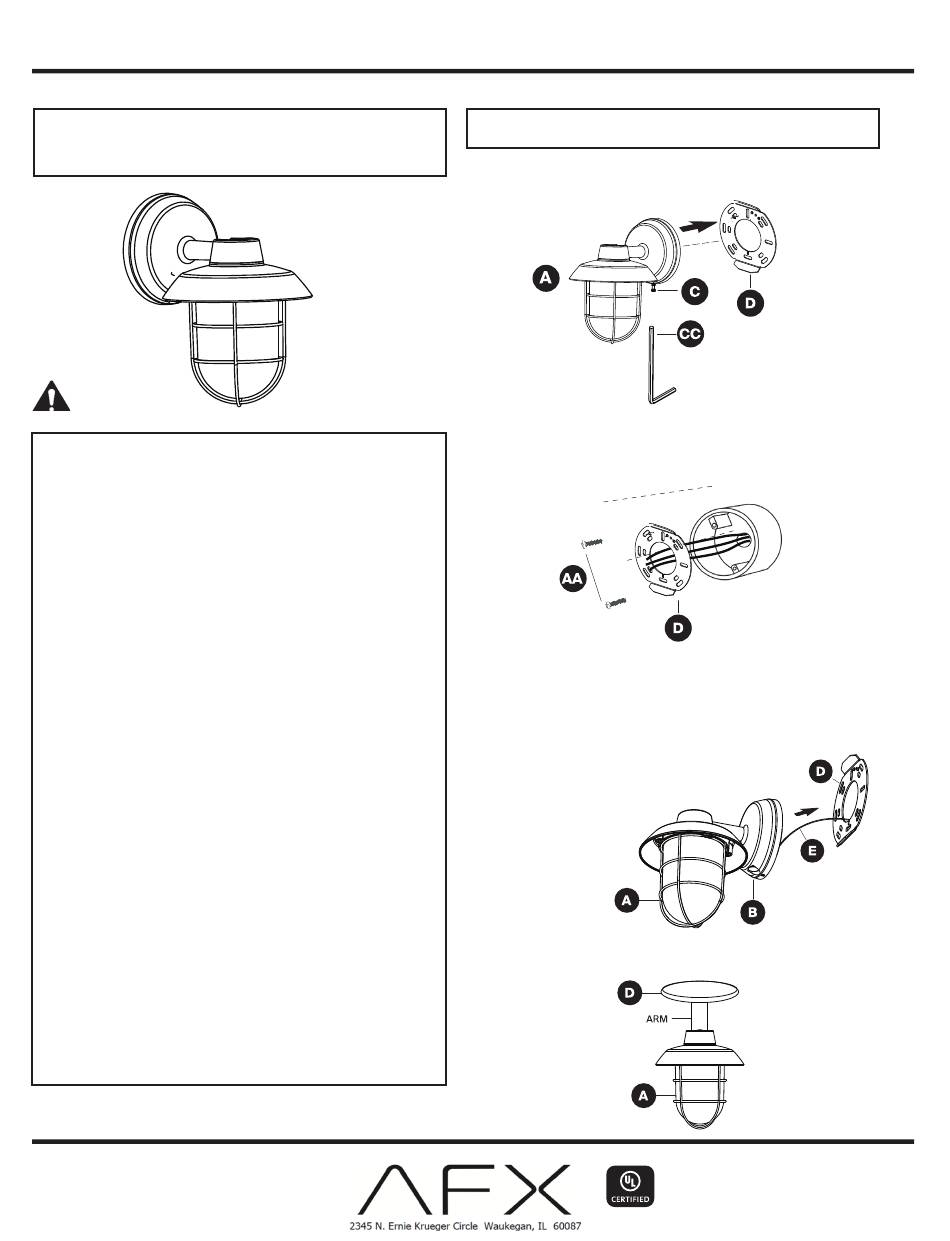

1. Remove the mounting plate (D) from the back of the fixture by loosening
the set screw (C)using the Allen wrench (CC). (fig 1)
2. Route the junction box wires through the large center hole in the mounting
plate (D).
3. Align the holes on the mounting plate (D) with the holes of the junction box.
Use two #8 screws (AA) to secure it.
4. Please make sure the "TOP" arrow on the mounting plate is pointing
up for wall mount or forward for ceiling mount.
5. Place the small sphere head of the hanger wire (E) behind the back of the
small groove located on the bottom of the center hole of the
mounting plate (D). (fig 3)
Wago
6. For ceiling mount application, pivot arm to vertical position
as shown in (fig 4).
Model # ODEW0709LAJENxx

MOUNTING

(fig 1)
(fig 2)
(fig 3)
(fig 4)
8061712 R0
