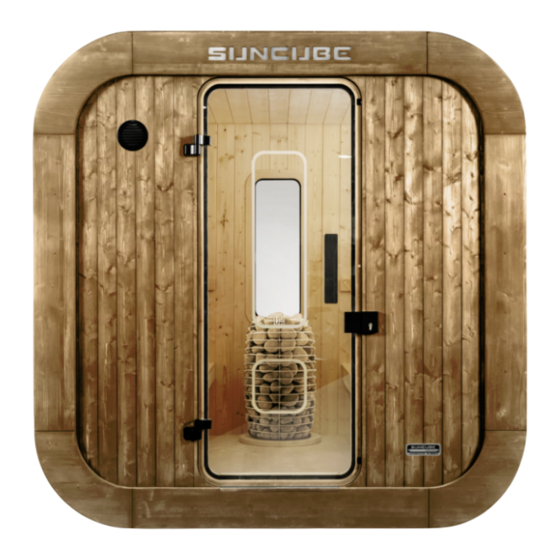

- Page 1 Salus SunCube Sauna OWNER’S MANUAL...
- Page 3 Set 1 Self-extinguishing protective pipe 1A phi 25, 70 self-extinguishing protective pipe phi 25, 330 cm wires: 2x 0.75 mm , 400 cm – for SOS switch 2x 0.75 mm , 470 cm – for HUUM door lock sensor 2x 0.75 mm , 470 cm –...
- Page 4 Screws for LED switch base and siren Heat shrinkable clamp phi 5, length 40 mm – 8 pcs. SOS phi 4, length 15 mm – 7 pcs. Screws for the base of the SOS switch phi 3.8, length 25 mm – 4 pcs. Screws for temperature sensor HUUM fi 2.8, length 15 mm –...
- Page 5 Stripping tool for thick wires (up to 5x 4.0 Wire pliers Folding carpenter's meter Wire stripper Cable lug crimping tool Measuring square Wood hole saw 65 mm Cordless drill Chisel Drill bits 2.5 mm, 5 mm, 10 mm Phillips screwdriver Flathead screwdriver Paper tape Soldering compound...
- Page 6 List of activities: PREPARATION OF PROTECTIVE PIPES AND HARNESSES 1. To prepare harness "1" – cut the wires according to the specifications below: 2x 0.75 mm , 400 cm – for the SOS switch 2x 0.75 mm , 470 cm – to door lock sensor HUUM 4x 0.75 mm , 470 cm –...
- Page 7 7. Cut the rubber core from the wire using pliers. 8. Use a wire stripper to remove the insulation from the wires, then use a crimping tool to fix the 4 mm wire ends on both sides. 9. Insert wire 6 into the protective pipe 6. 10.
- Page 8 11. Cut the LED strip to the nearest soldering point. 12. Solder the ends of the wire at the soldering points using a precision soldering iron. Add the wire with the black line to the "-". 13. Repeat the operation for the second LED strip. ARMING AND INSTALLATION OF THE BOX AND MAIN HARNESS "1"...
- Page 9 2. Install the wires in the protective pipes to the fuse box using the twist glands, starting from the left: Protective pipe with wire "6" Protective pipe with harness "1" Protective pipe with wire "3" Furnace power wire 5 NOTE: The wires should be routed out of the protective pipes in the box with an allowance as shown in the picture below: Harness "1"...
- Page 10 3. Insert the box from the mounting hole, connecting the protective pipe "2" using a torsion gland. 4. Feed wire "5" through the hole in the structure, leaving an allowance as shown in the picture below. 5. Remove the protective pipe "1A" and lead the protective pipe with bundle "1" in the marked holes in the sauna structure.
- Page 11 6. Feed the protective pipe with harness "1" through the vias in the structure as illustrated below. 7. Insert protective pipe "1A", leaving the black wire from the harness (to the SOS button) below the beam. SUN_IS_ electrical_installation_v5.1_06092021...
- Page 12 III. INSTALLATION OF THE "3" HUUM TEMPERATURE SENSOR 1. Insert protective pipe "3" into the hole in the structure and lead it outside, then put the pipe through the grommets in the structure and lead it up to the top of the sauna. 2.
- Page 13 4. Pass the wire through and tie a loop on it to prevent it from slipping out during the installation of the wool and the external facade. LAYING OF LED LIGHT INSTALLATION "4" 1. Pull the protective pipe "4" inside the sauna structure under the threshold of the door opening and extend it evenly outwards on both sides.
- Page 14 2. Drill one phi 5 mm hole on each side at a 45-degree angle. Then widen it with a phi 10 drill bit. NOTE: The hole must be drilled precisely at a height of 44 cm from the bench seat and 14 cm from the edge of the door opening (it will be covered by the bench backrest).
- Page 15 INSTALLATION OF SAUCE BOX + SWITCH INSTALLATION 1. Measure 13 cm from the door frame and 13 cm from the underside of the bench. Drill a hole for the SOS button box using a hole saw. 2. Insert the box into the hole, and run the black SOS cable from harness "1" to the box. SUN_IS_ electrical_installation_v5.1_06092021...
- Page 16 3. Mount the SOS button to the base, making sure the retaining ring is firmly tightened. 4. Tack the ends onto the cables and screw to the switch. NOTE: The wires should be screwed to the side marked in red (poles 1 and 2). Drill four holes with a 2.5 mm drill bit so that the base is mounted horizontally, then using four stainless steel screws phi 3.8 mm, length 25 mm, tighten the base to the sauna paneling.
- Page 17 INSTALLATION OF THE LIGHT SWITCH BOX 1. Measure the location of the hole for the box so that it is in the middle of the second vertical paneling board (IMPORTANT) at a height of 56 cm from the underside of the bench. Pre-drill, then use a chisel to deflect a piece of the framing board, then deepen the hole and again using the chisel remove the piece of board.
- Page 18 2. Insert the box and feed the harness cables "1" into it, using the protective pipe "1A" and "4". VII. DRILLING THE HOLES FOR WIRE "8" OF THE DOOR OPENING DETECTOR HUUM 1. Make a hole with a drill phi 6 mm in the door frame at a height of 72 cm from the threshold of the door opening at an angle so that it comes out on the other side behind the door frame.
- Page 19 VIII. ASSEMBLY AND CONNECTION OF LED INSTALLATION (RIGHT AND LEFT SIDE) 1. Put heat shrink tubing over both wires of the right LED harness "4", then connect the wires from the LED strip to the wire from the harness and solder them together using a transformer soldering iron.
- Page 20 5. Lay the LED strip along the bench backrest. 6. Repeat the above steps for the left side, connecting to wire '7'. PREPARATION AND INSTALLATION OF THE ALARM SIREN 1. Cut a 6 cm wide piece from the phi 110 pipe. Then make an undercut for the siren wire. 2.
- Page 21 Fix the siren to the U-profile with screws phi 4 mm, length 15 mm. 5. Fit double WAGO connectors on each wire. 6. Fit 0.75 mm cable lugs on wire "3". Then connect the wires from the siren to the harness with WAGO connectors according to the colors in the picture.
- Page 22 8. Twist the wooden U-profile and lay the wires. INSTALLATION OF THE HUUM TEMPERATURE SENSOR 1. Solder the ends of the wires to make it easier to attach them to the sensor. Using a small screwdriver, screw them onto the sensor mounts. Drill a hole using a drill phi 2.5, then screw in the bottom mounting screw.
- Page 23 Check that the sensor is horizontal, level it if necessary. INSTALLATION OF THE HUUM DOOR OPENING SENSOR 1. Put heat shrink tubing on the connection wire of the door opening sensor from harness "1" (2x 0.75 mm ), then solder it to the sensor wire "8" routed through the mounting hole of the box to the door frame.
- Page 24 5. Insert the wire into the hole from which the "8" wire protrudes, and lubricate the end of the sensor with universal mounting silicone, spreading it over the sensor. Press it into the mounting hole and clean off any excess silicone. 6.
- Page 25 XII. MOUNTING THE WI-FI HUUM CONTROLLER 1. Crimp the cable lugs on the wires to the controller and screw the wires according to the diagram below to the HUUM controller: Connector 1 – brown wire Connector 2 – ash wire Connector 3 –...
- Page 26 XIII. CONNECTION OF THE INSTALLATION IN THE BOX AND MOUNTING OF THE LED LIGHT SWITCH 1. Attach the cable lugs to: a) Power wire from harness "1" (2x 1.5 mm b) LED wire left "4" c) LED wire right "7" 2.
- Page 27 5. Using a 3.5 mm drill bit, ream the holes in the base of the switch. 6. Pass the switch with the connected LED light wires through the hole in the base. 7. Evenly fit the base to the paneling and drill the screw holes using the same drill bit and screw the base using black screws phi 4 mm and 15 mm long.
- Page 28 XIV. INSTALLATION IN A BOX A. Connection of SOS siren installation 1. Fit cable lugs onto the wire. 2. Find the wire marked "S" in the box, and insert the wires in its place according to the pictures below. B. Connection of SOS button installation 1.
- Page 29 C. Connecting the power supply for the LED strips 1. Fit the 2x 1.5 mm wires from harness "1" with cable lugs. 2. Find the wire marked "LED" in the box, and insert the wires in its place. D. Preparation of the HUMM control unit and its connection to the installation 1.
- Page 30 2. Assemble the torsion glands and rubber glands as shown in the photo. 3. Remove the two screws so that there is clearance for the wire. Tighten the others (including the silver mounting screws) so that they are not loose. SUN_IS_ electrical_installation_v5.1_06092021...
- Page 31 4. Feed the cables into the control unit through the glands in the following order: a) Wire "5" to the furnace supply through the first large choke. b) Wire from harness "1" to the door-opening sensor through the small gland at the bottom c) Wire from harness "1"...
- Page 32 6. Connect the power and earth wires from the box and wire "5". Connect the temperature sensor wire: T1 and T2 and the door opening wire: O1 and O2 according to the diagram in the photo. 8. Connect the wire to the Wi-Fi controller, according to the diagram in the photo (cable colors): Connector 1 –...
- Page 33 9. Check all wire connections to the control panel. If necessary, tighten the wire fixing with a screwdriver. 10. Replace the cover and fasten it with the screws provided. Write the sauna's serial number on the cover with a marker and take a photo of the label. Send the photo to: radoslaw.wojcik@suncubesauna.com E.
- Page 34 2. Connect the phase wires to the contactor in place of the wires you removed, remember to insert the black wire from the photo above. 3. Using the 400 V junction block, connect the wires from the box to the wires from cable "5" (blue and green).
- Page 35 4. Connect the siren, SOS button, and LED light supply analogously to the HUUM installation – see section XIV points A, B, and C. FINAL TEST OF THE ELECTRICAL INSTALLATION CONNECTIONS 1. Screw on the furnace wire terminals "5" for voltage test purposes. 2.
- Page 36 4. Using the light switch, check the operation of the LED bench backlight. 5. Unlock and press the SOS button – make sure you can hear the emergency siren. 6. Heat the air with a lighter around the HUMM temperature sensor to verify its operation. The temperature shown on the display should increase when heated.
- Page 37 9. Check the phase on the three wires (brown, grey, black) of harness "5" using a tester. 10. Disconnect the power supply to the 400 V mains cable. 11. Remove the cube from the installation. 12. Close the box and turn the cover with the screws provided. 888-287-0111 sales@salussaunas.com SUN_IS_ electrical_installation_v5.1_06092021...
