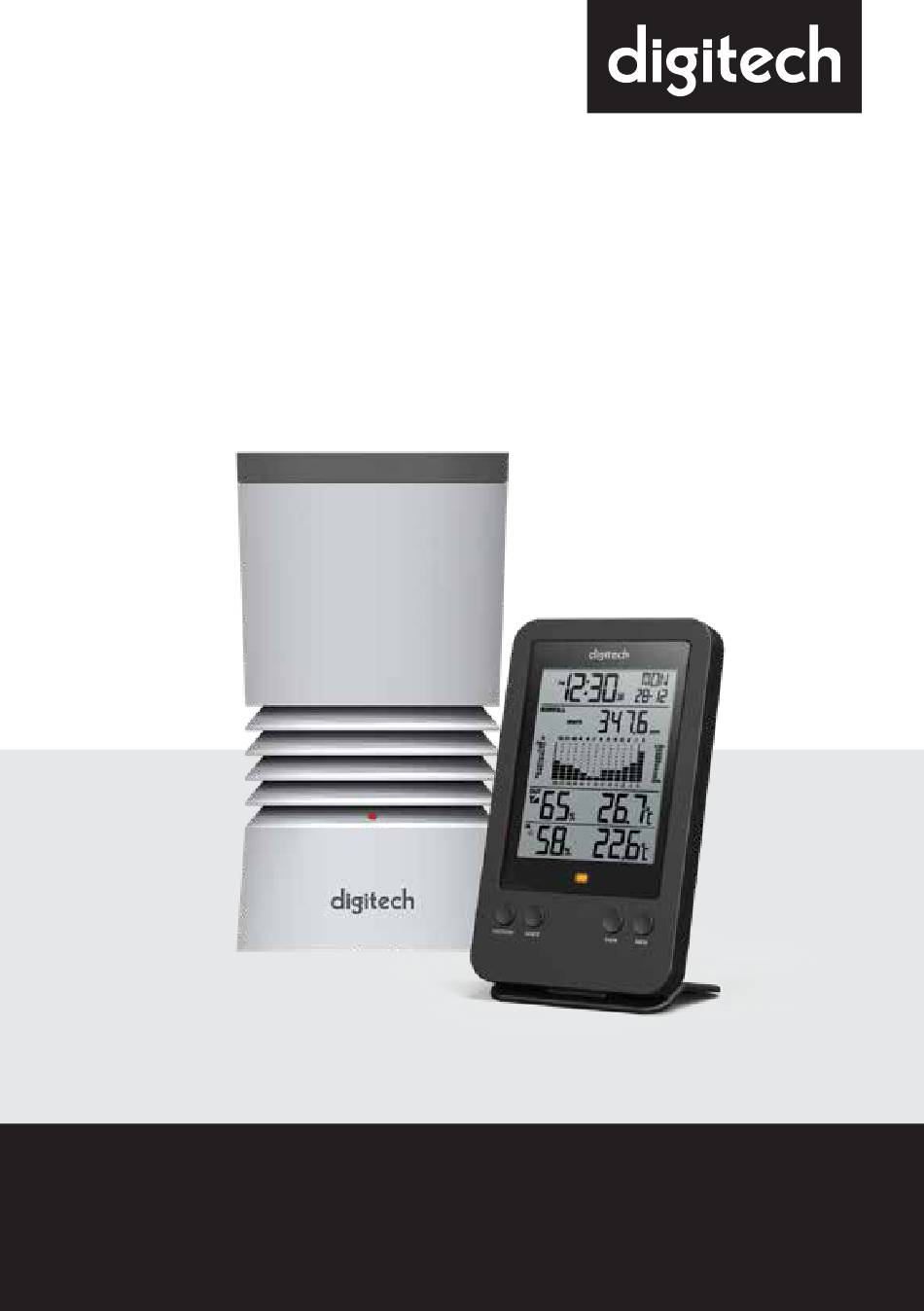

- Page 1 Professional Wireless Rain Gauge with 4” LCD Model: XC0430 Instruction Manual...
-
Page 2: Table Of Contents
TABLE OF CONTENT 1. Introduction ............... 2 2. - Page 3 Important note: - Read and keep these instructions. - Heed all warnings. - Follow all instructions. - Do not subject the unit to excessive force, shock, dust, temperature or humidity. - Do not cover the ventilation holes with any items such as newspapers, curtains etc. - Do not immerse the unit in water.
-
Page 4: Introduction
Introduction Thank you for selecting the Professional Rain Gauge Sensor. This device contains a wireless self-emptying rain collector for measuring rainfall and temperature, and a display main unit. The wireless rain collector sensor is fully assembled and calibrated for your easy installation. -
Page 5: Overview
Overview 3.1 Main Display Unit 1. LCD display: Displays current rainfall, total rainfall or rainfall history, In / outdoor temperature, In / outdoor humidity and clock / calendar 2. Alert indicator: Blinking with alert alarm is on 3. [ HISTORY ]: Toggle to display rainfall in the past hour, day, week, month or year 4. -
Page 6: Wireless Rain Gauge Sensor
3.2 Wireless rain gauge sensor 1. Radiation shield (Thermo-hygro sensor 6. Rain sensor casing built inside) 7. Tipping bucket 2. Red LED indicator 8. Drain holes 3. Mounting base 9. [ RESET ] key 4. Mounting claim 10. Battery door 5. -
Page 7: Outdoor Temperature & Humidity Display
4.3 Outdoor temperature & humidity display 1. Outdoor signal strength indicator 2. Outdoor indicator 3. Outdoor humidity 4. Heat index / Dew point indicator 5. Outdoor temperature 6. Low battery indicator for sensor 7. Hi / Lo alert for outdoor humidity 8. -
Page 8: Mounting Guidelines
5.2 Mounting guidelines 1. Install the thermo-hygro rain gauge sensor in an open location with no obstructions above and around the sensor for accurate rain and temperature measurement. 2. Ensure the rain gauge is installed as level as possible to achieve accurate rain measurement. 3. -
Page 9: Display Main Unit
Display main unit 6.1 Stand and batteries installation The unit is designed for desktop or wall mount for easy viewing. 1. Remove the battery door of the main unit. 2. Insert 2 new AA size batteries according to the “ +/- ” polarity mark on the battery compartment. -
Page 10: Time Setting
6.4 Time setting The setting mode can set the time, date, unit of measure and other functions. Press and hold [CLOCK ] for 2 seconds to enter the setting Mode. In setting mode, press [CLOCK] to proceed to the next setting step. Press [UP] or [DOWN] to change the value. Press and hold the key for quick-adjust. -
Page 11: Rainfall
Rainfall The device displays how many millimeters / inches of rainfall are accumulated over a time period, based on current rainfall and rain rate that is updated every minute. 7.1 To select the rain display mode Press [RAIN ] key to toggle between: Step Mode Screen... -
Page 12: Customized Daily Rain
7.5 Customized daily rain Instead of clearing rainfall at midnight, user may customize the clearing time. 1. Press and hold [RAIN] 2 seconds to enter setting. 2. Press [UP] or [DOWN] to toggle between OFF and ON, followed by [RAIN]. 3. -
Page 13: Temperature & Humidity Display
Temperature & humidity display The main display unit displays outdoor temperature and humidity received from the wireless Thermo-hygro Rain Gauge sensor, as well as indoor temperature and humidity from the built-in sensors. User may select temperature unit by sliding the [ °C / °F ] switch. 9.1 To view Heat Index and Dew Point 1. -
Page 14: To Set The Hi / Lo Alert
11.1 To set the Hi / Lo alert 1. Press [ ALERT ] key to until the desired area is selected. 2. Use [UP] / [ DOWN ] keys to adjust the setting. 3. Press [ALERT] 11.2 To enable / disable the Hi / Lo alert 1. -
Page 15: Data Clearing
13. Data clearing During installation of the wireless sensor, the sensor was likely to be triggered, resulting in erroneous rainfall measurements. After the installation, user may clear out all the erroneous data from the Display Main Unit, without needing to reset the clock and re-establish pairing. 1. -
Page 16: Main Unit
16.1 Main unit Dimensions 95 x 155 x 23 mm (W x H x D) Weight 212g without batteries Battery 2 x AA size 1.5V batteries (Alkaline recommended) Support channels Wireless sensor (Rain gauge, thermo sensor) Operating -5°C to 50°C (23°F to 122°F) temperature range Operating humidity RH 10% to 90 % non-condensing... -
Page 17: Wireless Rain Gauge Sensor
Rain gauge Unit for rainfall in and mm Range for rainfall 0~29999 mm (max) Resolution 0.01” (0.254 mm) Accuracy < 0.01” (0.2 mm): +/- 7% or 1 tip; 5” (127 mm): +/- 7% Hour rainfall > 999.9 mm; Day rainfall > 9999 mm; Week/Month/Total rainfall Hi display >... - Page 18 Distributed by: Electus Distribution Pty Ltd 46 Eastern Creek Dr, Eastern Creek NSW 2766 Australia Ph 1300 738 555 www.electusdistribution.com.au...
