igus iglide PRT-01 Assembly Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Assembly instructions
iglide
®
PRT-01

Advertisement

loading
Need help?

Need help?

Do you have a question about the iglide PRT-01 and is the answer not in the manual?

Questions and answers

Related Manuals for igus iglide PRT-01

Summary of Contents for igus iglide PRT-01

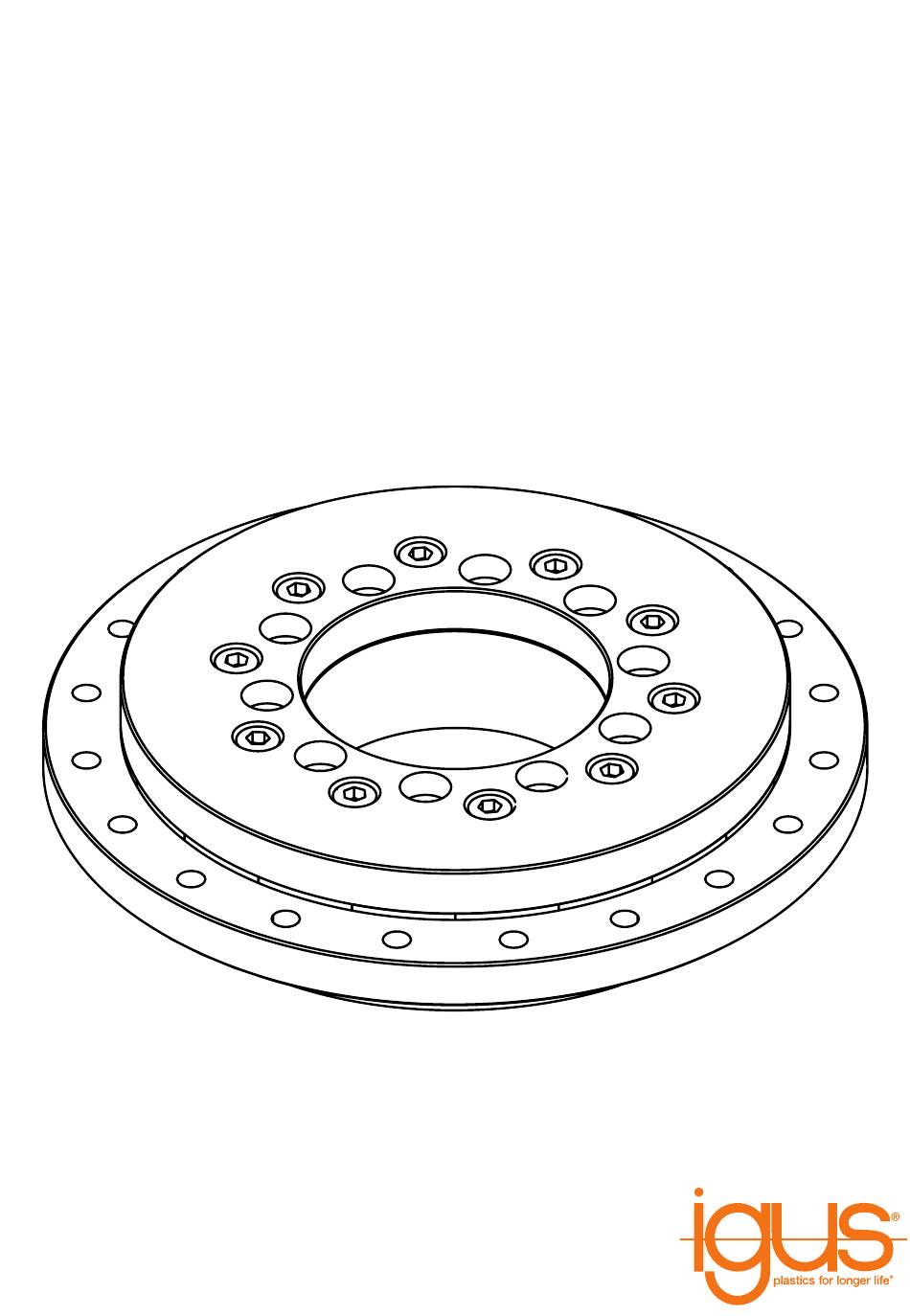

  • Page 1 Assembly instructions iglide ® PRT-01...
  • Page 2 PRT-01-XXX-KR RS-XX RS-XX-FS PRT-01-XXX-AR PRT-01-XXX-RR Screws iglidur Material ® iglidur ® iglidur A180 ® iglidur ® iglidur ® Optionally available Assembly aid...
  • Page 3 Screws PRT-01-XXX-KR RS-XX RS-XX-FS PRT-01-XXX-AR PRT-01-XXX-RR...
  • Page 4 OPTION A with Assembly aid PRT-01-XXX-AR Assembly aid RS-XX-FS...
  • Page 5 OPTION A with Assembly aid Fill up sliding elements until an entire sliding element no longer fits. Cut the last sliding element to size and fit with a gap of 1-2mm. 1-2 mm...
  • Page 6 OPTION A with Assembly aid PRT-01-XXX-RR...
  • Page 7 OPTION B without Assembly aid RS-XX-FS...
  • Page 8 OPTION B without Assembly aid Fill up sliding elements until an entire sliding element no longer fits. Cut the last sliding element to size and fit with a gap of 1-2mm. 1-2 mm...
  • Page 9 OPTION B without Assembly aid...
  • Page 10 180° RS-XX-FS...
  • Page 11 Fill up sliding elements until an entire sliding element no longer fits. Cut the last sliding element to size and fit with a gap of 1-2mm. 1-2 mm...
  • Page 12 recommended...
  • Page 13 0,4 - 0,6 1,0 - 2,0 2,5 - 3,5 5,0 - 7,0 12,5 - 17,5 test...
  • Page 15 Assembly instructions iglidur ® PRT-04...
  • Page 16 PRT-04-XXX-KR VRS-04 PRT-04-XXX-RR PRT-04-XXX-AR M3x10 screws made of VA DIN 7991 iglidur Material ® iglidur ® iglidur A180 ® iglidur ® iglidur ® Optionally available Assembly aid...
  • Page 17 Screws PRT-04-XXX-KR VRS-04 PRT-04-XXX-RR PRT-04-XXX-AR...
  • Page 18 OPTION A with Assembly aid PRT-04-XXX-AR Assembly aid Fill up sliding elements until an entire sliding element no longer fits.
  • Page 19 OPTION A with Assembly aid PRT-04-XXX-RR...
  • Page 20 OPTION B without Assembly aid Fill up sliding elements until an entire sliding element no longer fits. PRT-04-XXX-AR PRT-04-XXX-RR...
  • Page 21 180° Fill up sliding elements until an entire sliding element no longer fits.
  • Page 22 recommended 0,4 Nm - 0,6 Nm...
  • Page 23 120 min. 120 C° C° test...
  • Page 24 ® 257 Ferris Ave Rumford RI, 02916 Tel. +1 800 521 2747 info@igus.com www.igus.com Published by igus ® Subject to technical alterations...
