______________________________________________BSM48106 USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BSM48106 and is the answer not in the manual?

Questions and answers

Summary of Contents for BlueSun BSM48106

  • Page 1 ______________________________________________BSM48106 USER MANUAL...
  • Page 2: Table Of Contents

    ______________________________________________BSM48106 USER MANUAL Content 1. Introduction ....................... 3 1.2 Brief Introduction ....................3 1.3 Product Properties ....................4 2. Product Specification ....................5 2.1 Size and Weight ..............错误!未定义书签。 2.2 Performance Parameter ................... 5 2.3 Equipment Interface Instruction ...............6 2.4 Battery Management System(BMS) ........错误!未定义书签。...
  • Page 3: Introduction

    ______________________________________________BSM48106 USER MANUAL 1. Introduction 1.1 Important Safety Instructions Danger! Please do not put the battery into water or fire, in case of explosion or any other  situation that might endanger your life. Please connect wires properly while installation, do not reverse connect. ...
  • Page 4: Product Properties

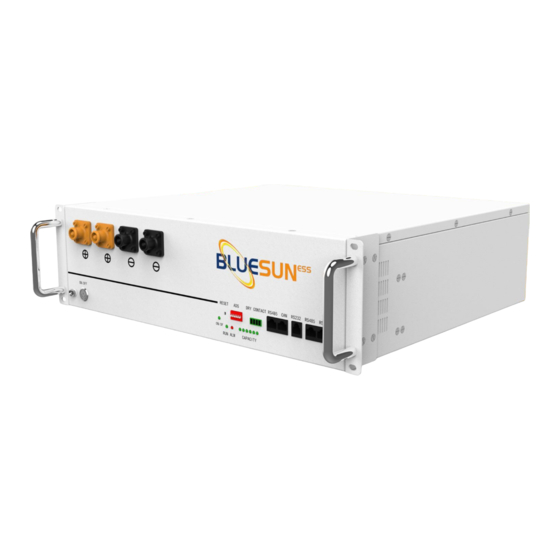

    BSM48106 lithium iron phosphate battery system is a standard battery system unit, customers can choose a certain number of BSM48106 according to their needs, by connecting parallel to form a larger capacity battery pack, to meet the user's long-term power supply needs. The product is especially suitable for energy storage applications with high operating temperatures, limited installation space, long power backup time and long service life.
  • Page 5: Product Specification

    ______________________________________________BSM48106 USER MANUAL 2. Product Specification 2.1 Performance Parameter Table 2-2 BSM48106 performance parameter Basic Parameters BSMH-409.6V-106AH Nominal Voltage (V) 409.6V Nominal Capacity (KWH) 43.4176 Usable Capacity (KWH) 39.07584 Battery Controller Name BSMC-1000-120 Battery Module Name BSMH48106 Battery Module Quantity Battery Module 5.4272...
  • Page 6: Equipment Interface Instruction

    ______________________________________________BSM48106 USER MANUAL 2.2 Battery Module Product Type BSMH48106 Cell Technology Li-ion(LFP) Battery Module Capacity (KWH) Battery Module Voltage (Vdc) Battery Module Quantity (PCS) Battery Cell Voltage(Vdc) Battery Cell Capacity (AH) Battery Module Cell Quantity Series(pcs) Battery Module Charge Voltage(Vdc) Battery System Charge...
  • Page 7 ______________________________________________BSM48106 USER MANUAL Transfer Certificate 2.2.1 Battery Module Information 2.2.2 Battery Module Front Interface Table 2-3 Interface Definition Item Definition Name Battery output positive or parallel positive line Positive socket Communication Support RS485 communication between battery module, and Port control module Battery output positive or parallel positive line Negative socket SW ( battery...
  • Page 8 ______________________________________________BSM48106 USER MANUAL DRY CONTACT Negative socket Battery output negative or parallel negative line Grounding Shell ground connection 2.3 Control Module (internal power supply) 2.3.1 Control Module information Item Product Type BSMC-1000V-120A Related Product 1000V 120A AC Supply System Operation Voltage (Vdc) Operation Current (Max.) (A) Self-consumption Power(W) Dimension (W* D* H, mm)
  • Page 9 ______________________________________________BSM48106 USER MANUAL 2.3.2 Control Module has two types: internal and external power supply Control Module (BSMC-1000-250) Front Interface Table 2-3 Interface Definition Item Definition Name OFF/ ON, Power switch must be in the " ON" state when in use Battery output positive or parallel positive line Positive socket DIP switch...
  • Page 10: Installation And Configuration

    ______________________________________________BSM48106 USER MANUAL DRY CONTACT Negative socket Battery output negative or parallel negative line Grounding Shell ground connection 1. Installation and Configuration 1.1 Preparation for installation 3.1.1 Safety Requirement This system can only be installed by personnel who have been trained in the power supply system and have sufficient knowledge of the power system.
  • Page 11: Tools And Data

    ______________________________________________BSM48106 USER MANUAL  The ground for product arrangement shall be flat and level.  No flammable explosive materials near the installation site.  The optimal ambient temperature is 15℃~ 30℃  Keep away from dust and messy zones 3.1.3 Tools and data Tools and meters that may be used are shown in table 3-1.
  • Page 12 ______________________________________________BSM48106 USER MANUAL sun and rain.  Before unpacking, the total number of packages shall be indicated according to the shipping list attached to each package, and the case shall be checked for good condition.  In the process of unpacking, handle with care and protect the surface coating of the object.
  • Page 13: Equipment Installation

    ______________________________________________BSM48106 USER MANUAL 1.2 Equipment installation 3.2.1 Installation Steps Step 1 Mechanical Installation (1) Brackets installation:...
  • Page 14 ______________________________________________BSM48106 USER MANUAL (2) Battery cabinet installation:...
  • Page 15 ______________________________________________BSM48106 USER MANUAL Step 2 Electrical installation (1) Connect with inverter power lower than 5kw (including 5kw)
  • Page 16 ______________________________________________BSM48106 USER MANUAL (2) Connect with inverter power higher than 5kw...
  • Page 17 ______________________________________________BSM48106 USER MANUAL (3) Connect with Inverter connected in parallel...
  • Page 18: Installation And Configuration

    ______________________________________________BSM48106 USER MANUAL 3.2.2 Battery parameter settings on the inverter If your inverter do not have communication function with BSM48106 battery pack, please set inverter follow next data. Max Charging(Bulk) Voltage: 57V Absorption Voltage: 56.5V Float Voltage: 56V Shut Down(cut off) Voltage: 49V Shut Down(cut off) SOC: 20% Restart Voltage: 51.2V...
  • Page 19: Alarm Description And Processing

    ______________________________________________BSM48106 USER MANUAL 4.2 Alarm description and processing When protection mode is activated or system failure occurred, the alarm signal will be given through the working status indicator on the front panel of the A48100. The network management can query the specific alarm categories. If the fault such as single cell over voltage, charging over-current, under-voltage protection, high-temp protection and other abnormalities which affects the output, please deal with it according to Table 4-1.
  • Page 20 ______________________________________________BSM48106 USER MANUAL The battery can't be Charging voltage is too low Adjust charging voltage fully charged to 100% at 57V Power connection short-circuit Turn off the battery, The power cable check the cause of the sparks once power on and ALM light RED short circuit Communication fault...
  • Page 21 ______________________________________________BSM48106 USER MANUAL...
  • Page 22 ______________________________________________BSM48106 USER MANUAL...
