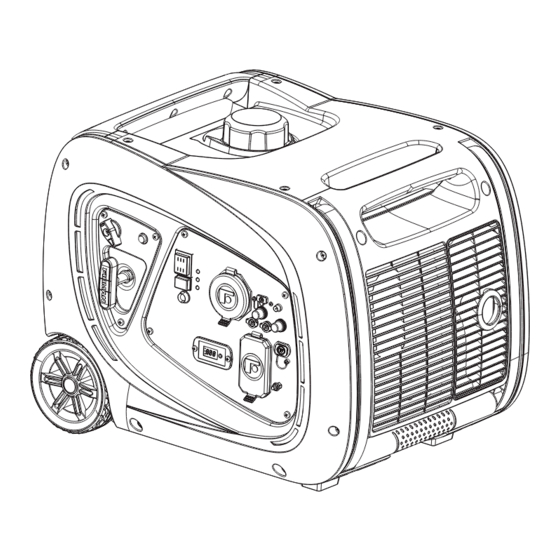

Firman W03385 Operator's Manual

Firman W03385 Operator's Manual

Gasoline portable generator
Hide thumbs

Advertisement

Quick Links

Download this manual
OPERATOR'S MANUAL
GASOLINE PORTABLE GENERATOR
Record product information to reference when ordering parts
or obtaining warranty coverage.
DO NOT RETURN
STOP
TO STORE!
CALL US FIRST
1-844-347-6261
FOR QUESTIONS
OR SERVICE INFORMATION
SERIAL NUMBER:
PURCHASE DATE:
MODEL NUMBER
W03385
REV Level 01
P/N:333747010 REV:01

Advertisement

loading

Related Manuals for Firman W03385

Summary of Contents for Firman W03385

  • Page 1 OPERATOR’S MANUAL GASOLINE PORTABLE GENERATOR MODEL NUMBER W03385 REV Level 01 Record product information to reference when ordering parts or obtaining warranty coverage. DO NOT RETURN SERIAL NUMBER: STOP TO STORE! CALL US FIRST PURCHASE DATE: 1-844-347-6261 FOR QUESTIONS OR SERVICE INFORMATION...
  • Page 2 NOTE: The FIRMAN W03385 inverter generator has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 3: Table Of Contents

    . INTRODUCTION Thank you for purchasing a FIRMAN generator. You have selected a high-quality, precision engineered generator set designed and tested to give you years of satisfactory service. This generator is designed to run only on unleaded gasoline. This generator is not intended to be run unattended or to supply power to life safety support.

  • Page 4: Introduction

    INTRODUCTION SIGNAL WORDS NOTICE DANGER WARNING CAUTION Indicates a hazard Indicates a hazard Indicates a hazard Indicates information which, if not avoided, which, if not avoided, which, if not avoided, considered Important, will result in death or could result in death could result in minor or but not hazard-related.
  • Page 5 For more information go to www.P65Warnings.ca.gov. This outdoor generator can be used to power outdoor items using extension cords . NOTICE If you have questions about intended use, contact FIRMAN customer service. This portable generator is designed to be used only with FIRMAN authorized parts.
  • Page 6 INTRODUCTION 1. Only use grounded cords marked for outdoor use rated for your loads. To provide power using extension cords Minimum Gauge, Outdoor Rated Total Amperage Up to 50 FT (15m) Up to 13A Up to 15A Up to 20A Up to 30A 2.

  • Page 7: Features, Controls And On -Product Hazard Labels

    FEATURES, CONTROLS AND ON -PRODUCT HAZARD LABELS ① ② ① ③ ⑥ ④ ⑤ ⑧ 1- Fixed Carrying Handle 2- Fuel Cap 3- Recoil Starter 4- Never Flat Wheel 5- Control Panel 6- Muffler/Spark Arrester 7- Folding Handle 8- Maintenance Cover – Oil filler and air filter access. 9- Data Decal / Serial Number *We are always working to improve our products.
  • Page 8 FEATURES, CONTROLS AND ON -PRODUCT HAZARD LABELS LOCATION AND CONTENT OF NO-PRODUCT HAZARD LABELS FREE WARNING LABEL REPLACEMENT If hazard labels become illegible or are missing, contact FIRMAN customer service for a free replacement. ⑦ English Customer Service: 1-844-FIRMAN1...
  • Page 9 FEATURES, CONTROLS AND ON -PRODUCT HAZARD LABELS English Customer Service: 1-844-FIRMAN1...
  • Page 10 FEATURES, CONTROLS AND ON -PRODUCT HAZARD LABELS English Customer Service: 1-844-FIRMAN1...
  • Page 11 FEATURES, CONTROLS AND ON -PRODUCT HAZARD LABELS Control Panel NOTICE Total power drawn from all receptacles must not exceed the data decal rating. 1. Engine Start Switch – To start engine, press and hold the switch in the START (ll) position, the engine will crank and attempt to start.
  • Page 12 12. DC Circuit Breaker – The DC receptacles are protected by an DC circuit protector. If the DC output is overloaded or an external short circuit occurs the circuit protector will trip. 13. Parallel Operation Outlets - These outlets are used for connecting two FIRMAN inverter generators for parallel operation. A FIRMAN parallel kit(optional equipment) is required for parallel operation.

  • Page 13: Operation

    OPERATION 1. Location DANGER! Engine exhaust contains carbon monoxide, a poisonous gas that could kill you in minutes. You CANNOT smell it, see it, or taste it. Even if you do not smell exhaust fumes, you could still be exposed to carbon monoxide gas. Operate portable generator only outdoors and downwind at least 20 ft.(6 m) from occupied ●...
  • Page 14 OPERATION Reduce Risk of Fire WARNING! Exhaust heat/gases could ignite combustibles, structures or damage fuel tank causing a fire, resulting in death or serious injury. Keep portable generator at least 5 ft. (1.5 m) from any structure, trees or vegetation over 12 in. (30 ●...
  • Page 15 OPERATION 2. Oil and Gasoline Add Engine Oil We recommend using SAE 10W-30 API SJ or higher oil for best performance. Do not use special additives. Ambient temperature determines the proper oil viscosity for the engine. Use the chart to select the proper oil for the outdoor temperature range expected. NOTICE Do not attempt to crank or start the engine before it has been properly filled with the recommended type and amount of oil.
  • Page 16 Make sure the sump is completely full of oil to the upper limit (H). Do not operate engine until oil level issue is corrected. Contact Firman customer service. Add Gasoline...
  • Page 17 High altitude may cause hard starting, increased fuel consumption and sparkplug fouling. To operate at high altitudes FIRMAN can provide a high altitude carburetor main jet. The alternative main jet and installation instructions can be obtained by contacting Customer Support.
  • Page 18 OPERATION 3.Starting the Generator 1. Before starting the generator, check for loose or missing parts and for any damage which may have occurred during shipment. Ensure spark plug, muffler, fuel cap, and air cleaner are all in place. 2. Operate portable generator only outdoors and downwind at least 20 ft. (6 m) from occupied spaces with exhaust pointed away to reduce the risk of carbon monoxide accumulating.
  • Page 19 OPERATION 8. For recoil start only-Pull the starter cord slowly until resistance is felt and then pull rapidly. 9. For electric start only-Flip the engine switch to the START (ll) position for a few seconds and then release. 10. Push the choke knob to the “RUN” position. 11.
  • Page 20 OPERATION 4. Connecting Electrical Loads This portable generator has been pretested and adjusted to handle its full capacity. The voltage is regulated using an automatic voltage regulator (AVR) . Readjusting the AVR will void warranty. WARNING! Generator voltage could cause electrical shock or burn resulting in death or serious injury.
  • Page 21 Call emergency services. You may have carbon monoxide poisoning. CO Alert fault occured*. Yellow See FIRMAN authorized service dealer. *Yellow light will blink for five seconds at the startup of generator to show CO ALERT is functioning properly. English...
  • Page 22 OPERATION Economy Control Switch The Economy Control switch can be activated in order to minimize fuel consumption and noise while operating the unit during times of reduced electrical output, allowing the engine speed to idle during periods of non-use. The engine speed returns to normal when an electrical load is connected. When the economy switch is off, the engine runs at normal speed continuously.
  • Page 23 OPERATION 5. Stopping the generator 1. Turn off and remove all electrical loads. Never stop the generator with electrical devices plugged in and turned on. Never stop the engine by moving the choke to the start position. Let the generator run at no-load for one minute to stabilize internal temperatures of the engine and generator.
  • Page 24 Any two FIRMAN inverter generators with parallel ports, including two FIRMAN inverters model W03385 can be paralleled to increase the total available electrical power to 6000 Watts. A FIRMAN Parallel kit (not included) is required for parallel operation. For Kit availability, call customer Service at 1-844-347-6261 or visit: www.firmanpowerequipment.com.

  • Page 25: Maintenance - Storage

    MAINTENANCE - STORAGE MAINTENANCE SCHEDULE Every Daily(Before Initial Every Every 100 hours ITEM NOTES operation) 25 hours 50 hours 250 hours (or annual) Check condition. Adjust gap √ Spark Plug and clean. Replace if necessary. √ Check oil level. Engine Oil Replace.
  • Page 26 MAINTENANCE - STORAGE When Transporting Generator Transport with fuel tank EMPTY or with fuel valve in OFF position. Do not tip generator at an angle which causes fuel to spill. ENGINE MAINTENANCE To prevent accidental starting, remove and ground spark plug wire before performing any service. Change Engine Oil Change engine oil every 100 hours.
  • Page 27 MAINTENANCE - STORAGE Air Filter Maintenance (a) Remove the air cleaner cover and locate the air filter plastic cover. (b) Carefully remove foam air filter element and wash it with liquid detergent and water only. Squeeze dry in a clean cloth. Air Cleaner Foam Element ( c) Saturate foam air filter element with clean engine oil and squeeze in a clean cloth to remove...
  • Page 28 MAINTENANCE - STORAGE (d) Inspect spark plug for damage and clean with a wire brush before reinstalling. Replace if damaged. (e) Adjust the electrode gap to 0.028 - 0.031 in. ( 0.7 - 0.8 mm). (f) Seat spark plug in position and thread by hand to prevent cross threading. (g) Tighten plug with provided wrench and put the spark plug boot back on spark plug.
  • Page 29 4. Replace the spark arrester if it is damaged. If replacement parts are required, make sure to use only FIRMAN original equipment replacement parts. 5. Position the spark arrester in the muffler and attach spark arrester cover with the screws.
  • Page 30 MAINTENANCE - STORAGE Battery Replacement 1.Unscrew the air cleaner cover by provided screwdriver. 2. Remove the nut and bolt from the negative(-) and positive(+) posts. 3. Loosen and remove the screw A on the battery holding bracket. 4. Remove the battery and recycle and dispose of properly. Rubber Sheath Positive(+) Terminal...
  • Page 31 MAINTENANCE - STORAGE Battery Charging The battery powers the starter motor and control module. This portable generator is equipped with an automatic battery charging circuit. The battery will receive charging voltage only when the engine is running. The battery will maintain a proper charge if the portable generator is used on a regular basis (about once every two weeks).
  • Page 32 MAINTENANCE - STORAGE Long Term Storage It is important to prevent gum deposits from forming in essential fuel system components such as the carburetor, fuel hoses or tank during storage. Ethanol-blended fuels (called gasohol, ethanol or methanol) attract moisture, which leads to separation and formation of acids during storage. Acidic gas can damage the fuel system of an engine while in storage.

  • Page 33: Troubleshooting- Specifications

    Engine shuts down and 1. Contact authorized FIRMAN 1. CO system fault yellow CO fault light service facility blinking. For all other issues, contact authorized dealer or Firman customer service. English Customer Service: 1-844-FIRMAN1...
  • Page 34 MAINTENANCE - STORAGE TROUBLESHOOTING – SPECIFICATIONS SPECIFICATIONS Model W03385 Starting Watts 3650 Running Watts* 3300 Rated AC Voltage 120V Rated Fequency 60Hz Phase Single Voltage Regulator Power Factor Total Harmonic Distortion(THD) <3% Alternator Type Magneto Inductor Engine FIRMAN Engine Type...
  • Page 35 PARTS DIAGRAM AND PARTS LIST W03085 Parts Diagram English Customer Service: 1-844-FIRMAN1...
  • Page 36 193cc Engine Parts Diagram English Customer Service: 1-844-FIRMAN1...

  • Page 37: Parts Diagrams - Parts Lists - Wiring Diagram

    PARTS DIAGRAMS - PARTS LISTS - WIRING DIAGRAM W03385 Parts List Qty. Qty. Part Number Description NO. Part Number Description Engine 38.3 333467027 330713539 Handle,left 38.4 336723615 Lock Washer 333717003 Nut M6 Generator End Cover 38.5 330713560 336713561 Bolt M6×25 38.6...
  • Page 38 PARTS DIAGRAMS - PARTS LISTS - WIRING DIAGRAM Qty. Qty. NO. Part Number Description NO. Part Number Description 333717022 Screw M5×14 330713574 Rectifier Screw M5×14 336718362 336713620 Charger 330713580 Pull Chock Assembly 330713582 Screw&washer Assy M4×14 Fuel Valve Knob 330713581 336713561 Bolt M6×25 330713582...
  • Page 39 PARTS DIAGRAMS - PARTS LISTS - WIRING DIAGRAM SPE195E 193cc Engine Parts List Qty. Qty. NO. Part Number Description NO. Part Number Description Flange Bolt M8×35 330723556 Stud Bolt (M6×97) 330723500 Oil Seal 330723557 Spark Plug 330723501 Cover, Crankcase 330723558 Flange Bolt M8×45 332467002 Oil Level Sensor...
  • Page 40 PARTS DIAGRAMS - PARTS LISTS - WIRING DIAGRAM English Customer Service: 1-844-FIRMAN1...
  • Page 41 FIRMAN GENERATOR will register the warranty upon receipt of your Warranty Registration Card and a copy of your sales receipt from one of FIRMAN’s retail locations as proof of purchase. Please submit your warranty registration and your proof of purchase within ten(10) days of the date of purchase.
  • Page 42 Limits of Implied Warranty and Consequential Damage FIRMAN disclaims any obligation to cover any loss of time, use of this product, freight, or any incidental or consequential claim by anyone from using this product. THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANT ABLILITY OR FITNESS FOR A PARTICULAR PURPOSE.
  • Page 43 If any such part fails during the period of warranty coverage, the part will be repaired or replaced by FIRMAN at no charge to the owner. Any such part repaired or replaced under the warranty will be warranted for the remaining warranty period.

  • Page 44: Service - Warranty

    Service – Warranty (8) Throughout the emissions warranty period defined in Subsection (b)(2), FIRMAN will maintain a supply of warranted parts sufficient to meet the expected demand for such parts. (9) Any replacement part may be used in the performance of any warranty maintenance or repairs and must be provided without charge to the owner.
  • Page 45 FOLLOW US ON SOCIAL MEDIA # E V E R Y G E N E R A T O R T E L L S A S T O R Y FOR YOUR CHANCE TO WIN FIRMAN SWAG FIRMAN POWER EQUIPMENT INC.
