Viking Designer DGSU100-4B Specification Sheet

Standard Features & Accessories
Both models include
• Dimensioned to fit the majority of
similarly sized cooktop cutouts
• Sealed burners with brass flame ports
and porcelain/cast iron caps
• One-piece tooled top with large spill
collection area around burners
• Heavy-duty stainless steel control
knobs with childproof, push-to-turn
safety feature

Model Options

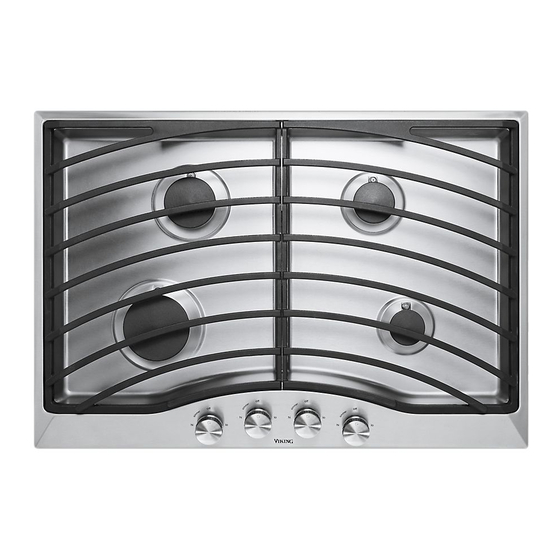

30"W. Four-Burner Cooktop
FINISH DETAILS FOR BOTH MODELS
• Stainless Steel (SS), Black (BK), White
(WH), Graphite Gray (GG), Stone Gray
(SG), and Biscuit (BT).
o Finish designates top. Black porcelain
grates, porcelain burner caps, and
knob grips.
• White (WH)
o Finish designates top. Gray porcelain
grates, porcelain burner caps, and
knob grips.
• Brass Trim Option (BR)—knobs. Brass
components have a durable protective
coating for maintenance-free normal
use.
ORDERING INSTRUCTIONS
First specify model number, and then color code (DGSU100-4BSS). If ordering optional brass trim, specify code at end (DGSU100-4BSSBR).
If ordering optional LP conversion, specify code at end (DGSU100-4BSSBRLP).
P L A N N I N G A N D D E S I G N G U I D E
V I K I N G R A N G E . C O M
Designer Built-In Gas 30"/36"W. Cooktop
4B model includes
• Four burners
o Left front—14,000 BTU high/2,000
BTU low
o Left rear—12,000 BTU high/1,700
BTU low
o Right rear—8,000 BTU high/1,200
BTU low
o Right front—6,000 BTU high/950
BTU low
DGSU100-4B
• 1 - 8 8 8 - V I K I N G 1
COOKING
5B model includes
• Six burners
o Left front—12,000 BTU high/1,700
BTU low
o Left rear—10,000 BTU high/1,500
BTU low
o Center—14,000 BTU high/2,000
BTU low
o Right rear—8,000 BTU high/1,200
BTU low
o Right front—6,000 BTU high/950
BTU low
DGSU160-5B
36"W. Five-Burner Cooktop
© 2 0 0 7 V R C — I N F O R M AT I O N S U B J E C T T O C H A N G E
R E L E A S E D 1 2 / 1 / 0 7
