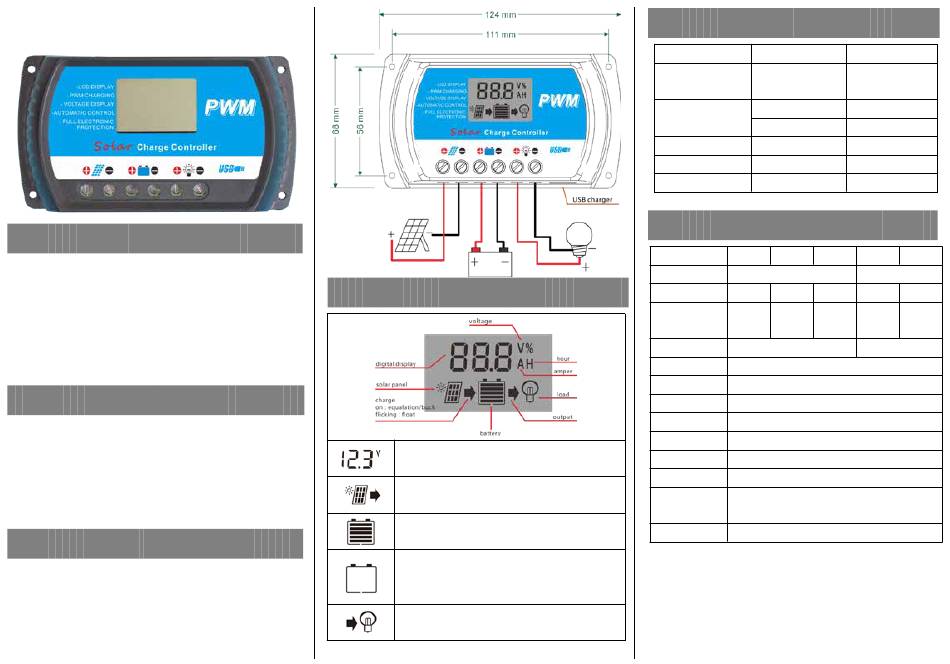

PWM RTD1210 User Manual

User's Manual
SAFETY INSTRUCTIONS
1.Make sure your battery has enough voltage
recognize the battery type before first installation.
2.The battery cable should be as short as possible to minimize loss.
3.The regulator is only suitable for lead acid batteries: OPEN,AGM, GEL
it is not suited for nickel metal hydride, lithium ions or other batteries.
4.The charge regulator is only suitable for regulating solar modules.
Never connect another charging source to the charge regulator.
PRODUCT FEATURES
1.Build-in industrial micro controller.
2.Big LCD display,with 5V USB charger
3. PWM charge management.
4.Build-in short-circuit protection,open-circuit protection,reverse
protection,over-load protection.
5.Dual mosfet Reverse current protection ,low heat production.
SYSTEM CONNECTION
1.Connect the battery to the charge regulator - plus and minus.
2.Connect the photovoltaic module to the regulator - plus and minus.
3. Connect the consumer to the charge regulator - plus and minus.
The reverse order applies when deinstalling!
An improper sequence order can damage the controller!
for the controller to
DISPLAY
Display the battery voltage
This iron will be on when solar panel voltage is higher
than battery voltage,and it will start charging.
Battery power iron
If this iron flashes means the battery voltage is too
low and the output will be cut off until the battery
voltage raise to 12.6V
Iron on means output is good.
TROUBLE SHOOTING
Situation
Probable cause
Charge icon not on Solar panel opened
when sunny or reversed
Load icon off Mode setting wrong
Battery low
Load icon slow flashing Over load
Load icon slow flashing Short circuit protection
Power off Battery too low/reverse
TECHNICAL PARAMETER
MODEL RTD1210 RTD1220 RTD1230
Batt voltage 12V/24V auto
Charge current 10A 20A 30A
Discharge 10A 20A 30A
current
Max Solar input <50V
Buck charge 14.5V
Float charge 13.7V
Discharge stop 10.7V
Discharge reconnect 12.6V
USB output 5V/0.8A
Self-consume <10mA
Control mode PWM
Operating -35~+60 ℃
temperature
Size/Weight 150*78*35mm /150g
*all red color voltage X2 ,X4 while using 24V /48V system.
*Product specifications are subject to change without prior notice.
Solution
Reconnect
Set again
recharge
Reduce load watt
Auto reconnect
Check battery/connection
RTD4810 RLD4820
48V
10A 20A
10A 20A
<80V
