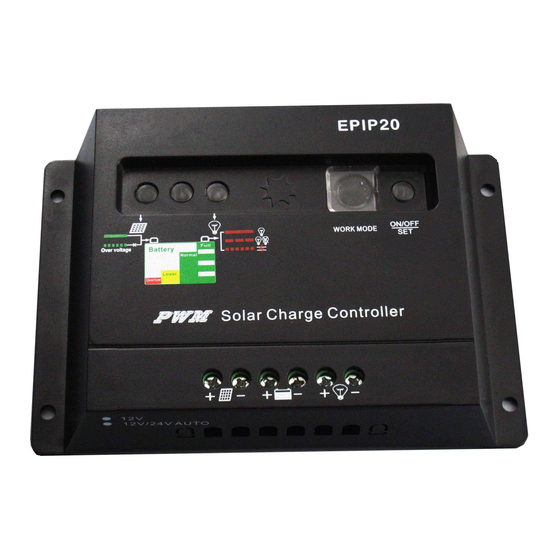

Solar charge controller

Advertisement

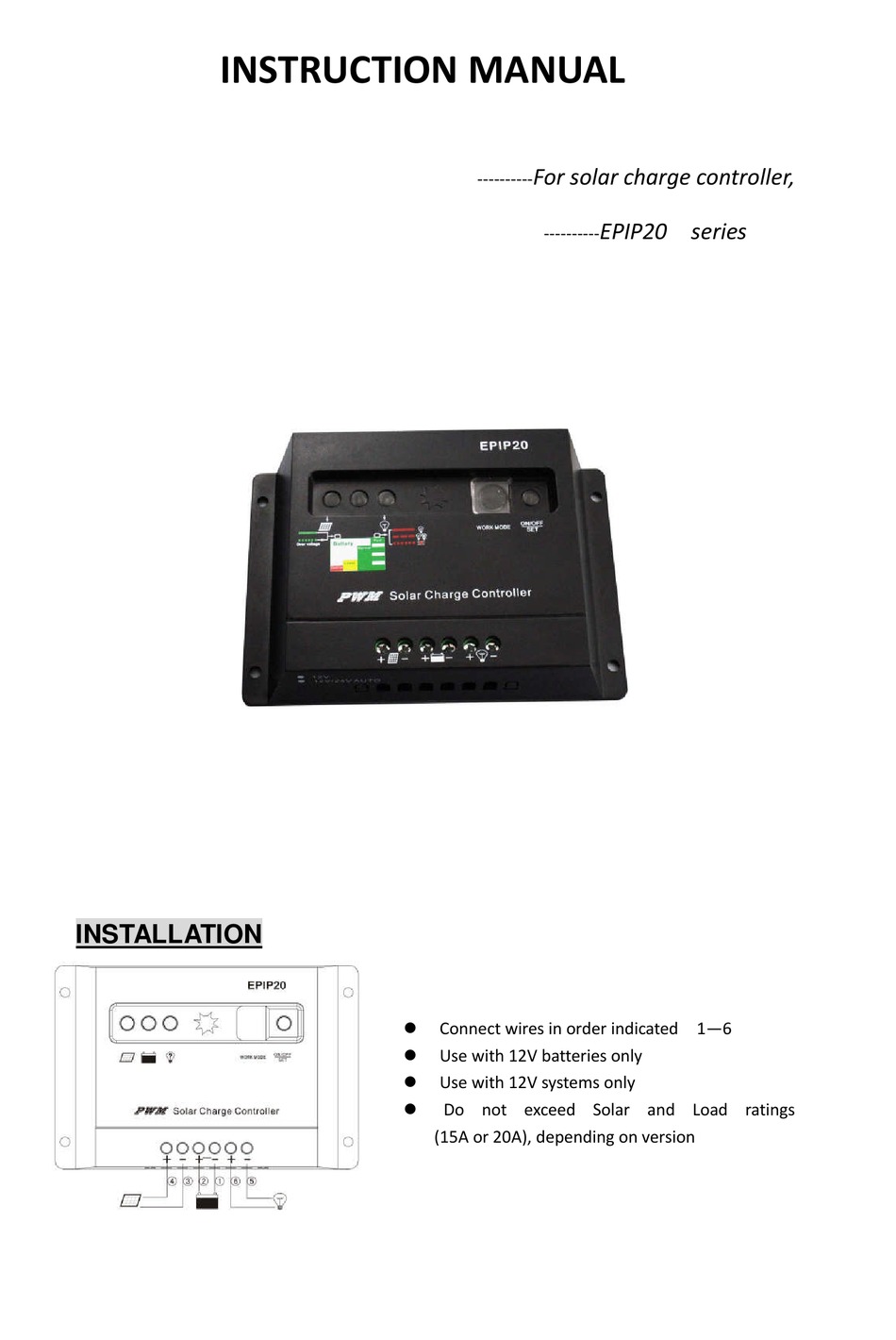

INSTRUCTION MANUAL

INSTALLATION

For solar charge controller,
----------
----------
Connect wires in order indicated 1— 6
Use with 12V batteries only
Use with 12V systems only
Do not exceed Solar and Load ratings
(15A or 20A), depending on version
EPIP20 series

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EPIP20 series and is the answer not in the manual?

Questions and answers

Summary of Contents for PWM EPIP20 series

  • Page 1: Instruction Manual

    INSTRUCTION MANUAL For solar charge controller, ---------- EPIP20 series ---------- INSTALLATION Connect wires in order indicated 1— 6  Use with 12V batteries only  Use with 12V systems only  Do not exceed Solar and Load ratings  (15A or 20A), depending on version...
  • Page 2: Led Indicator

    LED INDICATOR Green ON when solar is charging battery Green blink when the system over voltage … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … Green ON when battery level in the right range Green slowly flashing when battery level full Yellow ON when battery level low...
  • Page 3: Mechanical Drawing

    Note: all is for 12V system only, use 2x for 24 Volt system Microcontroller digital accuracy  Type of Charging Series PWM & stat of charge(SOC)  4 Stages: PWM, Equalization, Boost and Float, temperature compensated charging Electronic protections Short circuit and overcurrent-solar and load  Reverse polarity-solar, load, battery...
