SOUTHERN MACHINERY S-AGV60C Manual

Hide thumbs Also See for S-AGV60C:

Advertisement

Quick Links

Download this manual
◆ This AGV robot is especially designed and produced to
transport PCB soldering pallet at the electronic manufacturing
shopfloor.
◆ With tailored dimension, the AGV is suitable for SANMINA's
soldering pallet and floor space.
AGV Robot
◆ Easy to operate.
◆ It can drive in 3 modes. Straight-line driving, Circle driving
and Branch route driving. Flexible to support different
production layout.
◆ Power supply in 2 ways. Lithium battery or DC charging.
Long service life 3~5 years. Low maintenance cost.

Advertisement

loading
Need help?

Need help?

Do you have a question about the S-AGV60C and is the answer not in the manual?

Questions and answers

Related Manuals for SOUTHERN MACHINERY S-AGV60C

Summary of Contents for SOUTHERN MACHINERY S-AGV60C

  • Page 1 AGV Robot ◆ Easy to operate. ◆ It can drive in 3 modes. Straight-line driving, Circle driving ◆ This AGV robot is especially designed and produced to and Branch route driving. Flexible to support different transport PCB soldering pallet at the electronic manufacturing production layout.

  • Page 2: Specification

    Specification Brand/model Southern Machinery: S-AGV60C Navigation method Magnetic strips; forward and backward 2 driving modes of standard Straight-line driving + Turn circle driving configuration 1 driving mode of optional Branch route driving configuration Max. loading capacity 60KG 20-45m/minute, adjustable(about 0.4 minutes Max.
  • Page 3 Specification AGV Plate where soldering pallet is placed. Remote control with 2 controls in the package Station choice AGV can stop at Max.20 target stations; RFID it is shown at the touch screen; alarm when Remaining power display lack of electricity navigation strips 20m + 1x charger + 20 RFID Spare parts included in the package cards+ 10 decelerating cards when turning...

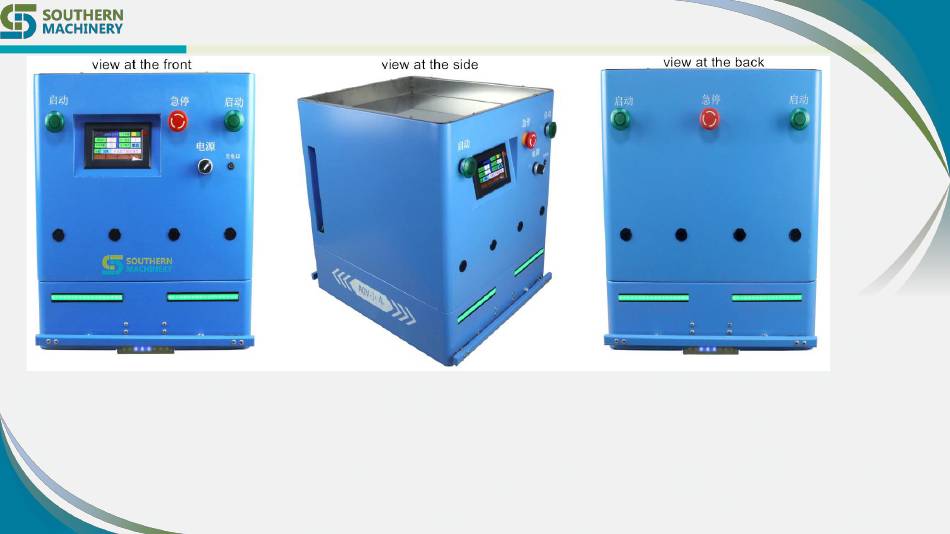

  • Page 4 Structure Comments: all button and screen display can be in English.
  • Page 5 Detail Clarification Standard configuration of driving modes includes 1 and 2 Optional configuration is mode 3...
  • Page 6 Detail Clarification Standard configuration of driving modes includes 1 and 2 Optional configuration is mode 3...
  • Page 7 Detail Clarification Optional configuration is mode 3: Branch-route In this mode, you can do target settings to make AGV skip obstacles. It is a wonderful driving optimization. Very flexible. It can go turning at 90°(L type turning)
  • Page 8 Detail Clarification Power supply in 2 ways available. 2. You can also charge with the AGV directly(online). 1.You can take out the battery of AGV and then the batter is being charged off-line. There is an interface for DC charging. In this way, you can still put the AGV in use if you have one more battery to be installed in the vehicle.
  • Page 9 Best After-sales service — 7x24 Worldwide Support — Free Installation/ Training — 1 day lead-time (spare parts) — 1 Month customize solution...
  • Page 10 WELCOME INQUIRY Please visit www.smthelp.com https://www.facebook.com/autoinsertion Find us more https://cn.linkedin.com/in/smtsupplier Know more our team Welcome to our factory in Shenzhen China Auto Insertion See more machine working video, please Youtube Google Auto+insertion, to get more information Looking forward to your email yis@smthelp.com...
