AYRO VANISH Owner's Manual

Utility low-speed electric vehicle
Hide thumbs Also See for VANISH:
Table of Contents

Advertisement

Quick Links

Download this manual
Utility Low-Speed Electric Vehicle
OWNER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VANISH and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AYRO VANISH

Summary of Contents for AYRO VANISH

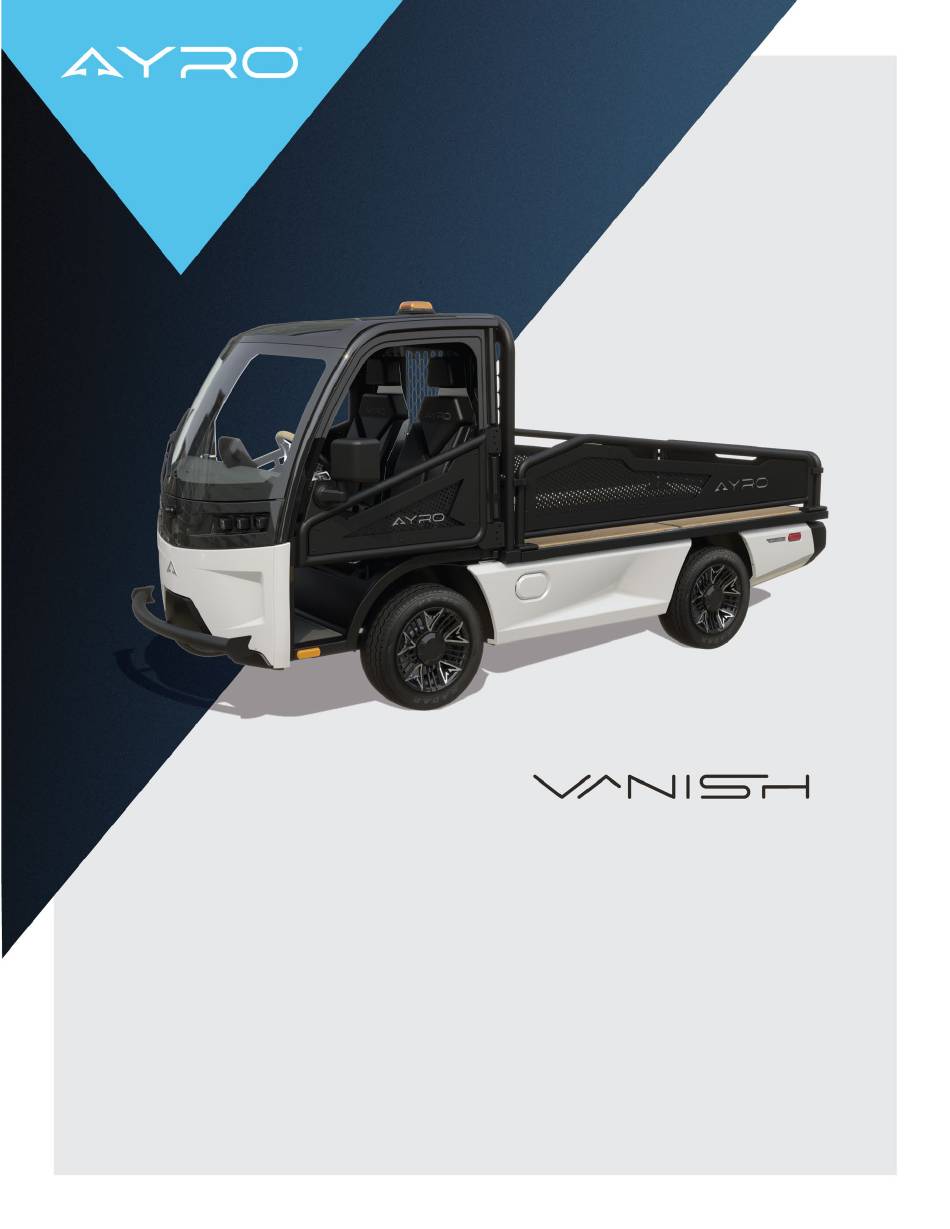

  • Page 1 Utility Low-Speed Electric Vehicle OWNER’S MANUAL...

  • Page 2: Vehicle Identification Number (Vin) And Serial Number

    VIN AND SERIAL NUMBERS 1 VEHICLE IDENTIFICATION NUMBER (VIN) AND SERIAL NUMBER Record your vehicle’s Serial Number and Vehicle Identification Number (VIN) in the spaces provided below. Non-LSV models do not have a VIN. The VIN is stamped on a plate affixed to the driver’s side dashboard at the base of the windshield.

  • Page 3: Vanish Quick Start Guide

    • When it is cold outside, plug it in. Charging warms the battery. • Store your Vanish inside (garage, vehicle shop, etc.) when at or below freezing or in very hot weather. • Moderate Acceleration and Braking prolong battery range and life.
  • Page 4 QUICK START GUIDE Daily: • Check State of Charge (ensure battery is sufficiently charged) • Check headlights, turn signals, brake lights, and brakes. Monthly: • Check the tire pressures. Tires are factory filled with nitrogen. • Inspect all power cables for any signs of damage. •...

  • Page 5: The Ayrosync™ Experience

    3 THE AYROSync™ EXPERIENCE AYROSync™ is a connected, web-based platform designed to simplify service and support for your Vanish. Registration allows you to track and validate your vehicle warranty, and for fleet managers, it allows visibility into the conditions and maintenance needs of the entire fleet of AYRO vehicles.

  • Page 6: Limited Warranty, Summary

    LIMITED WARRANTY, SUMMARY ONLY 4 LIMITED WARRANTY, SUMMARY ONLY New AYRO vehicles purchased through authorized AYRO Dealers are warranted to be free from defects in materials and workmanship for THREE YEARS from purchase date. Individual components may have different warranty periods.
  • Page 7 God, and ordinary wear and tear. Routine wear items are excluded. • Upon sale of your Vanish, the balance of warranty will transfer to the new owner after registration on AYROSync. • Warranty repairs cannot be provided in countries other than the United States and Canada at this time, but any authorized AYRO Dealer can service and support your vehicle.

  • Page 8: Cargo Weight Limits

    CARGO WEIGHT LIMITS 5 CARGO WEIGHT LIMITS The Vanish cargo limit warning labels are located on the driver side door frame panel and with the warning decals on the sun visors or on the headliner in front of the driver. Some payload configurations may have Gross Vehicle Weight Rating (GVWR) safety labels in the payload area.
  • Page 9 CARGO WEIGHT LIMITS Accessory Options Weight* • Occupant Weights Total • Cargo Weight Available = *Weights will vary per user and vehicle configuration. Refer to the Specifications table on page 77 for base vehicle weights and payload options. ~ 9 ~...

  • Page 10: Table Of Contents

    Speed 6.7 Charging System 6.7.1 Lithium-Ion vs Lead-Acid 6.8 Regenerative Braking, (if so equipped) 6.9 AYRO Wheels and Schlägernull™ Tires 6.11 Options 6.12 Important Operating Notes 6.13 Extend the Life of Your Batteries 6.14 Reduce Your Risks While Operating SAFETY SIGNAL WORDS AND SYMBOLS SAFE OPERATION OF YOUR VEHICLE 8.1 California Proposition 65 Warnings...
  • Page 11 CONTENTS, FIGURES, TABLES 8.4 Safety Labels for Li-ION Batteries, LSV, and Non-LSV Models 8.5 Safety Label for Battery Compartment 8.6 Battery Charge and California Proposition 65 Warnings 8.7 Equipment Modifications 8.8 Age Restrictions 8.9 Seat Belts 8.10 Latches 8.11 Operating Without Instruction 8.12 Failure to Inspect Before Operating 8.13 Alcohol or Drug Use 8.14 Operating a Damaged Vehicle...
  • Page 12 CONTENTS, FIGURES, TABLES 9.4.6 Cargo Light 9.5 Turn Signal 9.6 Horn 9.7 Windshield Wipers 9.8 Windshield Washer and Fluid Reservoir 9.9 Visibility 9.10 Pedestrian Warning System 9.11 Gear Selector 9.12 Driver Display 9.12.1 Cleaning the Driver Display 9.13 Driver Display and Icons/Telltale Symbols 9.14 Heating, Ventilation, and Air Conditioning (HVAC) Operation 9.15 Park Brake Lever 9.16 Setting the Park Brake...
  • Page 13 CONTENTS, FIGURES, TABLES 10.4 Key to Icons 10.5 How to Input Keypad Characters BATTERY PACK USE AND HANDLING 11.1 Battery Handling Precautions 11.2 Battery Charging Warnings 11.4 Battery Performance Tips 11.5 On-Board Charger 11.6 Preparation for Charging the Batteries BATTERY CHARGING 12.1 Charging Instructions (Standard 110/120 VAC Outlet): DRIVING PROCEDURES 13.1 Pre-Ride Inspection...
  • Page 14 14.13 Wheel Installation 14.14 Lights 14.14.1 Headlight Replacement 14.14.2 Front/Rear Turn Signal and Brake Light Replacement 14.15 Battery Replacement 14.16 Storing Your AYRO Vanish 14.17 Removal from Storage 14.18 Battery Disposal 14.19 Cleaning Tips 14.20 Cleaning Windshields and Windows 14.21 Cleaning Seats 14.22 Cleaning the Interior...

  • Page 15: Introduction

    Manual and the vehicle. Descriptions, depictions, and/or procedures in this document are intended for reference only. No liability can be accepted for omissions or inaccuracies. AYRO, Inc. reserves the right to make changes at any time, without notice and without incurring any obligation to make the same or similar changes to vehicles previously manufactured.

  • Page 16: Abbreviations, Acronyms, Definitions

    Wiper HS, LS Windshield wiper settings of High-Speed and Low-Speed 6.4 Compliance (NHTSA) The Vanish LSV vehicle complies with the U.S. Department of Transportation National Highway Traffic Safety Administration (NHTSA) low-speed vehicle regulations and can be operated on ~ 16 ~...

  • Page 17: Applicability

    6.6.1 The Electric Motor and Lithium-Ion Battery Pack The AYRO Vanish is designed to operate using an electric motor powered by a lithium-ion battery pack. The battery pack is located underneath the vehicle, providing a low center of gravity, which helps with stability and maneuverability.

  • Page 18: Speed

    6.6.3 Speed The AYRO Vanish LSV model has a top speed of 25 mph or 40 km/h, making it ideal for urban, campus, indoor, and outdoor driving conditions. Its compact size and low-speed capabilities make it easy to navigate through tight spaces, enclosed campuses, and busy streets.

  • Page 19: Ayro Wheels And Schlägernull™ Tires

    INTRODUCTION 6.9 AYRO Wheels and Schlägernull™ Tires The Vanish is equipped with 15” AYRO wheels and 15” All-Season Schlägernull™ tires with nitrogen pressurization. AYRO tires are made with a softer compound designed for lower operating pressures than standard automotive tires. This combination provides travel on non- paved surfaces with minimal impact to the environment, such as on turf.

  • Page 20: Important Operating Notes

    Air Conditioning • 6.11 Important Operating Notes NOTE: Always operate your Vanish LSEV in compliance with your state and local vehicle regulations including registration, titling, insurance, seat belt usage, and operator's licensing. NOTE: Set park brake, switch vehicle to « OFF » position, and remove key before exiting driver’s seat.
  • Page 21 INTRODUCTION For LSV: Do not exceed 3000 lb / 1360 kg • For Non-LSV: Do not exceed 3600 lb / 1633 kg • ~ 21 ~...

  • Page 22: Safety Signal Words And Symbols

    SAFETY SYMBOLS/SIGNALS 7 SAFETY SIGNAL WORDS AND SYMBOLS The following signal words and symbols appear throughout this Manual and on your vehicle. Your safety is involved when these words and symbols are used. Become familiar with their meanings before reading the Manual. Safety Alert symbols indicate hazards. Failure to follow the warnings contained in this Manual can result in severe injury or death, or damage to the vehicle or property.

  • Page 23: Safe Operation Of Your Vehicle

    SAFE OPERATION OF YOUR VEHICLE 8 SAFE OPERATION OF YOUR VEHICLE 8.1 California Proposition 65 Warnings Operating, servicing, and maintaining a passenger vehicle or off-road vehicle can expose you to chemicals including engine exhaust, carbon monoxide, phthalates, and lead, which are known to the state of California to cause cancer and birth defects or other reproductive harm.

  • Page 24: Safety Labels, Common To Lsv And Non-Lsv

    SAFE OPERATION OF YOUR VEHICLE vehicle. If any label comes off or becomes illegible, contact your authorized AYRO Dealer to obtain a replacement. Figure 2 Safety Labels on Sun Visor or Roof 8.3 Safety Labels, Common to LSV and Non-LSV...

  • Page 25: Safety Labels For Li-Ion Batteries, Lsv, And Non-Lsv Models

    SAFE OPERATION OF YOUR VEHICLE 8.4 Safety Labels for Li-ION Batteries, LSV, and Non-LSV Models Figure 4 Safety Labels for Lithium-Ion Batteries, LSV, and Non-LSV 8.5 Safety Label for Battery Compartment Figure 5 Safety Label for High Voltage Battery Compartment ~ 25 ~...

  • Page 26: Battery Charge And California Proposition 65 Warnings

    The addition of certain accessories, including (but not limited to) mowers, blades, tires, sprayers, or large racks, may change the handling characteristics of the vehicle. Use only AYRO-approved accessories and familiarize yourself with their functions and effects on the vehicle.

  • Page 27: Age Restrictions

    SAFE OPERATION OF YOUR VEHICLE 8.8 Age Restrictions This vehicle is an ADULT VEHICLE ONLY. NEVER operate this vehicle if you are under age 16. NEVER operate without a valid driver’s license. NEVER use Child Safety Seats in this vehicle. 8.9 Seat Belts Riding in this vehicle without wearing the seat belt increases the risk of serious injury in the event of an accident or sudden stop.

  • Page 28: Alcohol Or Drug Use

    8.14 Operating a Damaged Vehicle Operating a damaged vehicle can result in an accident. After any overturn or accident, have your authorized AYRO Dealer inspect the entire machine for possible damage, including (but not limited to) brakes, accelerator, steering system, and electrical system.

  • Page 29: Exhibition Driving

    Always use the size and type of tires specified for your vehicle: Wheels / Rims: 15” • • Tires: 205/60R15 AYRO Schlägernull™ Tire *wheels can accept 195-215/55-65R15 size tires Always maintain proper tire pressure @20 psi for the Schlägernull™ Tire. Tires are factory filled to correct pressure with nitrogen.

  • Page 30: Unauthorized Use Of The Vehicle

    The voltage in the battery pack is enough to cause death by electrocution. NEVER attempt to perform service on the electric drive system, including the battery pack. Your authorized AYRO Dealer can provide battery- related service. Do not work in or near the battery compartment or on any other electrical component of the vehicle while charging the batteries.

  • Page 31: Features And Controls

    FEATURES AND CONTROLS 9 FEATURES AND CONTROLS Figure 7 Center Console and Displays ~ 31 ~...
  • Page 32 FEATURES AND CONTROLS Figure 8 Cabin Features and Controls Figure 9 Features and Controls Table 2 Key to Features and Controls 3. Horn (end of Turn Signal 1. Steering Wheel 2. Turn Signal Stalk Stalk) 6. Key Switch 5. Windshield Wipers & 4.

  • Page 33: Electrical Components

    9.3 Replacement Keys To order an extra or replacement key for the ignition or for accessory locks, please contact AYRO Customer Service. Please provide your Serial Number or VIN. See page 15. 9.4 Vehicle Lights 9.4.1...

  • Page 34: Tail Lights

    FEATURES AND CONTROLS • Turn indicator lights Low beam headlights (also part of Daytime Running Lights) • o In addition, activating the windshield wiper will automatically turn on the Low Beam headlights • High beam headlights 9.4.2 Tail Lights The tail lights illuminate when the Headlights are activated. When key selector in REVERSE, the white backup lights will be illuminated.

  • Page 35: Chmsl / Third Brake Light

    FEATURES AND CONTROLS 9.4.5 CHMSL / Third Brake Light The red CHMSL (center high mounted stop lamp) is mounted to the top rear of the cabin, above the payload. This third brake light is placed for maximum visibility and conspicuity. Figure 13 Center High Mounted Stop Lamp or CHMSL above Payload Area and on Van Box 9.4.6 Cargo Light...

  • Page 36: Horn

    FEATURES AND CONTROLS • To turn right: operate the lever upwards. The turn indicator light flashes on the driver display. To turn left: operate the lever downwards. • The turn indicator light flashes on the driver display. Return the lever to the neutral position to cancel turn indication.

  • Page 37: Windshield Washer And Fluid Reservoir

    FEATURES AND CONTROLS • High-speed wiping 9.8 Windshield Washer and Fluid Reservoir To operate the windshield washer, pull the control lever toward the driver. Check the washer reservoir fluid level located behind the access door on the passenger side panel. When the level is low, open the passenger side access panel, remove the reservoir cap, place a funnel in the opening, and add windshield washer fluid rated for -25°F (-3°C).

  • Page 38: Driver Display

    FEATURES AND CONTROLS Figure 17 Driver Display with FORWARD Indicated Ensure that the park brake is set/engaged and the Key Switch is in the « OFF » position when you leave your vehicle. 9.12 Driver Display The Driver Display is in the top of the Center Console and displays operational information of the vehicle.

  • Page 39: Driver Display And Icons/Telltale Symbols

    FEATURES AND CONTROLS 9.13 Driver Display and Icons/Telltale Symbols Figure 18 Icons / Telltales Table 3 Key to Icons / Telltales 1. Hazard Lights 2. Cabin Heating 4. Left Turn Signal 3. Cabin Cooling (Air Conditioning) (Flashing) 6. Seat Belt Not 7.
  • Page 40 FEATURES AND CONTROLS 10. Brake Failure 11. Park Brake ON 8. 12-Volt System 9. Coolant Level Warning Error 14. Windshield Wiper 15. Settings 12. Electronic Power 13. Right Turn Signal Steering Warning Fluid 18. Warning Message 16. Speed Indicator 17. Speed Units, mph 19.

  • Page 41: Heating, Ventilation, And Air Conditioning (Hvac) Operation

    CONTROLS 9.14 Heating, Ventilation, and Air Conditioning (HVAC) Operation The Vanish is equipped with a high-efficiency heating and ventilation system. The controls are located in the lower panel of the Center Console. The PTC (positive temperature coefficient heating element) heater is self-regulating and •...

  • Page 42: Park Brake Lever

    Be sure the park brake is fully disengaged before driving. Failure to do so can lead to overheating of the rear brakes. NOTE: The park brake is adjustable and should be checked periodically as outlined in the Periodic Maintenance Chart beginning on page 66. Your authorized AYRO Dealer can assist. ~ 42 ~...

  • Page 43: Connection Of Personal Electronic Devices

    Also see the Infotainment System information on page 46. 9.19 Doors, * if so equipped. Doors for the Vanish are available in the resort door style and the full door style with automatic windows. The full doors are fitted with an electrical locking device, controlled through an interlocking system.

  • Page 44: Seat Belts

    9.21 Seat Belts The Vanish is equipped with three-point lap / diagonal belts for the driver and passenger. Ensure that seat belts are engaged and secured before shifting the Vanish into either « FORWARD » or « REVERSE ». Always use seat belts. Failure to use the seat belts puts the driver and passengers at greater risk of serious injury or death in the event of an accident.

  • Page 45: Seat Belt Inspection

    If any damage is found, or if the seat belt does not operate properly, have the seat belt system checked and/or replaced by your authorized AYRO Dealer. To clean dirt or debris from the seat belts, sponge the straps with mild soap and water. Do not use bleach, dye, or household detergents.

  • Page 46: Infotainment System - Getting Started

    INFOTAINMENT SYSTEM 10 INFOTAINMENT SYSTEM – GETTING STARTED The Vanish is equipped with a dual DIN 7-Inch Audio/Video Receiver touch screen. These instructions will assist the owner with getting started, but please refer to the ALPINE iLX-W650 Owner’s Manual for complete instructions. The complete Owner’s Manual is available online at this link: https:/ /support.alpine-usa.com/products/documents/OM_iLX-W650_EN.pdf...

  • Page 47: Location Of Controls

    INFOTAINMENT SYSTEM 10.1 Location of Controls Figure 23 Location of Controls 1. Dimmer Sensor: Sense the brightness of the car interior. (DOWN/UP) button: Touch to adjust the volume. (MUTE) button: Touch to activate/deactivate the mute mode. (HOME)/(Power Off) button: Activates the HOME screen. Touch and hold this button for at least 1 second to turn the power off.

  • Page 48: Off

    INFOTAINMENT SYSTEM During a call: The call finishes. • NOTE: Some of the unit’s functions cannot be performed while the vehicle is in motion. Stop the vehicle in a safe location and apply the park brake before attempting these operations. 10.1.1 ON ON: Turn the ignition key to the ACC or ON position.

  • Page 49: Functions Of Typical Onscreen Buttons

    INFOTAINMENT SYSTEM Figure 24 Onscreen Buttons 10.2.1 Functions of Typical Onscreen Buttons Radio: Displays the Radio main screen. • USB: Plays music files (MP3/WMA/AAC/FLAC/WAV), video files • (MP4/AVI/WMV/MOV), and photo files (JPG/PNG/BMP) stored in a USB flash drive. If a USB flash drive is not connected, this widget is not available. iPod: Displays the iPod main screen.

  • Page 50: Key To Icons

    INFOTAINMENT SYSTEM Figure 25 Indicator Bar Icons 10.4 Key to Icons 1. Current Time: can be changed between the 12-hour display and 24-hour display options. 2. SiriusXM satellite radio signal strength. 3. Equalizer selected. 4. Lights up when Bluetooth compatible device is connected. (Does not display when connection is set to OFF.) (Audio): Bluetooth connection to audio device.

  • Page 51: How To Input Keypad Characters

    INFOTAINMENT SYSTEM 10.5 How to Input Keypad Characters Figure 26 Keypad for Character Input 1. Input screen area. 2. Cancel: Keypad mode finishes. (Delete): Returns to the previous character and erases it. Touching here for more than 2 seconds will erase all input characters. 4.

  • Page 52: Battery Pack Use And Handling

    Please note the following regarding the Vanish charging maintenance: The batteries in your Vanish will not accept a charge unless internal battery temperatures are at or above 32 deg F (0 deg C).

  • Page 53: Battery Charging Warnings

    NEVER connect a 12-volt accessory directly to the traction batteries. Your authorized AYRO Dealer can properly make any needed connections. NEVER connect jumper cables to any of the batteries on your Vanish. Always wear safety glasses or approved eye protection when servicing the vehicle.
  • Page 54 BATTERY PACK AND CHARGING Tampering with or unauthorized modification of this unit may result in serious personal injury, will void the warranty, and can result in permanent damage to the vehicle. ~ 54 ~...

  • Page 55: Battery Performance Tips

    BATTERY PACK AND CHARGING 11.4 Battery Performance Tips During winters with temperatures below freezing, an EV can lose as much as 30% of driving range due to very cold weather. Plug it in to keep the battery warm and maximize range. Do not discharge the battery too low as this increases the internal resistance.
  • Page 56 Do not work in or near the battery compartment or on any other electrical component of the vehicle while charging the batteries. Please contact your authorized AYRO Dealer for service requirements involving the vehicle’s electrical/battery systems. If you are not authorized to service your vehicle, please do not attempt.
  • Page 57 BATTERY PACK AND CHARGING NEVER connect jumper cables to any of the batteries of this vehicle. ~ 57 ~...

  • Page 58: Battery Charging

    BATTERY PACK AND CHARGING 12 BATTERY CHARGING BATTERY CHARGING Always follow these precautions when charging: Position the vehicle on a level surface. • Make sure the charging area is well ventilated. • Turn the key switch « OFF » and remove the key. •...

  • Page 59: Charging Instructions (Standard 110/120 Vac Outlet)

    BATTERY PACK AND CHARGING Figure 27 Charging Instructions Illustrated 12.1 Charging Instructions (Standard 110/120 VAC Outlet): Open the receptacle cover and prepare to engage the standard equipped charging cable that came with the vehicle. A. Plug the (J1772) plug interface into the charging port (driver side access panel) and ensure a solid fit.
  • Page 60 BATTERY PACK AND CHARGING A minimum of one air change per hour is required during charging for one vehicle, and up to 5 changes for multiple vehicles are recommended. ~ 60 ~...

  • Page 61: Driving Procedures

    DRIVING PROCEDURES 13 DRIVING PROCEDURES 13.1 Pre-Ride Inspection Conduct a 360-degree visual inspection, including the following items: Table 4 Pre-Ride Inspection Item Remarks Accelerator / Brake Ensure proper operation System Brake Fluid Ensure proper level Check operation Headlamps Brake Lights/Tail Check operation Lamps Ensure operation of all signal lamps...

  • Page 62: Procedures

    Drive slowly. Practice maneuvering and using the accelerator and brakes on level surfaces. The Vanish is equipped with a Pedestrian Warning Alert System to warn of the vehicle’s approach. This sound will remain in effect in « FORWARD » until the vehicle speed hits 18.6 mph (29.9 kph), and will be active at all speeds in «...

  • Page 63: Driving In Reverse

    DRIVING PROCEDURES 13.3 Driving in Reverse Follow these precautions when operating in reverse: Always check for obstacles or people behind the vehicle. Always inspect left and right fields of vision before backing. Use the mirrors and the backup camera to check that there are no people or obstacles behind the vehicle.

  • Page 64: Parking On An Incline

    Transport the vehicle in a closed trailer if possible. Use the following guidelines when transporting the vehicle on an open trailer. When transporting the AYRO vehicle on a trailer, always use a trailer with an approved load rating greater than the AYRO vehicle’s curb weight plus any installed accessories or cargo.
  • Page 65 DRIVING PROCEDURES Always transport the AYRO vehicle facing forward on the trailer. Set the park brake. Remove the key. Secure the seats and any items that could be damaged or dislodged by strong winds. Secure or remove cargo. If equipped with full doors, open the driver and passenger windows.

  • Page 66: Periodic Maintenance

    Careful periodic maintenance will help keep your vehicle in the safest, most reliable condition. Inspect, clean, lubricate, adjust, and replace parts as necessary. When inspection reveals the need for replacement parts, genuine AYRO parts are available from your authorized AYRO Dealer.

  • Page 67: Brake Fluid

    If the brake fluid indicator light is on, the fluid level is low and service is needed. Contact your authorized AYRO Dealer to provide service. Always use an unopened container of DOT-4 brake fluid and discard any unused portion.
  • Page 68 MAINTENANCE Never substitute engine oil for gearbox oil! • Use only gear oil type 75W90 (GL-5) Gear Oil • Locate the gearbox drain plug on the driver’s side of gearbox, under the axle. • Location of fill port: driver’s side of gear box, toward the top rear. •...

  • Page 69: Fuses And Relays

    The fuse panel is located in the cab of the vehicle, behind the lower dashboard panel in front of the passenger seat. Figure 28 Vanish Fuse Block Layout 12V fuses must not be used in 96V applications. 96V fuses must not be used in 12V applications.

  • Page 70: Tire Pressure, Nitrogen-Filled Tires

    Proper tire pressure is essential to the safe and comfortable operation of your vehicle. Check tire pressure daily, or before each use of the vehicle. (Tire pressure on the AYRO tire is 20 psi.) Recommended tire pressures are shown on the manufacturer’s label on your vehicle or the specifications section beginning on page 77.

  • Page 71: Checking For Tread Depth

    MAINTENANCE 14.9 Checking for Tread Depth Maintain tire tread depth at 1/8” (0.125” or 3 mm) or more. Tires that have worn to less than 1/8” (3 mm) should be replaced as soon as possible. Worn tires are more likely to skid, reducing effective stopping distance.
  • Page 72 MAINTENANCE The jack points under the rear end are directly on the axle (but not on the gear box). Use • a wooden block (against the grain) if needed. NOTE: Frame view is from underneath the vehicle. Figure 30 Jack Points under Subframe (front) and Axle (rear) ~ 72 ~...

  • Page 73: Wheel Installation

    NEVER place any part of your body under an elevated vehicle. If you need access to the bottom of the vehicle, use automotive jack stands to support the vehicle on a firm, level surface. Your authorized AYRO Dealer can assist.

  • Page 74: Lights

    If a headlight fails to work properly, the assembly must be replaced. Your authorized AYRO Dealer can provide service. 14.14.2 Front/Rear Turn Signal and Brake Light Replacement If a rear LED light fails to work properly, the assembly must be replaced. Your authorized AYRO Dealer can provide service. 14.15 Battery Replacement The main EV Battery replacement must be performed by your authorized AYRO Dealer or Service Center, and technicians must be trained and AYRO-authorized.

  • Page 75: Removal From Storage

    They do not allow enough ventilation to prevent condensation and may promote corrosion and oxidation. 14.17 Removal from Storage Inspect all battery connections. Please contact your authorized AYRO Dealer for • assistance with electrical and/or battery servicing. Verify that batteries are fully charged after long storage.

  • Page 76: Cleaning Windshields And Windows

    MAINTENANCE NEVER use gasoline or cleaning solvent. These products scratch or destroy many plastics and finished surfaces. 14.20 Cleaning Windshields and Windows We recommend using a liquid household glass cleaner to remove normal dust and dirt. To remove oil, grease, or road tar, use isopropyl alcohol, then wash these surfaces with water. Dry gently with a soft cloth.

  • Page 77: Specifications

    SPECIFICATIONS 15 SPECIFICATIONS Table 5 Specifications DIMENSIONS Length: 155 in. / 393.7 cm Width: 60 in. / 152.4 cm (with mirrors folded) Height: <76 in. / 193 cm Base Vehicle Weight – Flat Bed: 1800 lb / 816 kg PERFORMANCE Up to 25 mph / 40 km/h (programmed and street legal) Top Speed, LSV: Up to 20 mph / 32 km/h (not for use on public roads)
  • Page 78 SPECIFICATIONS 2-wheel Rear Wheel Drive Drive System: PAYLOAD CONFIGURATIONS 47.5 in. / 120.6 cm H Flat Bed: 55.25 in. / 140.3 cm W 88 in. / 223.5 cm L BATTERIES 13kWh Sealed Lithium Ion Type: Voltage: 96 V Nominal Number of Batteries: Single Battery Pack 10 kWh Capacity:...

  • Page 79: Maintenance Log

    MAINTENANCE LOG 16 MAINTENANCE LOG Use the following chart to record periodic maintenance. DATE MILES (KM) TECHNICIAN SERVICE PERFORMED / COMMENTS OR HOURS ~ 79 ~...
  • Page 80 MAINTENANCE LOG DATE MILES (KM) TECHNICIAN SERVICE PERFORMED / COMMENTS OR HOURS AYRO, Inc. 900 E. Old Settlers Boulevard, Suite 100 Round Rock, TX 78664 USA Tel: +1 512-994-4917 (U.S.A. Domestic and International) ~ 80 ~...
  • Page 81 MAINTENANCE LOG Email, General: info@AYRO.com Email, Service: service@AYRO.com Web: www.AYRO.com ~ 81 ~...
  • Page 82 AYRO, Inc. 900 E. Old Settlers Boulevard, Suite 100 Round Rock, TX 78664 USA Tel: +1 512-994-4917 (U.S.A. Domestic and International) PN 10-1005-00EN-A ©2023 AYRO, Inc.
  • Page 83 AYRO, Inc. 900 E. Old Settlers Boulevard, Suite 100 Round Rock, TX 78664 USA Tel: +1 512-994-4917 (U.S.A. Domestic and International) PN 10-1005-00EN-A ©2023 AYRO, Inc.
