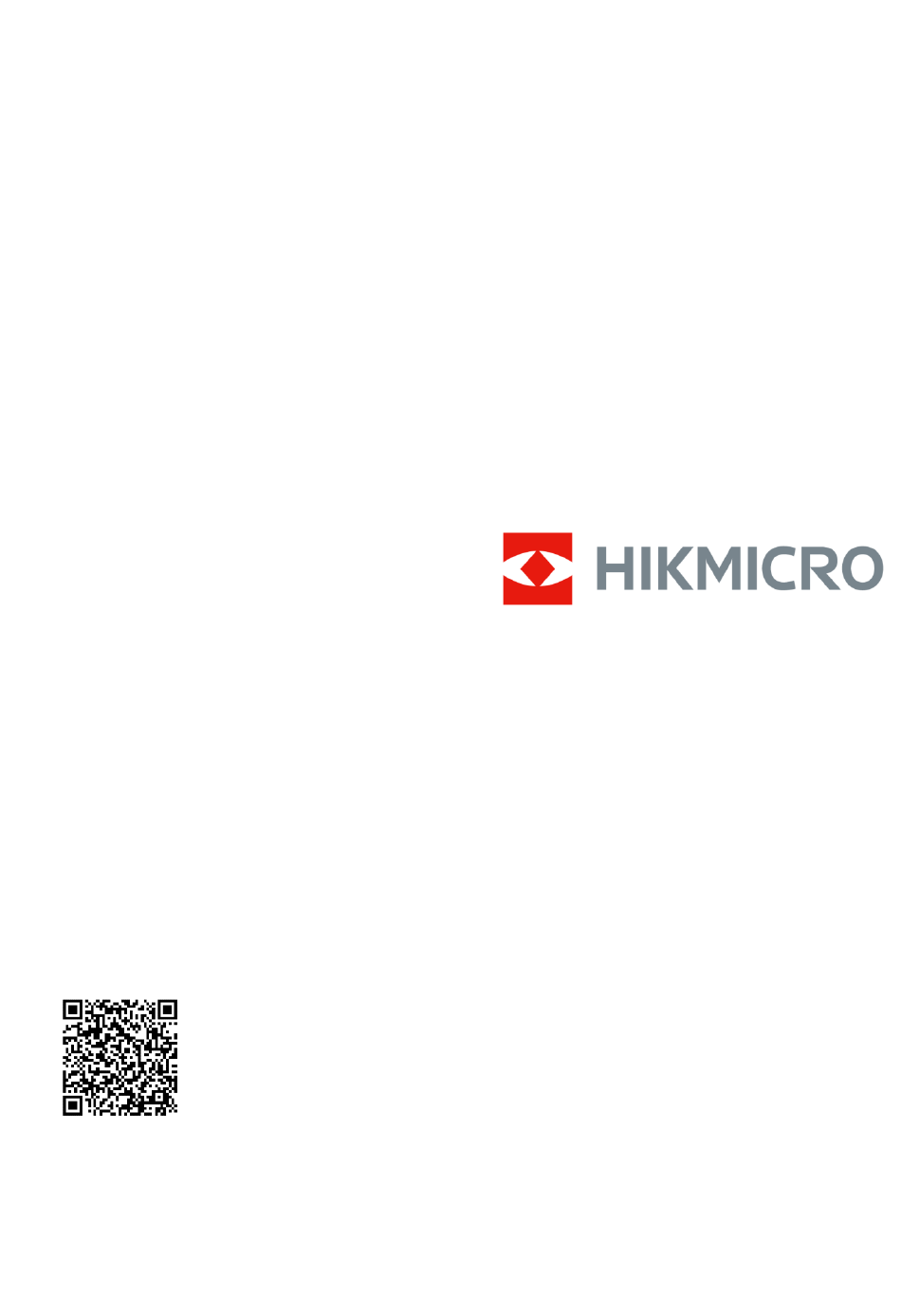

  • Page 1 Acoustic Leak Detector HIKMICRO AD Series User Manual Contact Us...
  • Page 2 Manual is subject to change, without notice, due to firmware updates or other reasons. Please find the latest version of this Manual at the HIKMICRO website http://www.hikmicrotech.com Please use this Manual with the guidance and assistance of professionals trained in supporting the Product.
  • Page 3 WHETHER BASED ON BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY, OR OTHERWISE, IN CONNECTION WITH THE USE OF THE PRODUCT, EVEN IF HIKMICRO HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSS. YOU ACKNOWLEDGE THAT THE NATURE OF THE INTERNET...
  • Page 4 Acoustic Leak Detector User Manual NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF HUMAN RIGHTS ABUSES. IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATTER PREVAILS.
  • Page 5 Acoustic Leak Detector User Manual Regulatory Information These clauses apply only to the products bearing the corresponding mark or information. EU Compliance Statement This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European standards listed under the Directive 2014/30/EU (EMCD) and Directive 2011/65/EU (RoHS).
  • Page 6 Acoustic Leak Detector User Manual According to the Batteries and Accumulators (Placing on the Market) Regulations 2008 and the Waste Batteries and Accumulators Regulations 2009: This product contains a battery that cannot be disposed of as unsorted municipal waste in the United Kingdom. See the product documentation for specific battery information.
  • Page 7 Acoustic Leak Detector User Manual Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Indicates a hazardous situation which, if not avoided, will or could result in death or serious Danger injury. Indicates a potentially hazardous situation which, if not avoided, could result in equipment Caution...
  • Page 8 Acoustic Leak Detector User Manual Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. Please read all the safety information carefully before using. Laws and Regulations Use of the product must be in strict compliance with the local electrical safety regulations.
  • Page 9 Acoustic Leak Detector User Manual explosion hazard. Replace with the same or equivalent type only. Dispose of used batteries in conformance with the instructions provided by the battery manufacturer. ● The built-in battery cannot be dismantled. Please contact the manufacture for repair if necessary. ●...
  • Page 10 ● The pollution degree is 2. Technical Support https://www.hikmicrotech.com/en/contact-us.html portal will help you as a HIKMICRO customer to get the most out of your HIKMICRO products. The portal gives you access to our support team, software and documentation, service contacts, etc. Emergency If smoke, odor, or noise arises from the device, immediately turn off the power, unplug the power cable, and contact the service center.

  • Page 11: Table Of Contents

    Acoustic Leak Detector User Manual Contents Chapter 1 Overview ................1 1.1 Device Description ..............1 1.2 Main Function ................1 1.3 Appearance ................. 2 Chapter 2 Preparation ................ 4 2.1 Assemble Accessories .............. 4 2.1.1 Mount the Neck Strap ............4 2.1.2 Mount the Handheld Sensor ..........
  • Page 12 Acoustic Leak Detector User Manual Chapter 5 Cast Screen ..............13 Chapter 6 Maintenance ..............14 6.1 View Device Information ............14 6.2 Upgrade Device ................ 14 6.3 Set Time and Date ..............15 6.4 Restore Device ................15...

  • Page 13: Chapter 1 Overview

    Acoustic Leak Detector User Manual Chapter 1 Overview 1.1 Device Description The acoustic leak detector is a high-performance device designed for technicians and plumbers to find leaks in plumbing, water service, and residential or commercial properties. The device has four ranges of selectable digital band pass filters, and the amplification is up to 80 dB.

  • Page 14: Appearance

    Acoustic Leak Detector User Manual 1.3 Appearance Figure 1-1 Appearance Table 1-1 Button and Interface Description Description Function  Show the live view interface. Touch Screen  Touch-screen operation. Volume Wheel Adjust the headset volume. Reboot Key Press to restart the device. Headset Jack Connect the headset to the device.
  • Page 15 Acoustic Leak Detector User Manual Description Function up sensor to the device. Charge the device or export files with Type-C Interface Type-C cable. Indicate the charging status of the device. Indicator  Solid red: charging normally  Solid green: fully charged ...

  • Page 16: Chapter 2 Preparation

    Acoustic Leak Detector User Manual Chapter 2 Preparation 2.1 Assemble Accessories Note ● Tighten all the connectors to prevent to damage the equipment. ● Please assemble the accessories as request. If you need to detect the leaks in the wall, you can select to mount the pick-up sensor. If you need to detect the leaks under the ground, you can select to mount the handheld sensor.

  • Page 17: Mount The Pick-Up Sensor

    Acoustic Leak Detector User Manual Figure 2-2 Handheld Sensor 2.1.3 Mount the Pick-up Sensor Figure 2-3 Pick-up Sensor 2.2 Power On/Off Power On Hold for over three seconds to turn on the device.

  • Page 18: Set Auto Power-Off Duration

    Acoustic Leak Detector User Manual Note To fully charge the battery of the device before first use, the following requirements should be met: –Charge the device for more than 6 hours before first use. –A solid green indicator light shows when the battery is fully charged.

  • Page 19: Chapter 3 Display Settings

    Acoustic Leak Detector User Manual Chapter 3 Display Settings 3.1 Display Appearance Go to Local Settings > Device Settings > Appearance to select the light or dark mode. Figure 3-1 Display Appearance 3.2 Set Screen Brightness You can drag the brightness adjustment bar in the swipe-down menu.

  • Page 20: Display Osd Info

    Acoustic Leak Detector User Manual 3.3 Display OSD Info Go to Local Settings > Device Settings > Display Settings to enable the information on-screen display. Time and Date The time and date of the device. Status Icons The icons of storage space and the battery status. Brand Logo The brand logo is displayed on the upper right of the screen.

  • Page 21: Chapter 4 Leakage Sites Inspection

    Acoustic Leak Detector User Manual Chapter 4 Leakage Sites Inspection The acoustic leak detector can detect the leakage sites by the pick- up sensor, handheld sensor, and listening stick. You can put the sensors or the listening stick on the leakage sites and the sensors will send the audio signal to the device.
  • Page 22 Acoustic Leak Detector User Manual Leakage Detection Level Hearing Protection Amplitude Display Mode Amplitude Readout Figure 4-1 Quick Inspection  Leakage Detection Level: Switch the frequency ranges of the band pass filters according to the detection environment. – Low: Indoor low frequency, ranging from 150 Hz to 3000 Hz. –...

  • Page 23: Route Inspection

    Acoustic Leak Detector User Manual 4.2 Route Inspection You can locate the leakage sites accurately by collecting and analyzing several audio amplitudes in sites. 4.2.1 Collect Possible Leakage Sites The device can collect the amplitudes of the possible leakage sites. Steps 1.

  • Page 24: Analyze Site Data

    Acoustic Leak Detector User Manual 4.2.2 Analyze Site Data to analyze all the sites which have been collected and the possible leakage site will be marked in red. Figure 4-3 Route Inspection Analysis...

  • Page 25: Chapter 5 Cast Screen

    Acoustic Leak Detector User Manual Chapter 5 Cast Screen The device supports casting screen to PC by UVC protocol-based client software or player. You can connect the device to your PC via a type-C cable, and cast the real-time live view of the device to your Steps 1.

  • Page 26: Chapter 6 Maintenance

    Acoustic Leak Detector User Manual Chapter 6 Maintenance 6.1 View Device Information Go to Local Settings > Device Information to view the device information. 6.2 Upgrade Device Steps 1. Connect the device to your PC with cable and open the detected disk.

  • Page 27: Set Time And Date

    Acoustic Leak Detector User Manual 6.3 Set Time and Date Steps 1. Go to Local Settings > Device Settings > Time and Date. 2. Set the time and date. 3. Tap to save and exit. Note Go to Local Settings > Device Settings > Display Settings to enable or disable time and date display.
  • Page 28 E-mail: support@hikmicrotech.com Website: www.hikmicrotech.com UD30939B-A...
