Lippert Flow Max RV Installation Manual

Toilet bottom gasket with mounting hardware kit
Hide thumbs Also See for Flow Max RV:
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

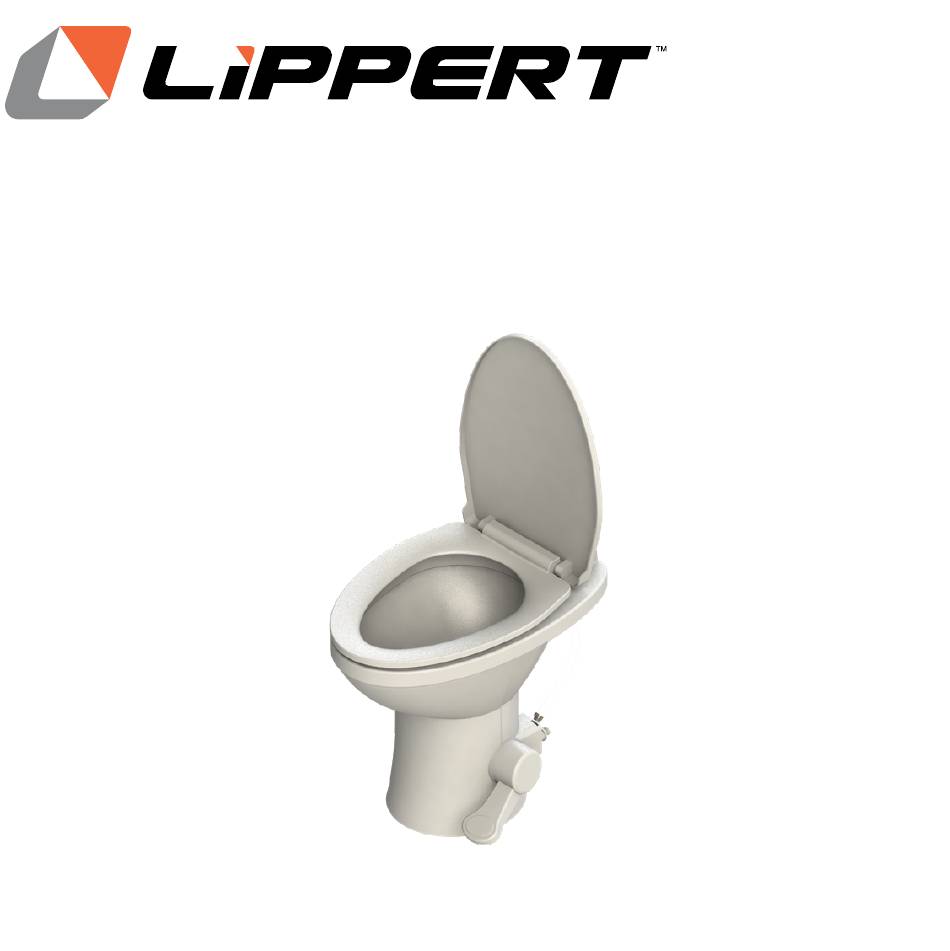

Flow Max RV Toilet
Bottom Gasket
with Mounting Hardware Kit
Installation Guide
REV: 09.20.23
TI-481 CCD-0007866

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Flow Max RV and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lippert Flow Max RV

Summary of Contents for Lippert Flow Max RV

  • Page 1 Flow Max RV Toilet Bottom Gasket with Mounting Hardware Kit Installation Guide REV: 09.20.23 TI-481 CCD-0007866...

  • Page 2: Parts List

    Parts List Toilet Bottom Gasket with Mounting Hardware Kit (2022121983) Letter Part # Description Qty. 2020221067 Toilet Mounting Kit 2020221066 Bottom Gasket TI-481 CCD-0007866 REV: 09.20.2023 Page 2...

  • Page 3: Resources Required

    Resources Required ∆ Flat blade screwdriver ∆ Disposable floor covering ∆ Adjustable wrench ∆ Sealant ∆ Gloves ∆ Paper Towels Preparation 1. Clean the toilet and turn off the water supply to the FlowMax toilet. 2. Drain water from toilet. Removal 1.

  • Page 4: Installation

    Installation 1. Install new gasket directly onto the base of the toilet (Fig. 1A). Fig. 1 TI-481 CCD-0007866 REV: 09.20.2023 Page 4...
  • Page 5 2. Return toilet back into place and install new hardware (Fig. 2A) on left and right side of toilet (Fig. 2B). Alternate between sides when tightening to prevent distortion. Fig. 2 NOTE: If a torque wrench is available, tighten floor mounting nuts to 30–40 in. lbs. When the nuts are tight, the base of the toilet should be securely attached and flat against the floor.

  • Page 6: Post-Installation Verification

    3. Wipe area again with a paper towel. 4. Reapply sealant (caulk) (Fig. 3A) to the bottom of toilet. Fig. 3 Post-Installation Verification Once reinstalled and water is back on, flush toilet to see if water leaks from the bottom before use.
  • Page 7 Notes REV: 09.20.2023 Page 7 TI-481 CCD-0007866...
  • Page 8 Whenever, wherever, we make your experience better. LippertNOW Manual information may be distributed as a complete document only, unless Lippert provides explicit consent to distribute individual parts. All manual information is subject to change without notice. Revised editions will be available for free download at lippert.com.
