Summary of Contents for SetPower AB15

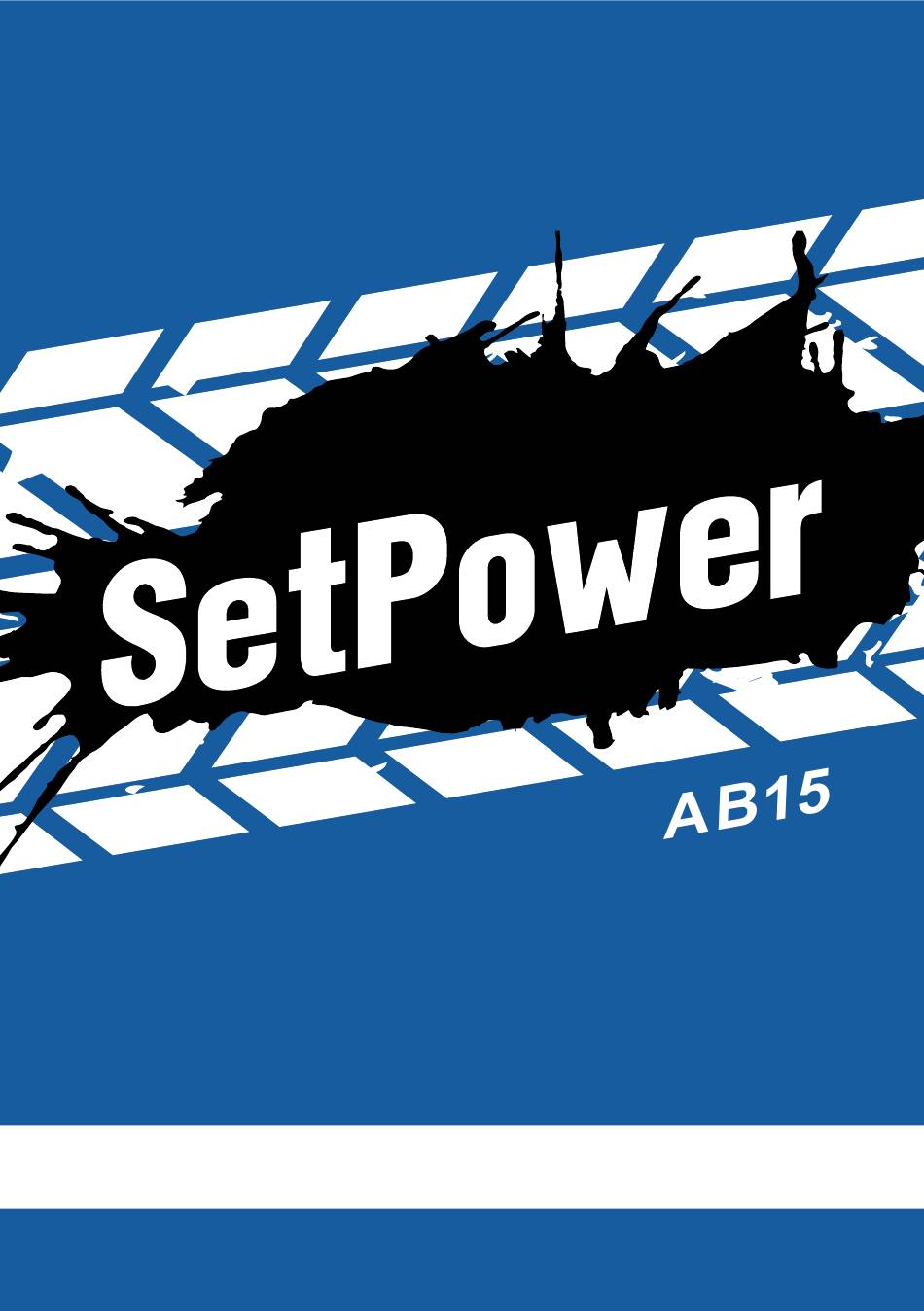

- Page 1 User Manual V1.0...
-
Page 2: Table Of Contents
CONTENT 1.SAFETY INSTRUCTIONS 2.DATA SHEET 3.OVERVIEW 4.POWER SOURCE INSTRUCTIONS 5.OPERATING INSTRUCTIONS 6.TROUBLE SHOOTING 7.FILLING 8.DEFRODTING 9.MAINTETANCE 10.CLEANING 11.SUGGESTIONS 12.GENERAL SAFETY MESSAGES 13.NOTICE 14.WARRANTY & RETURN 15.FCC WARNING... -
Page 3: Safety Instructions
1.SAFETY INSTRUCTIONS Please read this operating manual carefully before starting the appliance. Keep it in a safe place for future reference. If the appliance is passed on to another person, this instruction manual must be handed over to the user along with it.The manufacturer cannot be held liable for damage resulting from improper usage or incorrect operation. - Page 4 1.2 NOTICE No responsible for the damage by ignoring the safety instructions of SetPower. The use of accessories that are not recommended by SetPower can cause injuries and will invalidate any warranty that you may have. Place the products so that they do not collide against each other or break when the appliance is in motion.
- Page 5 Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by SetPower. Do not place ice or liquids which are not sealed in containers within the refrigerator.
-
Page 6: Data Sheet
2. DATA SHEET Model AB15 External 22.24×9.45×14.17 inches Dimensions (565×240×360mm) (L*W*H) Capacity 16 Qt / 15 L Net Weight 17.20 lbs (7.8 kg) Temperature 0°F to 50°F (-18°C to +10°C) Range Installed Power Supply Voltage AC:110V - 240V DC:12V/24V Refrigerant Gas... -
Page 7: Overview
3.OVERVIEW 1. AB15 Refrigerator 2. Ice Pack 3. Non-slip Mat 4. Shoulder Straps 5. 110V - 240V AC Adapter 6. 12/24V DC Cord... -
Page 8: Power Source Instructions
15.8Qt (15L) FRIDGE 22.24" 9.45" 10.24" 6.69" 4. POWER SOURCE INSTRUCTIONS 4.1 CONNECTING WITH 12V OR 24V ● Connect the feeding cable to a direct current 12/24V DC power source. ● Make sure the polarity is right. ● If connected to an existing cigarette plug, please carefully check if power supply is suf ficient. -
Page 9: Operating Instructions
5. OPERATING INSTRUCTIONS 5.1 HOW TO USE THE REFRIGERATOR 1. Connect the fridge to a power source. 2. Press “ ” to turn on or turn off the fridge. 5.2 ADJUSTING THE TEMPERATURE With the appliance on, short press “ ”... - Page 10 5.3 SAVING ENERGY TIPS ● Do not open the appliance frequently if unnecessary. ● Make sure leave enough space to ventilating. ● Deforest the appliance once a layer of ice forms. ● Allow warm food to cool down first before placing it in the freezer to keep cool.
- Page 11 5.5 SETTING THE BATTERY PROTECTION ● The device is preset with a high battery protection level. ● To enter the menu, switch the refrigerator on by pressing the ON/OFF button. ● Press the SET button to access the battery protection level settings.
- Page 12 What’s battery protection mode? This function is designed to prevent over-discharge and battery depletion. When the measured DC voltage is below the Cut-of f value, the compressor will shut of f to prevent battery depletion. After the voltage is higher than Start-up value, the compressor will go back to work again.
-
Page 13: Trouble Shooting
(less than 6mm direct to battery) or if there is a loose connection somewhere. ● If this occurs when you try and start your SetPower and the power supply drops under 10.9 V it will not start. If this occurs when your SetPower is running and the power supply drops below 9.6 V it will stop. - Page 14 Connections ● The 12 V plug, car 12 V socket or any of the connections between the fridge and the battery could be faulty or have come loose since installation. 6.3 ERROR CODES CADE Error Type Action Check battery voltage Battery voltage low is low.
-
Page 15: Filling
7.FILLING ● Do not put hot food items into the refrigerator. Place the products in such a way as to avoid them hitting against each other or breaking because of the movement of the vehicle. ● Make sure that the lid is always well closed and open it for as short a time as possible. -
Page 16: Cleaning
10.CLEANING ● Regularly clean the inside and outside of the refrigerator using only warm water and a neutral detergent. ● Subsequent to washing, rinse with clean water and dry thoroughly using a soft cloth. ● Do not use the following: special glass and mirror cleaning products, liquid, powder, or spray detergents, alcohol, ammonia or abrasive products. -
Page 17: General Safety Messages
12.GENERAL SAFETY MESSAGES Failure to obey the following warnings could result in death or serious injury: ● ELECTRICAL SHOCK HAZARD. Do not immerse the product in water, or use it in an area that is excessively muddy. ● Do not use the cooler for any purpose other than as a mobile cooling device. - Page 18 ● Do not use a DC extension cord. ● Do not use a power strip or two-way splitter. ● Do not use power cord adapters of any kind other than those provided by the manufacturer. ● Do not use ice cubes or fill the cooler with water. If ice does accumulate at the bottom of the cooler, defrost the unit and use the drain plug to drain the water.
- Page 19 Manufacturer. SetPower is not liable in any way if you do not comply strictly with all the previsions in this manual. ● This appliance is not intended for use by persons...
-
Page 20: Warranty & Return
14.WARRANTY & RETURN 14.1 Warranty 3-year Warranty for The Compressor 1-year General Warranty For Warranty Registration, please contact us for more information. 14.2 Customer Service If the product is received damaged or defective, you can contact us via these ways: Customer Support Email: support@setpowerusa.com Amazon Message Service If you email us, these information needs to be included:... - Page 21 14.3 Return Policy Amazon-Fulfilled Order The postage is af forded by Amazon in Amazon return window. If the return window is expired but still in warranty, the return policy will be same as seller-fulfilled order. Seller-Fulfilled Order If the warranty is not expired, the postage is af forded when the return is confirmed to be caused by QUALITY ISSUE of our products.
-
Page 22: Fcc Warning
15.FCC WARNING Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. - Page 23 Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 24 Quality Service Guarantee This product is warranted for 3 years on the compressor and 1 yeal for all other parts from the date of purchase. Our goods come with guarantees that cannot be excluded under the Local Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage.
