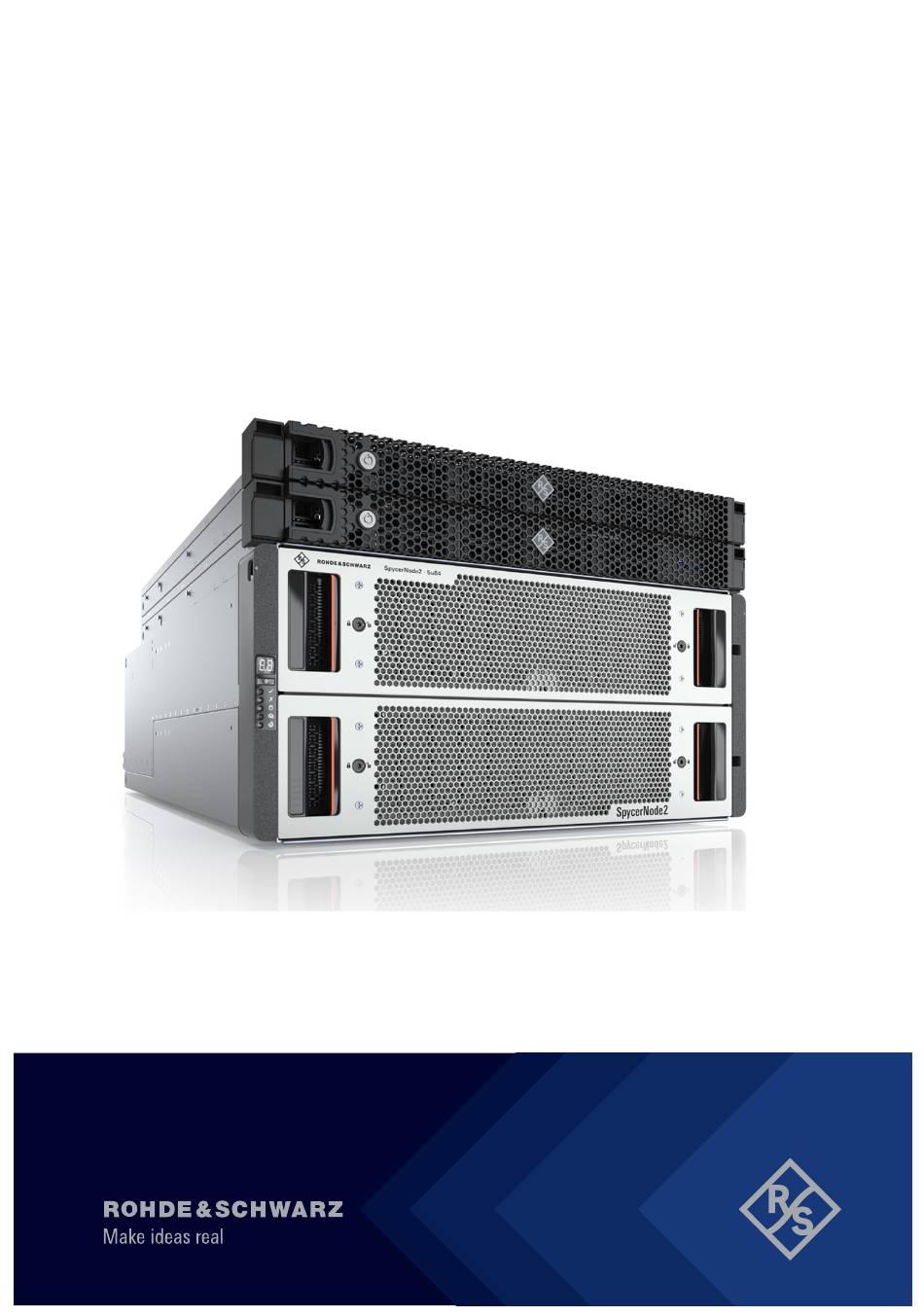

Page 1 SpycerNode2 Shared Media Storage User Manual (M2ÊÕ2) 2902607102 Version 04...
Page 2 Information on manufacturing company The storage controller modules of the SpycerNode2, a Rohde & Schwarz product, are manufactured by Lenovo®. The original product name is ThinkSystem SR635. LENOVO, LENOVO logo, and THINKSYS- TEM are trademarks of Lenovo. © 2023 Rohde & Schwarz GmbH & Co. KG...
Page 3 SpycerNode2 Safety and regulatory information Safety instructions 1 Safety and regulatory information The product documentation helps you use the product safely and efficiently. Follow the instructions provided here and in the following chapters. Intended use The R&S system may only be used according to its intended function as described in "Product Description"...
Page 4 SpycerNode2 Safety and regulatory information Safety instructions Using the product requires specialists or specially trained personnel. These users also need sound knowledge of at least one of the languages in which the user interfaces and the product documentation are available.
Page 5 SpycerNode2 Safety and regulatory information Safety instructions ucts from the bottom shelf to the top shelf so that the rack stands securely. Secure the product so that it cannot fall off the rack. Unplug the system before you move it or if you think it has become damaged in any way.
Page 6 SpycerNode2 Safety and regulatory information Safety instructions For safe handling, follow these rules: ● Do not short-circuit the battery. ● Do not mechanically damage the battery. Do not open or disassemble the battery. ● Do not expose the battery to high temperatures such as open flames, hot surfaces and sunlight.
Page 7 SpycerNode2 Safety and regulatory information Labels on the product ● When connected to a network, the product may potentially be accessed from the Internet, which may be a security risk. For example, attackers might misuse a net- work to remotely access and damage the product.
Page 8 SpycerNode2 Safety and regulatory information Korea Certification Class A 1.3 Warning messages in the documentation A warning message points out a risk or danger that you need to be aware of. The sig- nal word indicates the severity of the safety hazard and how likely it will occur if you do not follow the safety precautions.
Page 9 Further documents are available at: www.rohde-schwarz.com/product/spycernode2/ 2.1 Getting started manual Introduces the SpycerNode2 and describes how to set up and start working with the product. Includes basic operations for first use, and general information, e.g. safety instructions, etc.. ●...
Page 10 Provides safety information in many languages. The printed document is delivered with the product. 2.4 Data sheet The data sheet contains the technical specifications of the SpycerNode2. It also lists the firmware applications and their order numbers, and optional accessories. 2.5 Third-party documentation Various hardware modules of the SpycerNode2 are delivered as a third-party appli- ance.
Page 11 Advanced erasure coding to spread the data and shorten recovery time is required to avoid the catastrophic results of multi-disk failures with traditional RAID. SpycerNode2 with its ideal physical sizes as a building block is easy to install and deploy. IT managers appreciate features such as two-digit front-panel shelf ID, activity and status indicators for all key components, alarms and lockable carriers.
Page 12 SpycerNode2 Product Description Models Single JBOD (default configuration) ● One storage JBOD unit connected over single link ● 2 x dual-port connection ● Up to 1.68PB with 84bay-JBOD and 20 TB HDDs User Manual 2902.6071.02 ─ 04...
Page 13 SpycerNode2 Product Description Models Dual JBOD ● Two storage JBOD units connected over single link ● 4 x dual-port or 2 x quad-port HBAs connection ● Up to 3.36PB with 84bay-JBOD and 20 TB HDDs User Manual 2902.6071.02 ─ 04...
Page 14 SpycerNode2 Product Description Models Triple JBOD ● Three storage JBOD units connected over single link ● 4 x quad-port HBAs connection ● Up to 5.04 PB with 84bay-JBOD and 20 TB HDDs User Manual 2902.6071.02 ─ 04...
Page 15 SpycerNode2 Product Description Models Quad JBOD User Manual 2902.6071.02 ─ 04...
Page 16 Up to 6.72PB with 84bay-JBOD and 20 TB HDDs 3.3 Certified clients SpycerNode2 exposes the storage via the NSD (Network Shared Disk) protocol to the ethernet network. A NSD client is any server or workstation that has the native Spec- trum Scale protocol installed and is designated to operate as a client.
Page 17 SpycerNode2 Product Description System ID and serial numbers Figure 3-1: Location of the type plate on the slide-out panel Type plate info Several system components, each with its own system ID are identified through the type plate on the information label. The system ID itself consist of the material number and the six-digit serial number.
Page 18 SpycerNode2 Product Description The front of the system This OEM serial number is used as password when logging in to: ● R&S®Device Manager web frontend (username: "administrator"). During the initial setup procedure you have the option to change that password to your liking.
Page 19 22. 3.5.1 Storage controller front view The SpycerNode2 system has two identical controller units which serve as a file sys- tem server for the main storage JBOD unit. VGA connector Used to attach a high-performance monitor, a direct- drive monitor, or other devices that use a VGA connec- tor.
Page 20 SpycerNode2 Product Description The front of the system Drive status LED (yellow) Status ● Solid yellow - The drive has an error. ● Blinking yellow (blinking slowly, about one flash per second) - The drive is being rebuilt. ● Blinking yellow (blinking rapidly, about four flashes per second) - The RAID adapter is locat- ing the drive.
Page 21 Dynamic Media Cache (DMC) As an optional feature, SpycerNode2 provides high-performance support using Dynamic Media Cache for demanding media applications. DMC enchances delivery using NVMe and ensures automatically that the most active data is being cached. The DMC layer can be purchased additionally and can hold up to 8TB of the busiest data.
Page 22 SpycerNode2 Product Description The front of the system 3.5.2 Storage unit front view Operating panel (main See topic "Operating panel (storage unit)" on page 22. unit) Anti-tamper locks The red arrows on the locks will point inwards if the locks are disen- gaged.
Page 23 SpycerNode2 Product Description The front of the system Logical status Drawer 1 fault Drawer 2 fault Table 3-1: Operating panel LEDs Unit ID Power Module Logical Drawer 1 Drawer 2 Associ- Status display (green/ fault status fault fault ated LEDs...
Page 24 SpycerNode2 Product Description The front of the system Unit ID Power Module Logical Drawer 1 Drawer 2 Associ- Status display (green/ fault status fault fault ated LEDs amber) (amber) (amber) or alarms PSU fault Unknown LEDs, fan (invalid or fault LEDs...
Page 25 SpycerNode2 Product Description The rear of the system Sideplane OK/Power good Fore more information see Table 3-2 Drawer fault Logical fault Cable fault Activity bar graph Shows the amount of data I/O from zero segments lit (no I/O) to all six segments lit (maximum I/O). The Activity bar graph is a 6- segment drive activity meter, showing activity of the SAS inter- face to the sideplane.
Page 26 SpycerNode2 Product Description The rear of the system Storage controllers Contain the I/O modules, see Chapter 3.6.1, "Storage controller rear view", on page 26. Storage unit Contains the main operation sys- tem along with the JBODs (stor- age), see Chapter 3.6.2, "Storage unit rear view",...
Page 27 SpycerNode2 Product Description The rear of the system power supply to provide power redundancy without turning off the Power supply right server. NMI button Press this button to force a nonmaskable interrupt (NMI) to the pro- cessor. This way, you can make the operating system halt (such as Windows Blue Screen) and take a memory dump.
Page 28 SpycerNode2 Product Description The rear of the system High speed storage network ports (100 Gbit). Use to connect to further storage devices. High speed storage network ports (100 Gbit). Use to connect to further storage devices. Rear view LEDs The rear of the storage controller provides system ID LED, system error LED, Ethernet LEDs, and power supply LEDs.
Page 29 SpycerNode2 Product Description The rear of the system Table 3-5: Power supply LEDs Description ● (3) Power input LED Green: The power supply is connected to the AC power source. ● Off: The power supply is disconnected from the AC power source or a power problem occurs.
Page 30 SpycerNode2 Product Description The rear of the system 3.6.2 Storage unit rear view The rear of the chassis provides access to the JBOD modules, the cooling fans, and the power supply units. Cooling fans (5x) For more information see JBOD I/O module For more information see "JBOD module"...
Page 31 SpycerNode2 Product Description The rear of the system Fault Amber when there is a fault in the module Green when the module is operating correctly. Flashing green when there is a VPD error. SAS activity Steady green when there is a connection but no activity. Flashing green when there is a connection and activity.
Page 32 SpycerNode2 Product Description The rear of the system Table 3-7: Cooling fan LEDs Module OK Constant green indicates that the fan is working correctly. Module OK (green) Fan fault (amber) Status Module good (battery and fan) Fan OK Communication lost with fan...
Page 33 SpycerNode2 Product Description Storage Dual PSUs provide redundant power for the system: if one PSU fails, the other will keep the system running while you replace the faulty module. The PSUs are hot-swap- pable. Replacement of a PSU can be performed while the enclosure is running, but the procedure must be completed within two minutes of the removal of the defective PSU.
Page 34 SpycerNode2 Product Description Storage method to allow a controller to “own” access to a given device, reserving it for its exclu- sive use. The drives provide error detection and correction capabilities. These are reported to the application in line with the SCSI specifications.
Page 35 SpycerNode2 Product Description Storage A storage unit can have up to three different storage layouts: One-third load configura- tion, Two-third load configuration, or Full-load configuration. One-third load configuration Two-third load configuration Full-load configuration Bundle capacity options A storage bundle consists of 28 disk drives. Each bundle is intended for 2 disk arrays - 14 pcs for the top and 14 pcs for the bottom storage bay.
Page 36 SpycerNode2 Product Description Storage Disk type Capacity options (in TB) ● ● ● ● ● ● ● 3.7.2 Storage configuration options and extensions The system can be operated with both SSD or HDD disk types as well as with a mixed type of storage drives.
Page 37 SpycerNode2 Product Description Storage Multiple JBOD options When using SSDs, only the first storage unit (JBOD 1) can be equipped with that type of drives. Any subsequent storage units (JBOD 2 - 4) are to be equipped with HDD drives only.
Page 38 SpycerNode2 Product Description Storage 3.7.3 Drive carriers Each drive is housed in a carrier that enables secure insertion of the drive into the slot. Slide latch Latch button Drive failure LED Dongle The following drive types are supported: ● HDD - 3.5” 7200rpm SAS drive ●...
Page 39 Here, you can find basic information about setting up the product for the first time. 4.1.1 Lifting and carrying The SpycerNode2 can be heavy, e.g. if fully equipped. Use an appropriate lifting equip- ment, see "Lifting and carrying the product"...
Page 40 SpycerNode2 Getting Started Preparing for use Rail kit Accessories Main storage unit (5U server) Drive carriers 2. Retain the original packing material. Use it to protect the control elements and con- nectors when transporting or shipping the product 3. Using the delivery notes, check the equipment for completeness.
Page 41 SpycerNode2 Getting Started Preparing for use Storage controller (1U server) Accessories (including items such as cable management, power cords and documentation.) Rail kit If the delivery is incomplete or equipment is damaged, contact Rohde & Schwarz. 4.1.3 Choosing the operating site Specific operating conditions ensure proper operation and avoid damage to the prod- uct and connected devices.
Page 42 SpycerNode2 Getting Started Installation See also "Choosing the operating site" on page 4. 4.2 Installation This section describes the hardware installation of the product. 4.2.1 Mounting the system into a rack This sections describes the installation of the product into a rack and lists the require- ments prior to the installation.
Page 43 SpycerNode2 Getting Started Installation 1. CAUTION! Electrostatic discharge. Ensure that you have fitted and checked a suit- able anti-static wrist or ankle strap and observe all conventional ESD precautions when handling electric components. If possible, avoid contact with backplane com- ponents and module connectors.
Page 44 SpycerNode2 Getting Started Installation Use the long or short hold down bracket depending on the distance from the rack post to the enclosure hold down slot. Ensure the sliding nut is at the rear of the slot prior to fitting the bracket to the post, then slide the nut along the slot to enable the rear enclo- sure fastening screw to be fitted.
Page 45 SpycerNode2 Getting Started Installation The storage drives are shipped separately along with the product, and have to be installed prior to commisioning. The order of the drives in the storage bays is virtual- ized, and may bear no resemblance to the order shown here. Therefore, we recom- mend to use the drive labels included in the shipment package to correctly map your drive layout.
Page 46 SpycerNode2 Getting Started Installation Depending on your purchase option the system can have up to three different storage layout configurations, see also Chapter 3.7.1, "Storage layout and capacity", on page 34 One-third load configuration 1. In the top storage bay, install 14 drives into slot 1-01 through 1-14 of the front stor- age array.
Page 47 SpycerNode2 Getting Started Installation 5. Label the drives as depicted using the labels from the delivery (left to right). 6. Optionally lock the drives with Torx T20, and close the drawer. Two-third load configuration 1. In the top storage bay, install 28 drives into slot 1-01 through 1-28.
Page 48 SpycerNode2 Getting Started Installation 5. Label the drives as depicted using the labels from the delivery (left to right). 6. Optionally lock the drives with Torx T20, and close the drawer. Full-load configuration 1. In the top storage bay, install 42 drives into slot 1-01 through 1-42.
Page 49 SpycerNode2 Getting Started Installation 5. Label the drives as depicted using the labels from the delivery (left to right). 6. Optionally lock the drives with Torx T20, and close the drawer. 4.2.3 Connecting to power source Loss of data/corrupt data In the event of a power failure the device will be abruptly switched off.
Page 50 SpycerNode2 Getting Started Installation For the storage unit, connect C19 AC power plugs to both C20 AC power sokets as shown. 4. For the two storage controllers, connect C19 AC power plugs to both C20 AC power sokets as shown.
Page 51 SpycerNode2 Getting Started Installation Single JBOD setup Connect the SAS HD connectors from the controllers A and B to the JBOD I/O mod- ules as described below. Head unit JBOD Unit A Unit B SAS left, port 1 JBOD left, port A...
Page 52 SpycerNode2 Getting Started Installation Head unit JBOD 1 JBOD 2 Unit A Unit B SAS left, port JBOD left, port A SAS right, port JBOD right, port A SAS left, port JBOD left, port B SAS right, JBOD right, port B...
Page 53 SpycerNode2 Getting Started Installation Triple JBOD setup Connect the SAS HD connectors from the controllers A and B to the JBOD I/O mod- ules as described below. Head unit JBOD 1 JBOD 2 JBOD 3 Unit A Unit B SAS left,...
Page 54 SpycerNode2 Getting Started Installation Head unit JBOD 1 JBOD 2 JBOD 3 SAS left, JBOD left, port A port 2 SAS right, JBOD right, port A port 2 SAS left, JBOD left, port B port 2 SAS right, JBOD right, port B...
Page 55 SpycerNode2 Getting Started Installation Head unit JBOD 1 JBOD 2 JBOD 3 JBOD 4 Unit A Unit B JBOD left, port A left, port User Manual 2902.6071.02 ─ 04...
Page 56 SpycerNode2 Getting Started Installation Head unit JBOD 1 JBOD 2 JBOD 3 JBOD 4 JBOD right, port A right, port 1 JBOD left, port B left, port JBOD right, port B right, port 1 JBOD left, port A left, port...
Page 57 SpycerNode2 Getting Started Installation 4.2.5 Connecting to networks 1. Connect your storage backbone switch to any of the 100 Gbit Ethernet connectors using a 100 GbE QSFP cable. 2. Connect the system to your local network using the 1/10 Gbit Ethernet connectors.
Page 58 This chapter describes setup and configuration of SpycerNode2. 5.1 Starting the system After a proper installation of the system you may start SpycerNode2 at any time. 1. To turn on the storage unit, press the power switches briefly on the rear of the sys- tem.
Page 59 SpycerNode2 Commissioning R&S network switch configuration 5.2 R&S network switch configuration This chapter describes how to set up the network switch. 5.2.1 Initial configuration The R&S network switch needs an initial configuration before it can be accessible for management. For best performance your network topology must support jumbo frames.
Page 60 SpycerNode2 Commissioning R&S network switch configuration 5.2.2 Configuring a static IP for management interface You will only be required to perform the procedure below if your switch configuration has been initially set to DHCP. Also, if setting up the switch for the first time, a quick start wizard from the original manufacturer will be presented to set a static IP address.
Page 61 SpycerNode2 Commissioning R&S network switch configuration Configure port for splitter cable Configure the port for splitter cable to connect 10Gbit clients to the switch. ► Enter interface ethernet 1/[port number you want to split] module-type qsfp-split-4. Display IP interface ► Enter show IP Interface to connect via DHCP to display IP interfaces.
Page 62 SpycerNode2 Commissioning Initial Setup 5.3 Setting the unit identification number The unit identification number is not set before the first system power on. The display is set to “00” (flashing). The enclosure continues to power up even if the unit identifica- tion number is not set.
Page 63 SpycerNode2 Commissioning Initial Setup 5.4.1 Using Dynamic Host Configuration Protocol (DHCP) With a zeroconf capable PC/MAC it is possible to automatically detect network ser- vices. You can also use a zeroconf browser to view all zeroconf capable devices in your network. If your PC is not zeroconf capable use tools such as Bonjour.exe for the automatic detection of network services or connect your system using a static IP address.
Page 64 SpycerNode2 Commissioning Initial Setup Tip: The controller name follows the pattern sno2-[OEM serial number] (i.e. enter http://sno2-j30aexpm in the web browser). 4. The first time you log in, enter the following credentials: Username: "administrator" Password: "[OEM serial number]" 5. Define new hostname and password for the system: Note: The password must contain at least six characters.
Page 65 SpycerNode2 Commissioning Initial Setup Time zone Select your time zone from various predefined selection options. Be master time server Set the checkbox if you want to designate this particular system as the main NTP server within your local network. Use device time Read the current date and time of the device and set it as default.
Page 66 SpycerNode2 Commissioning Initial Setup Note: Please note that Link Aggregation (bonding) of network ports is not possible in this initial stage. To perform the bonding, the Setup Wizard has to be completed first. 8. In the next installation phase, the file system configuration is carried out. First, the metadata drives and the installed storage capacity are displayed.
Page 67 SpycerNode2 Commissioning Initial Setup Network interface (IP) Select the network interface for your file system. The connection is usually established via the 100Gbit interfaces. File system name Provide a name for your file system. Linux mount point Define the mount path for this file system at your connected Linux native clients.
Page 68 "Open settings". 13. Navigate to "System > Restart and shutdown" and opt for the reboot option. The SpycerNode2 is now properly installed and ready for first use 5.4.2 Using static IP 1. Connect port enp2s0f0np0 to a PC/Mac 2.
Page 69 SpycerNode2 Commissioning Initial Setup 3. Enter the static IP in the Chrome web browser to open the R&S®Device Manager on your local system. (i.e. http://10.0.0.4) 4. Locate the OEM serial number of the device which is to be found on the front of the storage controller.
Page 70 SpycerNode2 Commissioning Initial Setup Note: The password must contain at least six characters. Note: The password credentials defined in this step apply also to the other network services running on the system, such as Samba Share. Note: For systems equipped with two controllers, each of the configuration settings have to be performed separately for each one of the controllers.
Page 71 SpycerNode2 Commissioning Initial Setup 8. The network settings are displayed in the enp2s0f0np0 network port section. The IP address is set to 10.0.0.4 and the Netmask to 255.255.255.0. If you wish to use another static IP address you can enter it here into the IP address field.
Page 72 SpycerNode2 Commissioning Initial Setup Zone 1 Shows the number of metadata drives, the drive type, the capacity, and RAID level. Zone 2 / Zone 3 Shows the installed storage drives type, their capacity and the level of RAID protection. Each zone represents a single drive set which consists always of 30 drives.
Page 73 13. On the main page of the Device Manager select the corresponding system and click on "Open settings". 14. Navigate to "System > Restart and shutdown" and opt for the reboot option. The SpycerNode2 is now properly installed and ready for first use User Manual 2902.6071.02 ─ 04...
Page 74 SpycerNode2 Operation ® Using the R&S Device Manager 6 Operation This chapter describes the operation of the system. 6.1 Using the R&S ® Device Manager For operation and system monitoring use the R&S®Device Manager, the convenient solution developed by Rohde & Schwarz to manage and monitor your R&S systems in a common network.
Page 75 SpycerNode2 Administration Updating the system 7 Administration This chapter provides information and procedures for performing a range of administra- tive-level tasks on your product. 7.1 Updating the system The Rohde & Schwarz Installer (RSI) is used to install/update the entire software envi- ronment required to operate R&S systems.
Page 76 SpycerNode2 Administration Updating the system 3. Click the "Next" button. The installer will list all software (operating system, drivers and tools) which will be updated. 4. Click "Next" to proceed to the next section. A list is shown with all newer R&S systems detected in the network. In the first col- umn, you can select one or more systems to be updated.
Page 77 SpycerNode2 Administration Updating the system 5. Click "Install" to start the installation. The current status will be shown in the "Sta- tus" column. Note: Please be aware that the system will automatically reboot within ten minutes after the installation of a file system or operating system RSI.
Page 78 SpycerNode2 Administration Updating the system Error code Message Description & possible solution Failed updating! Disk volume is full or installation packages are defective. Failed installing meta package! The meta package of the product is defective or required packages are missing.
Page 79 SpycerNode2 Administration Installing the Spectrum Scale client Error code Message Description & possible solution CentOS version is 'X', but must be lower The newer CentOS version is not compatible than 'Y'! with this outdated RSI. Use a newer RSI ver- sion.
Page 80 SpycerNode2 Administration Installing the Spectrum Scale client 3. Install the packages a) For CentOS-RHEL use the following command: yum -y install gpfs.base*.rpm gpfs.docs*.rpm gpfs.gpl*.rpm gpfs.gskit*.rpm gpfs.msg.en_US*.rpm gpfs.license.std*.rpm b) For Debian-Ubuntu use the following command: dpkg --install gpfs.base*.deb gpfs.docs*.deb gpfs.gpl*.deb gpfs.gskit*.deb gpfs.license*.deb gpfs.msg.en_US*.deb 4.
Page 81 SpycerNode2 Administration Installing the Spectrum Scale client 4. Confirm your changes with "OK". 5. Disable SECURE BOOT in the mainboard BIOS. 6. Unzip the file GPFS_Client.zip to C:\ Installing the Mellanox network card 1. Instal the network card according to the Mellanox installation manual.
Page 82 SpycerNode2 Administration Installing the Spectrum Scale client a) For a dual Mellanox network card: mlxconfig -d /dev/mst/mt4119_pciconf0 set LINK_TYPE_P1=2 LINK_TYPE_P2=2 b) For a single port Mellanox network card: mlxconfig -d /dev/mst/mt4119_pciconf0 set LINK_TYPE_P1=2 12. Type in y to apply the Ethernet mode.
Page 83 SpycerNode2 Administration Installing the Spectrum Scale client 5. Disable "Flow Control". 6. Set the "Jumbo Packet" to 9014. User Manual 2902.6071.02 ─ 04...
Page 84 SpycerNode2 Administration Installing the Spectrum Scale client The configuration of the network card is complete. Installing Spectrum Scale 1. In the R&S®Device Manager navigate to "Maintenance > Software installer", and download the corresponding SSFS installer package. User Manual 2902.6071.02 ─ 04...
Page 85 SpycerNode2 Administration Installing the Spectrum Scale client 2. Execute the client installer on your client device and accept the license agreement. 3. Select all components to install. User Manual 2902.6071.02 ─ 04...
Page 86 SpycerNode2 Administration Installing the Spectrum Scale client 4. Create a local "root" account with password if this hasn't been already done. User Manual 2902.6071.02 ─ 04...
Page 87 SpycerNode2 Administration Installing the Spectrum Scale client 5. Confirm with "Install". The Spectrum Scale Client installation has been successfully completed. 7.2.3 Adding a native Spectrum Scale client to an existing cluster 1. Start Spectrum Scale on the client. 2. Copy the public SSH keys from all system controllers to the client: #>...
Page 88 You can monitor single parts of your system using SNMP data points, or you can use the R&S®Device Manager that allows you to query the state of the SpycerNode2 and single parts of the hardware. You will be able to define critical values and configure an e-mail notification as well.
Page 89 The Device Manager monitors critical system components in realtime and displays the gathered information. The Health Panel for the SpycerNode2 provides both visual and statistics details about the status of the system components. The panel can be accessed by selecting the cor- responding system and navigating to "Maintenance >...
Page 90 SpycerNode2 Administration System monitoring User Manual 2902.6071.02 ─ 04...
Page 91 SpycerNode2 Administration System monitoring Main Local Currently selected storage controller (indicated as "Local"). The graphic dis- plays the status of the power supply units. Main Remote Second storage controller (indicated as "Remote"). If clicked on, it becomes the currently selected controller.
Page 92 SpycerNode2 Administration System monitoring 3. If you open this tab for the first time you will get a "Not secure" note. Select "Advanced" to continue. 4. Select "Proceed to xxx.xx.xx.xxx (unsafe) to continue. User Manual 2902.6071.02 ─ 04...
Page 93 SpycerNode2 Administration System monitoring The login window of the monitoring interface opens. 5. Enter username and password. The default credentials are given below: username: admin - password: admin001 6. Select "Physical" in the "Storage" menu. User Manual 2902.6071.02 ─ 04...
Page 94 SpycerNode2 Administration System administration 7. If necessary select one of the arrays to get more information. If you have to replace a disk array follow the instructions in Chapter 8.2.1, "Replac- ing a drive carrier", on page 107 7.4 System administration This chapter describes the procedures on how to recover the system after having exchanged a the storage controllers.
Page 95 SpycerNode2 Administration System administration 2. Login with your credentials to the GLORIS system: https://idp1.aaa.rohde- schwarz.com/logon/LogonPoint/tmindex.html. 3. Upon successful login, navigate to "Support & Services > My Products > Broadcast & Media". 4. Depending on the number of product groups you have access to, you will find a dif- ferent amount of products on the page.
Page 96 SpycerNode2 Administration System administration 2. Unzip the archive on your Windows system. It contains two main programs: Rufus-3.4.exe Rufus is a third-party utility that helps format and create bootable USB flash drives, such as USB keys, or memory sticks. rus-rescue-v-2.4.iso R&S imaging and cloning tool used to create backups and restore system...
Page 97 SpycerNode2 Administration System administration 7. Initiate the process with the "START" button. User Manual 2902.6071.02 ─ 04...
Page 98 SpycerNode2 Administration System administration USB flash drive is now ready for use. 7.4.1.2 Creating a backup image The following describes the steps to make a backup image of the current system disk and save it to the USB flash drive.
Page 99 SpycerNode2 Administration System administration 3. Turn on the system. At the indicated moment during start-up you have to press [F11] to enter the boot menu. 4. Select the USB flash drive as the boot device. 5. Press "Enter". The system will boot from the USB flash drive. You will see a win- dow on the screen where you can select the R&S Rescue environment for loading.
Page 100 SpycerNode2 Administration System administration Note: If you do not perform any action, RuS Rescue will be loaded automatically after 30 seconds. 7. NOTICE! Data loss. Selecting the wrong source device may lead to an unwanted configuration and malfunctions when the system is operating.
Page 101 SpycerNode2 Administration System administration If during the process the screen turns black, press [Space] to get it back again. When the system has finished the backup process, you will be notified about this. Then after pressing [Enter], you will be redirected to the R&S Rescue script once more where you can choose, for example, ‘reboot’...
Page 102 SpycerNode2 Administration System administration Note: If you do not perform any action, RuS Rescue will be loaded automatically after 30 seconds. 6. NOTICE! Data loss. A recovery will overwrite all your data. Continue with the following steps only when you are able to identify the correct tar- get device.
Page 103 SpycerNode2 Administration System administration If during the process the screen turns black, press [Space] to get it back again. When the system has finished the recovery process, you will be notified. Then after pressing [Enter], you will be redirected to the RuS Rescue script once more where you can choose, for example, ’reboot’...
Page 104 SpycerNode2 Administration System administration 3. Selcet "Recover". 4. Click "Start" to initiate the automated recovery process. Thereat, the backup image stored on the active controller will be installed on the replacement unit. User Manual 2902.6071.02 ─ 04...
Page 105 SpycerNode2 Administration System administration 5. The recovery procedure is now initiated. The progress of each of the steps is indi- cated on the screen. Note: Please note that the process may take up to 50 minutes. 6. The recovery image is now installed on the replaced controller. Click "Finish" to exit the dialog.
Page 106 SpycerNode2 Administration System administration User Manual 2902.6071.02 ─ 04...
Page 107 SpycerNode2 Maintenance Storage unit (JBOD) maintenance 8 Maintenance This chapter explains the maintenance work that you can perform on your own. For each work a detailed procedure description is given. If you experience trouble with the system that cannot be resolved with the work described here, please contact your local vendor or Rohde &...
Page 108 SpycerNode2 Maintenance Storage unit (JBOD) maintenance Identifying a defective drive 1. Open the R&S Device Manager and navigate to the drive monitoring interface as described in Chapter 7.3.3, "Monitoring the disk arrays", on page 91. 2. Select "Replace Broken Disks..." in the context menu.
Page 109 SpycerNode2 Maintenance Storage unit (JBOD) maintenance 2. Open the relevant drawer. 3. Locate the drive to be replaced, either by using the drive plan in the figure in step 1 or by looking for the amber LED on the drive that indicates a fault.
Page 110 SpycerNode2 Maintenance Storage unit (JBOD) maintenance 1. Lower the drive carrier into the slot, with the drive capacity label facing towards you (1). 2. Push the drive carrier downwards and hold it down while sliding the drive carrier plate in the direction. This locks the drive in place (2).
Page 111 SpycerNode2 Maintenance Storage unit (JBOD) maintenance Overheating damage An incorrect airflow can damage components. The drawers must be populated with drives in whole arrays at a time (there are 3 arrays of 14 drives per drawer). Thereat, the number of loaded arrays in the top drawer must equal the same number of the bottom one (e.g.
Page 112 SpycerNode2 Maintenance Storage unit (JBOD) maintenance 2. Push down and hold the red release latch (1) and pull the module out by its handle (2). Note: Handle the modules carefully and avoid damaging the connector pins. Do not install if any pins appear to be bent.
Page 113 SpycerNode2 Maintenance Storage unit (JBOD) maintenance 2. Slide the cooling module into its slot until the latch clicks home. The enclosure will automatically detect and make use of the new unit. 8.2.3 Replacing a power supply unit Removing a power supply unit Before removing a module, make sure you have a replacement module to insert.
Page 114 SpycerNode2 Maintenance Storage controller maintenance Installing a power supply unit 1. Before installing a new hot-swap power supply, touch the static-protective package that contains the new PSU to any unpainted surface on the outside of the enclo- sure. Then, take the new hot-swap power supply out of the package and place it on a static-protective surface.
Page 115 SpycerNode2 Maintenance Storage controller maintenance Working inside the controller with the power on Observe the following: ● Always use an electrostatic-discharge wrist strap or other grounding systems when working inside the enclosure with the power on. ● Avoid loose-fitting clothing, particularly around your forearms. Button or roll up long sleeves before working inside the enclosure.
Page 116 SpycerNode2 Maintenance Storage controller maintenance Before removing a module, make sure you have a replacement module to insert. Removing a power supply unit 1. Disconnect the power cord from the hot-swap power supply. Note: If you are replacing two power supplies at the same time, do the power sup- ply replacement one by one to ensure that the power supply to the controller is not interrupted.
Page 117 SpycerNode2 Maintenance Disposal b) Grasp the memory module at both ends and carefully lift it out of the slot. Note: To avoid breaking the retaining clips or damaging the memory module slots, handle the clips gently. 5. Install the new memory module: Watch video from original manufacturer here: https://www.youtube.com/watch?
Page 118 SpycerNode2 Maintenance ® Access to R&S Media Technologies Service & Support Disposing electrical and electronic equipment A product that is labeled as follows cannot be disposed of in normal household waste after it has come to the end of its service life. Even disposal via the municipal collection points for waste electrical and electronic equipment is not permitted.
Page 119 SpycerNode2 Maintenance ® Access to R&S Media Technologies Service & Support 4. Select the first option "I need technical support or have a technical question" 5. Select "by IDs or Numbers". 6. Select "Material and Serial Number" to further identify your system.
Page 120 SpycerNode2 Maintenance ® Access to R&S Media Technologies Service & Support c) Another possibility to get the material number and the serial number is to access the system from the Device Manger and check the system information ® (see also Chapter 6.1, "Using the R&S...
Page 121 SpycerNode2 Maintenance Notifications management for new software releases 10. Click the "Submit" button to finish the process. A ticket ID will be assigned to your request. Communication is done via portal notes within the Online Support Center or via email with the ticket ID (e.g. [ Ticket: 123456 ]) in the subject line.
Page 122 SpycerNode2 Maintenance Notifications management for new software releases User Manual 2902.6071.02 ─ 04...
